PowerFlex 4 (22A Series) | Allen-Bradley | 22A-B4P5N104 PowerFlex 4 0.75 kW 1 HP AC Drive 22A-B4P5N104 NEW

Product Description: Allen-Bradley 22A-B4P5N104

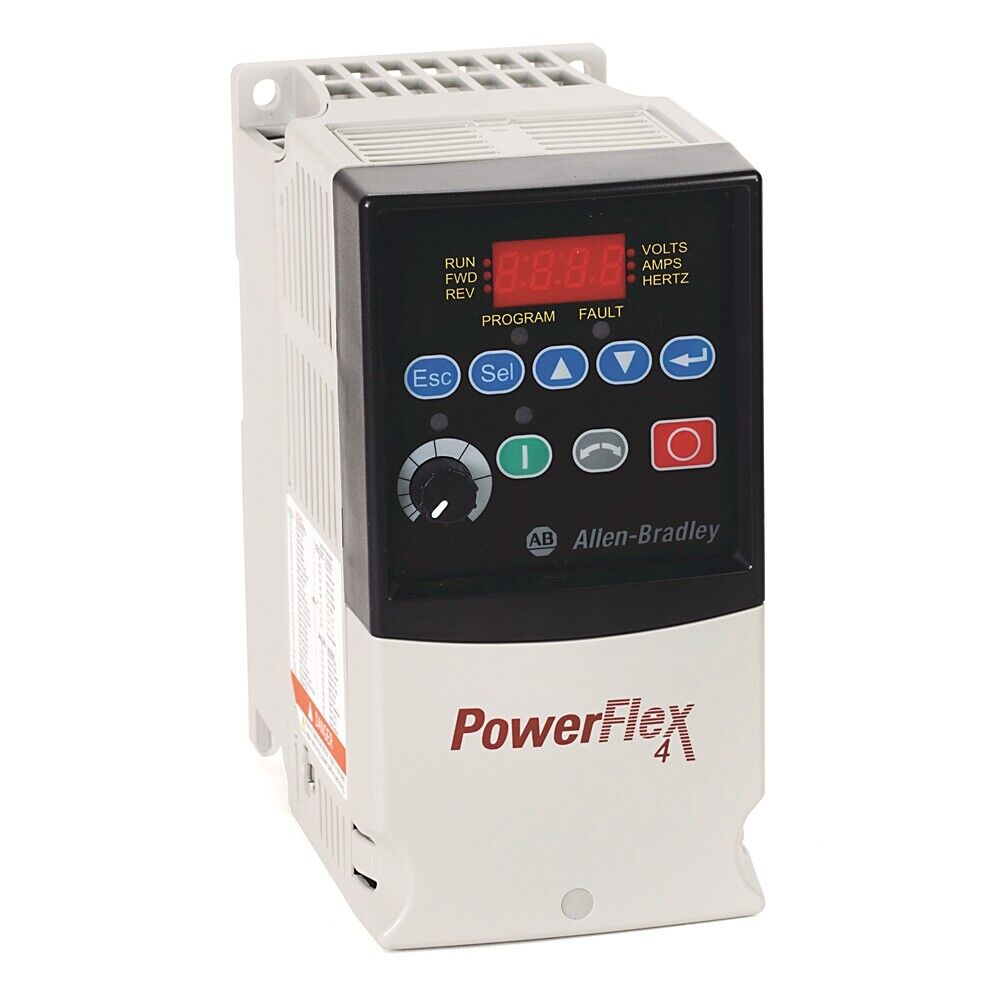

The Allen-Bradley 22A-B4P5N104 is a PowerFlex 4 AC drive designed to deliver basic and reliable variable speed motor control for 3-phase induction motors. It supports a 380–480V AC input, delivering 4.5 A output current, and is suitable for motors rated up to 1.1 kW (1.5 HP). With an intuitive keypad, compact IP20 housing, and integrated RS-485 communication, this drive is ideal for OEMs and end users requiring a cost- effective solution for general-purpose motor applications.

Key Features

• Input: 3-phase, 380–480V AC, 50/60 Hz
• Output Power: 1.1 kW (1.5 HP)
• Output Current: 4.5 A
• Control Mode: Volts/Hertz (V/Hz)
• Integrated 4-digit LED keypad with local start/stop and parameter access
• Built-in RS-485 communication with Modbus RTU protocol
• Panel or DIN rail mounting options
• Compact IP20 open-type enclosure for cabinet installations

Technical Specifications

• Voltage Class: 480V
• Output Frequency: 0–400 Hz
• I/O:
  • 4 digital inputs
• Communication: RS-485 (Modbus RTU)
• Ambient Operating Temperature: -10°C to 50°C (up to 60°C with derating)
• Enclosure Type: IP20 (Open Type)
• Dimensions (HxWxD): Approx. 174 x 72 x 152 mm
• Certifications: UL Listed, CE, cUL, RoHS, Class I Div 2

Application Areas

• Fans and blowers
• Light-duty conveyors and pumps
• Small OEM equipment and machine tools
• HVAC and ventilation systems
• General industrial applications requiring simple motor speed control

Advantages

• Cost-effective solution for basic speed regulation
• Compact footprint suitable for tight control panel spaces
• Quick setup via user-friendly keypad interface
• Standard RS-485 communication allows system integration
• Durable and reliable for light industrial duty cycles
