PowerFlex 4 | Allen-Bradley | 22A-V4P5N104 AB PowerFlex 4 0.75kW 1HP AC Drive INPUT

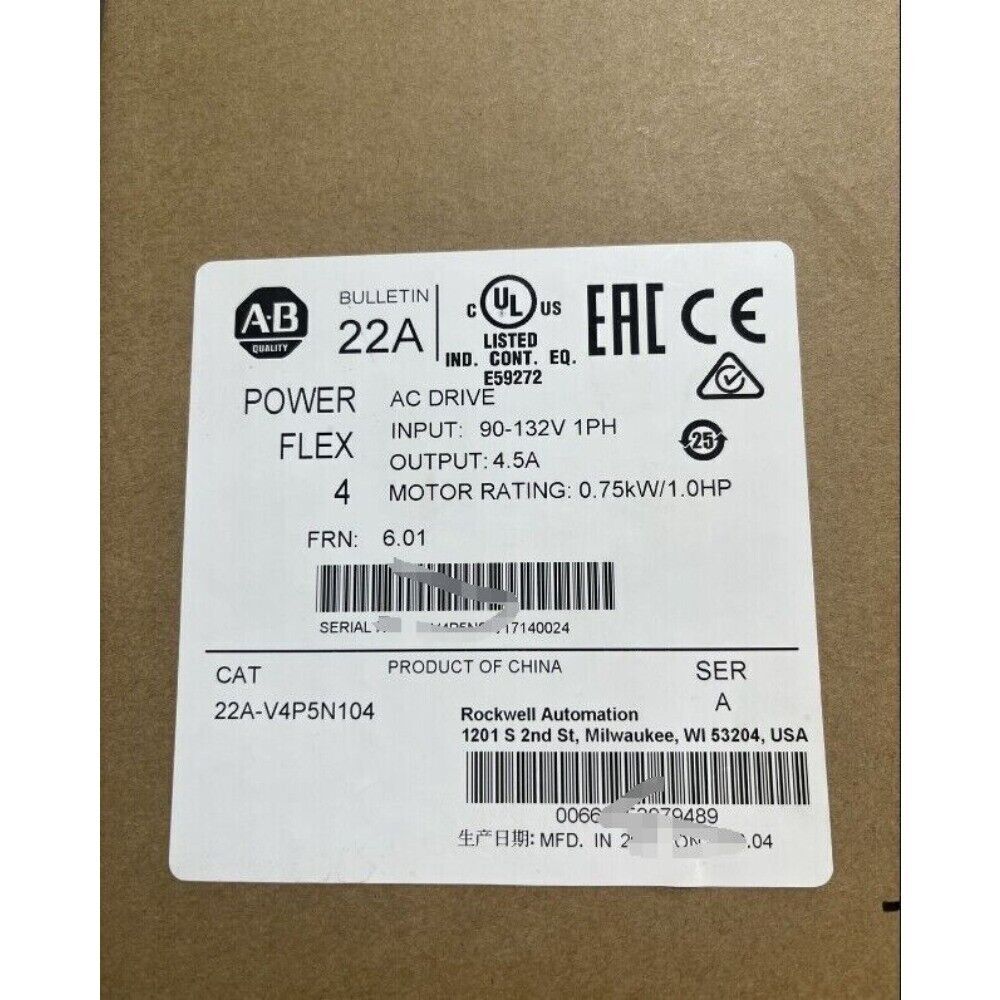

Product Description: Allen-Bradley 22A-V4P5N104

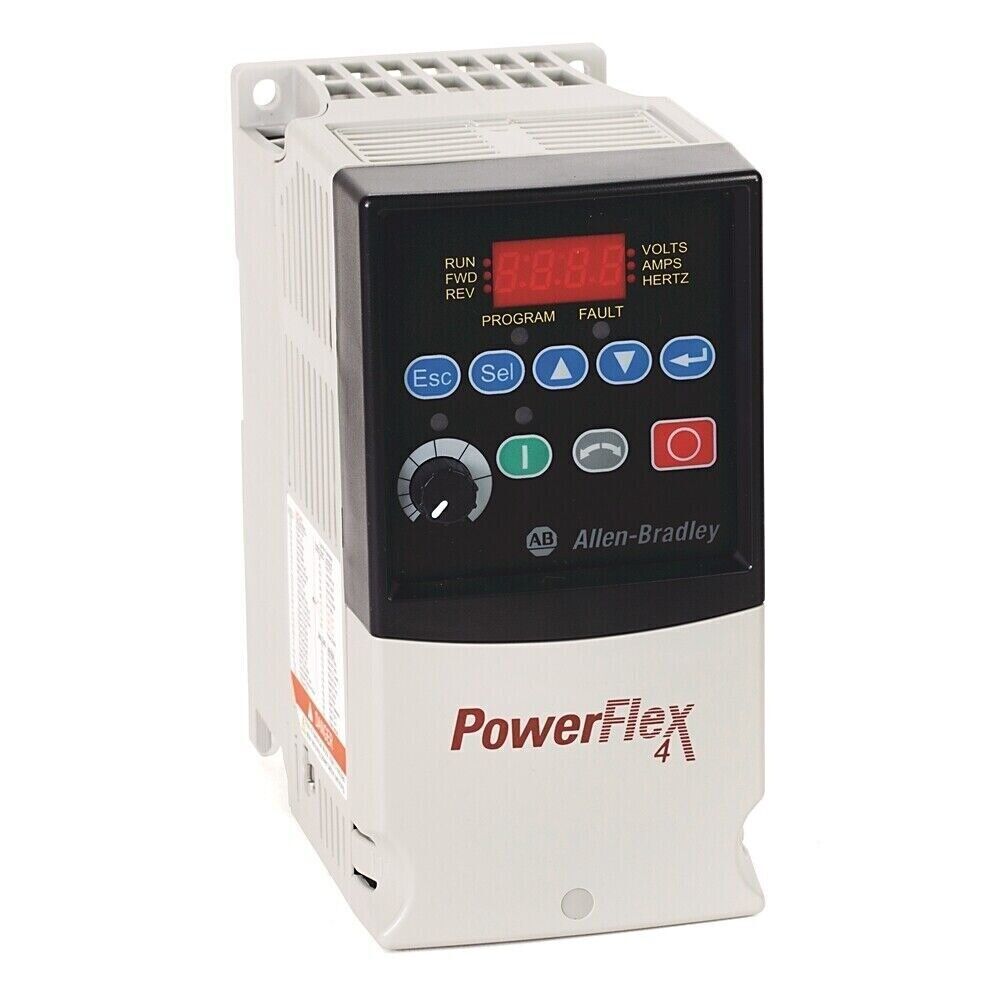

The Allen-Bradley 22A-V4P5N104 is a member of the PowerFlex 4 series, offering compact and cost-effective motor control for basic industrial applications. With a 4.5A output current and 1 HP power rating at 480V, it delivers solid performance in a minimal footprint, ideal for standalone machines and equipment with limited space.

Key Features

• Control Modes: Volts-per-Hertz (V/Hz)
• Built-in RS-485 (DSI) serial communication
• Integral keypad with 4-digit LED display for easy setup
• Flying start, dynamic braking support, and PID control
• Programmable digital and analog I/O
• Optional NEMA 1 enclosure conversion kit
• Simple parameter structure for fast commissioning

Technical Specifications

• Input Voltage: 3-phase, 480V AC
• Output Current: 4.5 Amps
• Power Rating: 1 HP (Horsepower)
• Frequency Range: 0–400 Hz
• Enclosure Type: Open Type (IP20), convertible to NEMA 1
• Frame Size: Frame A
• Control Method: V/Hz
• Operating Temperature: -10°C to +50°C
• Dimensions (HxWxD): approx. 170 x 85 x 150 mm
• Weight: approx. 2.2 kg

Application Areas

• Small conveyors and feeders
• Light-duty pumps and fans
• Standalone OEM equipment
• Laboratory and test devices
• Compact control panel systems

Advantages

• Simple and compact solution for basic drive needs
• Quick installation and configuration
• Integrated keypad and serial interface for local and remote control
• Low-cost alternative for low-power motor control
• Proven reliability in small industrial automation systems
