Allen-Bradley | 22A-D6P0N104 | PowerFlex 4

Product Description: Allen-Bradley 22A-D6P0N104

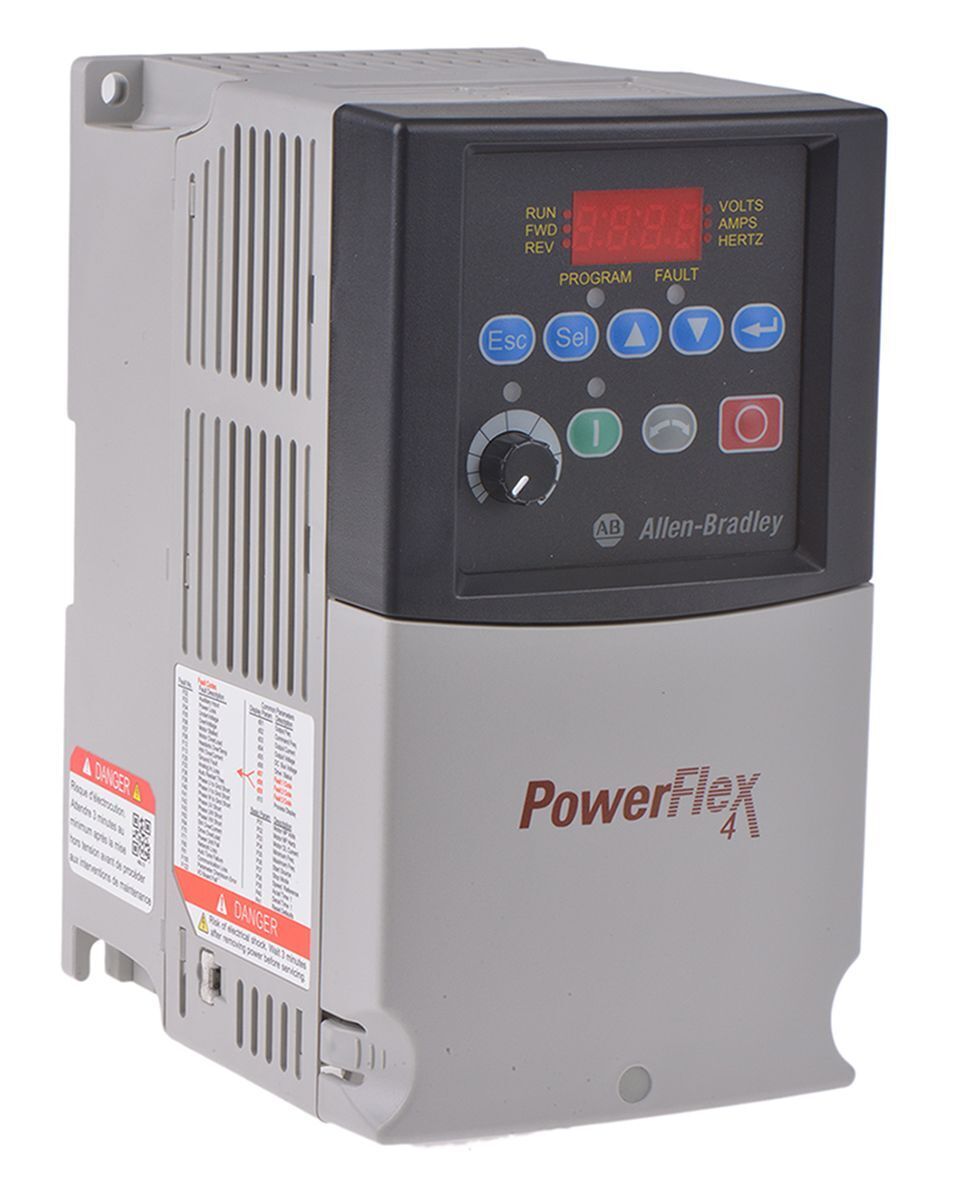

The Allen-Bradley 22A-D6P0N104 is a PowerFlex 4 compact AC drive designed to provide simple and cost-effective motor control for general-purpose applications. With a power rating of 1.5 kW (2 HP) and a 3-phase 380–480V AC input, this drive supports V/Hz control, RS-485 (DSI) communication, and built-in keypad programming. Its space-saving design and reliable performance make it ideal for OEM and small machine applications.

Key Features

• 1.5 kW (2 HP) motor power rating
• 3-phase, 380–480V AC input
• Output current: 6.0 A
• V/Hz (Volts per Hertz) control mode
• Integrated RS-485 (DSI) communication port
• Built-in LED keypad for setup and diagnostics
• Programmable digital and analog I/O
• Compact IP20 open-type construction
• DIN rail or panel mounting for flexible installation

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 6.0 A
• Frequency Range: 0–400 Hz
• Control Mode: V/Hz
• Communication: RS-485 (DSI)
• Enclosure Rating: IP20 / NEMA Open Type
• Programming Interface: Built-in keypad
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Mounting: DIN rail or panel mount

Application Areas

• Small fans and pumps
• Light-duty conveyors
• Basic processing equipment
• OEM and small machine automation
• General-purpose speed control systems

Advantages

• Cost-effective solution for basic motor speed control
• Easy setup and configuration with integrated keypad
• Compact design ideal for space-limited panels
• Integrated serial communication reduces wiring complexity
• Reliable performance in continuous duty applications
