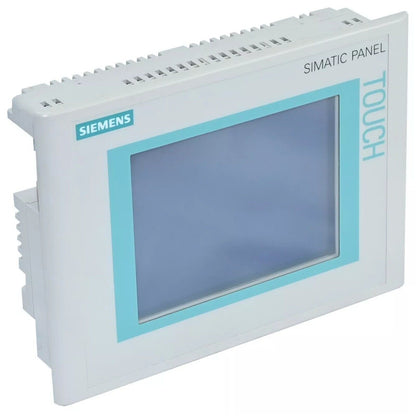

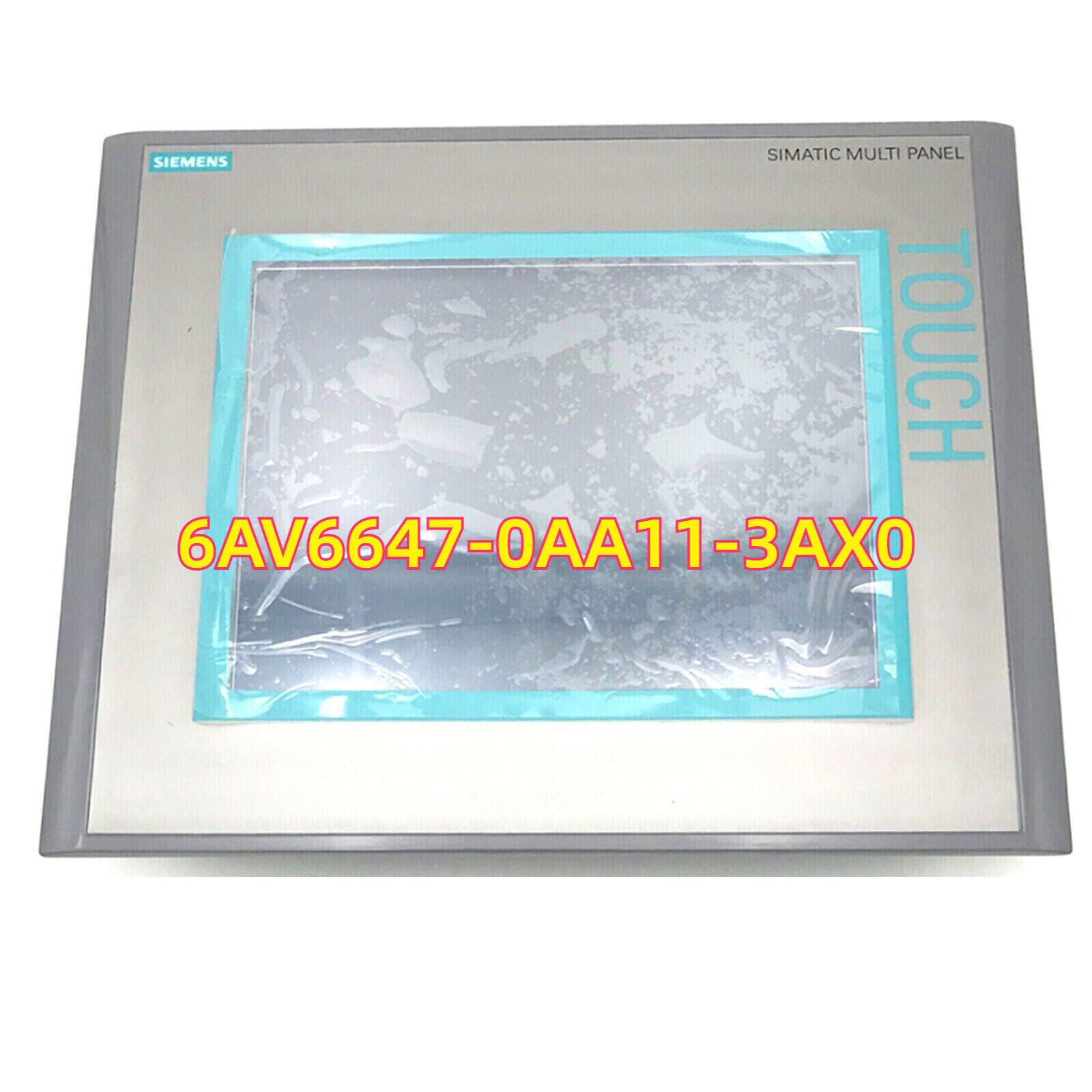

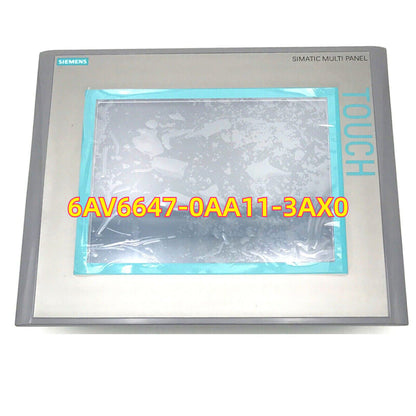

HMI Device | Siemens | 6AV6647-0AA11-3AX0 Touch Panel 6AV6 6470AA113AX0 New in Box

Product Description: Siemens 6AV6647-0AA11-3AX0

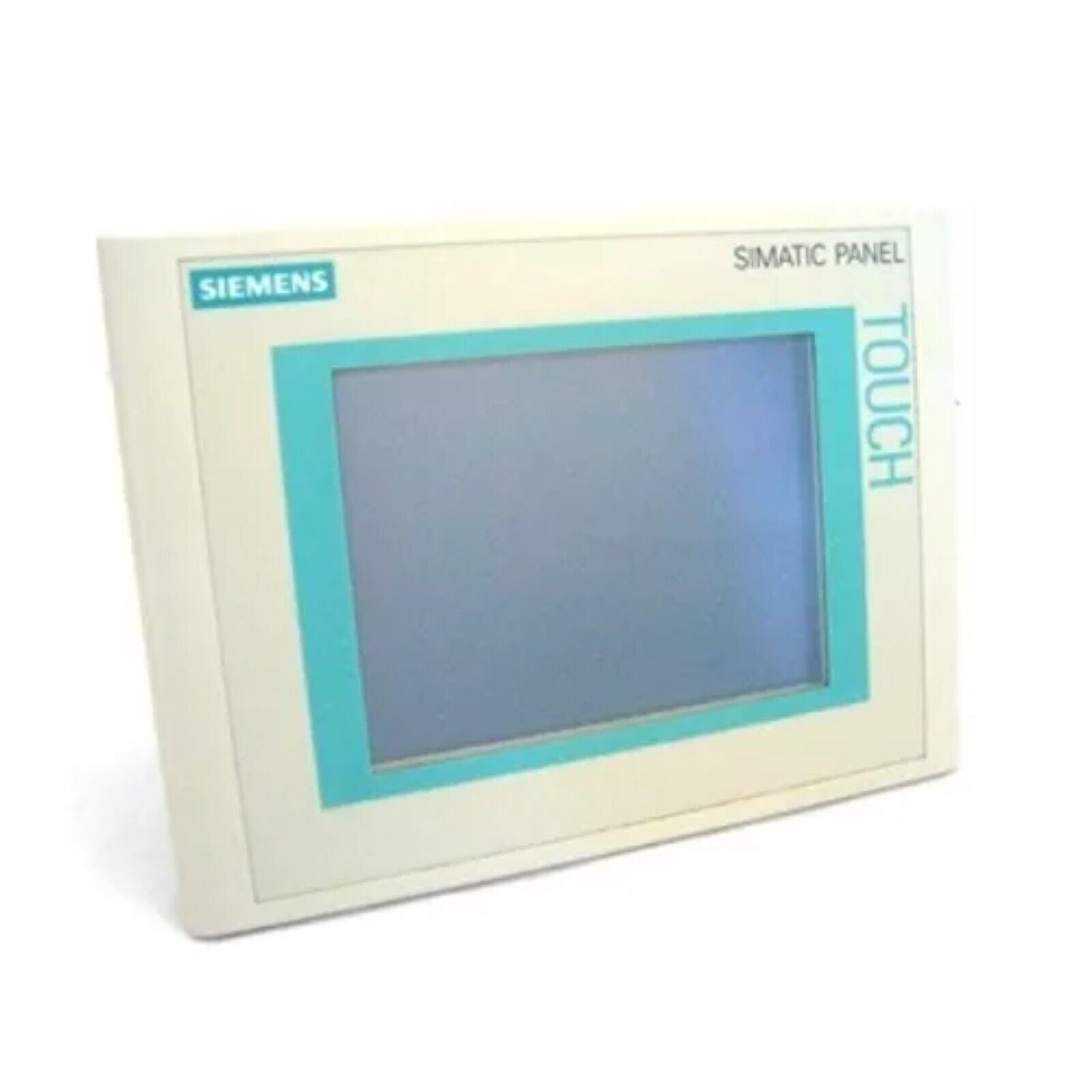

The Siemens 6AV6647-0AA11-3AX0 is a TP177B HMI panel from the SIMATIC HMI TP 177B series, featuring a 6-inch color STN display and analog-resistive touchscreen operation. It supports both PROFINET and PROFIBUS DP interfaces for flexible communication with Siemens controllers. This panel is suitable for a wide range of industrial applications requiring basic to mid-level visualization and control. Configuration is performed using WinCC flexible 2007.

Key Features

• Display: 6" STN color display with 320 × 240 resolution and 256 colors
• Operation: Analog-resistive touchscreen
• Interfaces: PROFINET, PROFIBUS DP, MPI/DP, 1 × USB, RS-485
• Memory: Integrated configuration memory and WinCC flexible runtime
• Power Supply: 24 V DC (19.2 – 28.8 V DC)
• Mounting: Panel mounting with IP65 protection (front), IP20 (rear)
• Software Compatibility: WinCC flexible 2007

Technical Specifications

• Display Size: 6 inches
• Display Resolution: 320 × 240 pixels
• Number of Display Colors: 256
• Touchscreen Type: Analog-resistive
• Function Keys: None (touch operation only)
• Interface Ports: PROFINET, PROFIBUS DP, MPI/DP, USB, RS-485
• Configuration Memory: Integrated + expandable
• Power Consumption: Approx. 7 W
• Operating Temperature Range: 0 °C to +50 °C
• Dimensions (W × H × D): 212 mm × 156 mm × 38 mm
• Protection Class (Front/Rear): IP65 / IP20
• Certifications: CE, cULus, RCM

Application Areas

• Operator panels for machine-level automation
• Visualization and control of process values
• Integration into PROFIBUS/PROFINET-based Siemens systems
• Compact HMI for OEM machinery and production lines

Advantages

• Combines PROFINET and PROFIBUS DP communication
• User-friendly interface for fast commissioning and operation
• Compact and durable design for industrial environments
• Easy configuration using WinCC flexible engineering software
