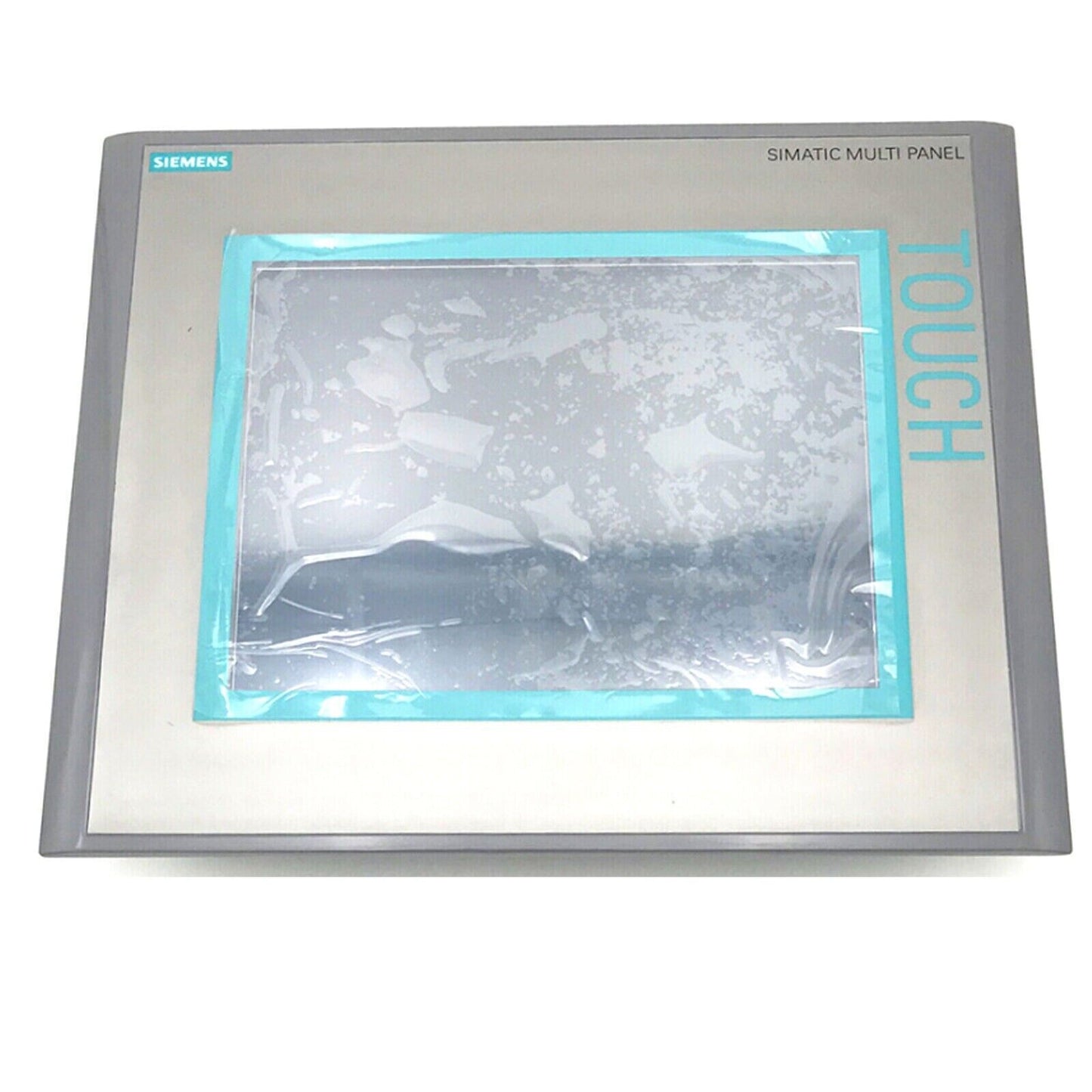

Product Description: Siemens 6AV6545-0CA10-0AX0

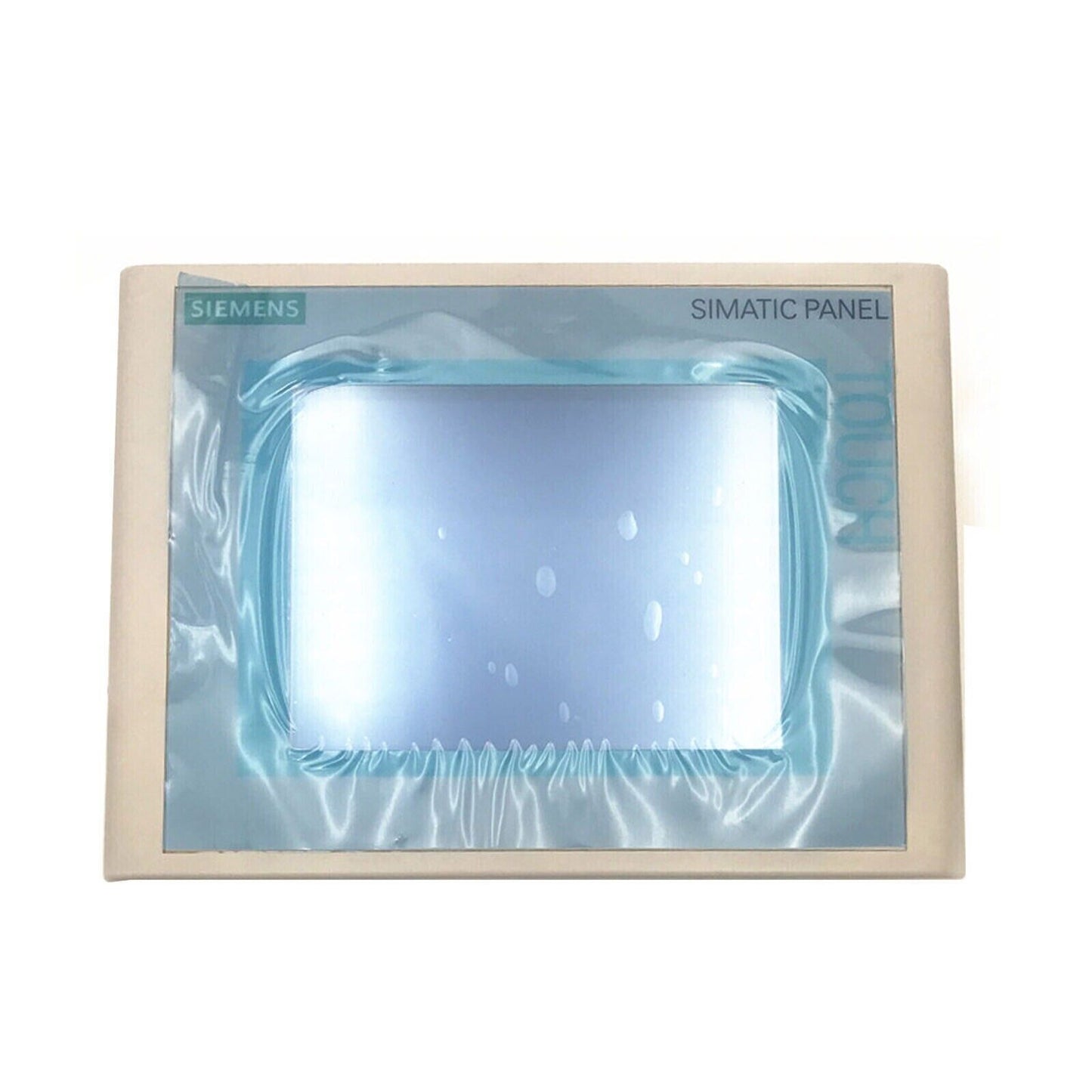

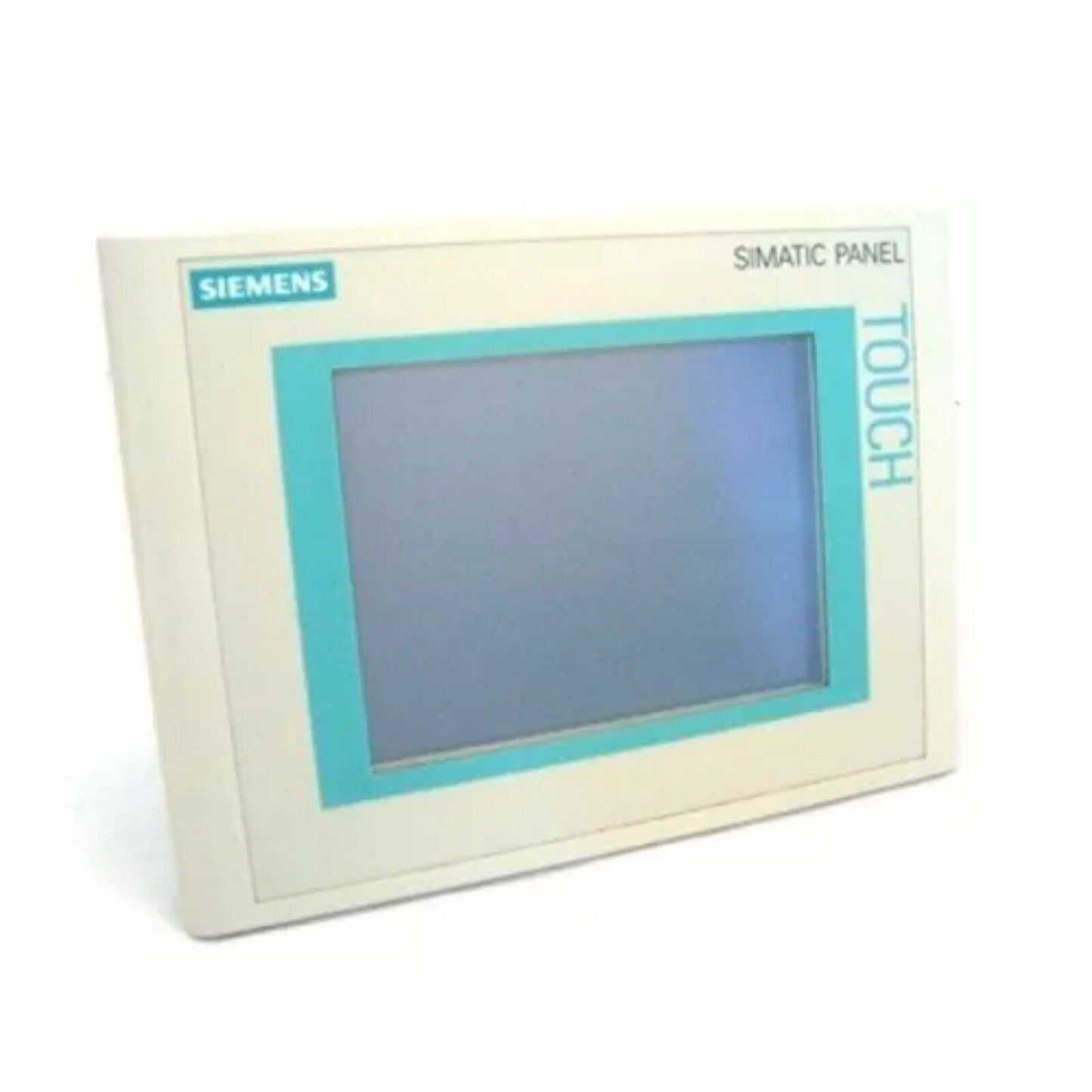

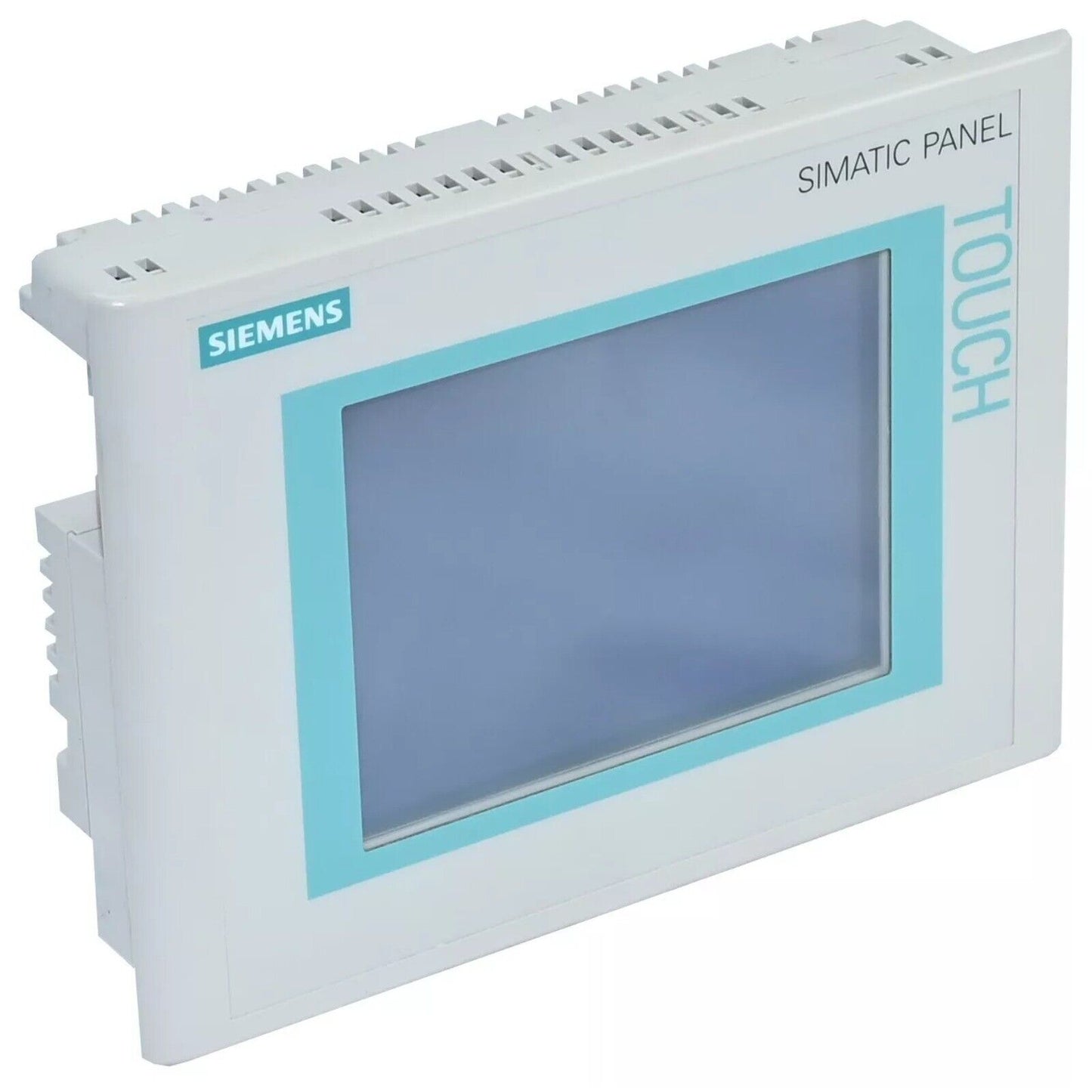

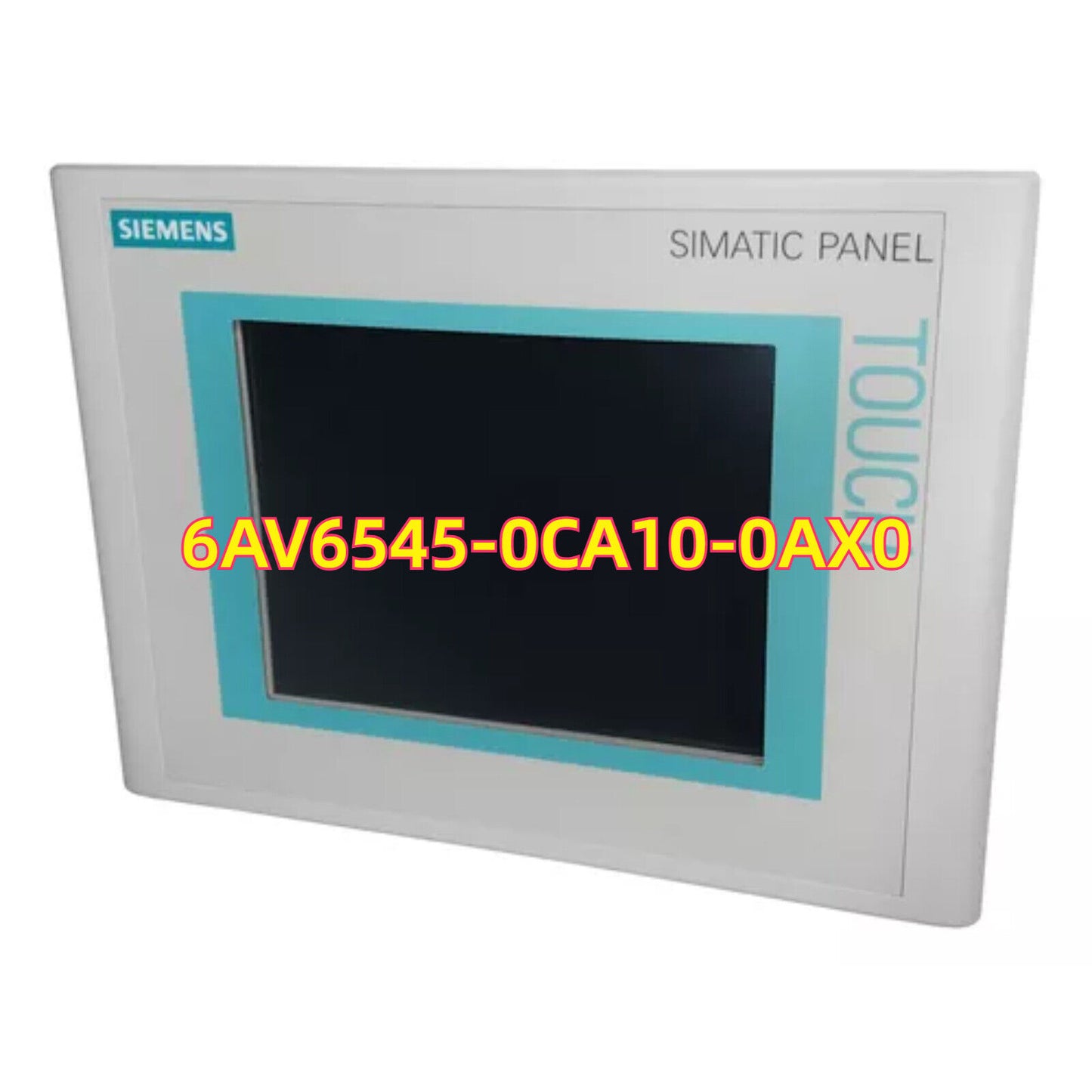

The Siemens 6AV6545-0CA10-0AX0 is a 5.7-inch basic HMI panel from the SIMATIC MP 177B series, featuring a high-contrast TFT display with 65 536 colors and a resolution of 320 × 240 pixels. It supports analog- resistive touch operation alongside six programmable function keys. Equipped with a built-in PROFINET interface, MPI port, RS-485 and USB connectivity, it integrates seamlessly into Siemens automation networks. Configuration is accomplished via WinCC Basic V13 or TIA Portal, making it ideal for compact control stations requiring reliable operator interfaces.

Key Features

• Display: 5.7" TFT color display, 320 × 240 resolution, 65 536 colors
• Operation: Analog- resistive touchscreen with six function keys
• Communication: PROFINET, MPI, 1 × RS-485, 1 × USB (up to 16 GB)
• Memory: 1 MB user memory for screens, tags, and recipes
• Software Support: Configurable with WinCC Basic V13 (TIA Portal compatible)
• Protection: IP65 front protection, IP20 rear
• Power Supply: 24 V DC (19.2 … 28.8 V DC)

Technical Specifications

• Screen Size: 5.7 inches
• Resolution: 320 × 240 pixels
• Colors: 65 536
• Touch Technology: Analog- resistive
• Function Keys: 6 programmable
• User Memory: 1 MB
• Operating System: WinCC Basic runtime
• Ethernet Interface: PROFINET
• Serial Interface: MPI, RS-485
• USB Interface: 1 × USB port (up to 16 GB)
• Power Consumption: ≈ 8 W
• Operating Temperature Range: 0 °C … +50 °C
• Dimensions (W × H × D): 180 × 140 × 50 mm
• Cut- Out Dimensions: 165 × 115 mm

Application Areas

• Operator panels for compact machinery and equipment
• Monitoring and control in PROFINET-based automation systems
• Recipe management and data logging in small- to medium-scale plants
• Integration into packaging, assembly, and material-handling controls

Advantages

• Compact Footprint: 5.7" size suits space-constrained control stations
• Flexible Operation: Touchscreen plus function keys for diverse interaction modes
• Seamless Integration: Native PROFINET and MPI support streamlines network connectivity
• Robust Design: IP65 front protection ensures durability in harsh environments
• Easy Configuration: WinCC Basic and TIA Portal compatibility simplify engineering and updates
