HMI Device | Siemens | 6AV6644-0AB01-2AX0 SIMATIC MP377 SCREEN 6AV6 644-0AB01-2AX0

Product Description: Siemens 6AV6644-0AB01-2AX0

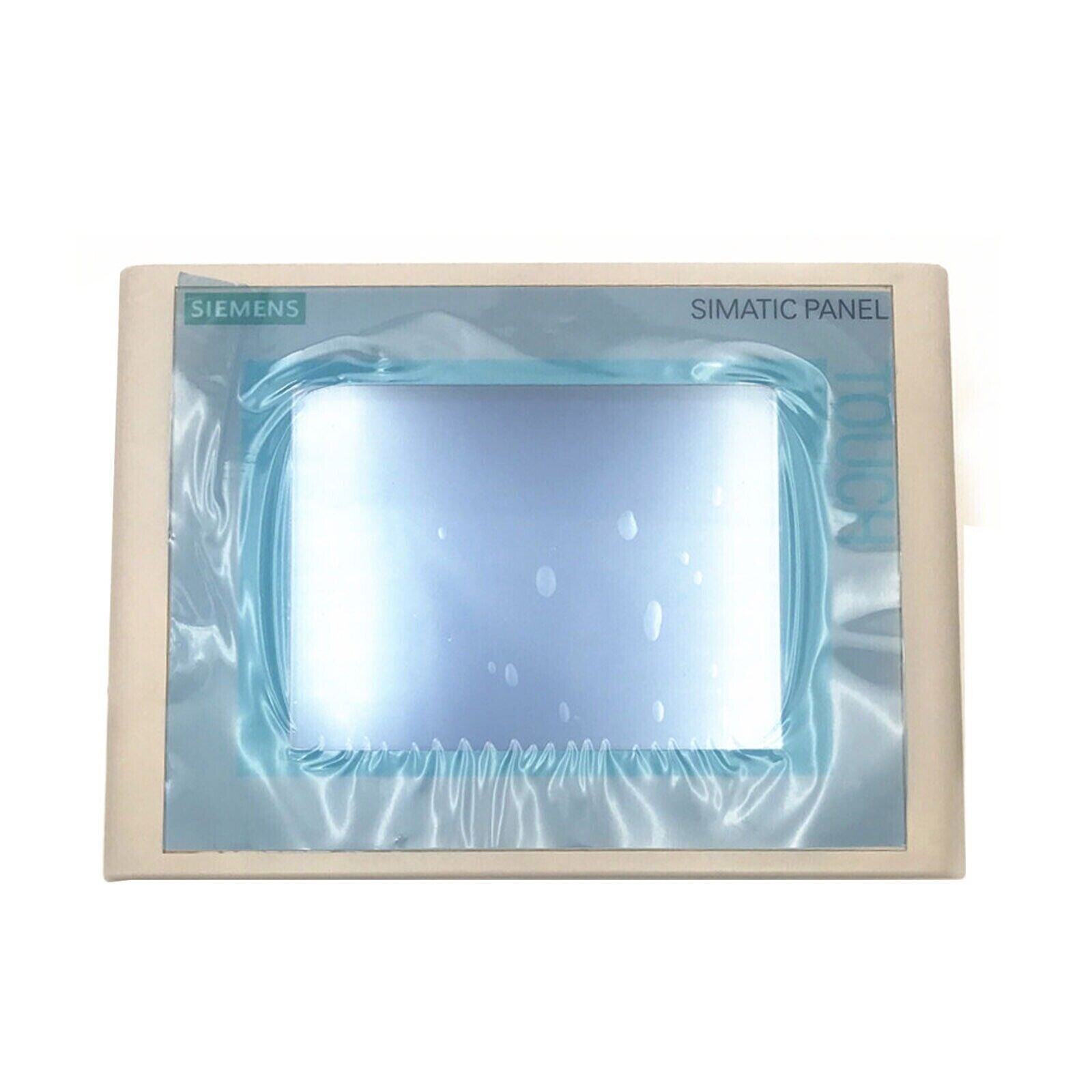

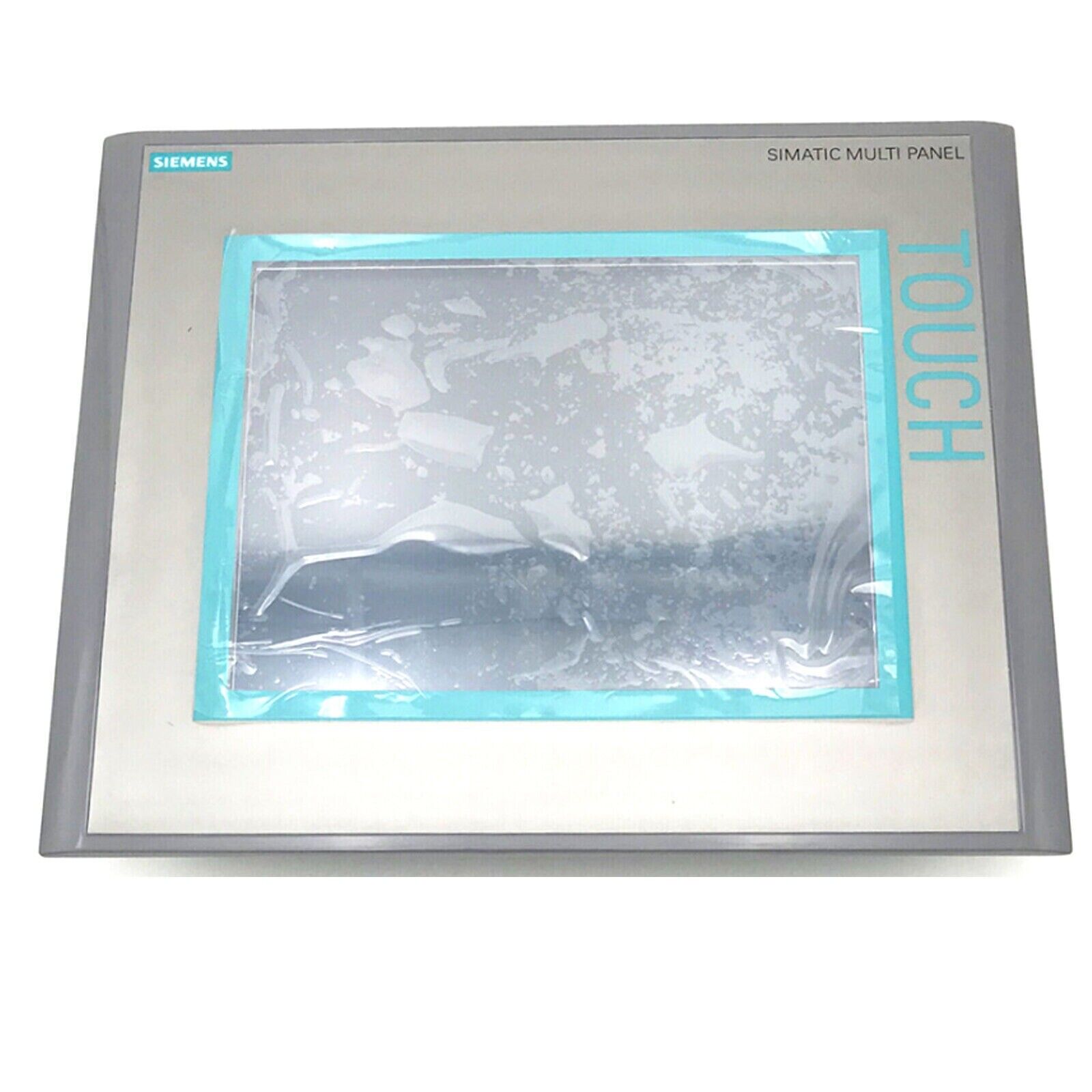

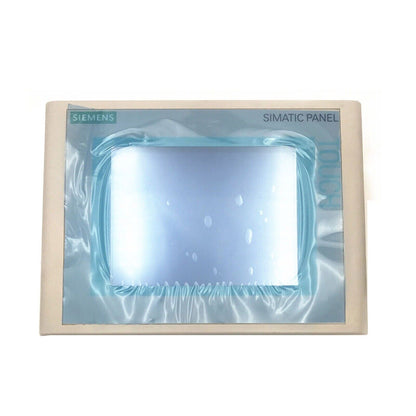

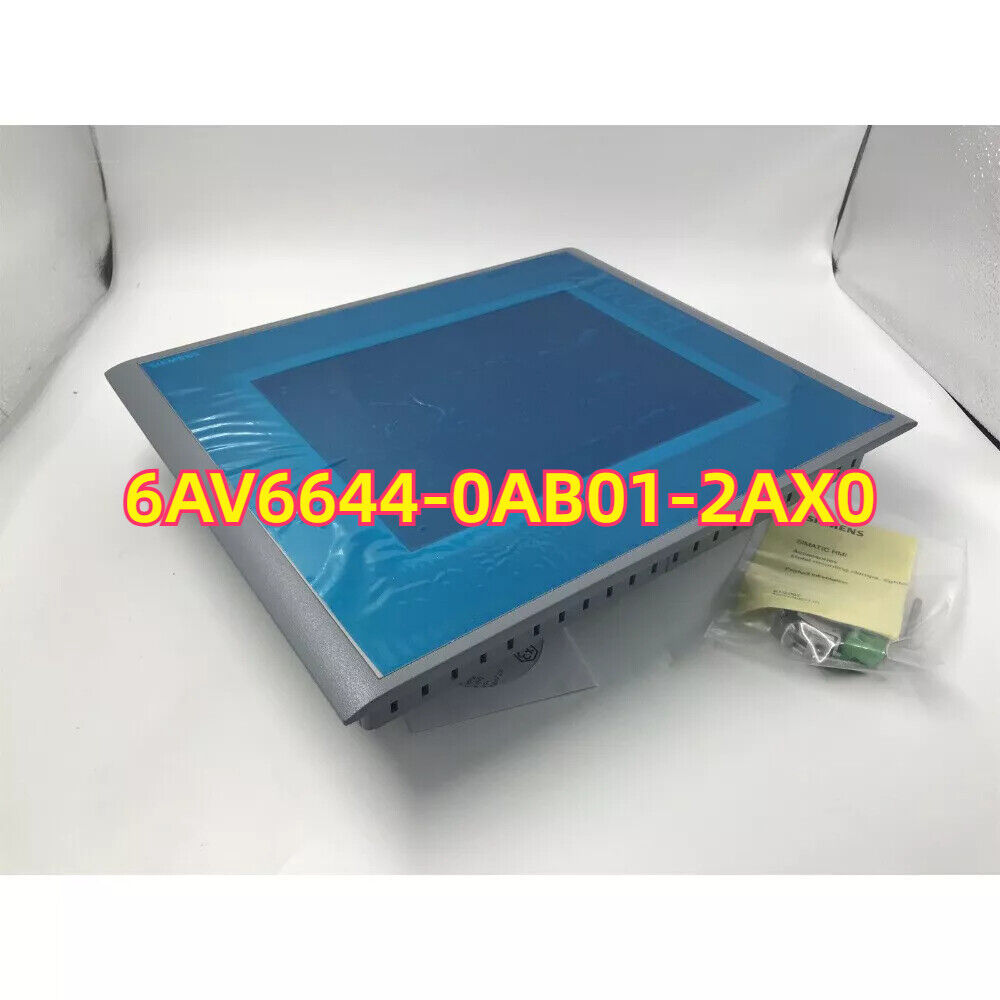

The Siemens 6AV6644-0AB01-2AX0 is a 15-inch touchscreen multi-panel from the SIMATIC MP 377 series, featuring a high-resolution TFT color display. It runs on Windows CE 5.0, offering a stable and efficient environment for industrial applications. This model is designed for user- friendly operation, with intuitive touch controls for seamless interaction. The MP 377 is suitable for integration into industrial automation systems and is widely used in monitoring and controlling production processes.

Key Features

• Display: 15" TFT color display with 1024 × 768 resolution and 65,536 colors
• Operation: Touchscreen operation for intuitive user interaction
• Memory: 12 MB configuration memory, suitable for medium-sized projects
• Operating System: Windows CE 5.0, providing a stable and reliable platform
• Software Support: Configurable using WinCC flexible 2007 with multi-language support
• Interfaces: 2 USB ports and 1 CF card slot for data storage and transfer
• Protection Class: Front panel with IP65 protection, ideal for industrial environments
• Power Supply: 24 V DC, power consumption around 45.6 W
• Dimensions: 310 mm × 400 mm × 72 mm, fits standard mounting spaces

Technical Specifications

• Display Type: TFT color display
• Screen Size: 15 inches
• Resolution: 1024 × 768 pixels
• Number of Colors: 65,536
• Operation Type: Touchscreen
• Memory: 12 MB configuration memory
• Operating System: Windows CE 5.0
• Interfaces: 2 × USB, 1 × CF card slot
• Power Supply: 24 V DC
• Power Consumption: Approximately 45.6 W
• Protection Class (Front/Rear): IP65 / IP20
• Operating Temperature Range: 0 °C to +50 °C
• Dimensions (W × H × D): 310 mm × 400 mm × 72 mm
• Weight: Approximately 5.66 kg

Application Areas

• Operator interface for industrial automation systems
• Production line monitoring and control
• Suitable for environments requiring high-resolution displays and touch-based operation

Advantages

• High-resolution display enhances the visualization of processes
• Touchscreen operation simplifies user interaction
• Multi-language support allows for flexible international deployment
• Durable design with IP65 front protection, ideal for industrial use
