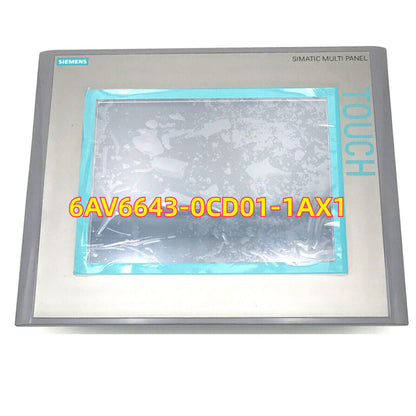

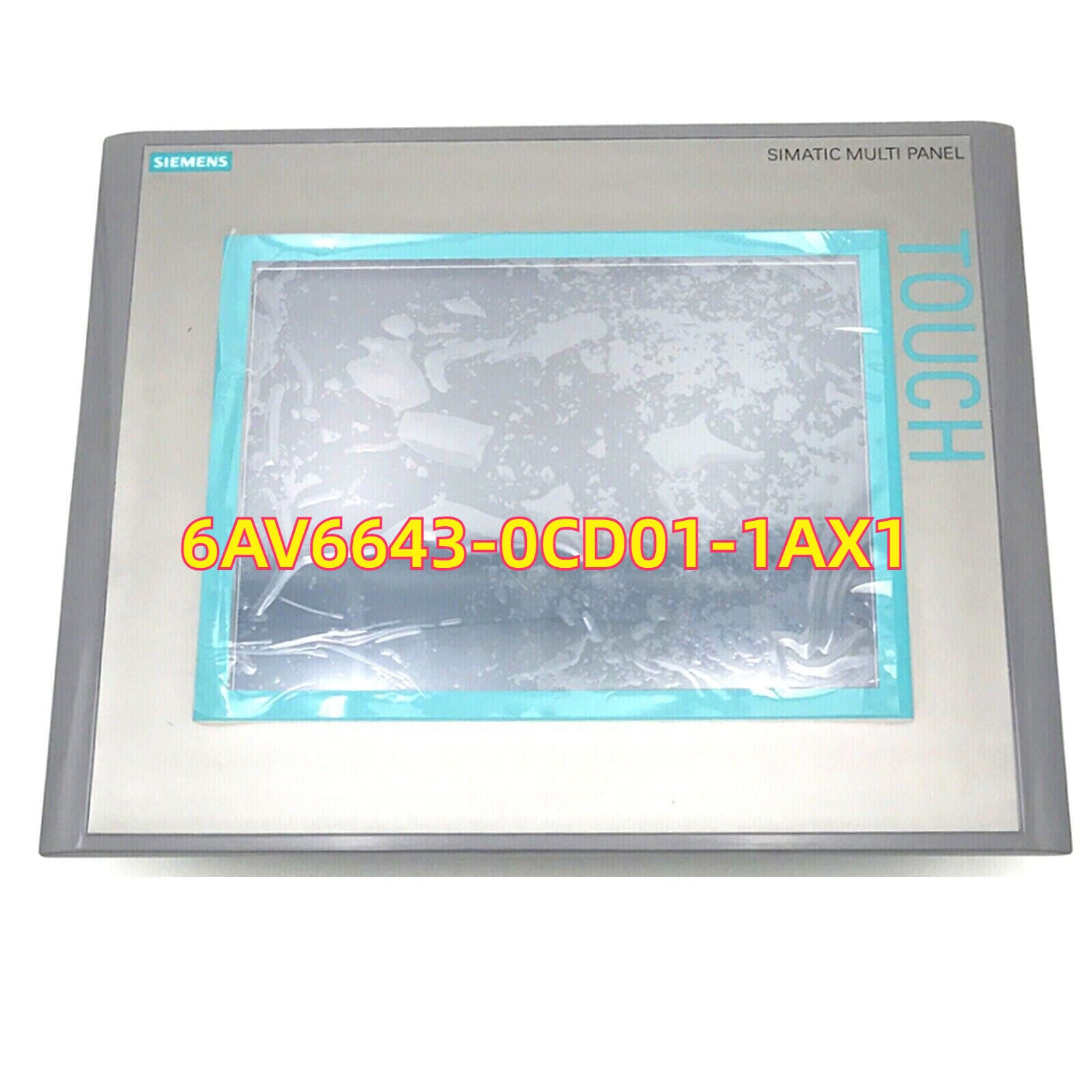

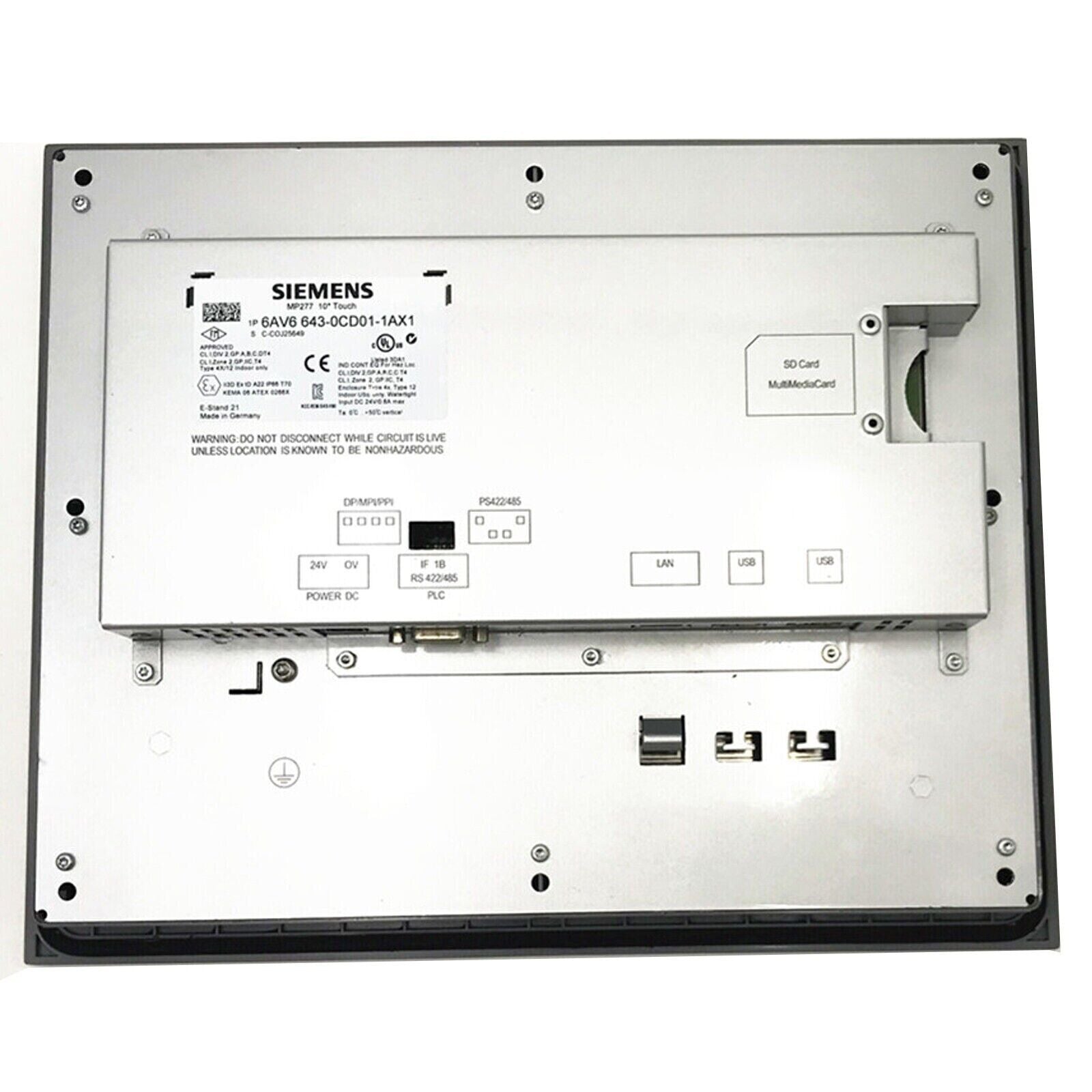

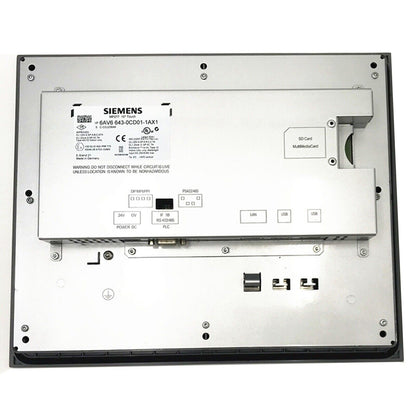

HMI Device | Siemens | 6AV6643-0CD01-1AX1 6AV6643-0CD01-1AX1 MP 277 TOUCH PANEL

Product Description: Siemens 6AV6643-0CD01-1AX1

The Siemens 6AV6643-0CD01-1AX1 is a 7-inch touch screen from the SIMATIC HMI series, designed for seamless interaction between operators and industrial systems. This panel is part of the KTP 700 Basic model and is ideal for applications that require intuitive control and monitoring in industrial environments. The HMI panel provides a user-friendly interface for operating machines and processes, allowing operators to visualize system parameters and input commands for machine control. It supports various industrial communication protocols, making it suitable for integration with Siemens PLCs and other automation systems.

Key Features

• Display Size: 7-inch TFT color touchscreen
• Display Type: High-resolution TFT for clear visualization of system data
• User Interface: Touchscreen interface for easy navigation and system control
• Communication Protocols: Supports communication with Siemens PLCs through PROFINET and other industrial networks
• Programming: Configured using Siemens TIA Portal and WinCC flexible for easy setup and integration
• Mounting: Panel mount, ideal for integration into industrial control systems
• Operating Temperature Range: Suitable for industrial environments with an operating temperature range of 0°C to +50°C
• Diagnostic Features: Built-in diagnostic functions for monitoring system status and detecting faults

Technical Specifications

• Product Type: Human Machine Interface (HMI)
• Part Number: 6AV6643-0CD01-1AX1
• Display Size: 7-inch
• Display Type: TFT, high-resolution
• Communication Protocols: PROFINET, Industrial Ethernet
• Operating Temperature Range: 0°C to +50°C
• Mounting: Panel mount
• Dimensions (W x H x D): 194 mm x 150 mm x 40 mm
• Weight: Approx. 0.8 kg

Application Areas

• Factory Automation: Ideal for controlling and monitoring machines and processes in manufacturing environments.
• Process Control: Suitable for industries such as food processing, chemicals, and pharmaceuticals for real-time monitoring and control.
• Building Automation: Can be used for controlling HVAC systems, lighting, and other building services.
• Machine Automation: Offers real-time control of automated machinery in production systems.

Advantages

• Intuitive User Interface: The touchscreen interface provides easy navigation for operators, reducing training time and increasing efficiency.
• High-Resolution Display: The high-resolution TFT display ensures clear and easy-to-read data, even in industrial environments with challenging lighting conditions.
• Flexible Integration: Supports communication with Siemens PLC systems and other industrial devices, providing seamless integration into existing control setups.
• Compact and Robust Design: Built for industrial environments, offering durability and space-saving design for control panels.
