HMI Device | Siemens | 6AV6642-0BC01-1AX0 6AV6642-0BC01-1AX0 SIMATIC TOUCH PANEL TP177B DP

Product Description: Siemens 6AV6642-0BC01-1AX0

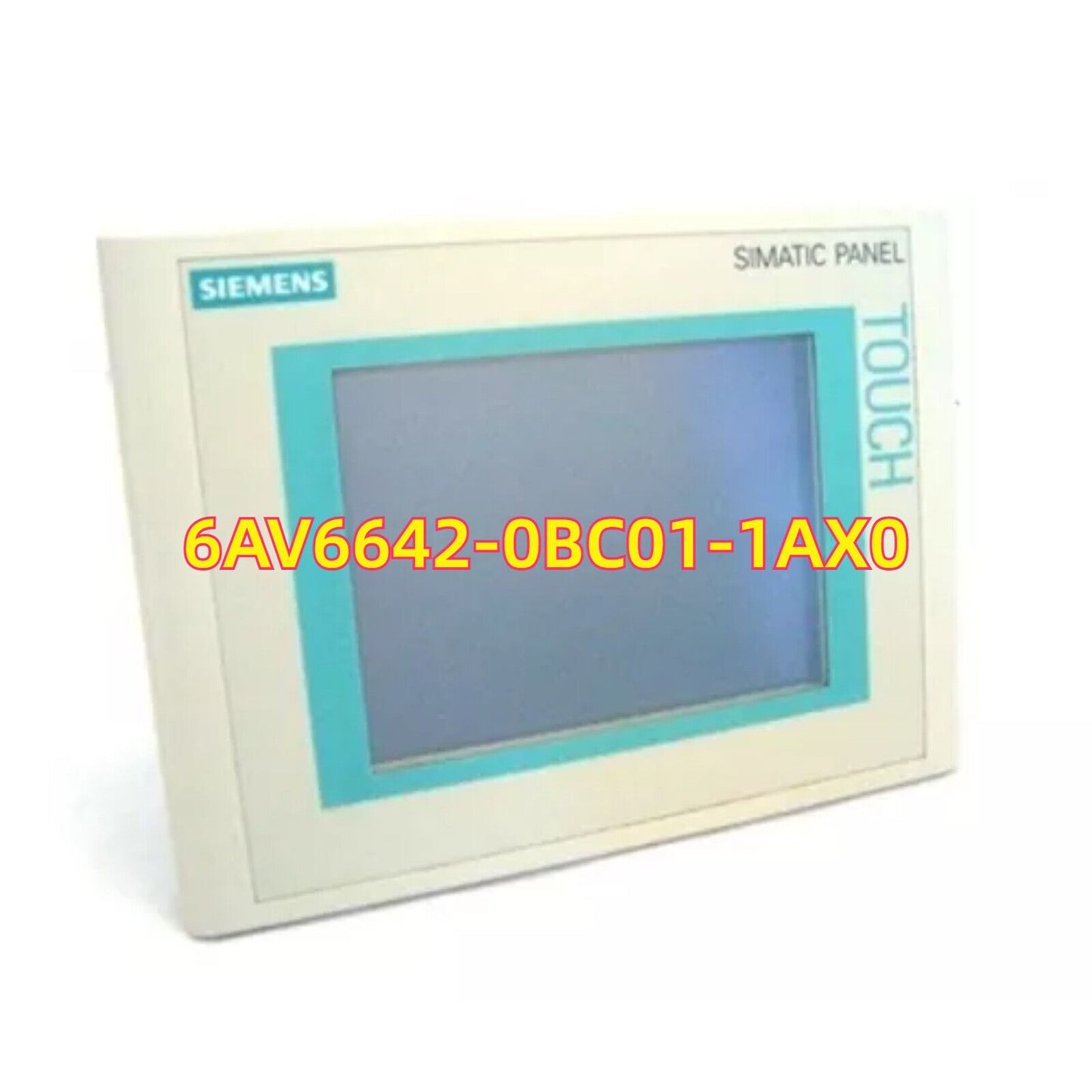

The Siemens 6AV6642-0BC01-1AX0 is a TP177B Color HMI panel from the SIMATIC HMI TP 170 Series. It features a 6-inch STN touchscreen display supporting 256 colors with a resolution of 320 × 240 pixels. This model is designed for versatile operation and offers connectivity via both PROFIBUS DP and PROFINET. With integrated WinCC flexible runtime and configuration via WinCC flexible 2005, it is ideal for compact and mid-sized automation tasks across various industrial applications.

Key Features

• Display: 6" STN color display with 320 × 240 resolution and 256 colors
• Operation: Touchscreen (analog-resistive) interface
• Interfaces: PROFIBUS DP, PROFINET, MPI/DP, 1 × USB, and RS485
• Memory: Integrated WinCC flexible runtime and flash memory
• Power Supply: 24 V DC (permissible range: 19.2 – 28.8 V DC)
• Mounting: Panel mounting with IP65 protection (front) and IP20 (rear)
• Certifications: CE, cULus, and additional industrial approvals

Technical Specifications

• Display Size: 6 inches
• Display Resolution: 320 × 240 pixels
• Number of Colors: 256
• Touchscreen Type: Analog-resistive
• Function Keys: None (fully touch-operated)
• Interface Ports: PROFIBUS DP, PROFINET, MPI/DP, USB, RS485
• User Memory: Integrated WinCC flexible runtime
• Power Consumption: Approx. 7 W
• Operating Temperature Range: 0 °C to +50 °C
• Dimensions (W × H × D): 212 mm × 156 mm × 38 mm
• Protection Class (Front/Rear): IP65 / IP20
• Mounting Position: Vertical (landscape orientation)
• Certifications: CE, cULus, industrial approvals

Application Areas

• Control and monitoring in compact automation systems
• Operator interface for machinery and packaging lines
• Integration with Siemens S7 PLCs via PROFIBUS and PROFINET
• Suitable for environments requiring reliable, mid-range HMI functionality

Advantages

• Combines flexible communication options including PROFINET and PROFIBUS
• Cost- effective HMI for small to medium-sized machines
• User-friendly configuration with WinCC flexible software
• Durable design with IP65-rated front for industrial environments
