HMI Device | Siemens | 6AV6644-0AA01-2AX0 MP 377 12" TOUCH PANELHMI 6AV6 644-0AA01-2AX0

Product Description

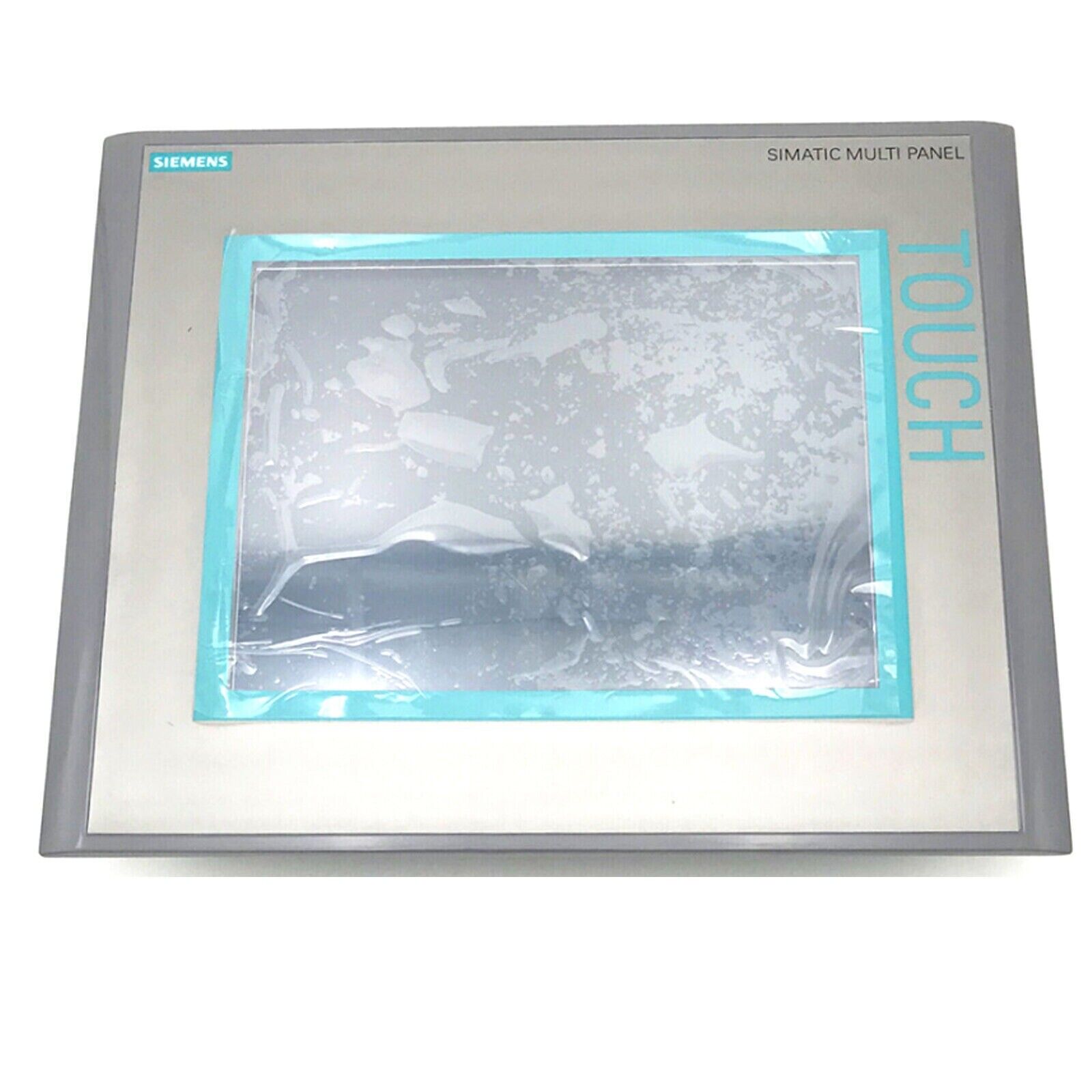

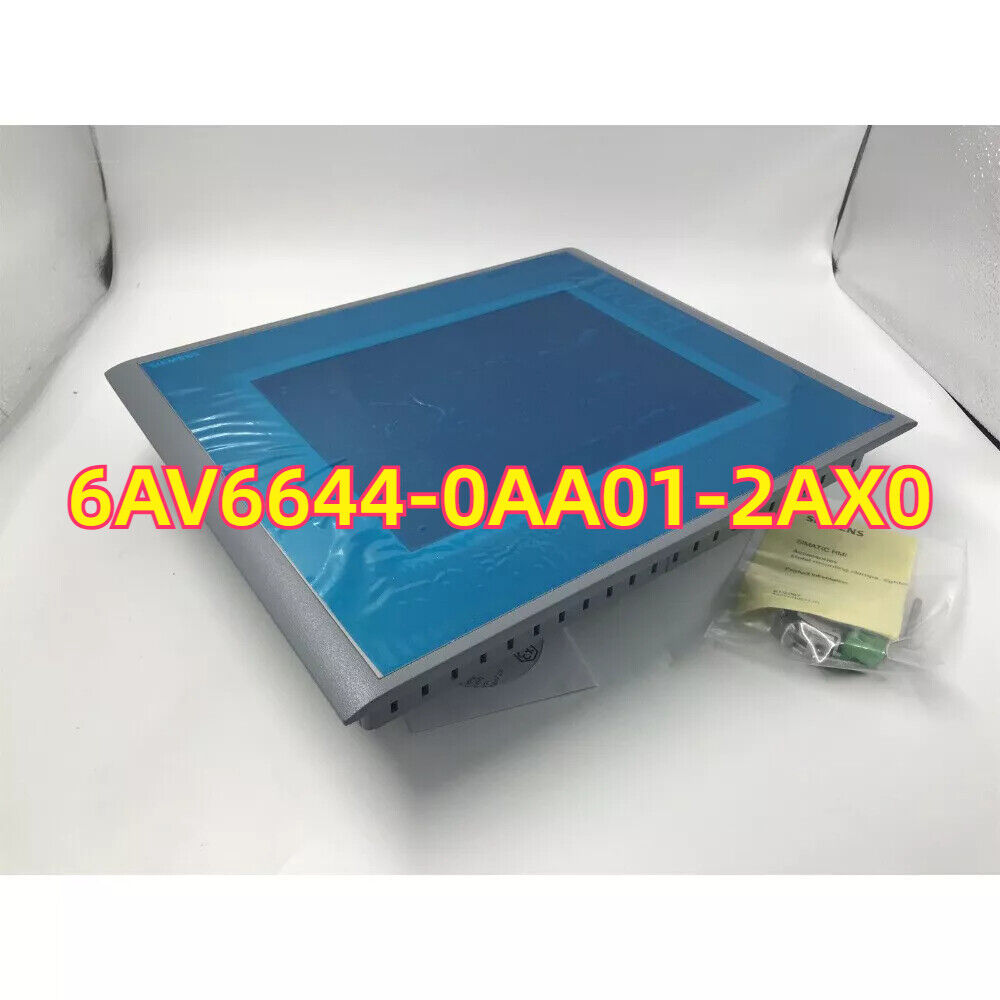

The Siemens 6AV6644-0AA01-2AX0 is a 15-inch touchscreen multi-panel from the SIMATIC MP 377 series, running Windows CE 5.0. It features a high-resolution TFT color display for clear visualization of process data. The MP 377 supports intuitive touch operation and is configurable via WinCC flexible, making it ideal for demanding industrial automation tasks where robust performance and ease of use are paramount.

Key Features
Display: 15" TFT color display, 1024 × 768 pixels, 65 536 colors

Operation: Analog-resistive touchscreen with 10 programmable function keys

Configuration Memory: 4 MB for project data and recipes

Operating System: Windows CE 5.0 for stable runtime performance

Software Support: Configurable with WinCC flexible 2007 (TIA Portal compatible)

Interfaces: 2 × USB, 1 × CF card slot for data transfer and recipe storage

Protection Class: IP65 front for wash-down environments; IP20 rear

Power Supply: 24 V DC, power consumption approx. 45 W

Mounting: Panel cut-out 372 × 284 mm; depth 72 mm behind panel

Technical Specifications
Parameter Value
Screen Size 15 inches
Resolution 1024 × 768 pixels
Colors 65 536
Touch Technology Analog-resistive
Function Keys 10 programmable
Memory 4 MB configuration memory
OS Windows CE 5.0
USB Ports 2
CF Slot 1
Supply Voltage 24 V DC
Power Consumption ≤ 45 W
Front Protection IP65
Rear Protection IP20
Mounting Cut-out 372 × 284 mm
Overall Depth 72 mm
Operating Temperature 0 °C … +50 °C

Applications
Operator interfaces in machine-building and production lines

Monitoring and control of batch and continuous processes

Recipe management and data logging

Integration into WinCC flexible / TIA Portal environments

Advantages
High-Resolution Display: Sharp visualization of graphs, trends and alarms

Flexible Operation: Touchscreen plus function keys for versatile control

Robust Design: IP65 front protection withstands harsh industrial conditions

Compact Integration: Slim behind-panel depth for space-constrained installations

Easy Data Handling: USB and CF interfaces for recipe loading and firmware updates
