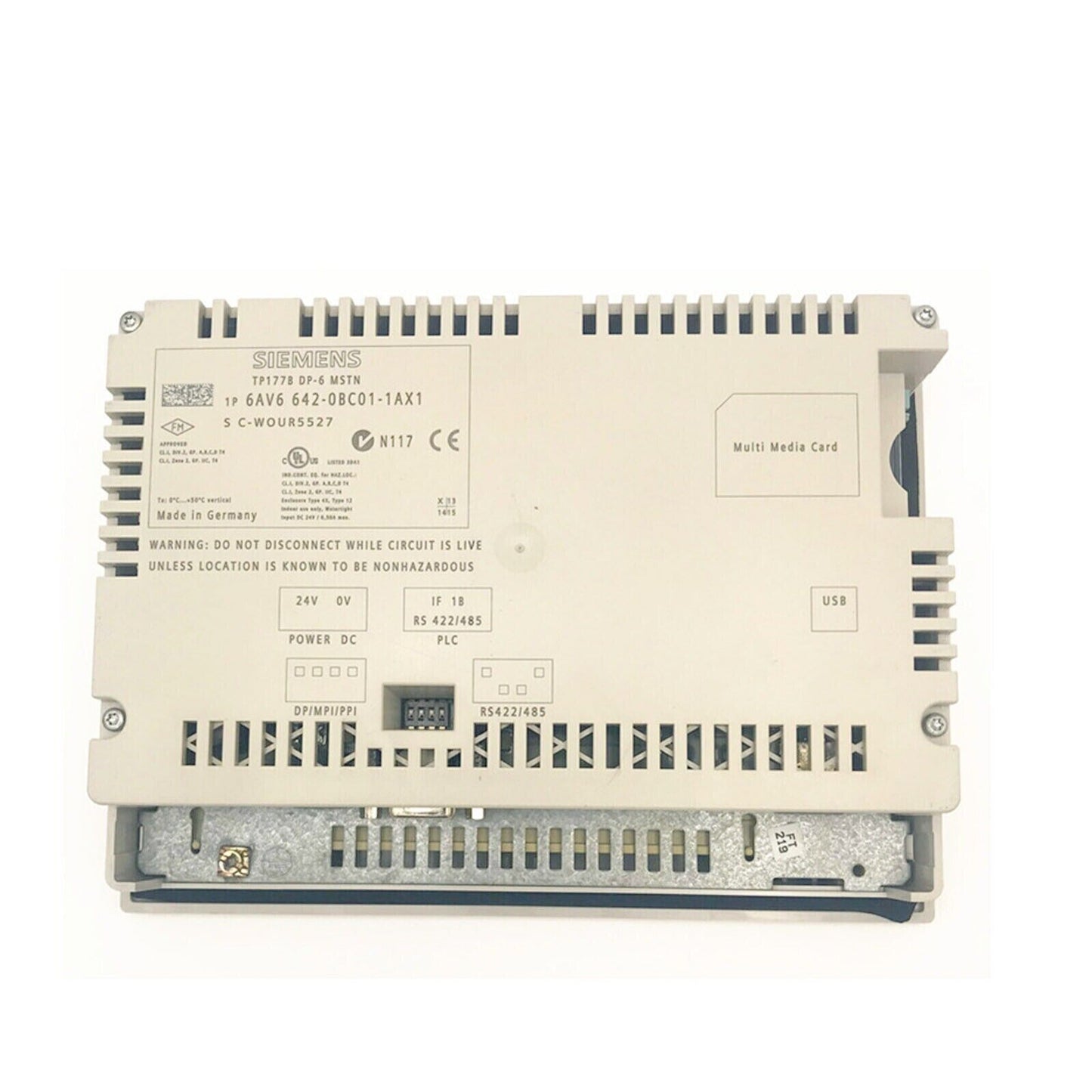

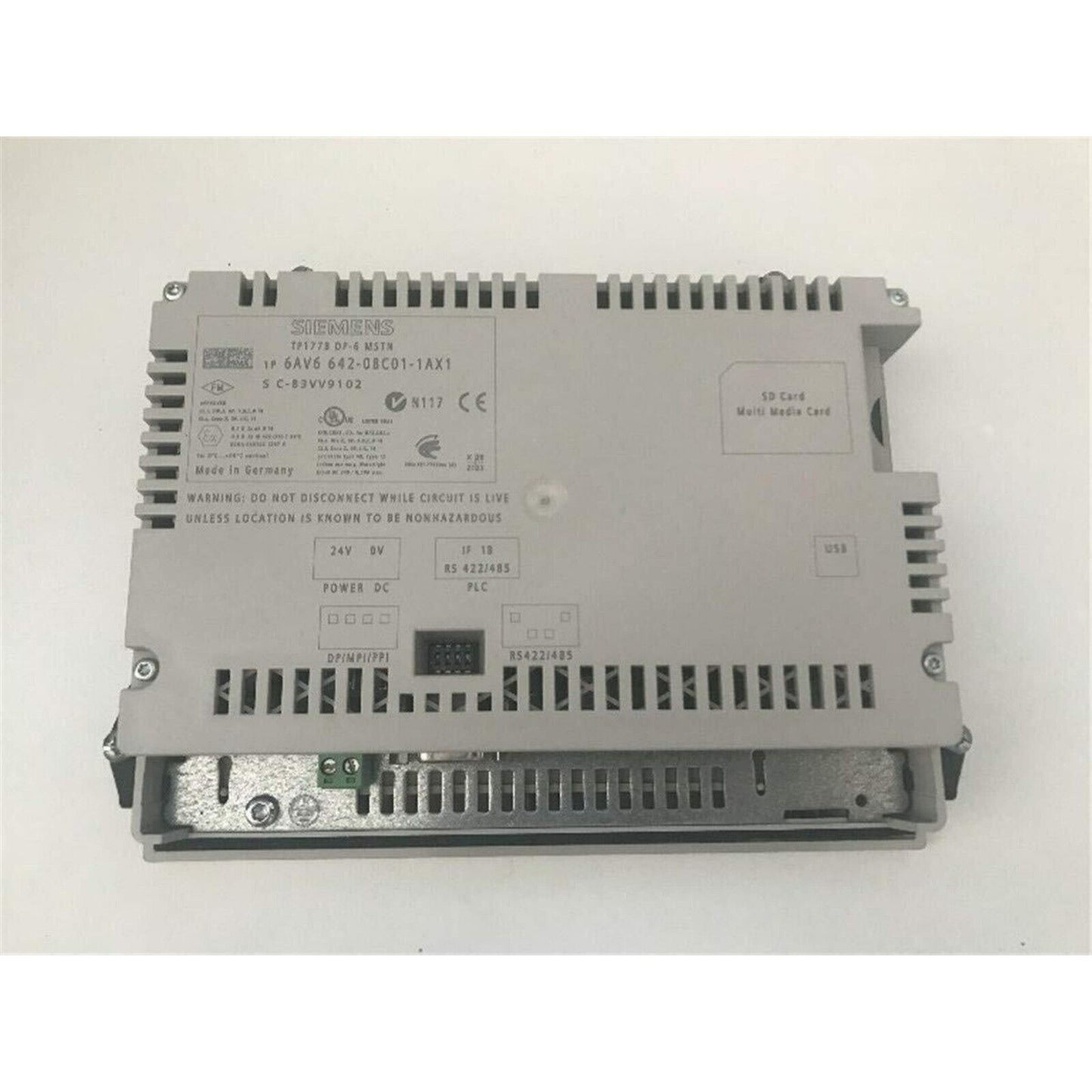

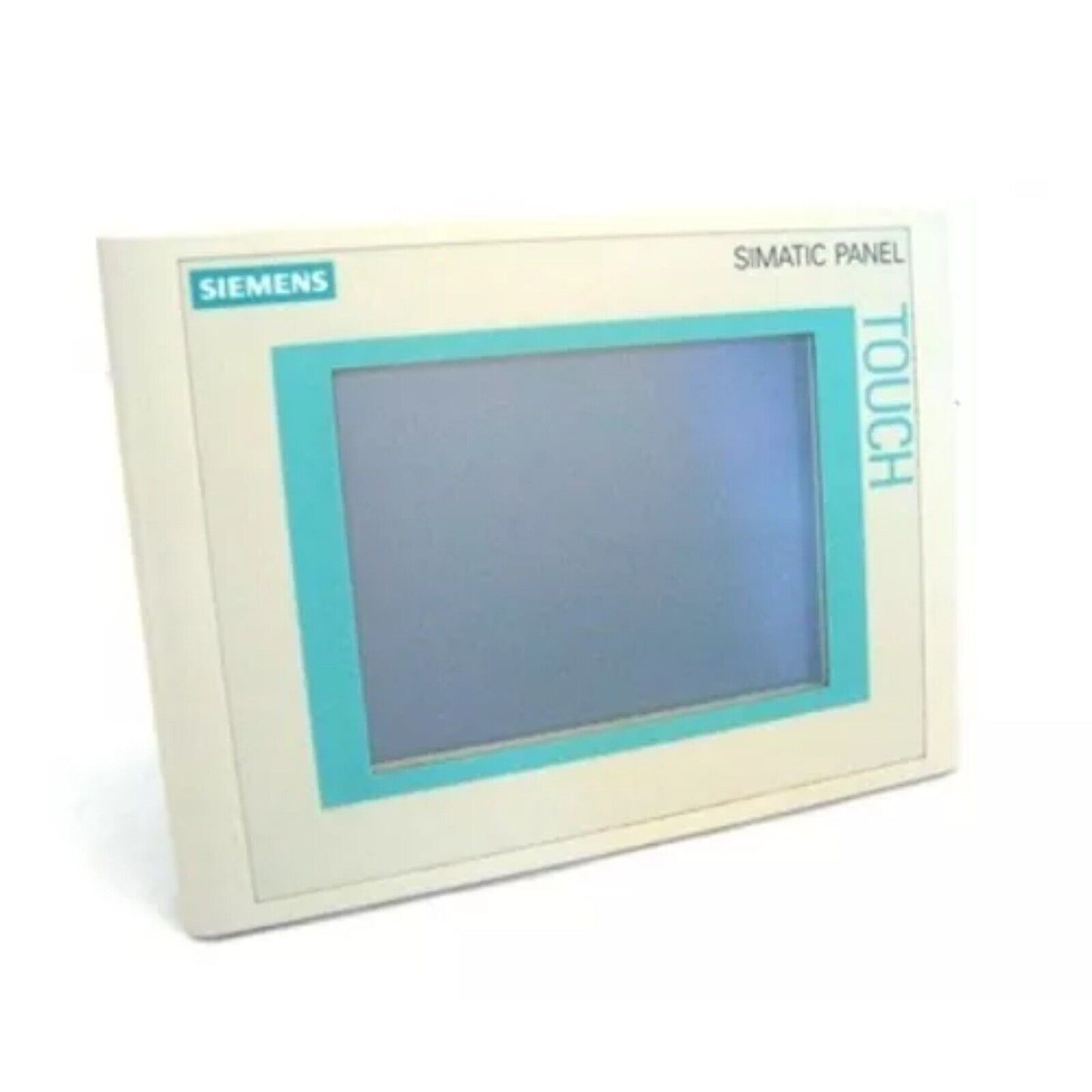

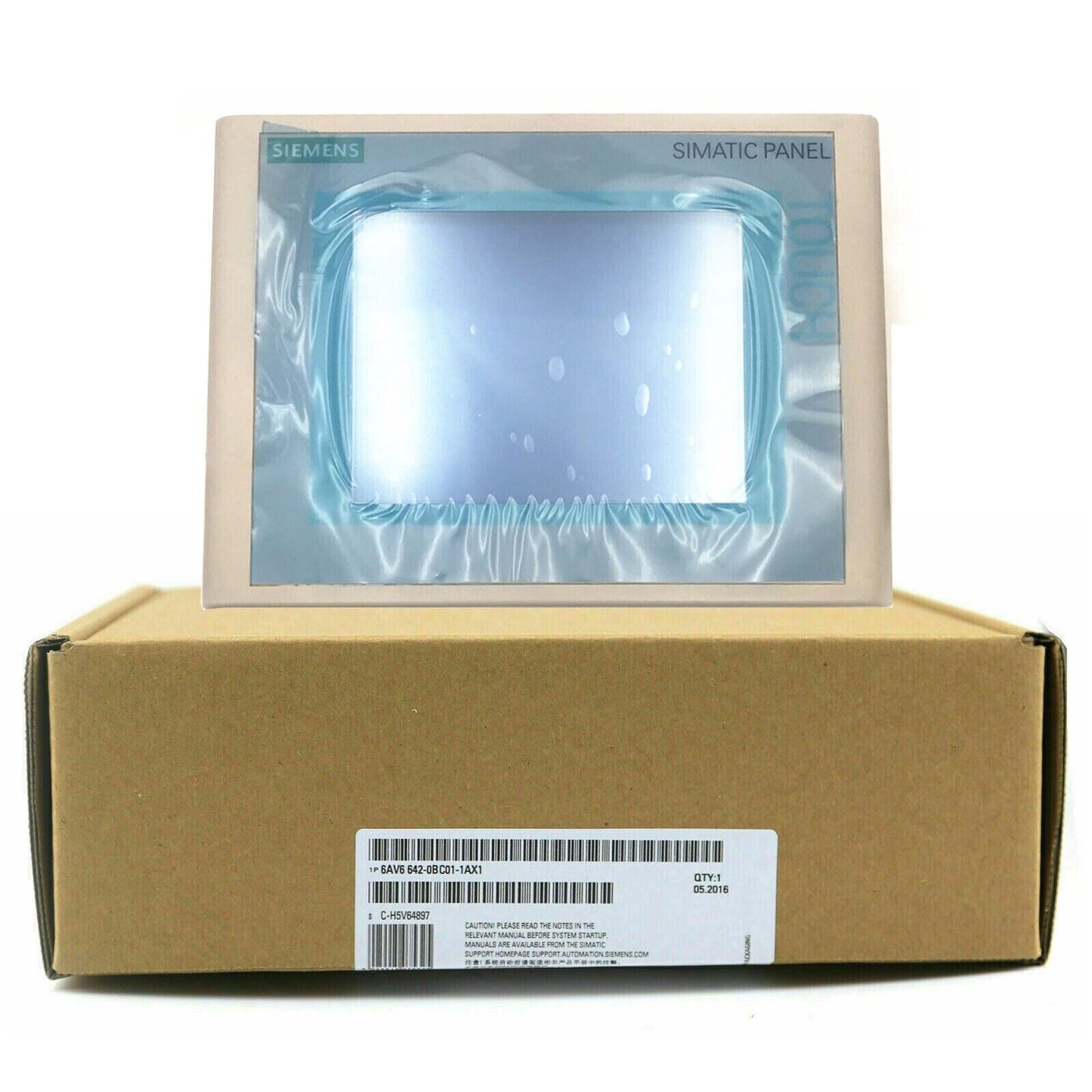

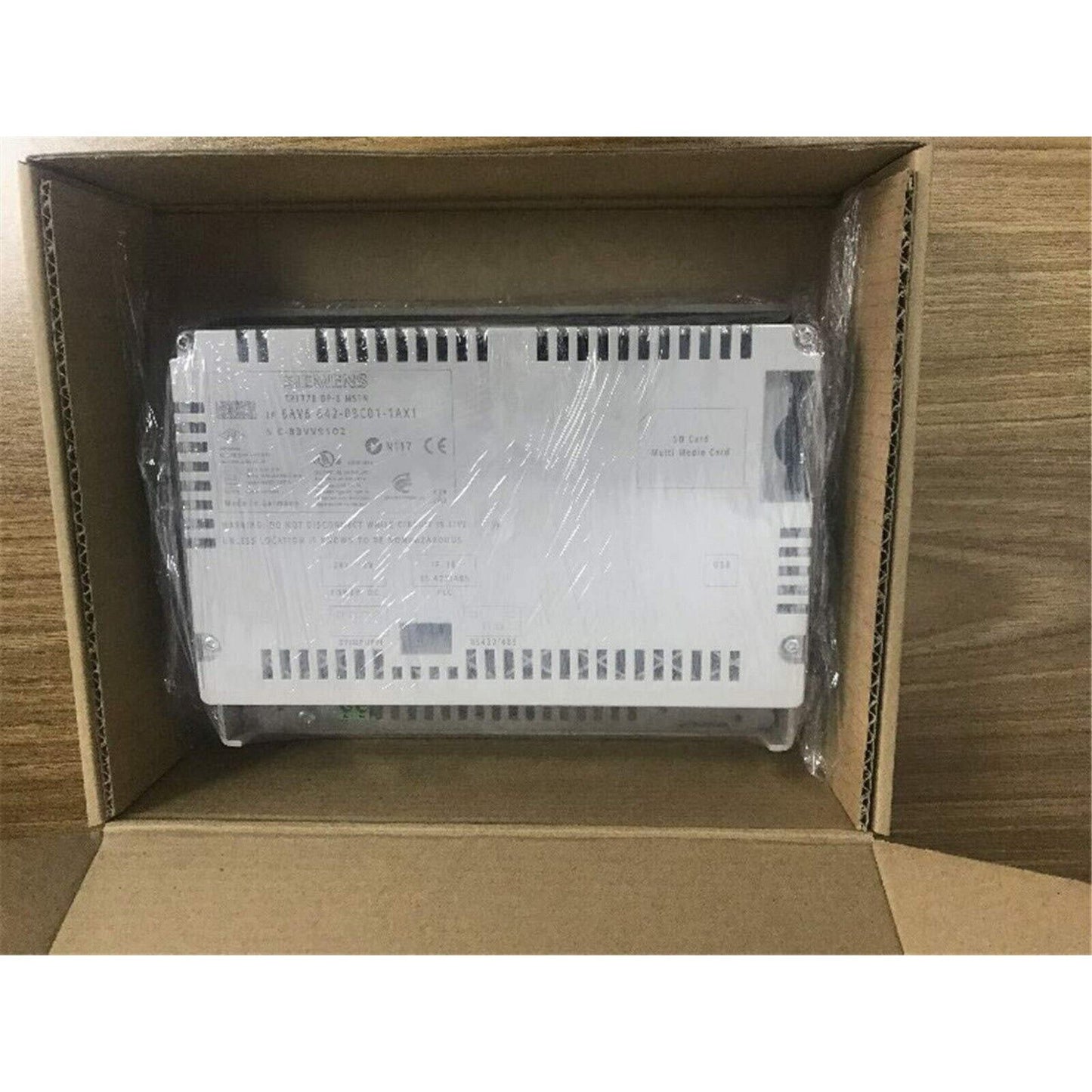

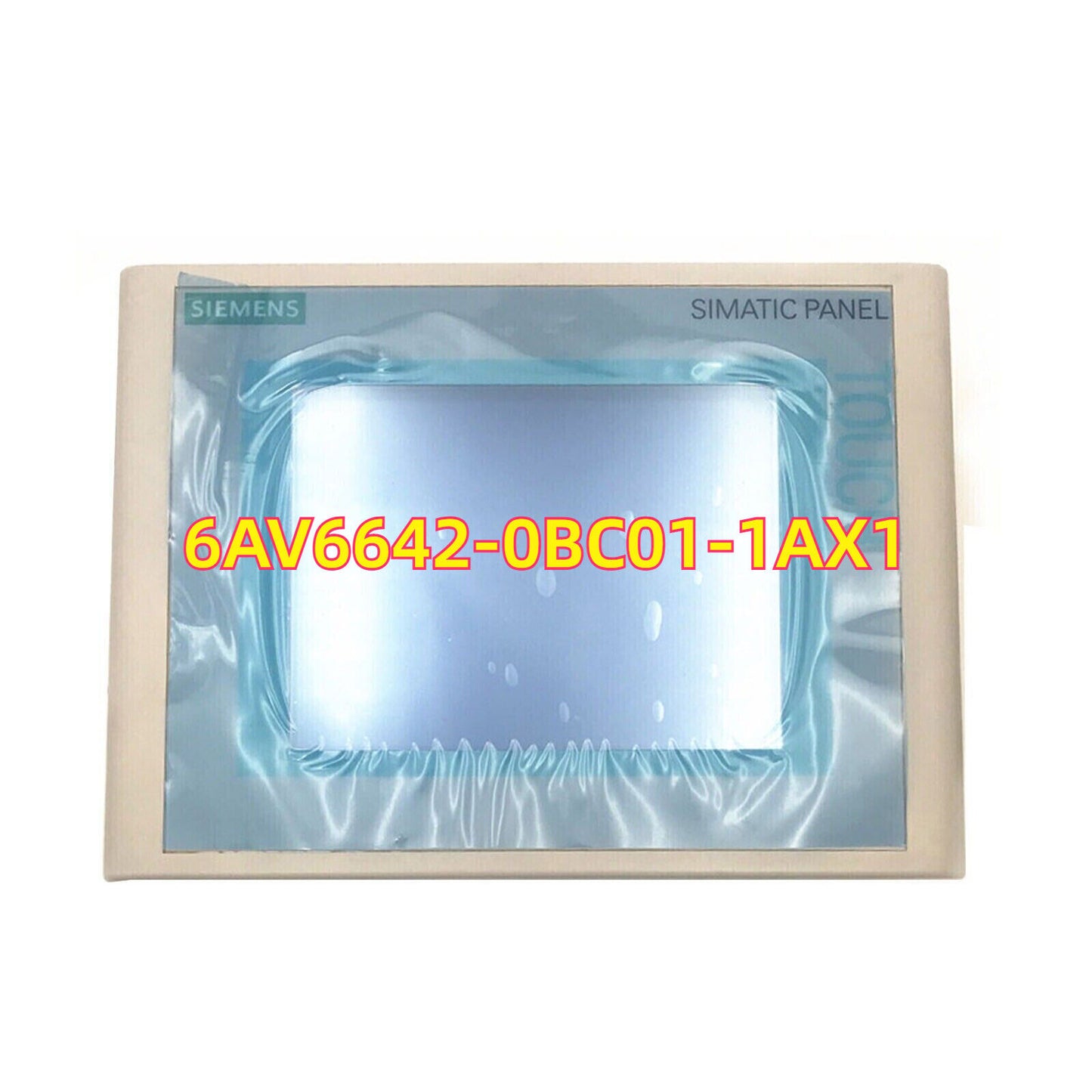

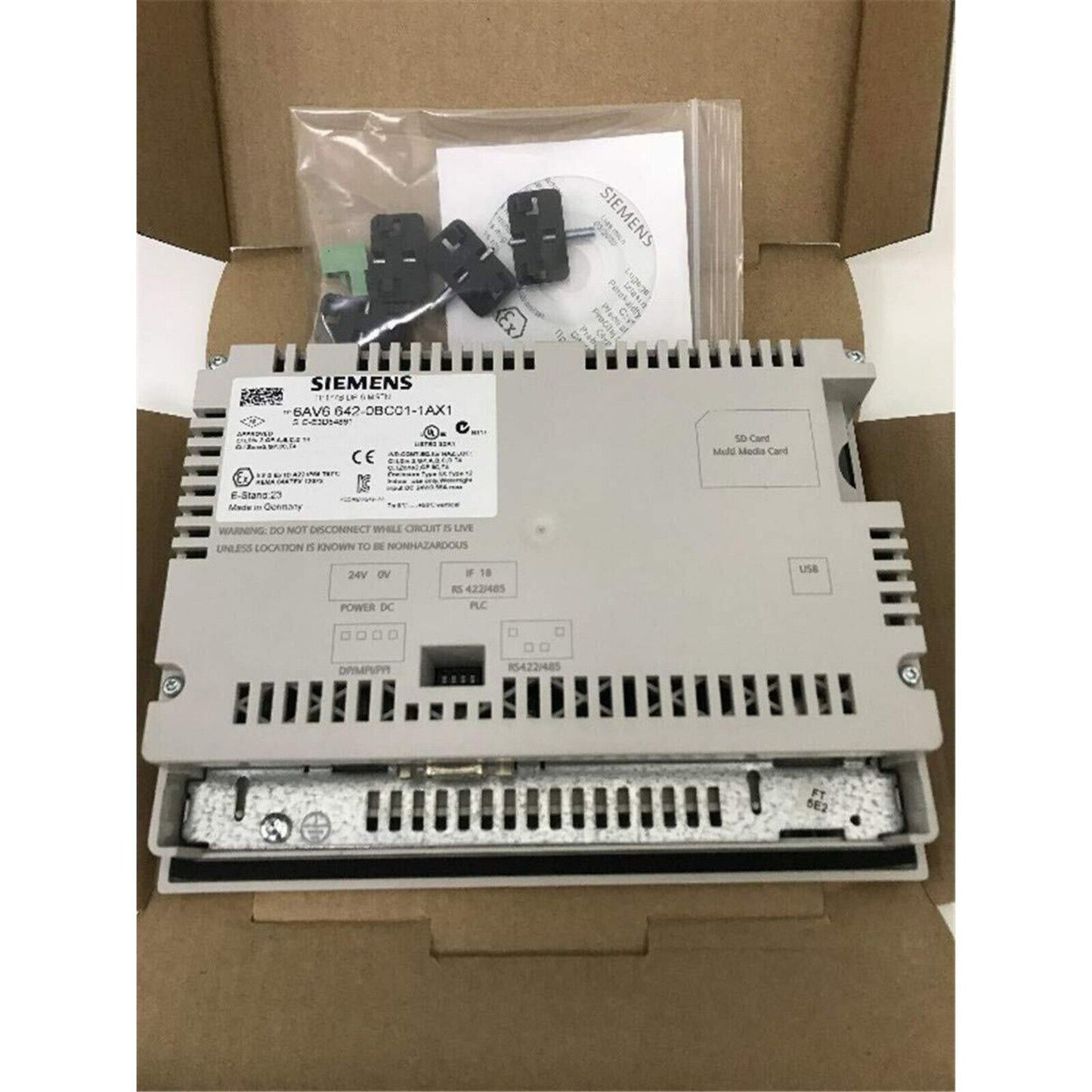

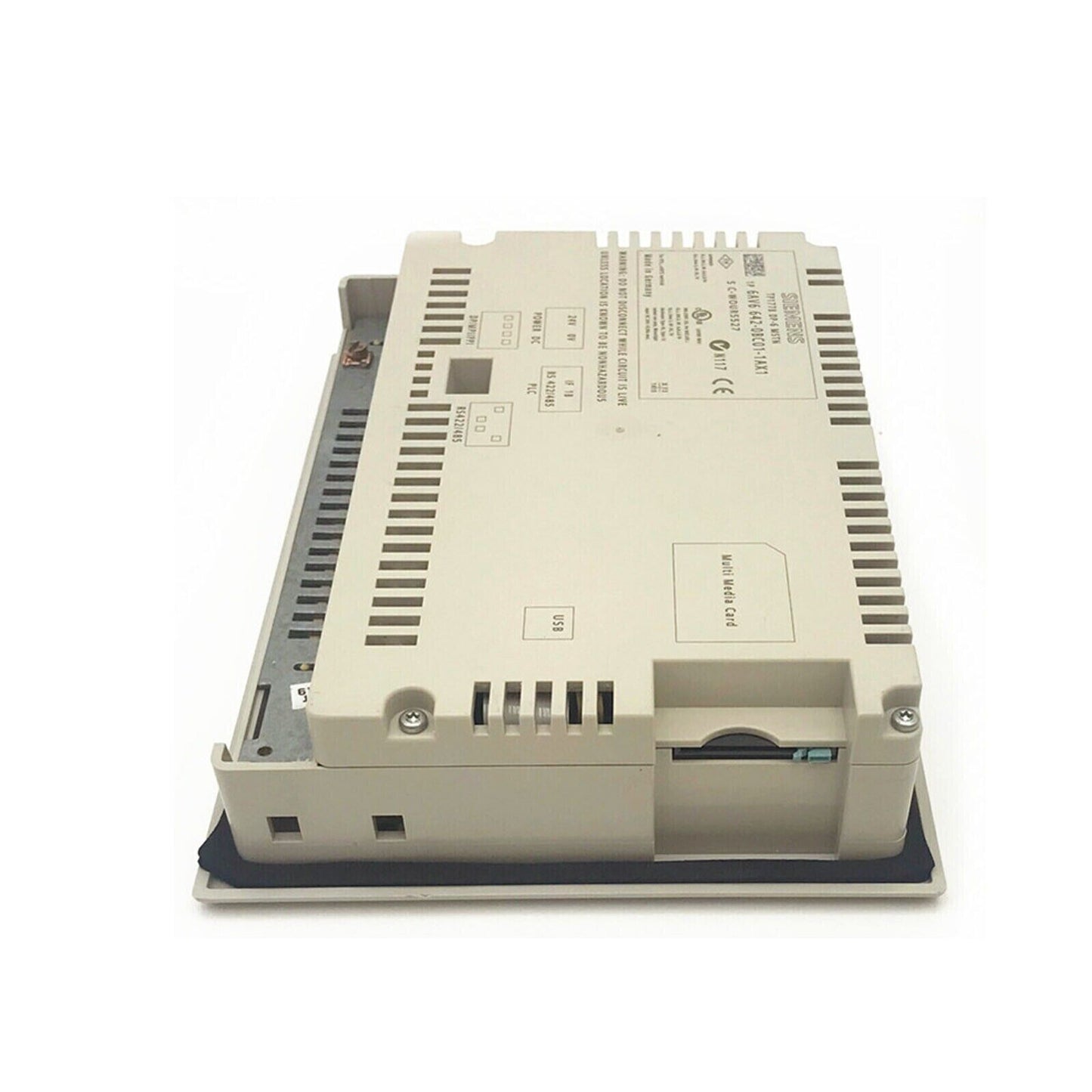

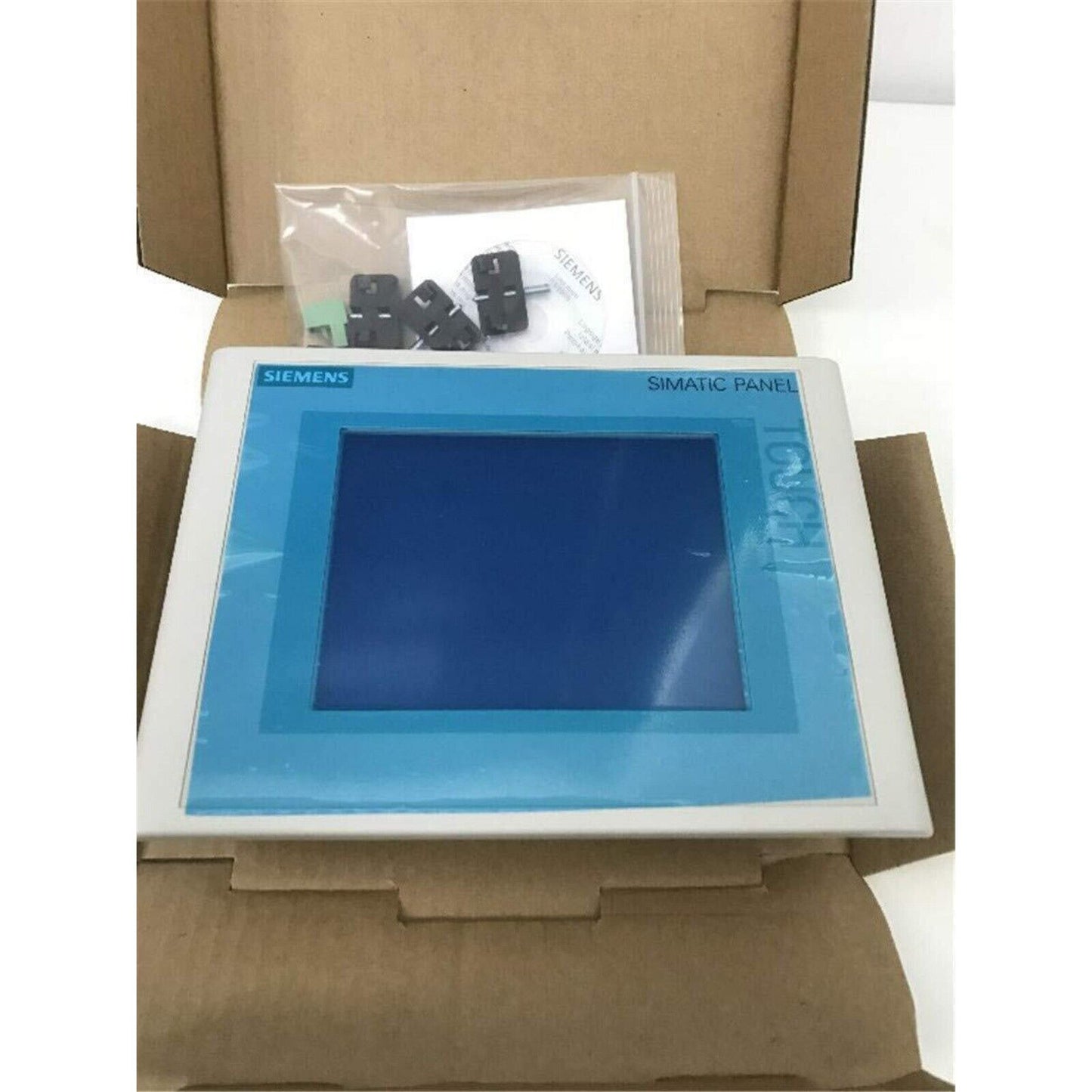

HMI Device | Siemens | 6AV6642-0BC01-1AX1 6AV6642-0BC01-1AX1 HMI Touch Panel TP 177B 6" DP

Product Description: Siemens 6AV6642-0BC01-1AX1

The Siemens 6AV6642-0BC01-1AX1 is a TP177B HMI panel from the SIMATIC HMI TP 177B series, featuring a 6-inch color STN display with 256 colors and 320 × 240 resolution. It supports analog-resistive touchscreen operation and offers both PROFINET and PROFIBUS DP communication interfaces. The panel is suitable for visualization and operation of small to mid-sized machines and systems. Configuration is done using WinCC flexible 2007.

Key Features

• Display: 6" STN color display, 320 × 240 pixels, 256 colors
• Operation: Analog-resistive touchscreen
• Interfaces: PROFINET, PROFIBUS DP, MPI/DP, 1 × USB, RS-485
• Memory: Integrated WinCC flexible runtime
• Power Supply: 24 V DC (permissible range: 19.2 – 28.8 V DC)
• Mounting: Panel mounting with IP65 protection (front), IP20 (rear)
• Configuration Software: WinCC flexible 2007

Technical Specifications

• Display Size: 6 inches
• Display Resolution: 320 × 240 pixels
• Number of Display Colors: 256
• Touchscreen Type: Analog-resistive
• Function Keys: None (touch-only operation)
• Interface Ports: PROFINET, PROFIBUS DP, MPI/DP, USB, RS-485
• Configuration Memory: Integrated
• Power Consumption: Approx. 7 W
• Operating Temperature Range: 0 °C to +50 °C
• Dimensions (W × H × D): 212 mm × 156 mm × 38 mm
• Protection Class (Front/Rear): IP65 / IP20
• Certifications: CE, cULus, RCM

Application Areas

• Operator interface for small and mid-range machines
• Visualization and control in industrial automation systems
• Integration with SIMATIC controllers via PROFINET and PROFIBUS
• Applications requiring compact and durable HMI panels

Advantages

• Combines two industrial communication standards for flexible integration
• Compact design with clear color display
• Cost-effective HMI solution for basic automation needs
• Seamless configuration in WinCC flexible engineering environment
