SIMATIC HMI | Siemens | 6AV6545-0AG10-0AX0 6AV6 545-0AG10-0AX0 HMI MP270B TOUCH SM9T

Product Description: Siemens 6AV6545-0AG10-0AX0

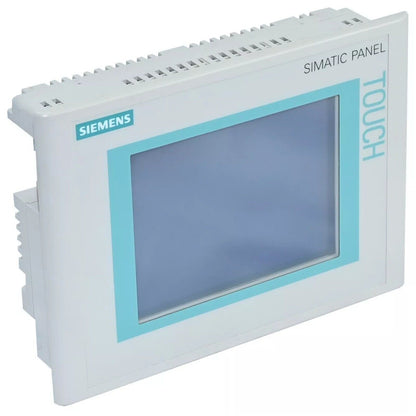

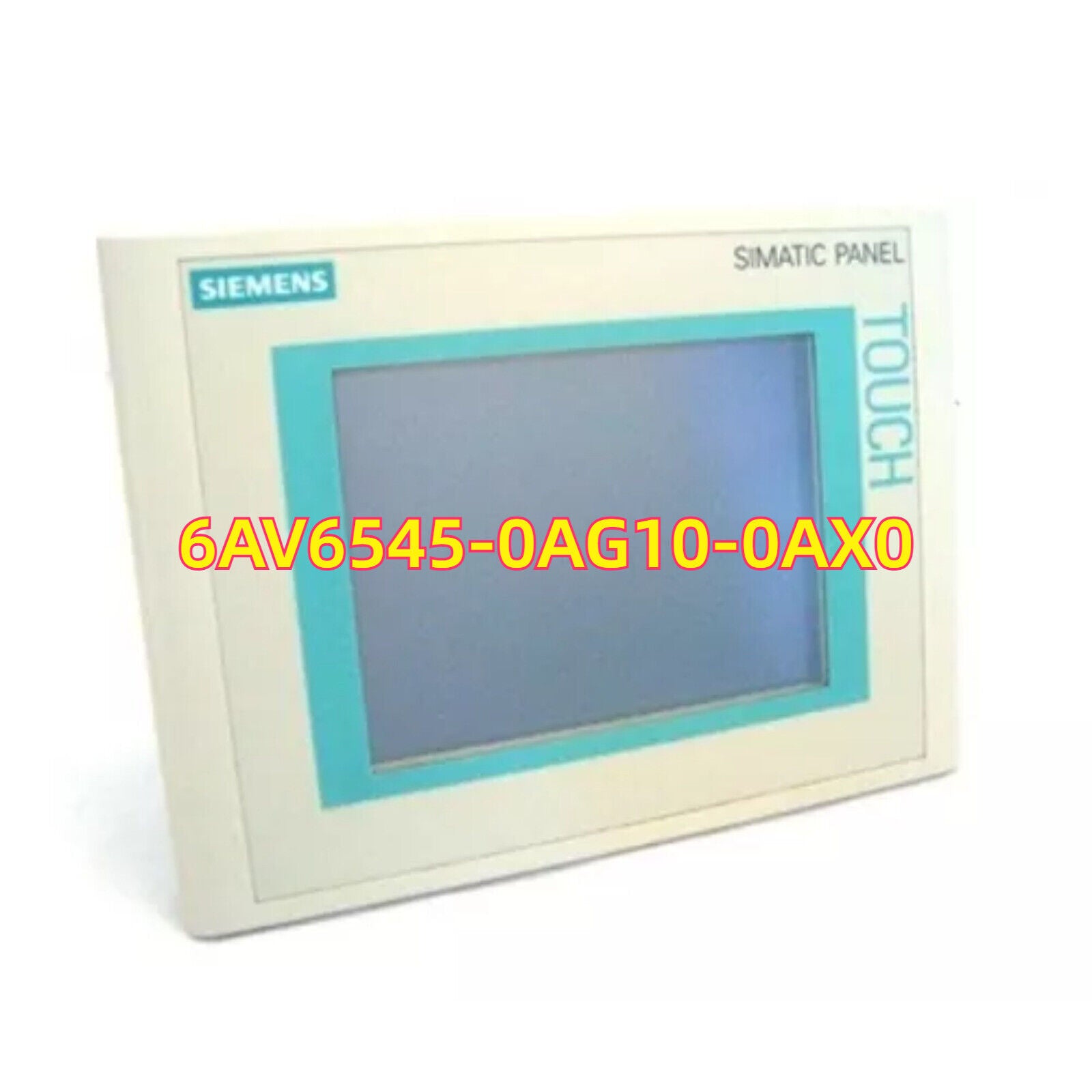

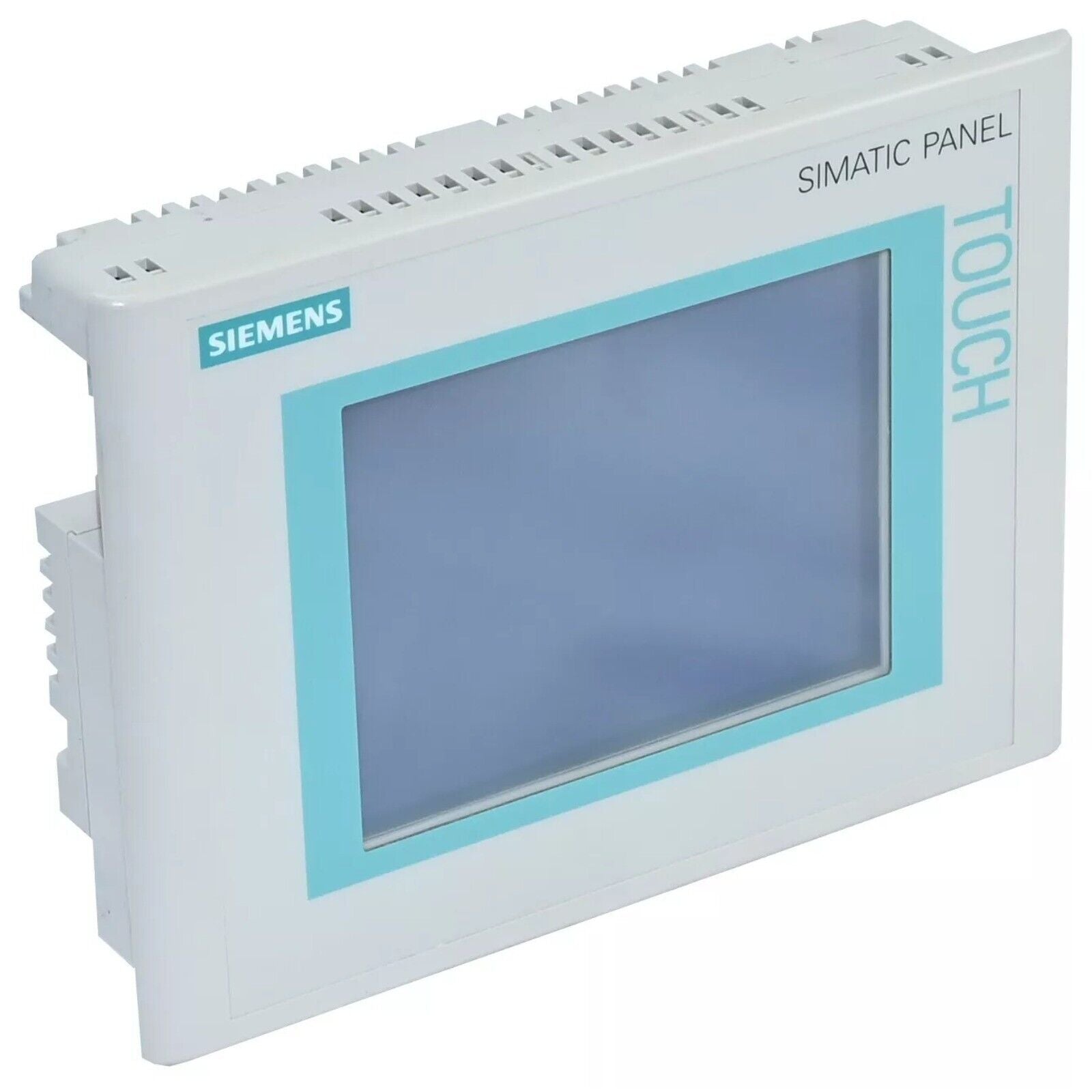

The Siemens 6AV6545-0AG10-0AX0 is a 4-inch touch screen panel from the SIMATIC HMI series, designed for intuitive interaction with industrial systems. This Basic Panel is part of the KTP 400 model, providing a reliable and compact solution for controlling and monitoring machines and processes. The HMI panel features a high-resolution TFT color display, enabling clear visualization of system parameters, real-time control, and monitoring. It supports a variety of communication protocols for seamless integration with Siemens PLC systems and other automation equipment.

Key Features

• Display Size: 4-inch TFT color touchscreen
• Display Type: High-resolution TFT for sharp, clear visualization of data and system parameters
• User Interface: Touchscreen interface for easy operation and control of system functions
• Communication Protocols: Supports communication with Siemens PLCs using PROFINET and other industrial networks
• Programming: Configurable with Siemens WinCC flexible or TIA Portal for easy setup and integration
• Mounting: Panel mount for integration into control panels or machine systems
• Operating Temperature Range: Suitable for industrial environments with an operating temperature range of 0°C to +50°C
• Diagnostic Features: Built-in diagnostics for real-time monitoring and fault detection

Technical Specifications

• Product Type: Human Machine Interface (HMI)
• Part Number: 6AV6545-0AG10-0AX0
• Display Size: 4-inch
• Display Type: TFT, high-resolution
• Touch Interface: Yes, touch-screen interface
• Communication Protocols: PROFINET, Industrial Ethernet
• Operating Temperature Range: 0°C to +50°C
• Mounting: Panel mount
• Dimensions (W x H x D): 120 mm x 92 mm x 34 mm
• Weight: Approx. 0.35 kg

Application Areas

• Factory Automation: Ideal for controlling and monitoring machines and processes in manufacturing environments.
• Process Control: Used in industries such as food processing, chemical manufacturing, and pharmaceuticals for real-time process monitoring and control.
• Machine Automation: Provides a user-friendly interface for controlling and monitoring automated machinery in various industrial settings.
• Building Automation: Suitable for controlling building systems such as HVAC, lighting, and security.

Advantages

• Compact Design: The small 4-inch size makes it an ideal solution for applications where space is limited.
• High-Resolution Display: The high-quality TFT display ensures clear and easy-to-read data in various industrial conditions.
• Intuitive Interface: The touch-screen interface allows for easy operation, reducing operator training time and increasing efficiency.
• Flexible Integration: Supports multiple communication protocols for seamless integration with Siemens PLCs and other automation systems.
• Reliable Diagnostics: Built-in diagnostic functions help identify faults quickly, reducing downtime and improving system reliability.
