PLC | Siemens | 6ES7314-6EH04-0AB0 6ES7 314-6EH04-0AB0 S7-300 CPU 314C-2PN/DP

Product Description: Siemens 6ES7314-6EH04-0AB0

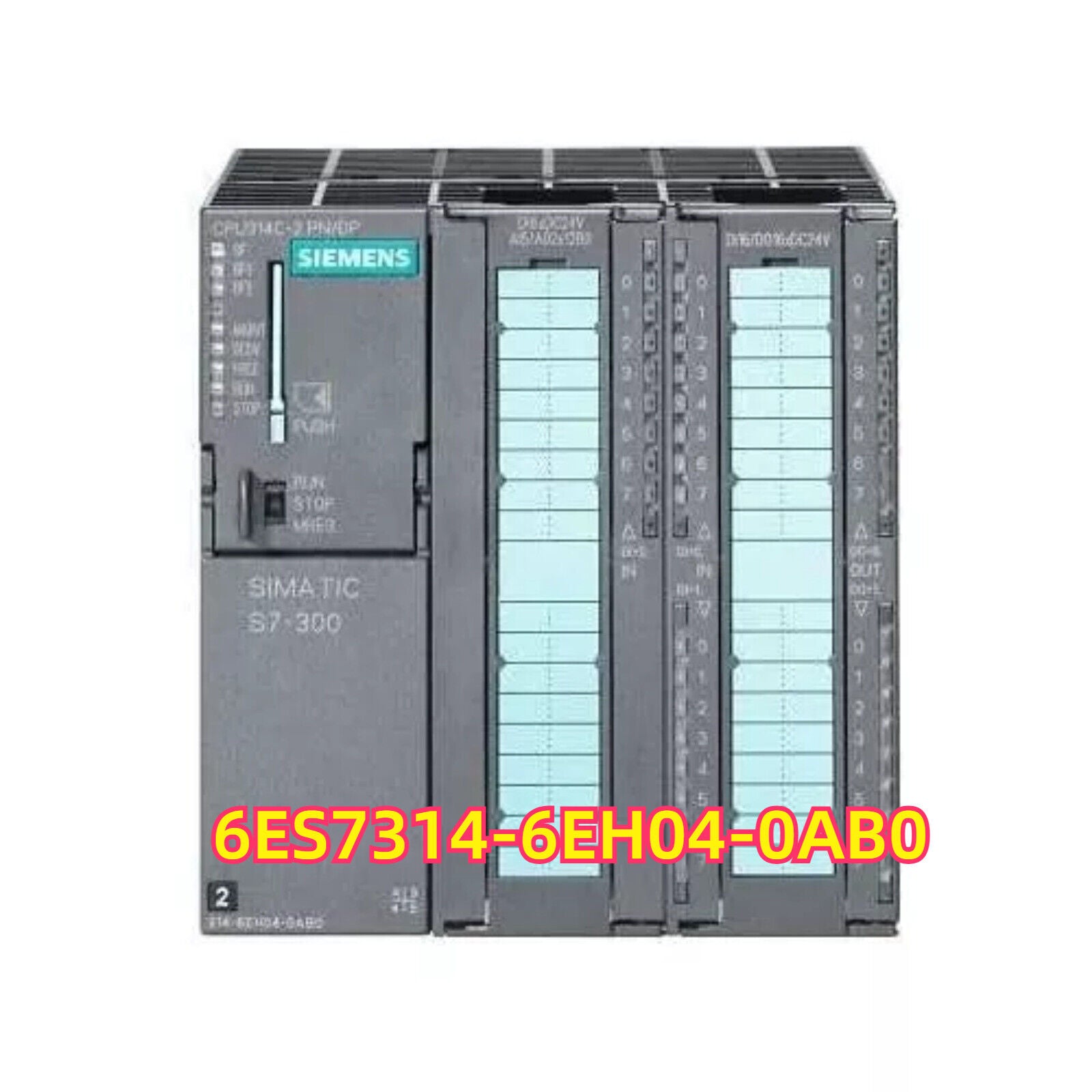

The Siemens 6ES7314-6EH04-0AB0 is a powerful and compact CPU from the SIMATIC S7-300 series, specifically the CPU 314C-2 DP model. It is designed for controlling small to medium-sized automation systems, offering high processing power and communication capabilities. The CPU 314C-2 DP is equipped with an integrated PROFIBUS DP interface, allowing for seamless communication with remote I/O devices and other distributed systems. It provides real-time control and data processing for various industrial applications, such as machine control, process monitoring, and factory automation.

Key Features

• Processor Type: Compact and powerful CPU suitable for small to medium automation systems.
• Memory: 256 KB program memory and 128 KB data memory for efficient control tasks and data handling.
• Communication Interface: Integrated PROFIBUS DP interface for easy connection to remote I/O devices and other industrial control systems.
• Expandability: Supports the addition of up to 8 I/O modules for flexible system configuration and expansion.
• Real-time Processing: Capable of high-speed, real-time data processing for control and monitoring applications.
• Diagnostics: Built-in diagnostic LEDs for easy status monitoring and fault detection.
• Temperature Range: Designed for operation in industrial environments with temperatures ranging from 0°C to +60°C.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7314-6EH04-0AB0
• Program Memory: 256 KB
• Data Memory: 128 KB
• Communication Interface: PROFIBUS DP
• Expandability: Supports up to 8 I/O modules
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
• Weight: Approx. 250 g

Application Areas

• Factory Automation: Ideal for controlling and monitoring machines, conveyors, and automated production lines.
• Process Control: Used in industrial processes such as chemical, food, and beverage processing, where real-time data exchange and control are required.
• Machine Control: Suitable for controlling and monitoring individual machines or automated systems.
• Distributed Control Systems: The integrated PROFIBUS DP interface makes it suitable for large-scale, distributed control systems.

Advantages

• Compact and Efficient: Offers high processing power and memory in a compact form, ideal for systems with limited space.
• Seamless Integration: The PROFIBUS DP interface ensures easy integration into existing industrial networks and control systems.
• Reliable Diagnostics: Built-in diagnostic LEDs help monitor system status, reducing downtime and enhancing maintenance efficiency.
• Flexible Expansion: Supports the addition of up to 8 I/O modules, offering scalability for more complex systems.
