PLC | Siemens | 6ES7331-7KF02-0AB0 6ES7 331-7KF02-0AB0 Analog Input Module

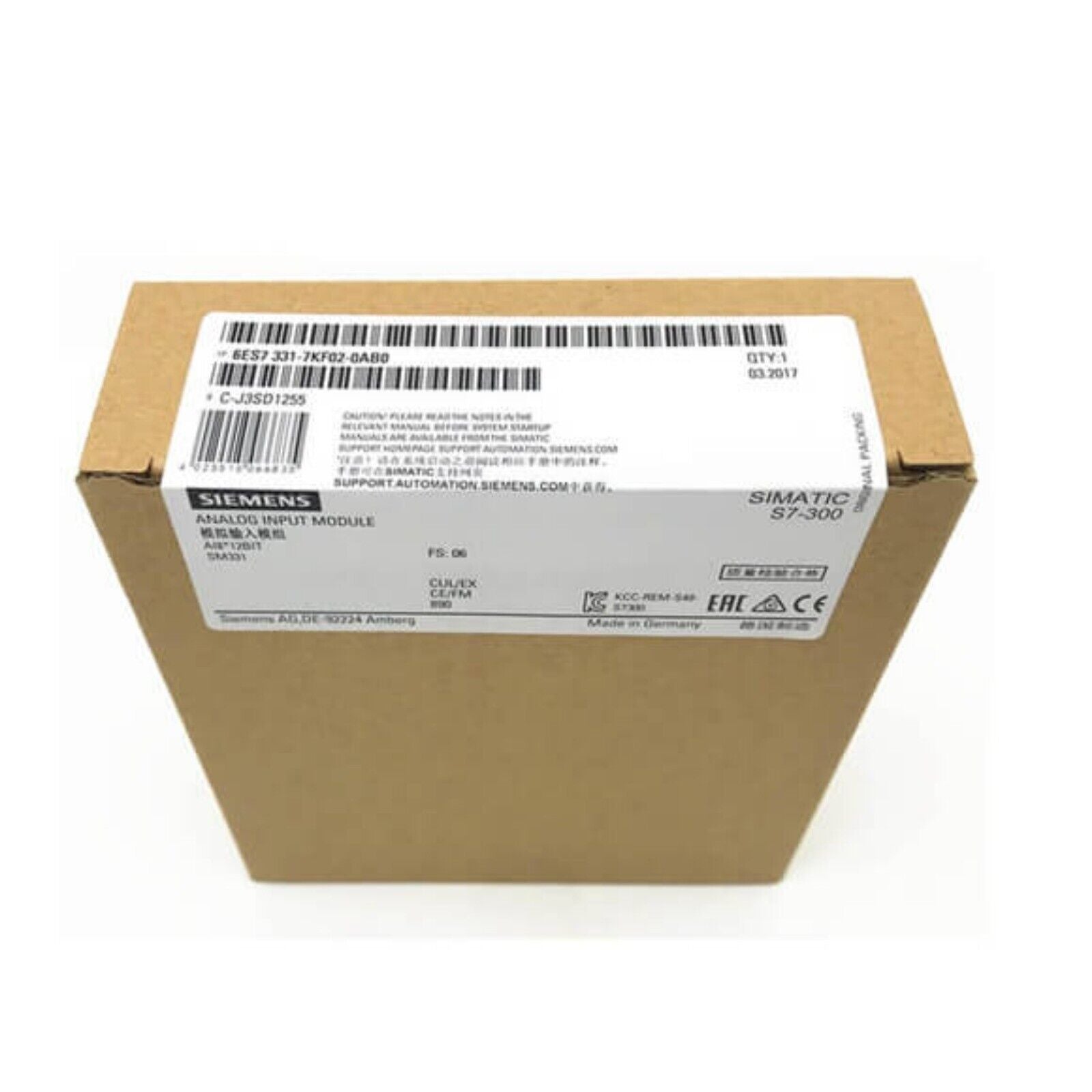

Product Description: Siemens 6ES7331-7KF02-0AB0

The Siemens 6ES7331-7KF02-0AB0 is an analog input module from the SIMATIC S7-300 series, designed for high-precision measurement and control in industrial automation systems. This module offers 8 analog inputs with optical isolation, supporting various signal types including voltage, current, thermocouples, resistance thermometers, and resistors. It provides high- resolution measurements with 9, 12, or 14 bits and features integrated diagnostics and alarm functions. The module is equipped with a 20-pin front connector for easy integration into the S7-300 system.

Key Features

• Analog Inputs: 8 channels with optical isolation.
• Signal Types Supported: Voltage, current, thermocouples, resistance thermometers, and resistors.
• Resolution: Selectable 9, 12, or 14 bits.
• Input Ranges: Supports a wide range of input voltages and currents.
• Integrated Diagnostics: Includes diagnostic functions for monitoring input signals.
• Alarm Functions: Configurable alarm thresholds for each input.
• Front Connector: 20-pin connector for easy wiring.
• Mounting: Designed for use with the S7-300 backplane bus.

Technical Specifications

• Product Type: Analog Input Module
• Part Number: 6ES7331-7KF02-0AB0
• Number of Inputs: 8
• Input Types: Voltage, Current, Thermocouple, RTD, Resistor
• Resolution: 9/12/14 bits
• Input Voltage Range: ±10 V, ±2.5 V, ±0.5 V, ±0.08 V
• Input Current Range: ±20 mA, ±10 mA, ±4 mA, ±3.2 mA
• Thermocouple Types Supported: Type J, K, L, N, T, E
• RTD Types Supported: Pt100, Ni100
• Resistance Measurement: 0–150 Ω, 0–300 Ω, 0–600 Ω
• Power Consumption: 1 W (typical)
• Supply Voltage: 24 V DC
• Mounting: S7-300 Backplane Bus
• Front Connector: 20-pin
• Dimensions (W x H x D): 40 mm x 125 mm x 117 mm
• Weight: 0.288 kg

Application Areas

• Process Control: Monitoring and controlling industrial processes requiring precise analog measurements.
• Machine Automation: Integrating analog sensors into automated machinery for real-time data acquisition.
• Building Automation: Collecting data from various sensors in building systems for monitoring and control.
• Energy Management: Measuring energy consumption and other parameters in industrial settings.

Advantages

• High Precision: Offers selectable resolution up to 14 bits for accurate measurements.
• Wide Compatibility: Supports a variety of input signal types, providing flexibility in sensor integration.
• Integrated Diagnostics: Built-in diagnostics and alarm functions enhance system reliability.
• Ease of Integration: 20-pin front connector simplifies wiring and installation.
• Robust Design: Designed for use in industrial environments, ensuring durability and long-term performance.
