PLC | Siemens | 6ES7322-1FH00-0AA0 6ES7 322-1FH00-0AA0 S7-300 Digital output SM 322

Product Description: Siemens 6ES7322-1FH00-0AA0

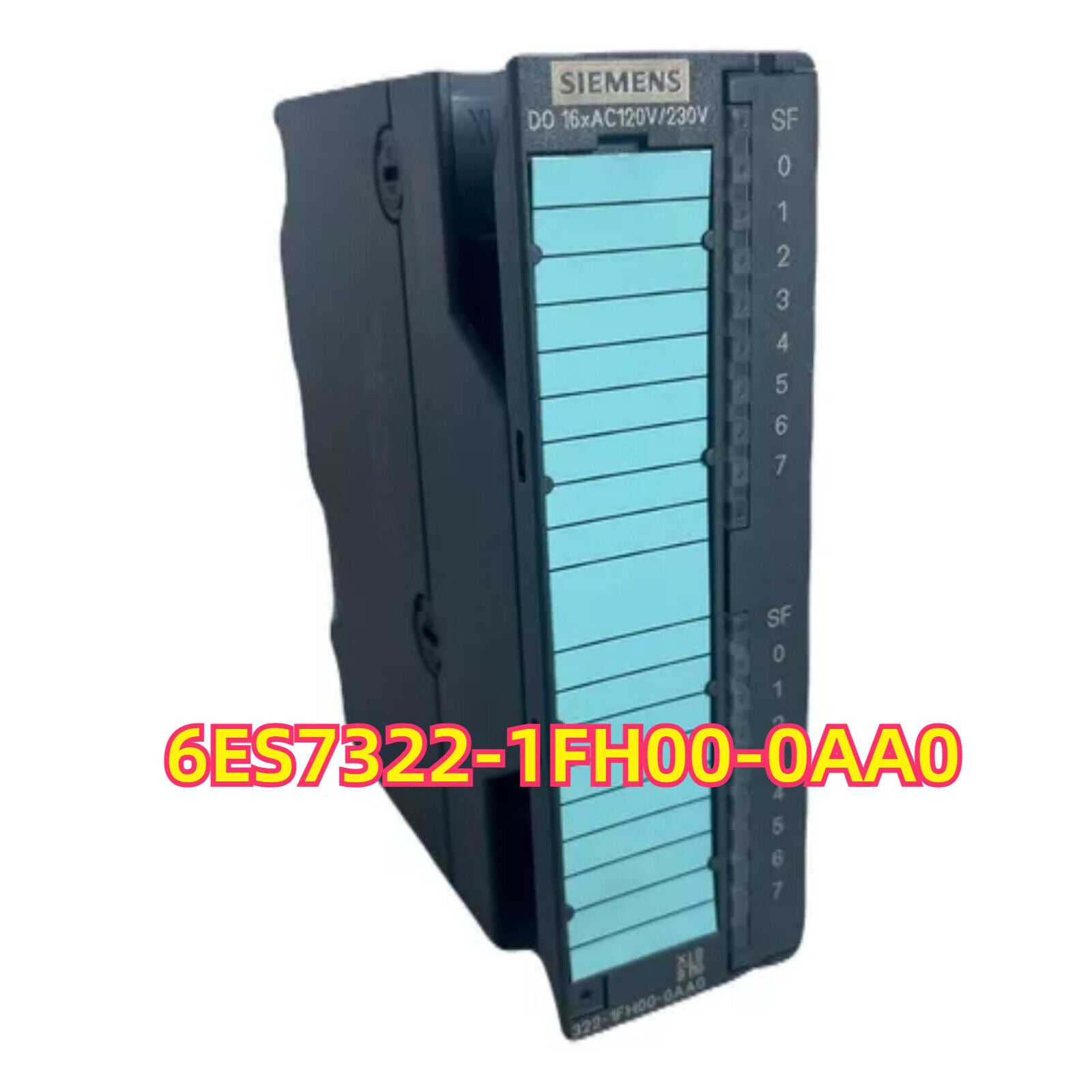

The Siemens 6ES7322-1FH00-0AA0 is a 16-channel digital output module designed for use with the SIMATIC S7-300 PLC system. This module provides 16 digital outputs for controlling devices such as relays, solenoids, and other actuators in industrial automation applications. The module features opto-isolation, which provides electrical isolation between the output circuits and the backplane, offering protection against electrical noise and spikes. It operates with a 24 V DC supply voltage and supports a maximum output current of 0.5 A per channel.

Key Features

• Number of Outputs: 16 digital outputs
• Output Type: Source output (PNP configuration)
• Supply Voltage: 24 V DC (permissible range: 19.2 V to 28.8 V)
• Output Current per Channel: 0.5 A
• Maximum Total Output Current: 8 A
• Isolation: Optocoupler-based isolation between channels and backplane
• Mounting Compatibility: Compatible with the SIMATIC S7-300 backplane bus
• Diagnostic Indicators: Diagnostic LEDs for fault detection and monitoring
• Temperature Range: Suitable for use in industrial environments with a wide operating temperature range

Technical Specifications

• Product Type: Digital Output Module
• Part Number: 6ES7322-1FH00-0AA0
• Number of Outputs: 16
• Output Type: Source output (PNP)
• Supply Voltage: 24 V DC
• Output Current per Channel: 0.5 A
• Maximum Total Output Current: 8 A
• Isolation: Optocoupler isolation
• Diagnostic Indicators: Yes (LEDs for status monitoring)
• Mounting: SIMATIC S7-300 backplane bus
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
• Weight: Approx. 250 g

Application Areas

• Factory Automation: Used to control actuators such as relays, solenoids, and motors in automated production lines and industrial machines.
• Process Control: Ideal for switching devices in process industries such as chemicals, food processing, and packaging.
• Building Automation: Suitable for controlling building systems like lighting, HVAC, and alarms.
• Energy Management: Can be used in energy-efficient systems to control equipment and manage energy consumption.

Advantages

• High Channel Density: 16 outputs in a single module, saving space in control cabinets.
• Reliable Diagnostics: Built-in diagnostic LEDs make it easy to monitor the health of output channels and identify faults quickly.
• Electrical Isolation: Provides protection against electrical noise and voltage spikes, ensuring the reliability of the control system.
• Flexible Integration: Can be easily integrated into the existing SIMATIC S7-300 PLC system.
