PLC | SIMATIC S7-300| Siemens | 6ES7332-5HD01-0AB0 6ES7 332-5HD01-0AB0 S7-300 Analog output SM 332

Product Description: Siemens 6ES7332-5HD01-0AB0

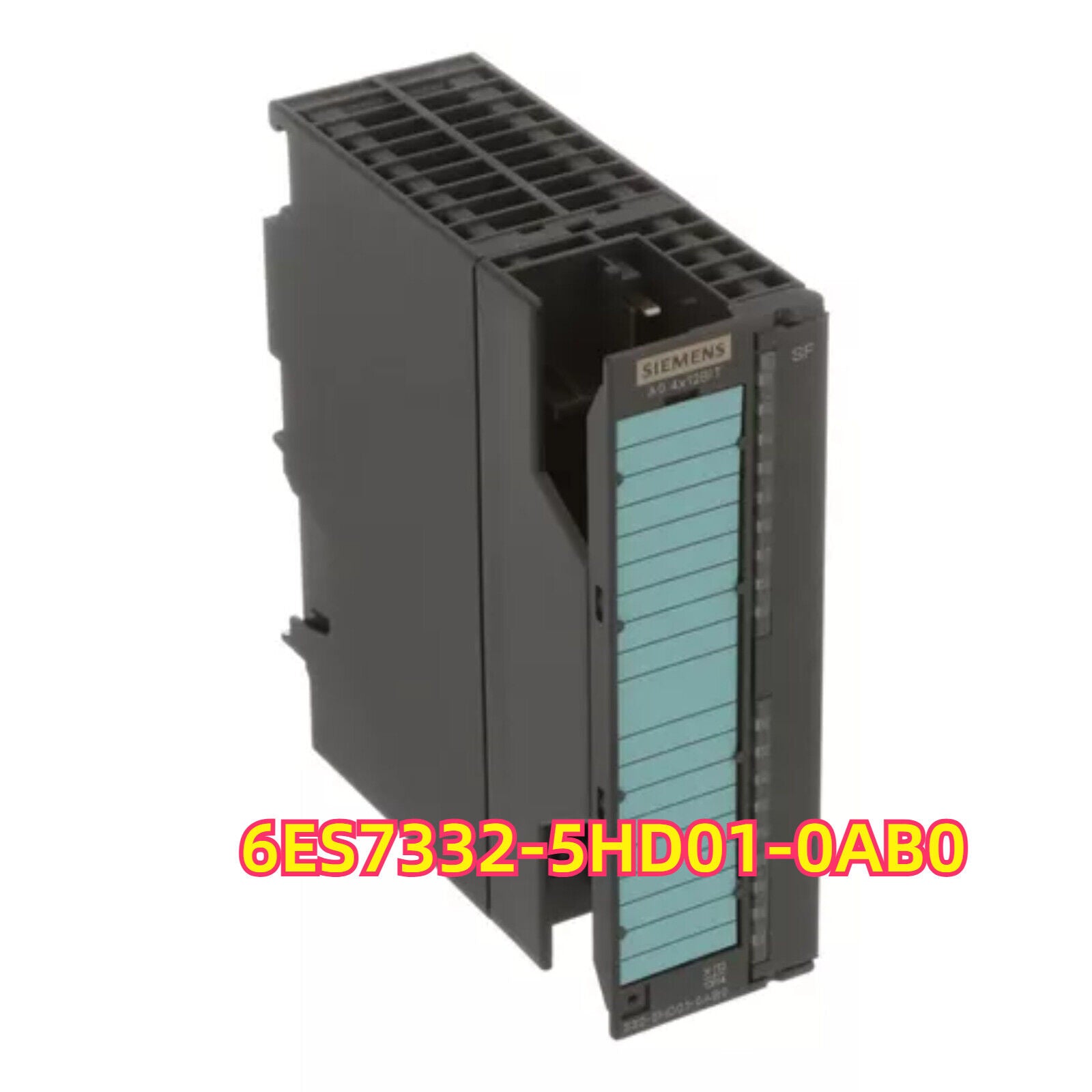

The Siemens 6ES7332-5HD01-0AB0 is an advanced analog output module from the SIMATIC S7-300 series, designed for high-resolution output of voltage and current signals. With 8 channels and a resolution of 15 bits, it enables precise control of analog actuators such as proportional valves, drives, and measuring instruments. This module offers selectable output ranges, diagnostic capabilities, and excellent signal accuracy, making it ideal for demanding industrial applications.

Key Features

• 8 analog outputs with 15-bit resolution
• Output types: Voltage and current selectable per channel
• High precision signal output for analog devices
• Galvanic isolation between channels and backplane
• Diagnostic functions including wire break detection
• Parameterizable via STEP 7 engineering software
• Designed for standard S7-300 racks

Technical Specifications

• Part Number: 6ES7332-5HD01-0AB0
• Number of Analog Outputs: 8
• Output Ranges: ±10 V, 0–10 V, 1–5 V, 0–5 V; 0–20 mA, 4–20 mA
• Resolution: 15 bits + sign
• Output Load (Voltage): ≥10 kΩ
• Output Load (Current): ≤500 Ω
• Isolation: Yes, channel- to-backplane
• Diagnostics: Yes (configurable via STEP 7)
• Power Supply: Via backplane bus
• Dimensions (W × H × D): 40 mm × 125 mm × 120 mm
• Mounting: DIN rail (S7-300 standard rack)
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: –40 °C to +70 °C
• Protection Class: IP20
• Weight: Approx. 300 g

Application Areas

• Analog process control in manufacturing systems
• Dosing and metering systems requiring precise analog outputs
• Industrial HVAC and building automation
• Motion control systems with analog input devices
• High-accuracy automation processes in pharmaceutical and food industries

Advantages

• High-resolution output for precise analog signal control
• Wide range of configurable output formats
• Robust isolation enhances system reliability
• Compatible with a broad range of analog actuators and transducers
• Integrates seamlessly with the SIMATIC S7-300 architecture
