PLC | Siemens | 6ES7322-5HF00-0AB0 6ES7 322-5HF00-0AB0 S7-300 Digital output SM 322

Product Description: Siemens 6ES7322-5HF00-0AB0

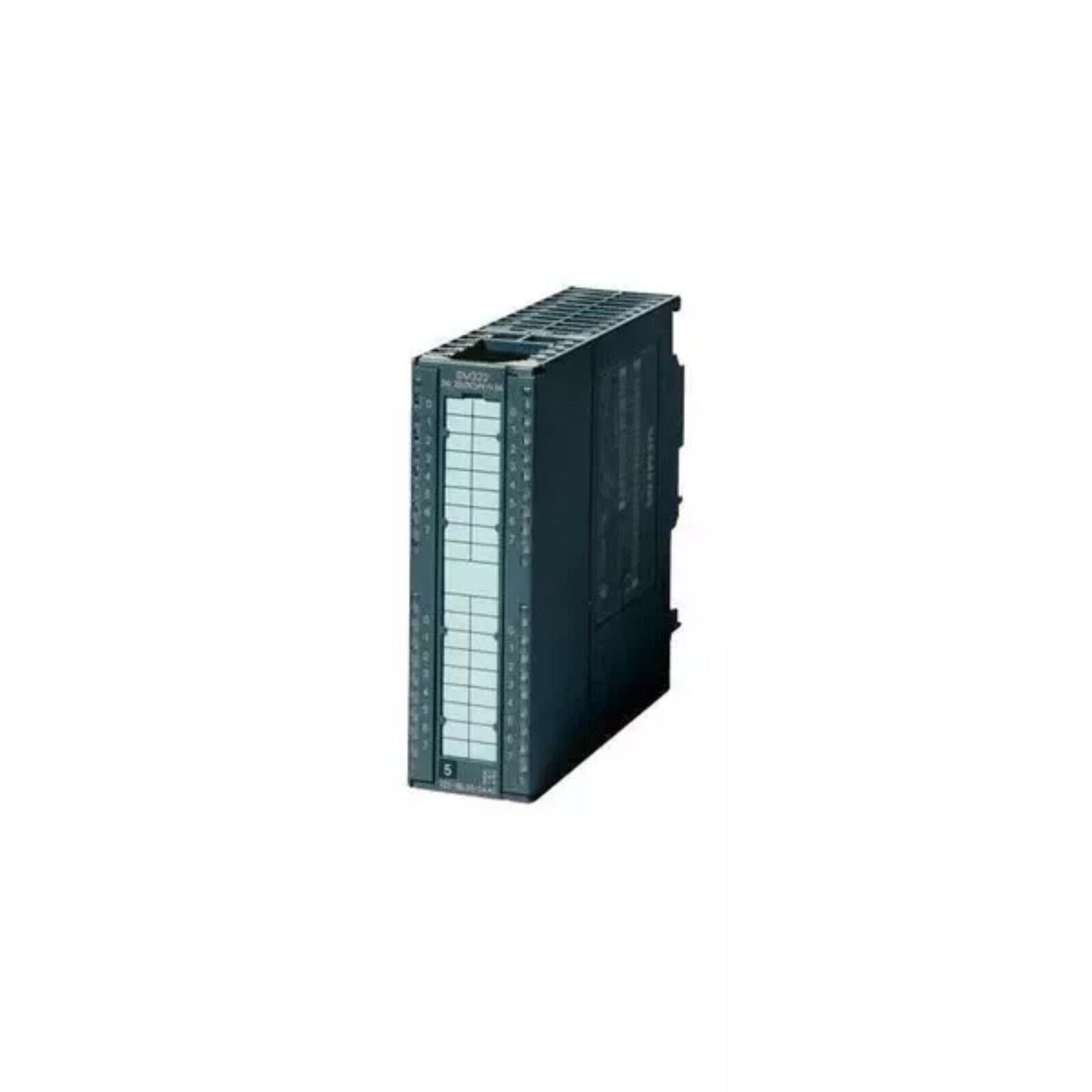

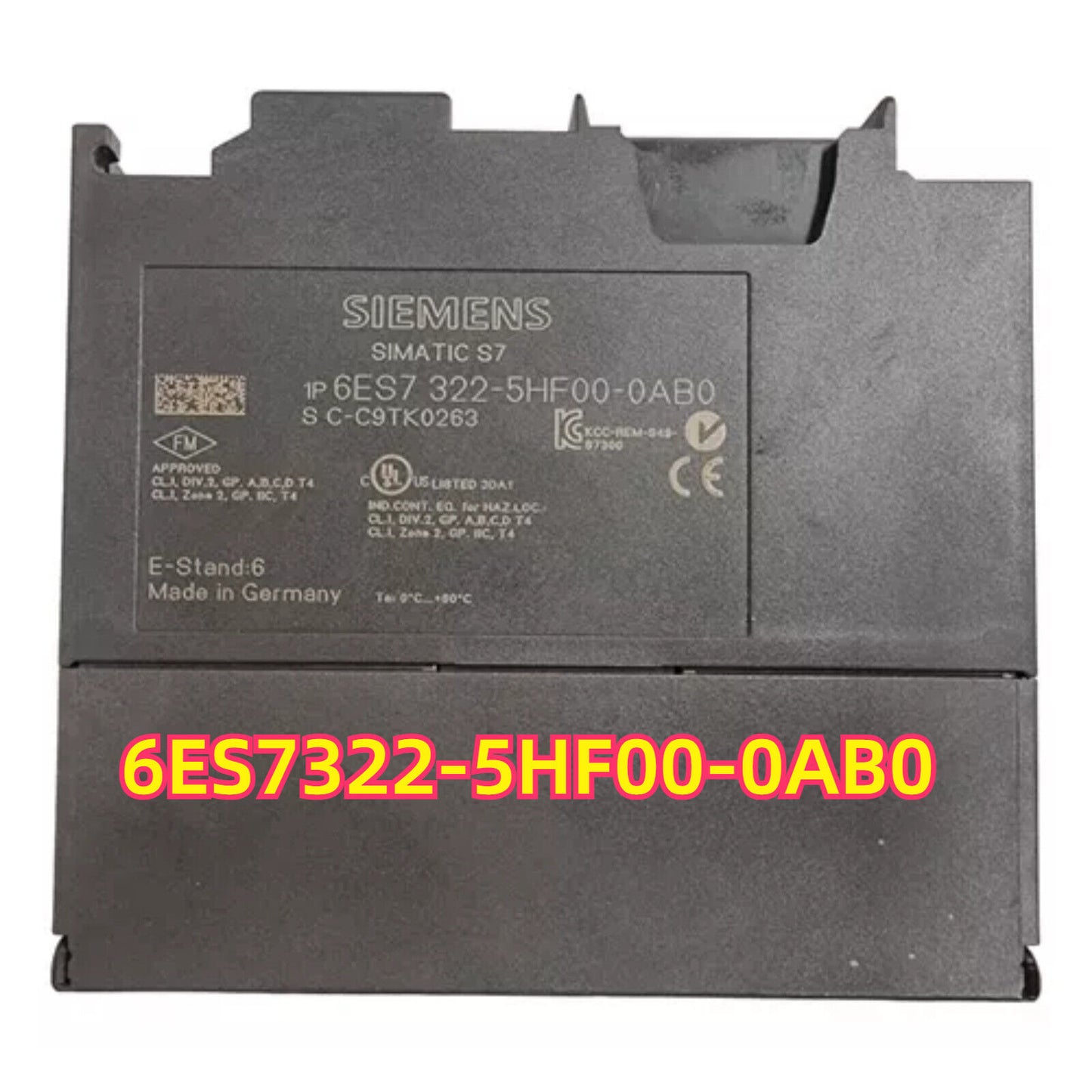

The Siemens 6ES7322-5HF00-0AB0 is a 16-channel digital output module designed for the SIMATIC S7-300 PLC system. This module provides digital outputs to control field devices such as actuators, relays, solenoids, and other industrial equipment. It features a source output configuration (PNP), operating with a 24 V DC supply voltage. The module is equipped with built-in diagnostic functions for monitoring the status of each output, enabling real- time fault detection and system diagnostics. It is ideal for use in factory automation, process control, and machine control systems.

Key Features

• Number of Outputs: 16 digital outputs
• Output Type: Source output (PNP, P-switching)
• Supply Voltage: 24 V DC (permissible range: 19.2 V to 28.8 V)
• Output Current per Channel: 0.5 A
• Total Module Current: Maximum 8 A
• Diagnostics: Built-in diagnostic LEDs for each output channel, wire break, short-circuit to L+ detection
• Mounting Compatibility: Fits into the SIMATIC S7-300 backplane bus
• Temperature Range: Suitable for industrial environments with an operating temperature range from 0°C to +60°C
• Space-saving Design: Compact design ideal for installation in control cabinets or industrial panels

Technical Specifications

• Product Type: Digital Output Module
• Part Number: 6ES7322-5HF00-0AB0
• Number of Outputs: 16
• Output Type: Source output (PNP, P-switching)
• Supply Voltage: 24 V DC
• Output Current per Channel: 0.5 A
• Total Module Current: Maximum 8 A
• Diagnostics: Built-in LEDs for fault detection and monitoring
• Mounting: SIMATIC S7-300 backplane bus
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
• Weight: Approx. 250 g

Application Areas

• Factory Automation: Control of actuators, relays, solenoids, and other devices in industrial manufacturing processes.
• Process Control: Switching of devices in process automation systems such as pumps, valves, and conveyors.
• Machine Control: Ideal for controlling and monitoring machines and automated systems in various industries.
• Building Automation: Suitable for controlling building infrastructure systems like lighting, HVAC, and security alarms.

Advantages

• Reliable Diagnostics: Built-in diagnostic LEDs allow for real-time monitoring and fault detection, minimizing system downtime.
• Flexible Integration: Easily integrates into the SIMATIC S7-300 system, expanding its automation capabilities.
• Compact Design: The module is designed for space-saving installations in industrial control cabinets.
• High Reliability: Designed for industrial use, ensuring long-term performance and durability in demanding environments.
