PLC | Siemens | 6ES7313-6CE01-0AB0 6ES7 313-6CE01-0AB0 PLC controller CPU313

Product Description: Siemens 6ES7313-6CE01-0AB0

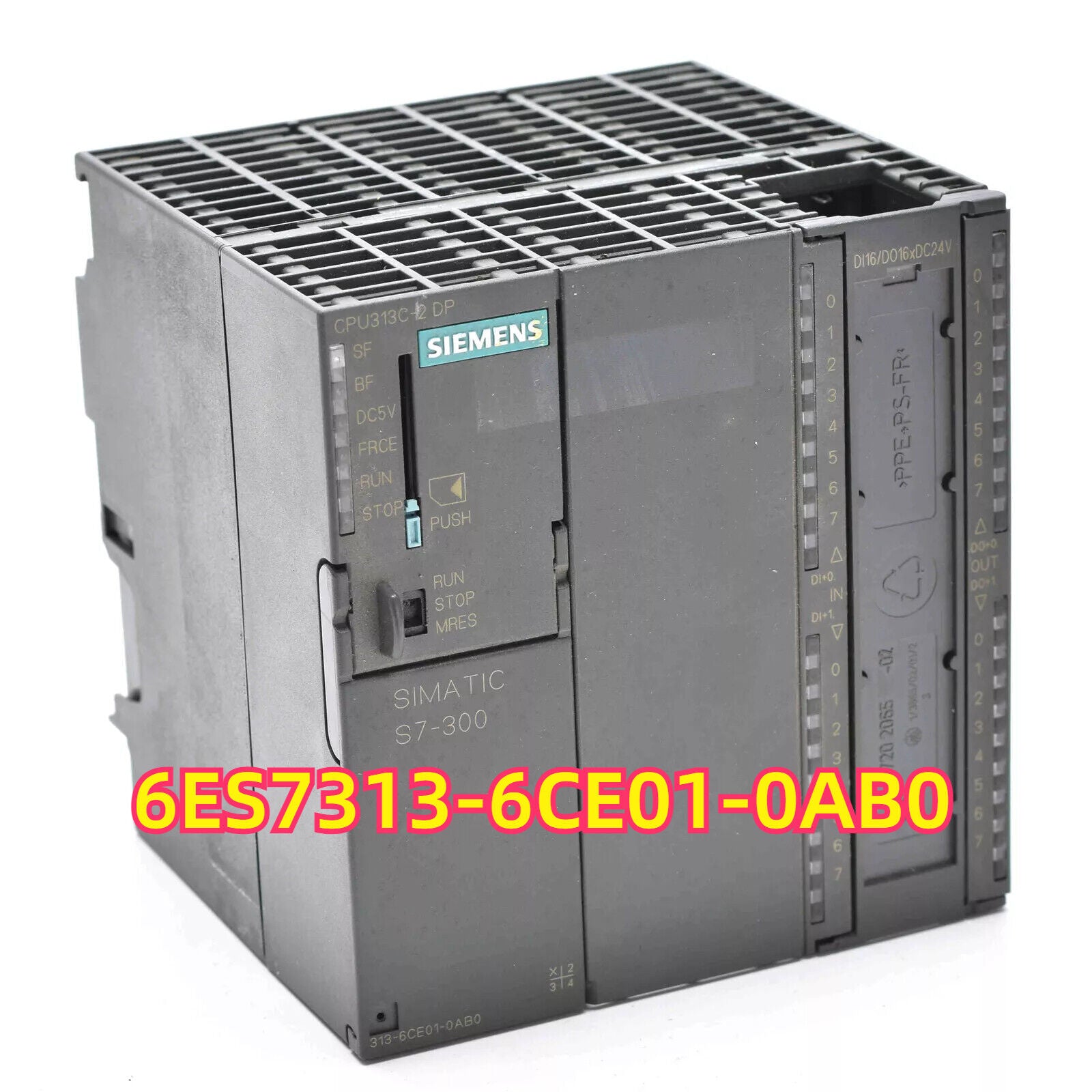

The Siemens 6ES7313-6CE01-0AB0 is a compact and powerful CPU 313C-2 DP module from the SIMATIC S7-300 series. It integrates logic control, digital and analog I/O, and a PROFIBUS DP master/slave interface, making it a cost- effective solution for small to medium automation systems. The CPU is designed for standalone operation or networked systems where communication with distributed I/O or drives over PROFIBUS is required. This CPU features integrated high-speed counters and pulse output capability, making it well-suited for motion-related applications in packaging, conveying, or small process control systems.

Key Features

• Integrated I/O: Includes 24 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs.
• PROFIBUS DP Interface: Built-in communication port for connection to distributed devices.
• Compact Design: Saves cabinet space by integrating multiple functions in one module.
• High-Speed Counters: Supports fast counting and positioning control applications.
• Flexible Expansion: Fully compatible with all S7-300 signal, function, and communication modules.
• Programmable in STEP 7: Configurable via TIA Portal or classic STEP 7 environment.

Technical Specifications

• Product Type: Central Processing Unit (CPU)
• Part Number: 6ES7313-6CE01-0AB0
• Series: SIMATIC S7-300
• CPU Model: CPU 313C-2 DP
• Work Memory: 128 KB
• Load Memory: Requires memory card (MMC)
• Digital Inputs: 24 × DI (24 V DC)
• Digital Outputs: 16 × DO (24 V DC)
• Analog Inputs: 4 × AI (0–10 V / 13-bit resolution)
• Analog Outputs: 2 × AO (0–10 V / 13-bit resolution)
• Communication Ports: 1 × MPI/DP (PROFIBUS DP Master/Slave)
• Pulse Outputs: 2 channels, up to 20 kHz
• High-Speed Counters: 2 channels, 30 kHz
• Mounting: DIN rail (S7-300 rack)
• Power Supply: 24 V DC
• Operating Temperature: 0°C to +60°C
• Dimensions (W × H × D): Approx. 120 × 125 × 130 mm
• Weight: Approx. 500 g

Application Areas

• Small Machines and Systems: For packaging, labeling, and assembly applications.
• Distributed Control: Uses PROFIBUS DP to connect remote I/O or drives.
• OEM Automation: Integrated I/O reduces component count for compact machines.
• Process Monitoring: Acquires analog signals for flow, temperature, or pressure control.
• Positioning Systems: Built-in high-speed counters and PTO for basic motion tasks.

Advantages

• All-in-One Control: Combines CPU, I/O, and fieldbus communication in one device.
• Efficient Cabinet Layout: Reduces wiring and saves installation space.
• Cost-Effective Networking: PROFIBUS DP integration eliminates need for external CP modules.
• Fast and Reliable: High-speed I/O processing suitable for real-time control.
• Fully Expandable: Can be scaled with additional modules as system requirements grow.
