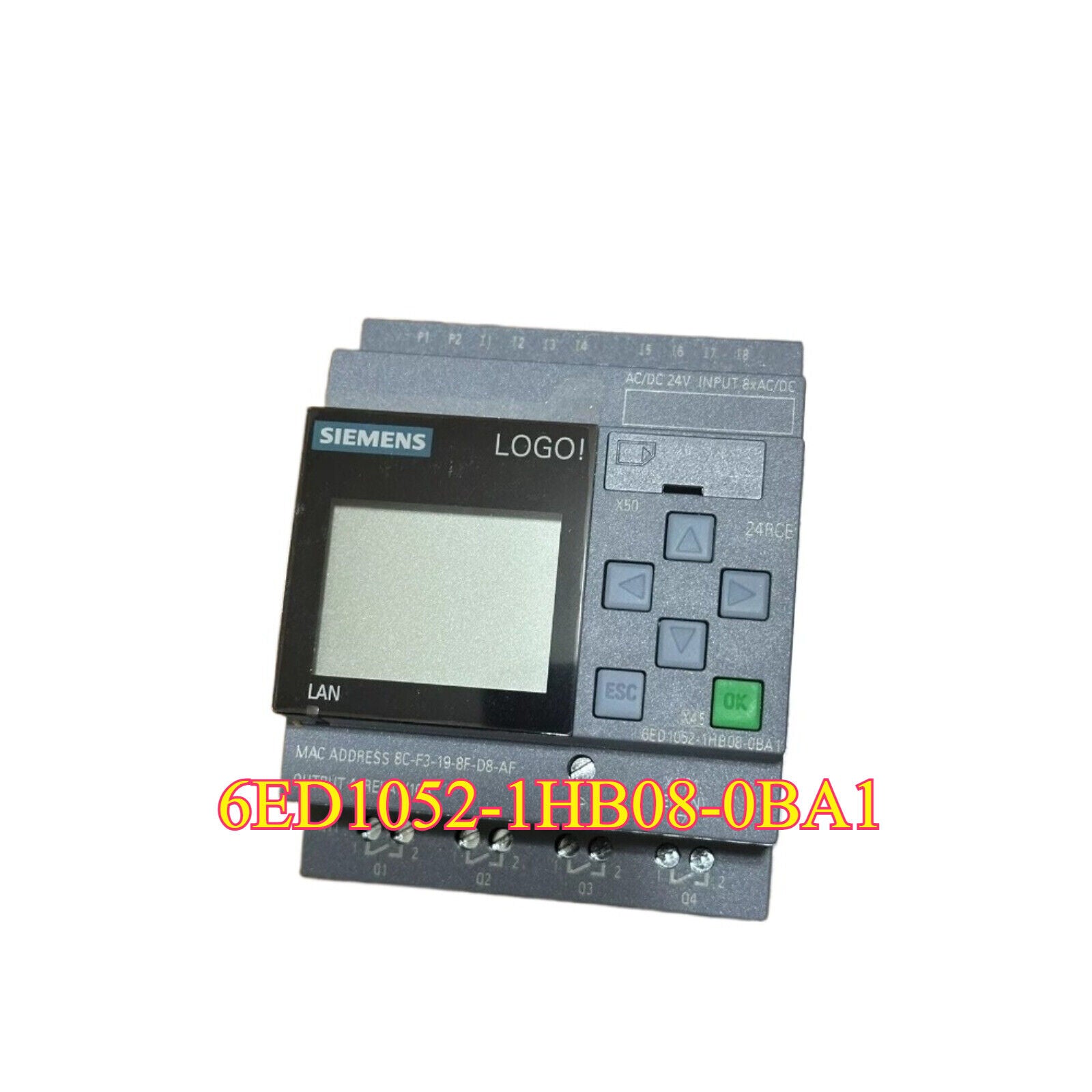

LOGO! 8 (24RCE) | Siemens | 6ED1052-1HB08-0BA1 6ED1 052-1HB08-0BA1 LOGO 12/24RCE logic module

Product Description
The Siemens 6ED1052-1HB08-0BA1 is a LOGO! 24RCE logic module combining a 24 V AC/DC power supply, display, and I/O in a single compact unit. It supports up to 400 function blocks for small automation tasks and provides modular expandability via plug-in I/O modules. Built-in Ethernet connectivity and an integrated web server enable remote monitoring, data logging and user-defined web pages. A standard microSD card slot allows for easy program backup and cloning
西门子工业商城
.

Key Features
Power Supply: 24 V AC/DC for module and I/O operation
RS Components

I/O Configuration: 8 digital inputs and 4 relay outputs (24 V AC/DC)

Program Memory: 400 blocks for custom control logic

Display: Integrated LCD for status, parameterization and diagnostics

Communication: Ethernet port for network integration and web server access

microSD Slot: Supports program storage, backup and cloning via microSD card

Expansion: Modularly expandable with up to 8 additional I/O modules

Web Server: User-defined web pages and data logging without additional hardware

Technical Specifications
Parameter Value
Supply Voltage 24 V AC/DC (20.4 … 28.8 V DC)
Digital Inputs 8 universal inputs (24 V, DI/AI configurable)
Digital Outputs 4 relay outputs (250 V AC/30 V DC, 6 A each)
Program Memory 400 function blocks
Communication Interface 1 × Ethernet (10/100 Mbps)
Display 4-line LCD with backlight
microSD Card Slot for standard microSD (max. 32 GB)
Dimensions (Width × Depth) 72 mm × 90 mm (4 modules wide)
Mounting 35 mm DIN rail
Operating Temperature –20 °C … +55 °C
Protection Class IP20

Applications
Machine and process control in small-scale automation

Building technology (HVAC, lighting, access control)

Remote monitoring and data logging via built-in web server

Rapid prototyping and OEM control with flexible I/O expansion

Advantages
All-in-One Solution: Combines power supply, display and I/O to save cabinet space

Easy Networking: Ethernet connectivity and web server eliminate need for extra hardware

Modular Flexibility: Expandable I/O lets you tailor the system to evolving requirements

User-Friendly Interface: On-board display and microSD support streamline commissioning and maintenance

Robust Design: Industrial-grade components ensure reliable operation in harsh environments
