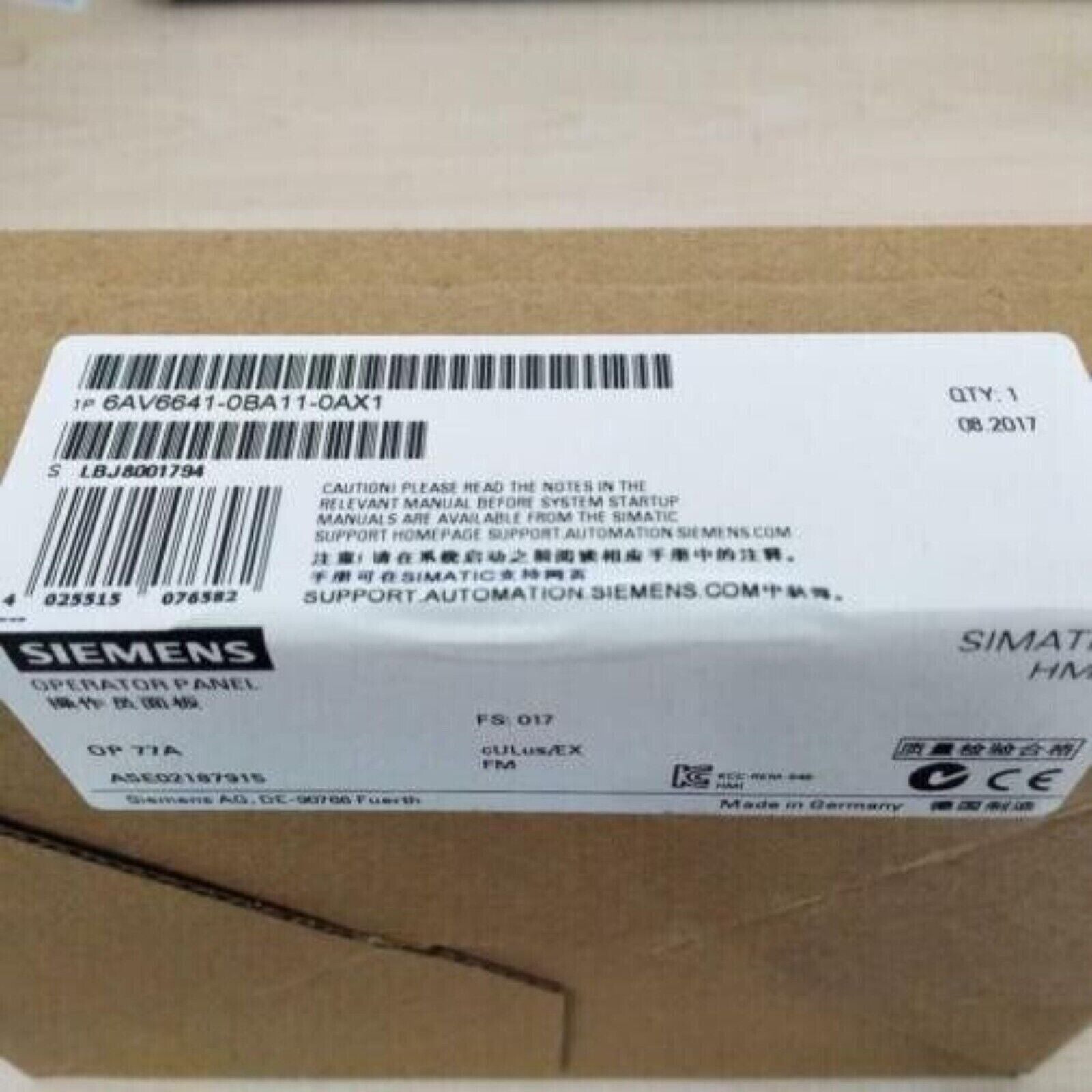

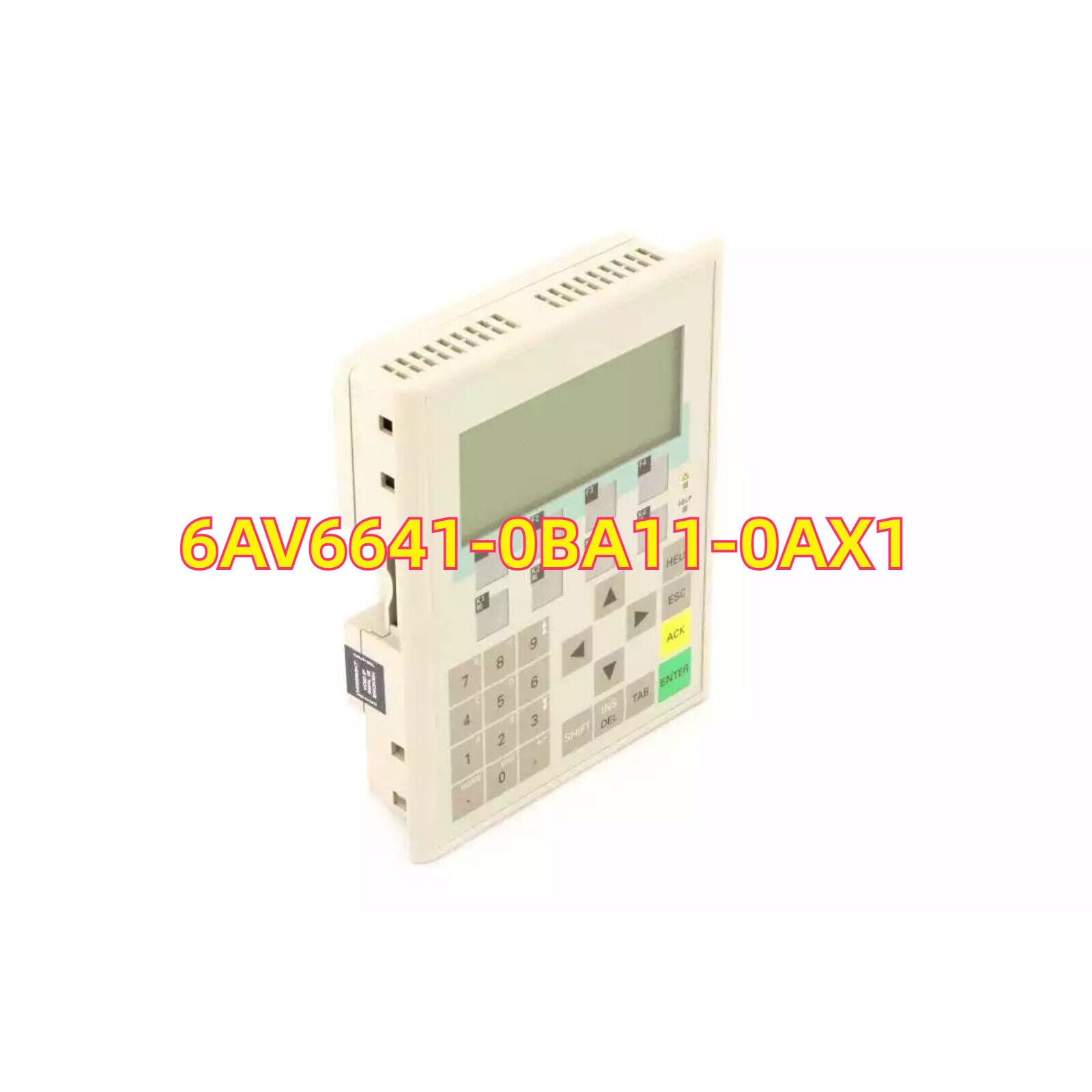

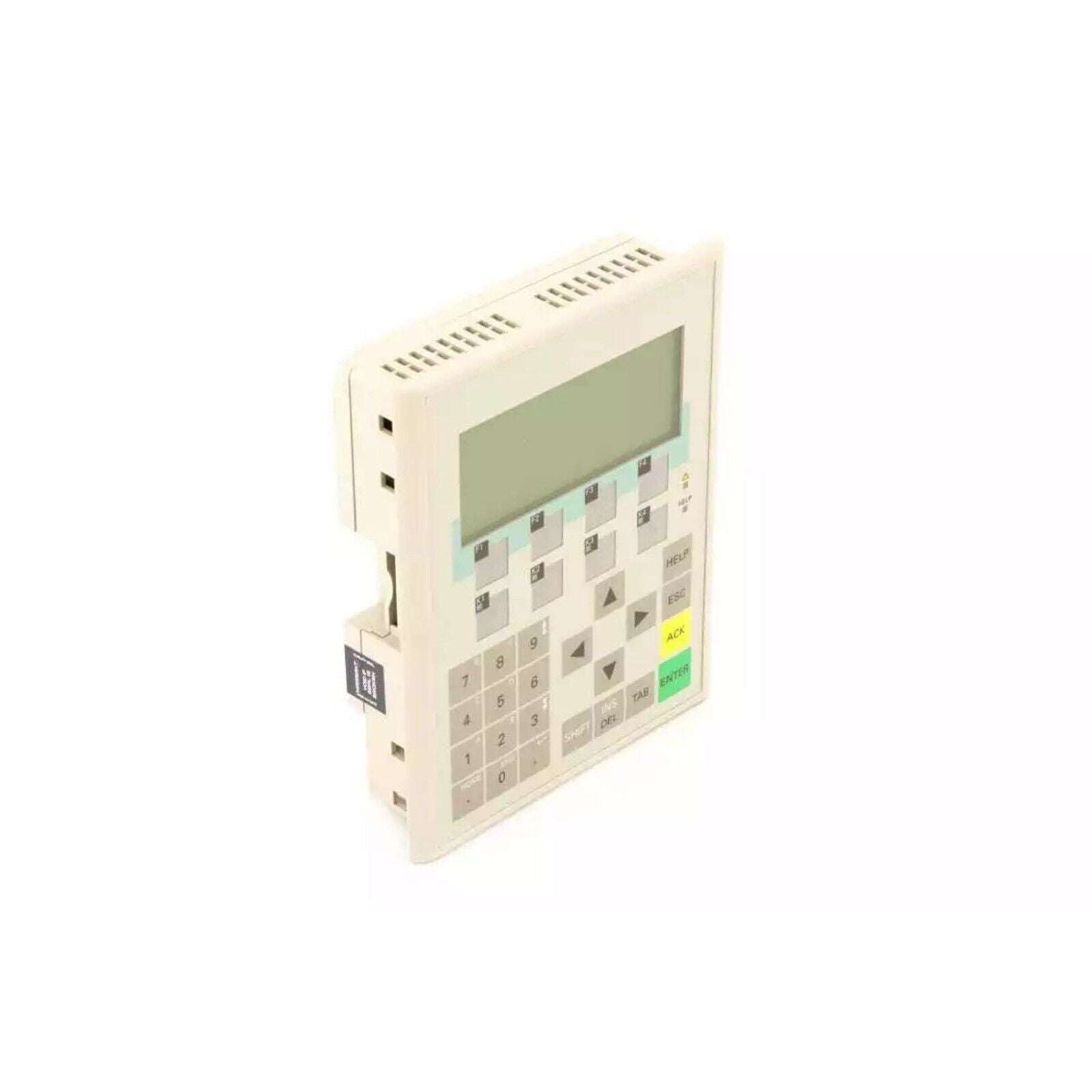

HMI Device | Siemens | 6AV6641-0BA11-0AX1 SIMATIC Operator Panel OP 77A 6AV6641-0BA11-0AX1

Product Description: Siemens 6AV6641-0BA11-0AX1

The Siemens 6AV6641-0BA11-0AX1 is an operator panel from the SIMATIC OP 77A series, featuring a 4.5-inch monochrome LC display with backlighting and graphics capability. It is designed for use in industrial automation systems, providing a user-friendly interface for operators to monitor and control processes. The panel supports communication via MPI and PROFIBUS DP interfaces, allowing seamless integration with Siemens PLCs. Configuration is facilitated through the WinCC flexible 2004 Compact software, which includes open-source software provided on an enclosed CD.

Key Features

• Display: 4.5-inch monochrome LC display with backlighting
• Graphics Capability: Supports graphics for enhanced visualization
• Interfaces: MPI and PROFIBUS DP interfaces up to 1.5 MB/s
• Configuration: Configurable using WinCC flexible 2004 Compact
• Software: Includes open-source software provided on an enclosed CD
• Mounting: Suitable for vertical mounting with a maximum angle of 80°
• Protection: Front panel rated IP65, rear panel IP20

Technical Specifications

• Display Size: 4.5 inches
• Display Type: Monochrome LC
• Resolution: 160 × 64 pixels
• Backlighting MTBF: 100,000 hours
• Interfaces: MPI, PROFIBUS DP (up to 1.5 MB/s)
• Configuration Software: WinCC flexible 2004 Compact
• Software Included: Yes (open-source software on CD)
• Mounting Angle: Up to 80°
• Front Protection Class: IP65
• Rear Protection Class: IP20
• Operating Temperature Range: 0°C to +50°C
• Certifications: CE, UL, CSA, cULus, FM Class I Div. 2

Application Areas

• Operator interface for SIMATIC S7-200, S7-300, and S7-400 PLCs
• Industrial automation systems requiring a reliable and robust HMI
• Applications in manufacturing, process control, and machine automation

Advantages

• Compact and durable design suitable for industrial environments
• Easy integration with Siemens PLCs via MPI and PROFIBUS DP interfaces
• User-friendly configuration with WinCC flexible 2004 Compact
• Enhanced visualization with graphics capability and backlit display
