Allen-Bradley | 1769-AENTR | Compact I/O (1769 Series)

Product Description: Allen-Bradley 1769-AENTR

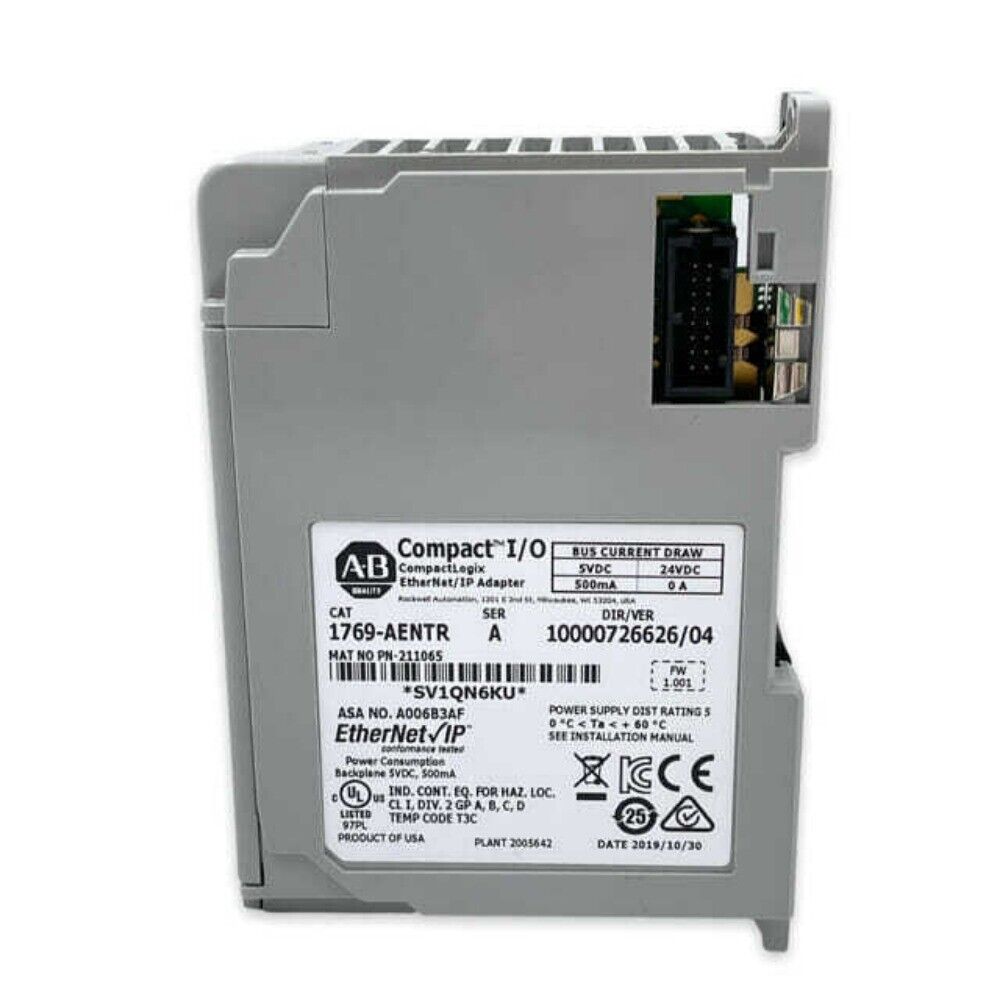

The Allen-Bradley 1769-AENTR is a Compact I/O EtherNet/IP communication adapter designed to connect 1769 I/O modules to a Logix 5000 controller over an EtherNet/IP network. Featuring two Ethernet ports, it supports Device Level Ring (DLR) topologies, providing network redundancy and high availability. The module allows remote placement of I/O banks and simplifies distributed control system architecture for applications requiring reliable, high-speed communication.

Key Features

• Dual 10/100 Mbps Ethernet ports with embedded switch
• Supports Device Level Ring (DLR) for fault-tolerant network topology
• Connects up to 30 Compact I/O modules per adapter
• Compatible with CompactLogix and ControlLogix controllers via EtherNet/IP
• Web-based configuration and diagnostics
• LED indicators for status, activity, and fault conditions
• DIN rail or panel mountable with standard 1769 backplane connector

Technical Specifications

• Communication Protocol: EtherNet/IP
• Ethernet Ports: 2 x RJ-45, 10/100 Mbps, Auto-MDI/MDI-X
• Maximum I/O Modules: 30 (1769 modules)
• IP Address Assignment: Static or DHCP/BOOTP
• Input Voltage: 19.2–31.2V DC (24V DC nominal)
• Backplane Current Draw: 1.2 A @ 5V DC
• Power Consumption: 6.1 W max
• Isolation Voltage: 50V (continuous, Ethernet to backplane)
• Operating Temperature: 0°C to 60°C
• Dimensions (HxWxD): approx. 118 x 35 x 87 mm
• Certifications: UL Listed, CE, CSA, RoHS, Class I Div 2, ATEX

Application Areas

• Remote or distributed Compact I/O control panels
• High-availability applications requiring network redundancy
• Material handling, packaging, and assembly systems
• OEM equipment and machine-level Ethernet networks
• Process and discrete manufacturing with modular system design

Advantages

• Enables remote I/O expansion over Ethernet with reliable performance
• Dual ports support DLR topologies for increased uptime
• Compact and modular, ideal for distributed installations
• Easy setup and monitoring via web browser or Studio 5000
• Integrates seamlessly with Logix- based architectures
