Product Description: Allen-Bradley 1734-TBCJC

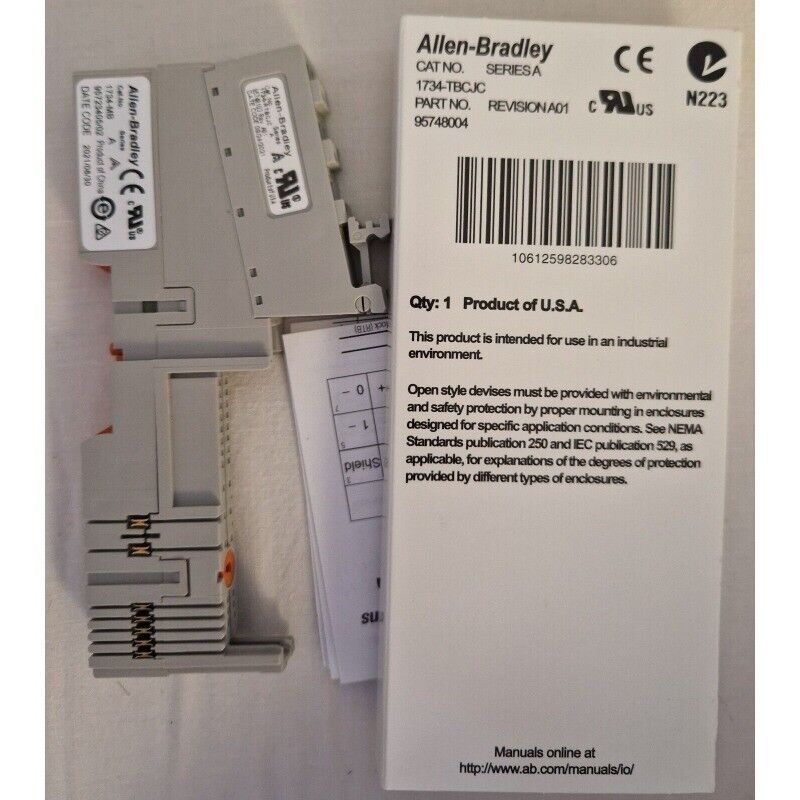

The Allen-Bradley 1734-TBCJC is a POINT I/O terminal base specifically designed for use with thermocouple input modules. It includes an integrated cold junction compensation (CJC) sensor that enables accurate temperature measurement by compensating for the junction temperature at the terminal connection. This terminal base ensures precise signal conditioning for temperature inputs in industrial applications.

Key Features

• Integrated cold junction compensation (CJC) sensor for thermocouple accuracy
• Supports connection of thermocouple wires directly to the base
• Compatible with POINT I/O thermocouple input modules (e.g., 1734-IT2I, 1734-IT2)
• Screw-clamp terminals ensure secure and reliable wiring
• DIN rail mountable for streamlined installation
• Removable terminal interface simplifies module replacement
• Keyed base prevents incorrect module insertion

Technical Specifications

• Terminal Type: Screw-clamp
• Wire Size: 22–14 AWG (0.34–2.5 mm²)
• Mounting Type: DIN rail (horizontal and vertical support)
• Integrated CJC Sensor: Yes
• Operating Temperature: 0°C to 55°C
• Dimensions (HxWxD): approx. 75 x 12 x 55 mm
• Compatibility: For use with thermocouple POINT I/O modules only
• Electrical Isolation: Provides isolation between field wiring and POINTBus backplane

Application Areas

• Temperature monitoring and control in industrial processes
• HVAC systems and environmental chambers
• Food and beverage processing
• Chemical and pharmaceutical industries
• Machine and equipment temperature sensing

Advantages

• Built-in CJC ensures high thermocouple measurement accuracy
• Designed specifically for thermocouple modules to reduce setup complexity
• Maintains field wiring during I/O module replacement
• Compact design fits into space-constrained control systems
• Enhances the reliability of distributed temperature measurement systems
