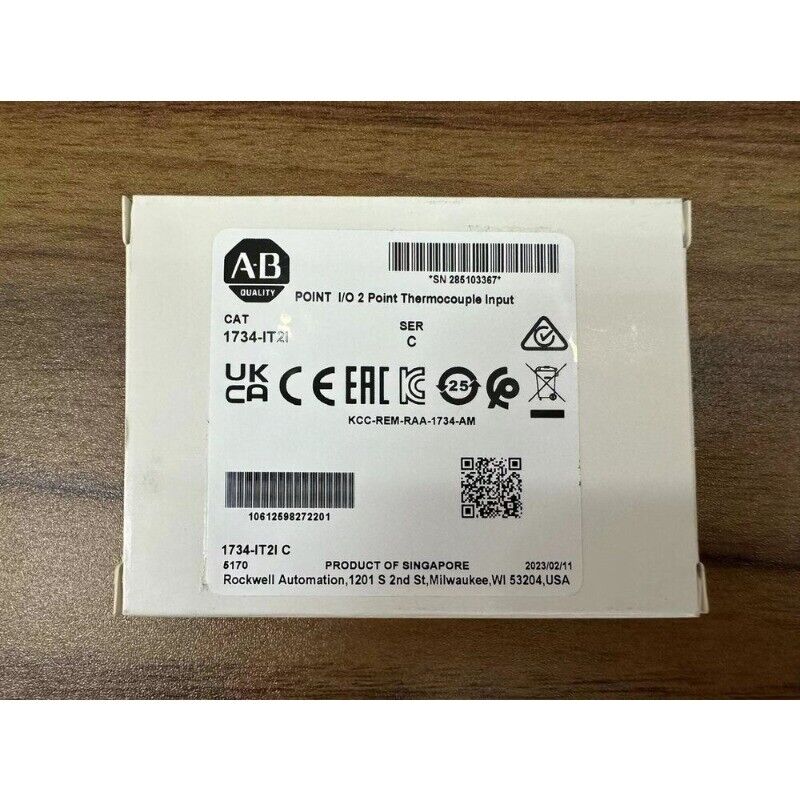

Allen-Bradley | 1734-IT2I | POINT I/O

Product Description: Allen-Bradley 1734-IT2I

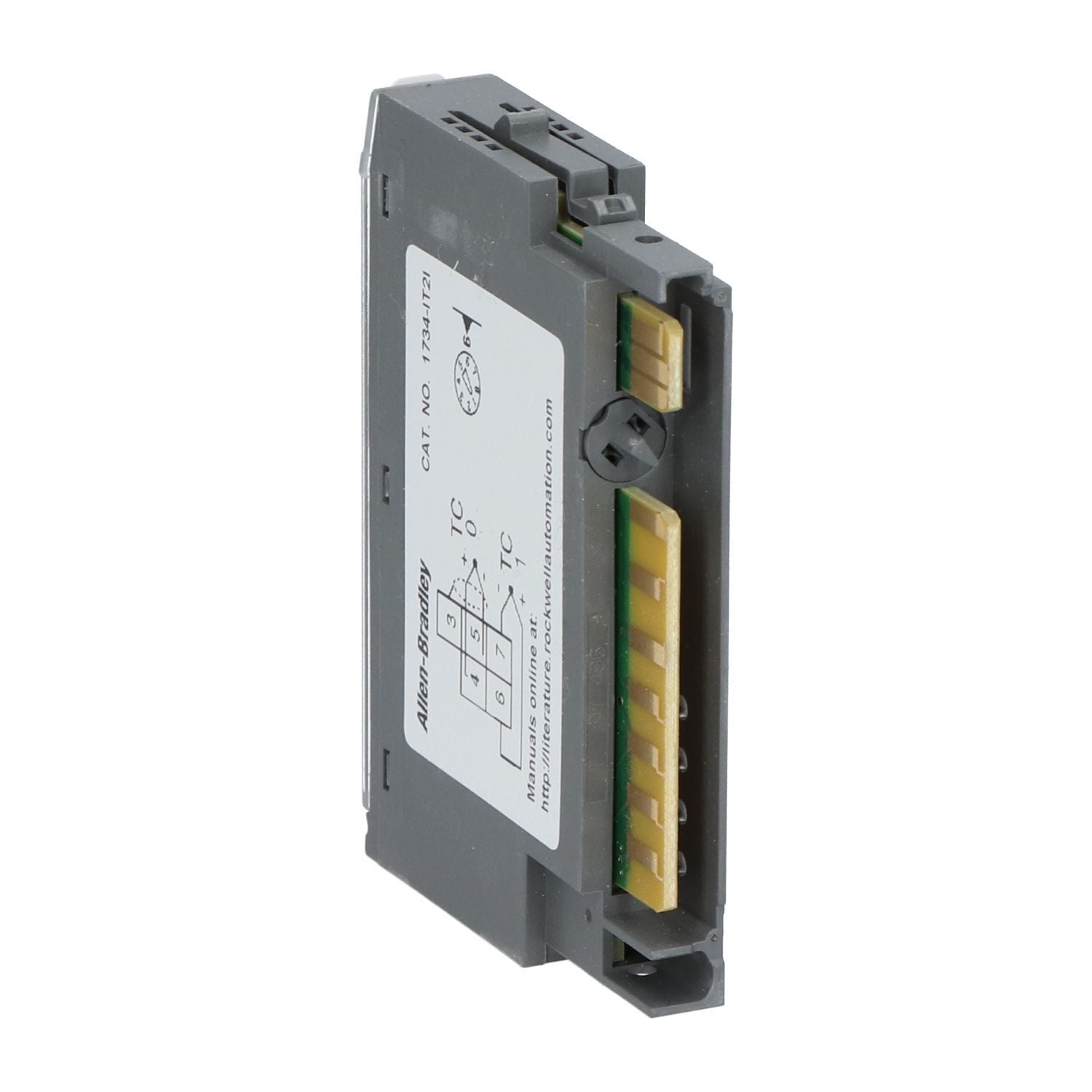

The Allen-Bradley 1734-IT2I is a 2-channel thermocouple input module in the POINT I/O system, designed for precise and isolated temperature measurements. It supports a wide range of thermocouple types and offers built-in cold junction compensation (CJC) via compatible terminal bases. With per-channel isolation and high resolution, the module is ideal for temperature monitoring in sensitive industrial environments.

Key Features

• 2 isolated thermocouple input channels
• Supports multiple thermocouple types (J, K, T, E, R, S, B, N, C)
• High-resolution 16-bit ADC for accurate temperature readings
• Channel-to-channel isolation improves measurement integrity
• Cold junction compensation via 1734-TBCJC terminal base
• LED indicators for module status and faults
• Seamless integration with Logix controllers via POINT I/O system

Technical Specifications

• Number of Inputs: 2
• Input Types Supported: Thermocouples (J, K, T, E, R, S, B, N, C)
• Resolution: 16 bits
• Accuracy: ±0.5°C (typical, depending on type and range)
• Isolation: Channel-to-channel and channel-to-backplane
• Input Impedance: >1 MΩ
• Operating Temperature: 0°C to 55°C
• Backplane Current Draw: 75 mA at 5V DC
• Dimensions (HxWxD): approx. 75 x 12 x 55 mm
• Mounting: DIN rail with 1734-TBCJC (CJC required)

Application Areas

• Precision temperature monitoring and control
• Industrial ovens and kilns
• Food, pharmaceutical, and chemical processing
• Environmental chambers and HVAC systems
• Distributed systems requiring isolated temperature measurement

Advantages

• High accuracy and stability for demanding thermal applications
• Channel isolation enhances noise immunity and reliability
• Flexible thermocouple compatibility supports diverse environments
• Compact module footprint for space-saving panel design
• Simple integration into distributed control architectures with POINT I/O
