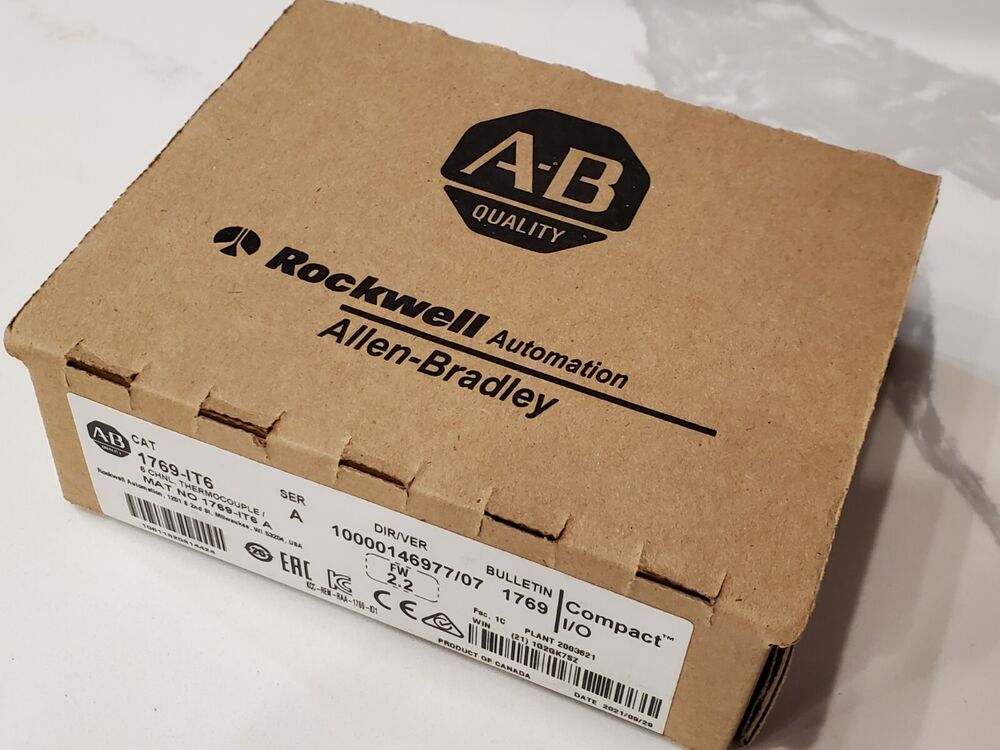

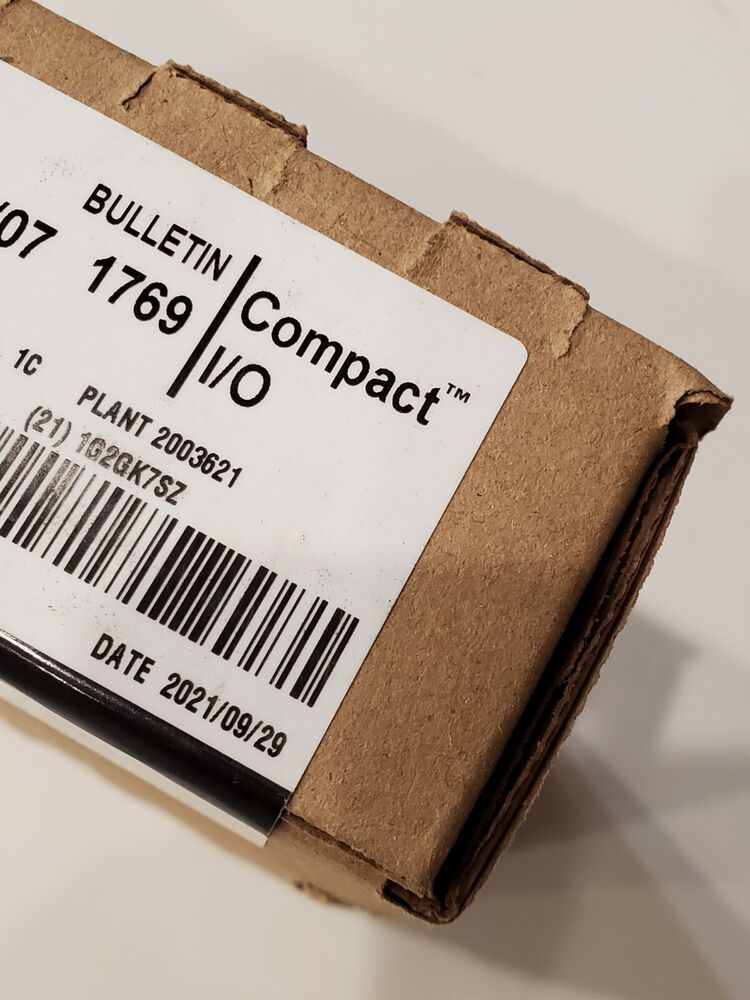

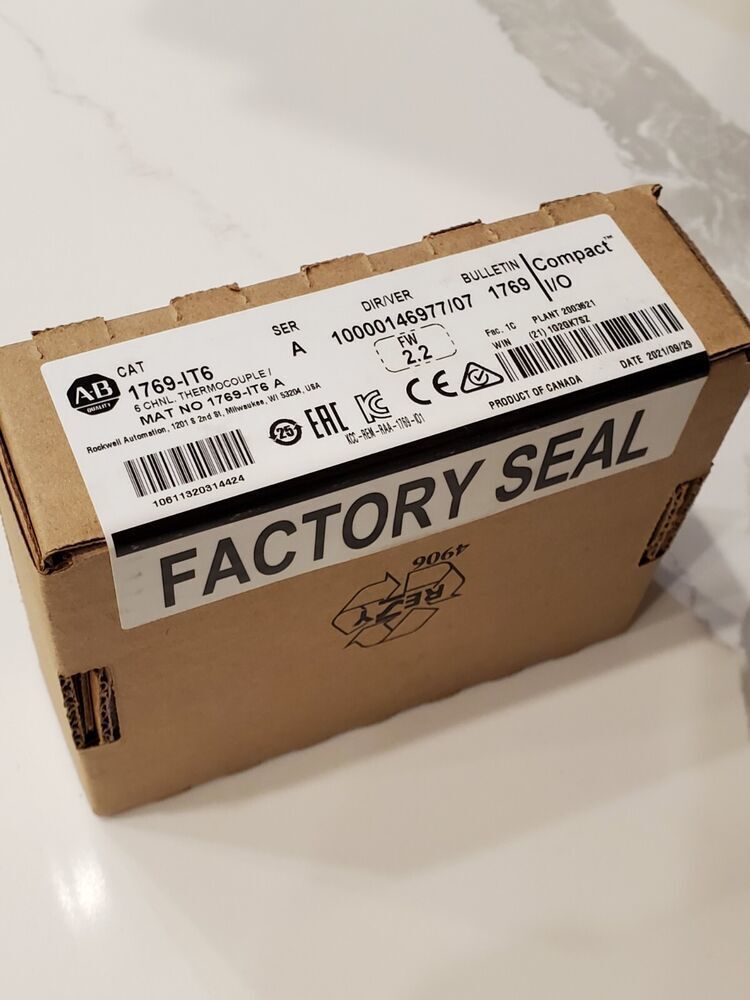

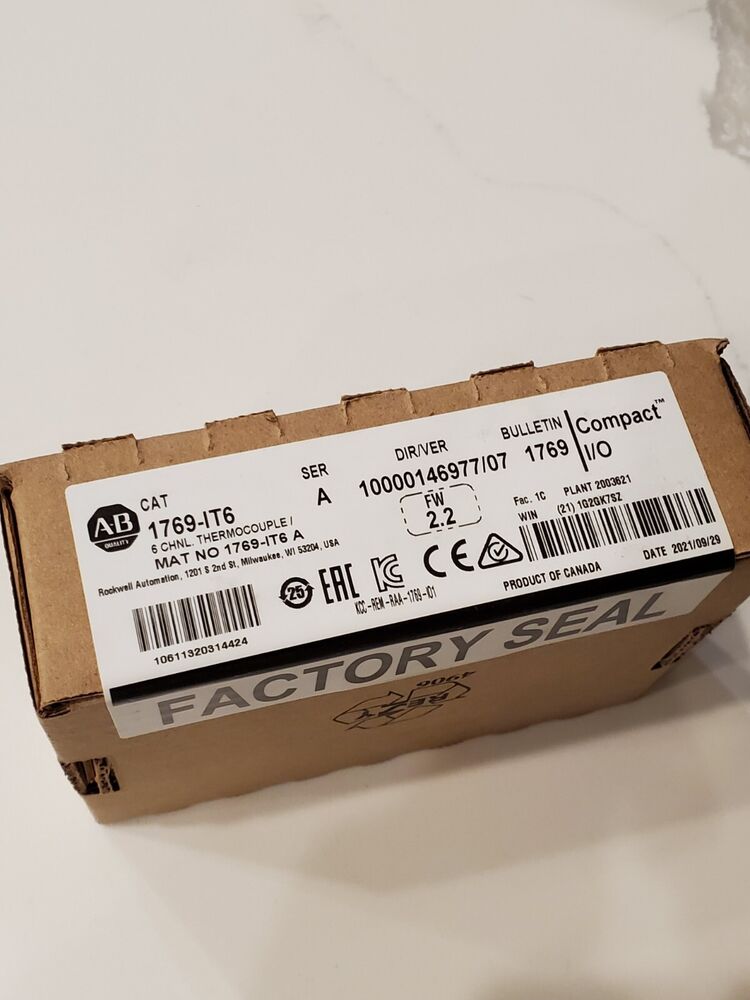

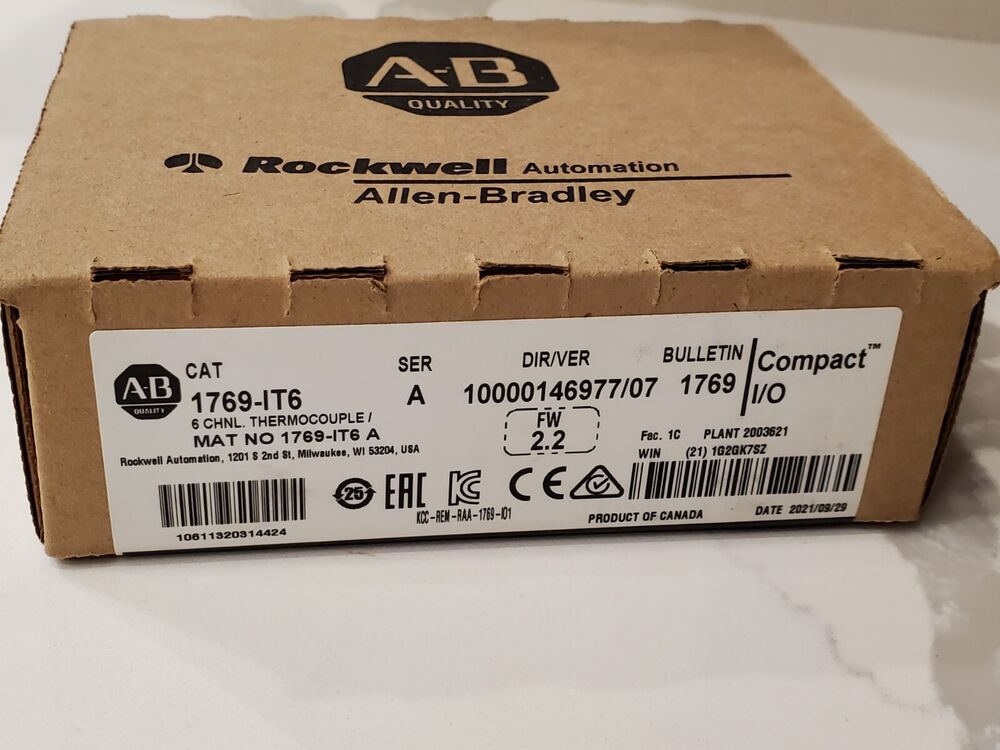

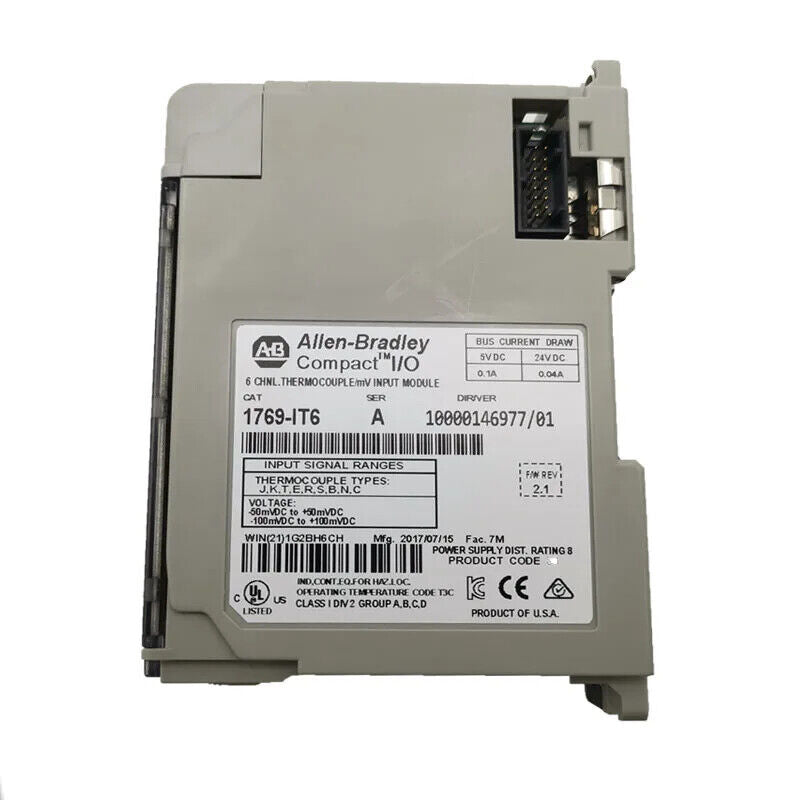

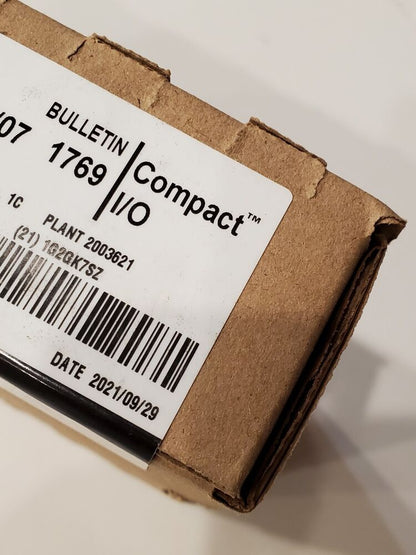

1769 Compact I/O | Allen-Bradley | 1769-IT6 ser A Thermocouple Mv Input Module 6chnl AB

Product Description:
The Allen-Bradley 1769-IT6 is a 6-channel thermocouple and millivolt input module designed for use with CompactLogix or MicroLogix 1500 systems. It provides high-resolution temperature input for thermocouples or low-voltage millivolt sensors. The module includes integrated cold junction compensation (CJC) and supports a wide range of thermocouple types, making it suitable for process and temperature monitoring applications.

Key Features:

• 6 differential input channels

• Supports thermocouple types: J, K, T, E, R, S, B, N

• Also accepts low-level analog signals (±50 mV, ±100 mV)

• Built-in cold junction compensation (CJC)

• 16-bit resolution

• Configurable input filtering and scaling

• Diagnostic capabilities for open thermocouple detection

• Compatible with CompactLogix and MicroLogix 1500 controllers

• Uses RSLogix 5000 or Studio 5000 for configuration

Technical Specifications:

• Channels: 6 differential inputs

• Input Types: Thermocouple (J, K, T, E, R, S, B, N), millivolt (±50 mV, ±100 mV)

• Resolution: 16 bits

• Conversion Rate: 10–60 ms per channel (configurable)

• Cold Junction Compensation: Integrated

• Accuracy: ±0.5°C typical (depends on type and range)

• Operating Temperature: 0°C to +60°C

• Isolation: 750V AC channel-to-backplane

• Power Supply: 5V DC from backplane

• Backplane Current Draw: 120 mA @ 5V DC

• Mounting: DIN rail (via 1769 chassis)

• Enclosure: Open type (IP20)

• Certifications: UL, CE, cULus, RoHS

Application Areas:

• Industrial temperature monitoring and control

• Food and beverage processing

• Environmental and HVAC systems

• Laboratory equipment and test benches

• OEM machines requiring accurate temperature input

Advantages:

• Supports a broad range of thermocouple types and mV inputs

• Built-in CJC eliminates the need for external compensation

• Easy to configure within Studio 5000 or RSLogix environments

• Compact design for space-constrained panels

• Reliable and accurate measurement for critical process control
