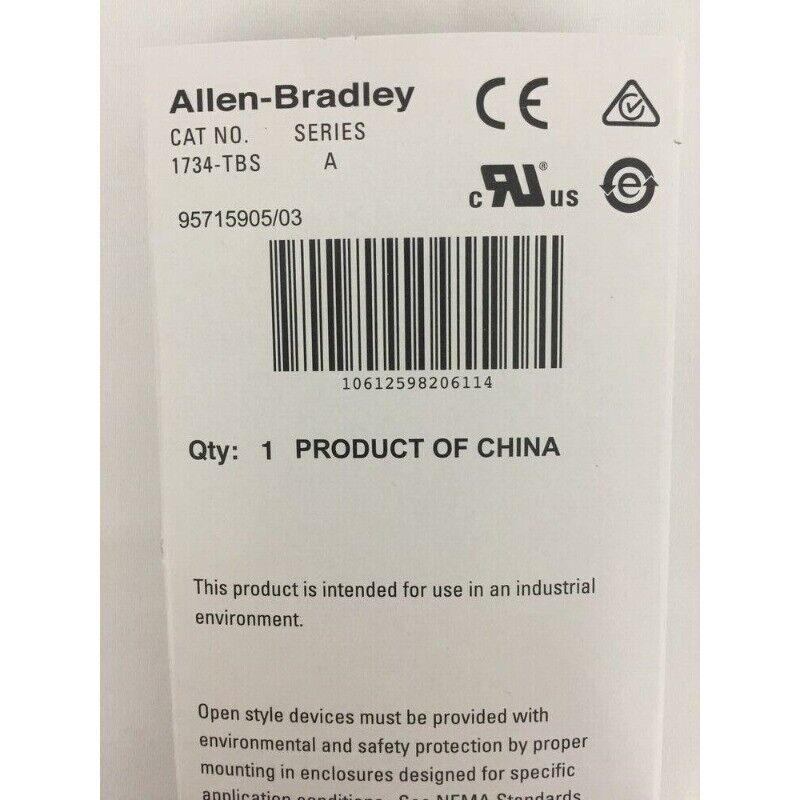

Allen-Bradley | 1734-TBS | POINT I/O

Product Description: Allen-Bradley 1734-TBS

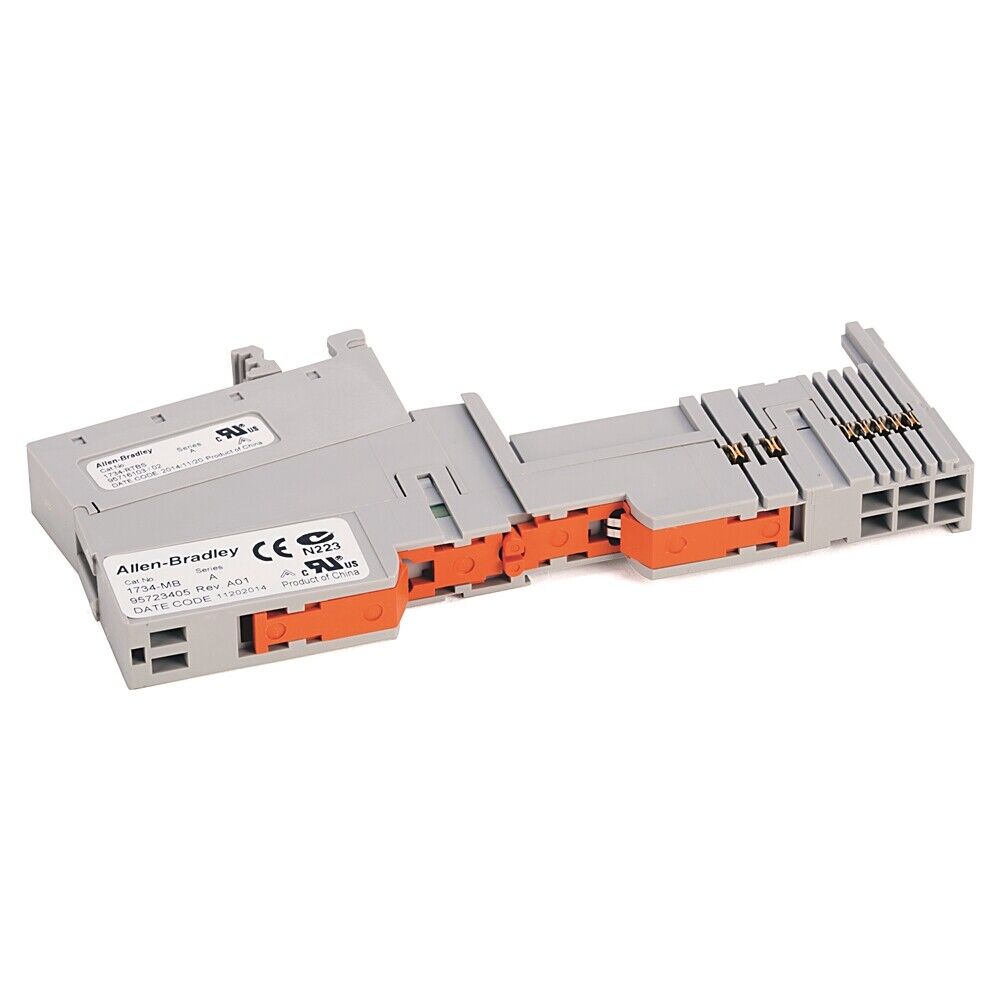

The Allen-Bradley 1734-TBS is a POINT I/O terminal base , used as a mounting and electrical connection platform for POINT I/O modules in distributed I/O systems. It is a screw-terminal style base that allows secure and reliable wiring of field devices. The 1734-TBS is compatible with both standard I/O and specialty POINT I/O modules, and supports DIN rail mounting for fast and flexible system integration.

Product Type

• I/O Terminal Base
• Series: POINT I/O
• Terminal Style: Screw-type
• Mounting: DIN rail

Key Features

• Provides mechanical and electrical connection for POINT I/O modules
• Screw- clamp terminals ensure secure field wiring
• Supports hot-swap of I/O modules without rewiring
• Includes mechanical keying to prevent incorrect module insertion
• Compact, modular design for space-saving installation
• Part of scalable and distributed I/O architecture
• Supports both standard and safety POINT I/O modules
• Simplifies system maintenance and expansion

Technical Specifications

• Terminal Style: Screw-clamp
• Voltage Rating: 120/240V AC or 24V DC (depending on attached module)
• Mounting: DIN rail (35 mm)
• Dimensions (HxWxD): Approx. 75 mm x 12 mm x 55 mm
• Operating Temperature: 0°C to 55°C
• Weight: Approx. 30 g
• Connection Points: 8 field- side connections
• Certifications: UL, CE, CSA, RoHS

Application Areas

• Machine and process automation
• Distributed I/O in control cabinets
• Modular I/O expansion systems
• Packaging, automotive, and material handling industries

Advantages

• Quick and reliable installation with screw terminals
• Facilitates modular and distributed I/O setups
• Hot-swap capability improves system uptime
• Compact size saves space in control panels
• Flexible integration with a variety of POINT I/O modules
