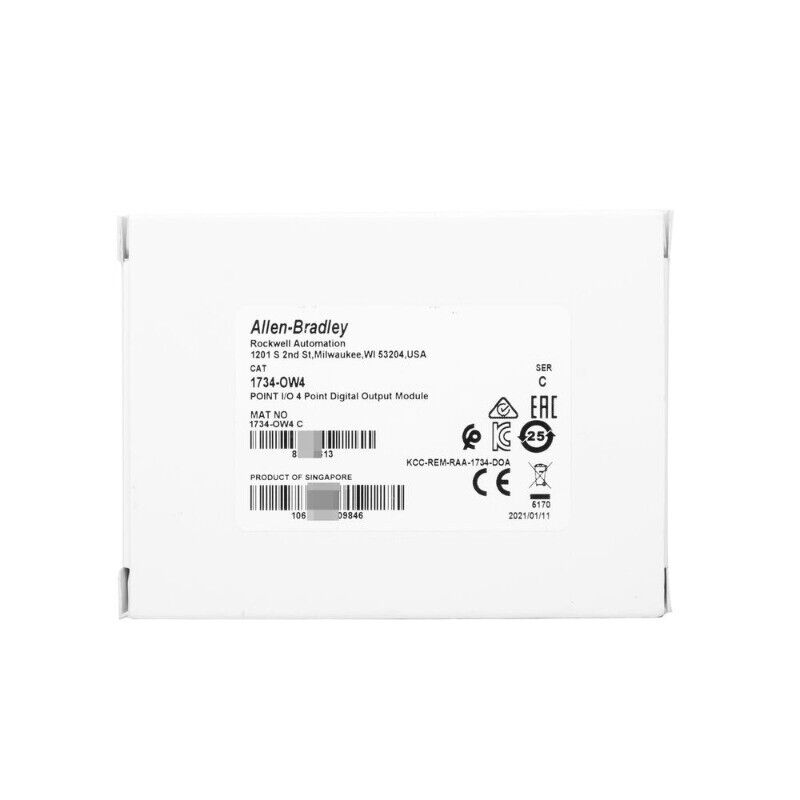

Allen-Bradley | 1734-OW4 |POINT I/O

Product Description: Allen-Bradley 1734-OW4

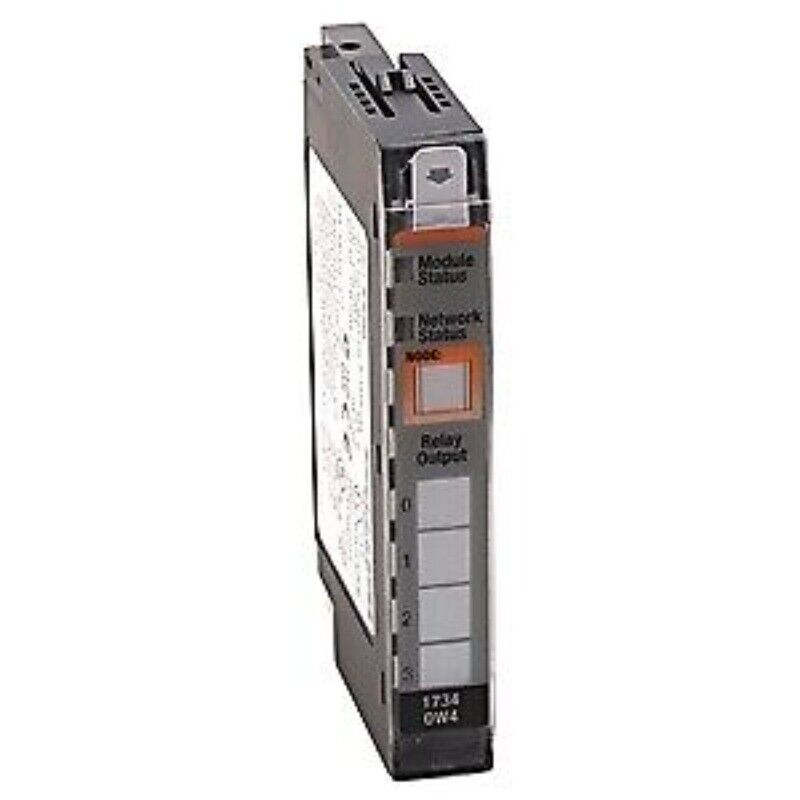

The Allen-Bradley 1734-OW4 is a 4-channel relay output module designed for use in the POINT I/O system. It features electromechanical relays that allow for switching AC or DC loads independently. With individually isolated channels, the module supports a wide variety of discrete control applications, making it ideal for interfacing with solenoids, contactors, lamps, and other field actuators.

Key Features

• 4 individually isolated relay output channels
• Supports switching of both AC and DC loads
• Electromechanical relays provide physical contact switching
• Each channel can switch independently
• LED indicators for channel status monitoring
• Compatible with standard POINT I/O terminal bases
• DIN rail mounting for compact and modular design

Technical Specifications

• Number of Outputs: 4
• Output Type: Relay (Form A, Normally Open)
• Voltage Range:
  • 5–264V AC
• Current Rating:
  • 2.0 A at 30V DC
• Isolation: Channel-to-channel and channel-to-backplane isolation
• Contact Life: 100,000 operations (full load)
• Operating Temperature: 0°C to 55°C
• Backplane Current Draw: 95 mA at 5V DC
• Dimensions (HxWxD): approx. 75 x 12 x 55 mm
• Mounting: DIN rail via POINT I/O base (e.g., 1734-TB, 1734-TOP)

Application Areas

• Switching of AC/DC solenoids, relays, and contactors
• Industrial machinery and process control
• Discrete actuator control in automation systems
• Lighting, alarm, and signal control circuits
• Systems requiring electrical isolation per output channel

Advantages

• Flexible output for AC and DC loads using one module
• Channel isolation improves system safety and integrity
• Relay design enables control of higher power field devices
• Compact form factor supports high-density I/O configurations
• Easy to install and maintain within the POINT I/O platform
