Allen-Bradley | 1734-OE2V | POINT I/O

Product Description: Allen-Bradley 1734-OE2V

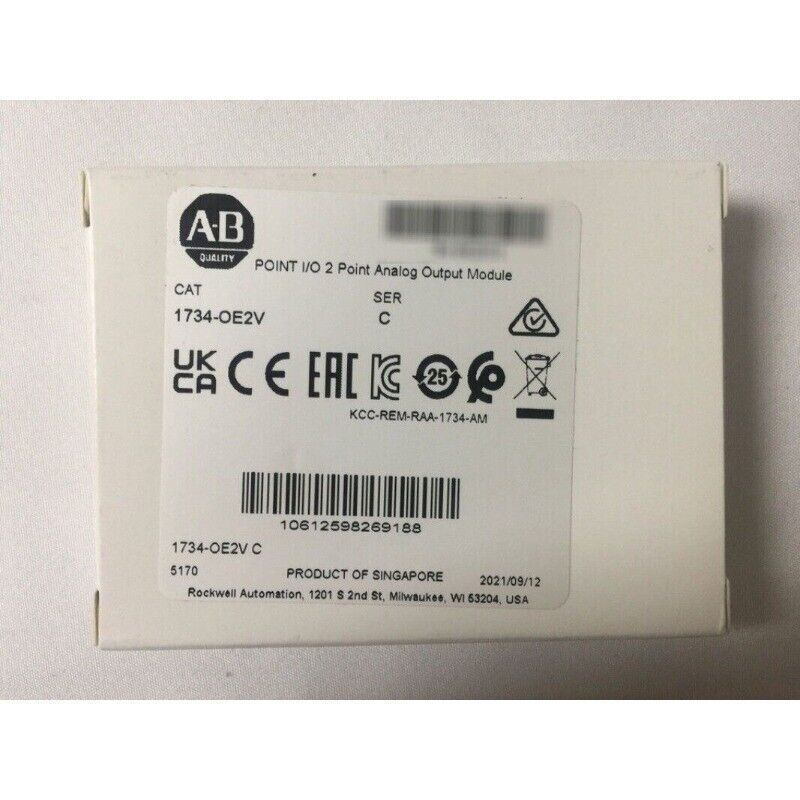

The Allen-Bradley 1734-OE2V is a 2-channel voltage analog output module within the POINT I/O family, designed for use in distributed control systems over Ethernet/IP or other compatible networks. It offers flexible and space-saving analog signal output capabilities, enabling precise control of devices such as variable speed drives, actuators, or analog indicators.

Key Features

• Two isolated voltage analog output channels
• Supports standard voltage ranges including ±10V, 0–10V, and 0–5V
• Compact form factor ideal for distributed applications
• Compatible with 1734 POINT I/O communication adapters
• Individually configurable channels via software

Technical Specifications

• Number of Channels: 2
• Output Type: Voltage (±10V, 0–10V, 0–5V)
• Resolution: 15 bits
• Accuracy: ±0.1% Full Scale
• Output Current Drive: 5 mA (minimum resistive load ≥1 kΩ)
• Isolation Voltage: 50V continuous (field side to system)
• Backplane Current Load: 75 mA at 5V DC
• Operating Temperature: -20 to 55°C
• Mounting Type: DIN Rail
• Terminal Base Required: 1734-TB or 1734-TBS

Application Areas

• Process control systems
• HVAC and building automation
• Material handling systems
• Distributed industrial control panels
• Machine-level analog signal output

Advantages

• Space-efficient solution for modular I/O expansion
• High-resolution analog output for precise control
• Easily integrates into EtherNet/IP architectures
• Individual channel scaling and diagnostics
• Reduces wiring and panel space in decentralized systems
