Allen-Bradley | 1746-P1 | SLC 500 (1746 Series)

Product Description: Allen-Bradley 1746-P1

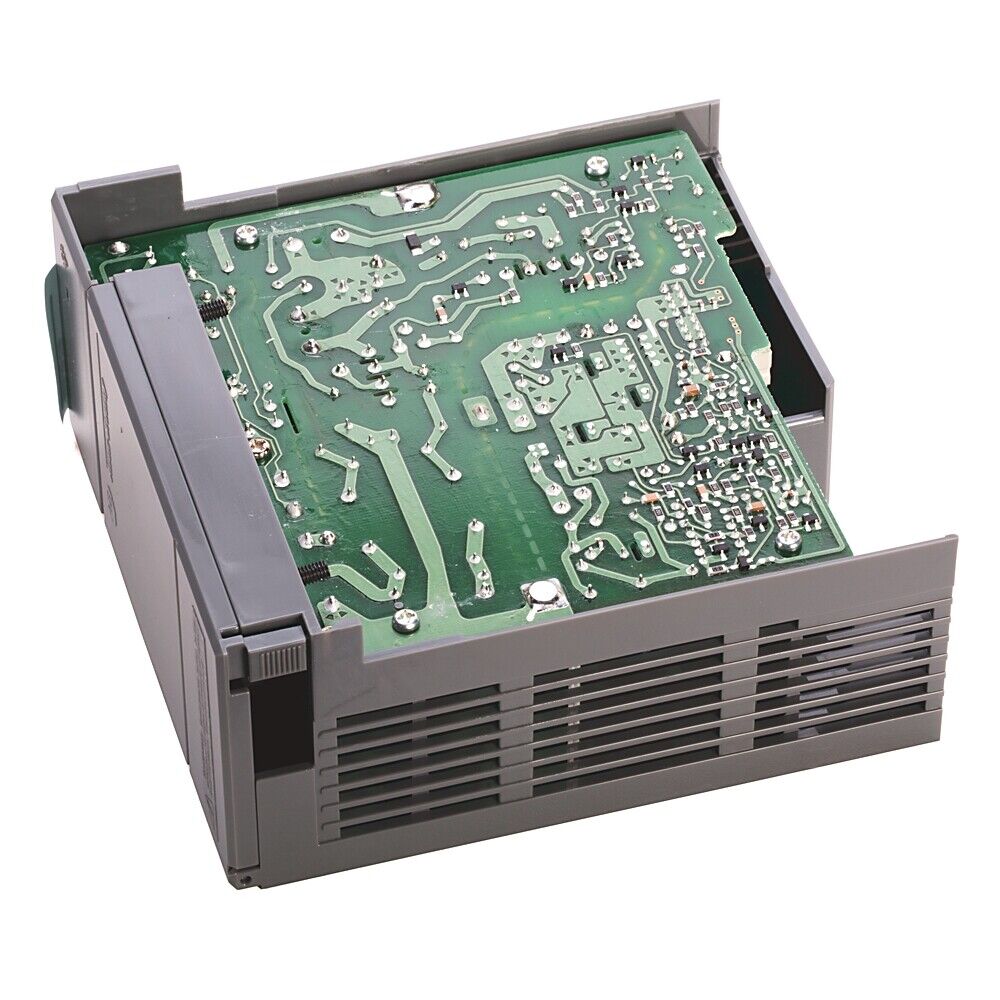

The Allen-Bradley 1746-P1 is an AC-input power supply module specifically designed for the 1746-A4 (4-slot) chassis in the SLC 500 modular PLC system. It provides essential backplane power to support processor, I/O, and communication modules within the chassis. With auto- switching 120/240V AC input and regulated 5V/24V DC outputs, the 1746-P1 offers compact, reliable power delivery for small control systems.

Key Features

• Accepts wide-range AC input (120/240V auto-switching)
• Provides both 5V DC and 24V DC regulated outputs
• Powers all modules in a 4-slot SLC 500 chassis
• LED status indicator for visual power confirmation
• Includes protection features: overvoltage, overload, short-circuit
• Directly mounts to the left side of the chassis for streamlined installation
• Compact size ideal for small-scale control panels

Technical Specifications

• Input Voltage: 85–132V AC or 170–265V AC (47–63 Hz)
• Inrush Current: 20 A max
• Output Voltage:
  • 5V DC @ 2.0 A
• Chassis Compatibility: 1746-A4 only (4-slot)
• Mounting: Left-most slot in the chassis
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Certifications: UL Listed, CE, CSA, Class I Div 2, RoHS

Application Areas

• Small machine control panels
• OEM systems using compact SLC 500 configurations
• Packaging, labeling, or small process control
• Electrical panels with AC power input
• Standalone or entry-level automation systems

Advantages

• Efficient and reliable AC-to-DC power conversion
• Tailored for compact, cost-effective automation setups
• Easy to install and maintain with visual diagnostics
• Suitable for global AC voltage ranges
• Fully integrated into the SLC 500 ecosystem
