Rockwell Automation's PowerFlex VFD lineup covers everything from a 0.5 HP fan motor to a 10,000 HP mine compressor — five distinct product lines, each designed for a different slice of the motor control market. The PowerFlex 525 dominates compact machine applications. The 753 handles mid-range industrial loads. The 755 tackles high-HP and regenerative drives. And the 6000 steps into medium voltage territory.
Picking the wrong model means overspending on features you will never use, or — worse — discovering six months into a project that your drive cannot handle the torque, communication protocol, or safety rating you actually need. Here is how to get it right the first time.
PowerFlex Family Overview
| Drive | Power Range | Voltage | Architecture | Best For |
|---|---|---|---|---|
| PowerFlex 525 | 0.4–22 kW (0.5–30 HP) | 100–600V AC | Compact standalone | Simple motor control, OEM machines, HVAC |
| PowerFlex 527 | 0.4–22 kW (0.5–30 HP) | 100–480V AC | Logix-integrated (via Studio 5000) | Machine builders using CompactLogix/ControlLogix |
| PowerFlex 753 | 0.75–250+ kW (1–350 HP) | 380–480V AC | Modular, architecture-class | Mid-range industrial applications, process control |
| PowerFlex 755 | 0.75–1,800+ kW (1–2,500 HP) | 380–690V AC | Modular, high-performance | High-HP applications, regeneration, multi-motor |
| PowerFlex 6000 | 150–7,000 kW (200–10,000 HP) | 2.3–11 kV (medium voltage) | Medium voltage drive | Large pumps, compressors, fans in utilities and oil & gas |

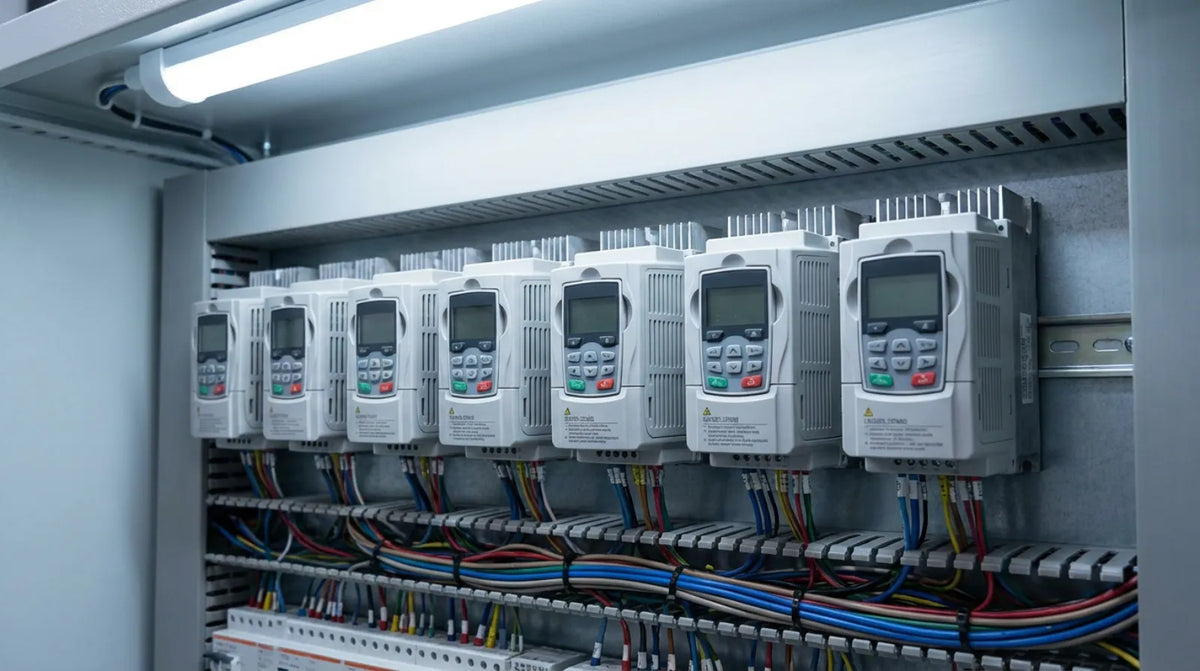

PowerFlex 525: compact standalone drive
The PowerFlex 525 is Allen-Bradley's most popular drive by volume. Its compact footprint, built-in EtherNet/IP, and integrated safety (Safe Torque-Off) make it the default choice for simple to moderately complex motor control applications.
Key specifications
- Power range: 0.4–22 kW (0.5–30 HP)
- Input voltage: 100–120V (1-phase), 200–240V (1/3-phase), 380–480V (3-phase), 525–600V (3-phase)
- Control modes: V/Hz, Sensorless Vector, Closed Loop Velocity, PM Motor Control
- Communication: Embedded dual-port EtherNet/IP + Modbus TCP (standard on all models)
- Safety: Integrated Safe Torque-Off (STO), SIL 2 / PLd certified
- Programming: Connected Components Workbench (CCW) — free software
- Catalog prefix: 25B (e.g., 25B-D010N104)
Why engineers choose the 525
- Compact size: Side-by-side mounting saves panel space
- Modular design: Removable control core stores all parameters — swap in a replacement drive in minutes without reprogramming
- Dual Ethernet ports: Daisy-chain drives on a DLR (Device Level Ring) network without external switches
- Wide voltage range: Single-phase 120V models available for low-power applications
- USB configuration port: Configure offline, then plug in to transfer parameters
Browse our PowerFlex 525 inventory →
PowerFlex 527: Studio 5000-integrated drive
The PowerFlex 527 covers the same power range as the 525 but takes a fundamentally different approach to programming and integration. Instead of being configured as a standalone device, the 527 is programmed directly inside Studio 5000 Logix Designer — the same tool used for ControlLogix and CompactLogix controllers.
Key differences from 525
| Feature | PowerFlex 525 | PowerFlex 527 |
|---|---|---|
| Programming | CCW or keypad | Studio 5000 (part of the Logix project) |
| Controller Integration | Via EtherNet/IP messaging | Native Logix integration — appears as a drive axis in the project |
| Motion Control | Basic speed/torque | CIP Motion for coordinated motion |
| Standalone Operation | Yes (fully standalone capable) | Requires a Logix controller for full functionality |
When to choose 527 over 525
- Your machine already uses CompactLogix or ControlLogix and you want one programming environment
- You need coordinated motion (CIP Motion axis) rather than simple speed control
- You want drive configuration stored in the Logix project (single backup/restore)
PowerFlex 753: modular mid-range drive
The PowerFlex 753 is an architecture-class drive designed for applications that outgrow the 525's power range or need more advanced features. Its modular option slot architecture allows you to add communication, I/O, feedback, and safety modules as needed.
Key specifications
- Power range: 0.75–250+ kW (1–350 HP)
- Input voltage: 380–480V AC, 3-phase
- Control modes: V/Hz, Sensorless Vector, Flux Vector (with encoder)
- Communication: Modular — add EtherNet/IP, DeviceNet, ControlNet, PROFIBUS via option cards
- Safety: Integrated Safe Torque-Off (STO); optional Safe Speed Monitor
- I/O: Embedded standard I/O + modular expansion slots
- Catalog prefix: 20F (e.g., 20F11ND040AA0NNNNN)
PowerFlex 753 strengths
- DeviceLogix: Embedded control logic inside the drive — can handle simple automation tasks without an external PLC
- Higher horsepower ceiling: Goes up to 350 HP where the 525 tops out at 30 HP
- Multiple feedback options: Encoder, resolver, or sensorless — choose based on your motor and precision requirements
- Robust diagnostics: Detailed fault logging, predictive diagnostics for bearing wear and motor insulation
We carry a wide range of PowerFlex 753 drives from 3 HP to 200+ HP.
PowerFlex 755: high-performance industrial drive
The PowerFlex 755 is the top of the low-voltage PowerFlex line. It handles the most demanding applications with features not available on the 753:
- Power range: Up to 2,500 HP (1,800 kW)
- Common DC Bus: Multiple drives share a single DC bus for energy-efficient multi-motor systems
- Regeneration: Active Front End (AFE) option feeds regenerated energy back to the power line instead of wasting it as heat
- Predictive Diagnostics: Advanced motor and drive health monitoring with warnings before failures occur
- High overload capability: 150% for 60 seconds (normal duty), 110% continuous (heavy duty)
- TotalFORCE technology (755T variants): Enhanced control algorithms for the most demanding applications
When to choose 755 over 753
- Applications exceeding 350 HP
- Need for common DC bus (multi-motor coordination, energy sharing)
- Regenerative braking required (cranes, elevators, centrifuges, downhill conveyors)
- 690V supply voltage
- Highest possible control precision with TotalFORCE
PowerFlex 6000: medium voltage
When your application exceeds what low-voltage drives can handle — large pumps, compressors, fans, and mills in utilities, mining, and oil & gas — the PowerFlex 6000 medium voltage drive steps in.
- Voltage: 2.3 kV to 11 kV
- Power: 150–7,000+ kW
- Topology: Multi-level voltage source inverter for clean output waveform and low motor stress
- Applications: Large fans, pumps, compressors, conveyors, and extruders that draw medium-voltage power
The PowerFlex 6000 is a specialized product — if you are evaluating medium voltage drives, contact our team for application-specific sizing and pricing.
Head-to-head comparison
| Feature | PF 525 | PF 527 | PF 753 | PF 755 |
|---|---|---|---|---|
| Max HP | 30 | 30 | 350 | 2,500 |
| Standalone | Yes | No (needs Logix) | Yes | Yes |
| Communication | Embedded EtherNet/IP | Embedded EtherNet/IP | Modular (option cards) | Modular (option cards) |
| CIP Motion | No | Yes | No | No |
| Common DC Bus | No | No | No | Yes |
| Regeneration | No | No | No | Yes (AFE option) |
| Programming Tool | CCW | Studio 5000 | CCW / DriveExecutive | Studio 5000 / DriveExecutive |
| Typical Cost ($/HP) | Lowest | Low-Mid | Mid | Mid-High |
Decision framework
- Under 30 HP, standalone operation? → PowerFlex 525. Lowest cost, simplest setup, embedded Ethernet.
- Under 30 HP, Logix-integrated machine? → PowerFlex 527. One programming environment, CIP Motion support.
- 30–350 HP, or need modular options? → PowerFlex 753. Flexible option slots, DeviceLogix, higher power.
- Over 350 HP, common DC bus, or regeneration? → PowerFlex 755. Top-tier performance and efficiency.
- Medium voltage (2.3 kV+)? → PowerFlex 6000. Purpose-built for large MV motors.
Replacing legacy AB drives
If you are running legacy Allen-Bradley drives — 1305, 1336 PLUS, 1336 IMPACT, or PowerFlex 4/40/400 — they are all discontinued. The recommended upgrade path:
| Legacy Drive | Recommended Replacement |
|---|---|
| 1305 (1–10 HP) | PowerFlex 525 |
| 1336 PLUS (1–250 HP) | PowerFlex 753 or 755 |
| 1336 IMPACT (5–500 HP) | PowerFlex 755 |
| PowerFlex 4/40 (0.25–15 HP) | PowerFlex 525 |
| PowerFlex 400 (0.5–600 HP) | PowerFlex 753 or 755 |
| PowerFlex 700 (1–2,700 HP) | PowerFlex 755 |
For detailed cross-reference guidance, see our Legacy Drive to PowerFlex Replacement Guide.
Related resources
- PowerFlex 525 vs 753: Key Differences for Engineers
- PowerFlex 755 Configuration Guide: Parameters for First Run
- PowerFlex VFD Fault Codes: Complete Troubleshooting Reference
- Replacing Legacy 1305/1336 Drives with PowerFlex
- PowerFlex 6000 Medium Voltage Drive Guide
- Allen-Bradley PLC Buyer's Guide
- Siemens S7-1500 Complete Buyer's Guide
- Honeywell Burner Control Replacement Guide
Frequently asked questions
What is the difference between PowerFlex 525 and PowerFlex 753?
The PowerFlex 525 is a compact, cost-effective drive for applications up to 30 HP with embedded EtherNet/IP. The PowerFlex 753 is a modular, architecture-class drive for applications up to 350 HP with configurable option slots for communication, I/O, safety, and feedback. Choose the 525 for simple, lower-power applications; choose the 753 when you need higher power, more flexibility, or advanced features like flux vector control with encoder feedback.
Can I use a PowerFlex 525 with a ControlLogix PLC?
Yes. The PowerFlex 525 communicates with ControlLogix (and CompactLogix) over EtherNet/IP using Add-On Profiles (AOPs) in Studio 5000. However, the 525 itself is configured separately using CCW or its keypad — it is not natively integrated into the Logix project like the PowerFlex 527. For native Logix integration with CIP Motion support, consider the 527 instead.
When should I choose a PowerFlex 755 over a 753?
Choose the 755 when you need: (1) more than 350 HP, (2) common DC bus for multi-motor systems, (3) regenerative braking via Active Front End, (4) 690V supply voltage, or (5) TotalFORCE enhanced control algorithms. For most single-motor applications under 350 HP, the 753 provides equivalent control performance at a lower cost.
What catalog number prefix identifies each PowerFlex model?
PowerFlex 525 uses the 25B prefix (e.g., 25B-D010N104). PowerFlex 753 uses 20F (e.g., 20F11ND040AA0NNNNN). PowerFlex 755 uses 20G. PowerFlex 527 uses 25C. The first digits after the prefix encode the voltage class, current rating, and options — see our Allen-Bradley Catalog Number Decoder for a full breakdown.
Are PowerFlex drives compatible with non-AB motors?
Yes. All PowerFlex drives control standard three-phase induction motors from any manufacturer. The 525 and higher models also support permanent magnet (PM) motors. The key is matching the drive's voltage, current, and HP rating to the motor's nameplate — the motor brand does not matter.
