The PowerFlex 525 and PowerFlex 753 are both Allen-Bradley variable frequency drives, but they target very different segments of the motor control market. Choosing the wrong one means either overpaying for features you do not need or running into limitations that force a costly swap later.
This guide gives you a clear, spec-by-spec comparison so you can make the right call the first time.
At a glance
| Specification | PowerFlex 525 (25B) | PowerFlex 753 (20F) |
|---|---|---|
| Power Range | 0.4–22 kW (0.5–30 HP) | 0.75–250+ kW (1–350 HP) |
| Input Voltage | 100–600V (1-phase and 3-phase options) | 380–480V (3-phase only) |
| Communication | Embedded dual-port EtherNet/IP + Modbus TCP | Modular — add EtherNet/IP, DeviceNet, ControlNet, PROFIBUS via option cards |
| Control Modes | V/Hz, Sensorless Vector, Closed Loop Velocity, PM Motor | V/Hz, Sensorless Vector, Flux Vector (encoder feedback) |
| Safety | Integrated STO (SIL 2 / PLd) | Integrated STO + optional Safe Speed Monitor |
| I/O (Standard) | 4 DI, 2 AI, 1 DO, 1 AO, 1 relay | 6 DI, 2 AI, 2 DO, 1 AO, 2 relay + expansion slots |
| Embedded Logic | No | Yes — DeviceLogix (simple automation without PLC) |
| Enclosure | IP20 (side-by-side mounting OK) | IP00 (open chassis, requires enclosure/cabinet) |
| Programming | CCW + keypad + USB | CCW / DriveExecutive + HIM module |
| Approximate Cost | $230–$960 (1–30 HP range) | $850–$10,000+ (1–350 HP range) |
Communication: embedded vs modular
This is one of the biggest practical differences between the two drives.

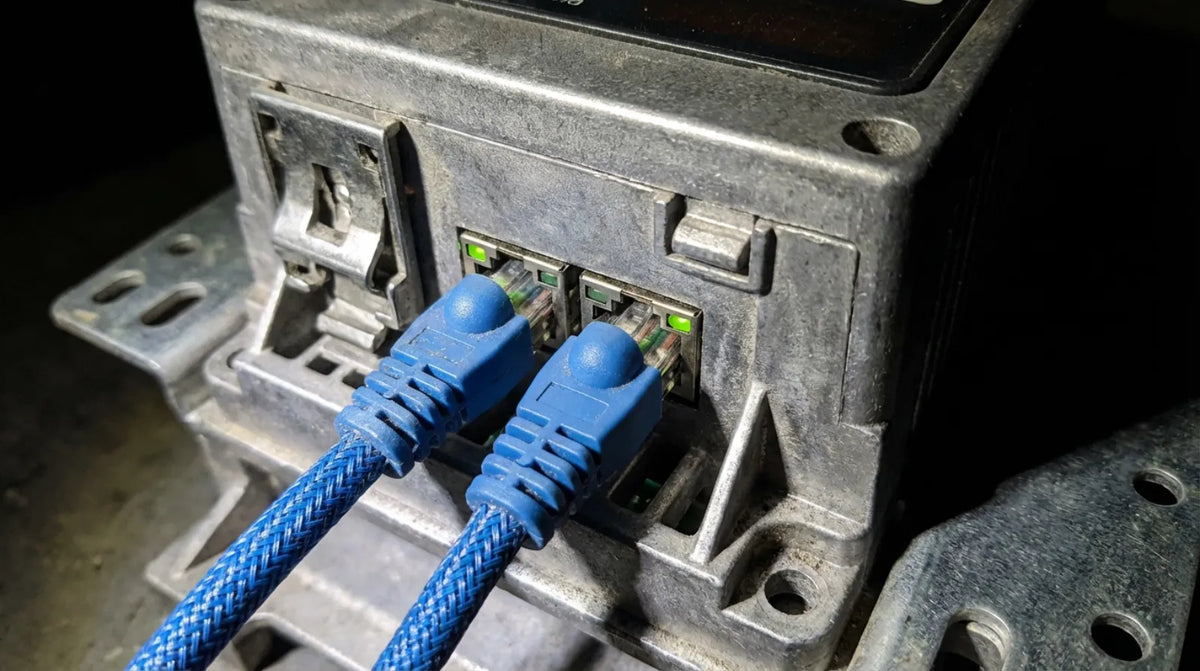

The PowerFlex 525 comes with dual-port EtherNet/IP built in — no option cards to buy, no extra cost. You can daisy-chain multiple 525 drives on a Device Level Ring (DLR) network without external Ethernet switches. For most machine builders, this is all you need.
The PowerFlex 753 uses a modular approach. The base drive has no network connection — you add the protocol you need via option cards inserted into the drive's expansion slots. This gives you flexibility (you can add EtherNet/IP, DeviceNet, ControlNet, or PROFIBUS), but it also means additional cost and planning. Each option card adds $200–$500 to the drive cost.
Bottom line: If EtherNet/IP is your plant standard and you do not need legacy protocol support, the 525's embedded Ethernet is simpler and cheaper. If you need to connect to a PROFIBUS or ControlNet network, the 753 is your only option.
Control performance
Both drives offer V/Hz and Sensorless Vector Control (SVC), which cover 90% of typical applications. The difference shows up in demanding applications:
- PowerFlex 525 SVC: Good speed regulation (±0.5% of base speed) and torque response for fans, pumps, conveyors, and most general-purpose loads. Supports PM motor control for higher efficiency.
- PowerFlex 753 Flux Vector: With an encoder feedback card, the 753 delivers true closed-loop flux vector control — ±0.01% speed regulation and full torque at zero speed. This matters for applications like extruders, winders, test stands, and hoists where precise low-speed torque is critical.
If your application is a constant or variable torque load (pumps, fans, compressors, conveyors) and does not need precise torque at very low speeds, the 525's sensorless vector is more than adequate.
Physical size and mounting
The PowerFlex 525 is designed for compact panels. Its IP20 enclosure and side-by-side mounting capability mean you can line up multiple drives with minimal spacing. A 5 HP 525 measures roughly 200 × 100 × 175 mm — small enough to fit in tight OEM panels.
The PowerFlex 753 is an open-chassis (IP00) drive. It must be mounted inside an electrical enclosure or MCC (Motor Control Center). A 30 HP 753 is significantly larger than a 30 HP 525 because it includes modular slots, larger heatsinks, and provisions for option cards.
DeviceLogix: embedded control in the 753
One unique PowerFlex 753 feature is DeviceLogix — a simple control logic engine embedded in the drive itself. With DeviceLogix, the 753 can:
- Run local I/O logic without an external PLC
- Handle interlocking, sequencing, and timer-based operations
- Continue operating if the network connection to the main PLC is lost
This is particularly useful for distributed applications (e.g., remote pump stations) where you want basic autonomous control at the drive level with supervisory control from a central PLC.
The PowerFlex 525 does not have DeviceLogix. If you need local logic, you need an external controller.
When to Choose PowerFlex 525
- Application is 30 HP or under
- Simple speed or torque control (no encoder required)
- EtherNet/IP is your network standard
- Compact panel space is a priority
- Budget-sensitive — the 525 is the lowest-cost PowerFlex option
- OEM machines shipped in volume (per-unit cost matters)
- Single-phase input needed (120V or 240V models available)
See our PowerFlex 525 5HP model →
When to Choose PowerFlex 753
- Application exceeds 30 HP (up to 350 HP)
- Need flux vector control with encoder feedback for precision applications
- Must connect to DeviceNet, ControlNet, or PROFIBUS networks
- Want embedded control logic (DeviceLogix) for distributed/autonomous operation
- Need more I/O than the 525 provides
- Advanced safety features beyond STO (e.g., Safe Speed Monitor)
- Application requires detailed predictive diagnostics
See our PowerFlex 753 30HP model →
Overlap Zone: 1–30 HP
In the 1–30 HP range where both drives are available, the decision usually comes down to three questions:
- Do you need a protocol other than EtherNet/IP? → 753
- Do you need encoder feedback for precise torque control? → 753
- Neither? → 525 (lower cost, smaller footprint, simpler)
Related Resources
- PowerFlex VFD Selection Guide: 525 vs 527 vs 753 vs 755 vs 6000
- PowerFlex VFD Fault Codes: Complete Troubleshooting Reference
- PowerFlex 755 Configuration Guide
- Replacing Legacy 1305/1336 Drives with PowerFlex
Browse our full PowerFlex inventory →
Frequently Asked Questions
Can I replace a PowerFlex 753 with a 525 to save cost?
Only if the application is 30 HP or under and you do not need encoder feedback, DeviceLogix, or non-EtherNet/IP protocols. If the 753 was originally spec'd for one of those features, the 525 will not be a drop-in replacement.
Do both drives support Safe Torque-Off?
Yes. Both the PowerFlex 525 and 753 include integrated Safe Torque-Off (STO) certified to SIL 2 / PLd. The 753 additionally supports an optional Safe Speed Monitor module for more advanced safety functions.
Which drive is easier to commission?
The PowerFlex 525 is simpler to get running. Its embedded EtherNet/IP means no option cards to configure, and the built-in keypad with Quick Start wizard walks you through basic setup in minutes. The 753 requires installing communication option cards, configuring them separately, and typically using DriveExecutive or CCW software for full setup.
Can both drives control permanent magnet motors?
Yes. The PowerFlex 525 supports sensorless PM motor control. The PowerFlex 753 supports both sensorless and encoder-based PM motor control, offering better performance at low speeds when an encoder is used.
