Allen-Bradley | 20F11ND040AA0NNNNN |PowerFlex 753

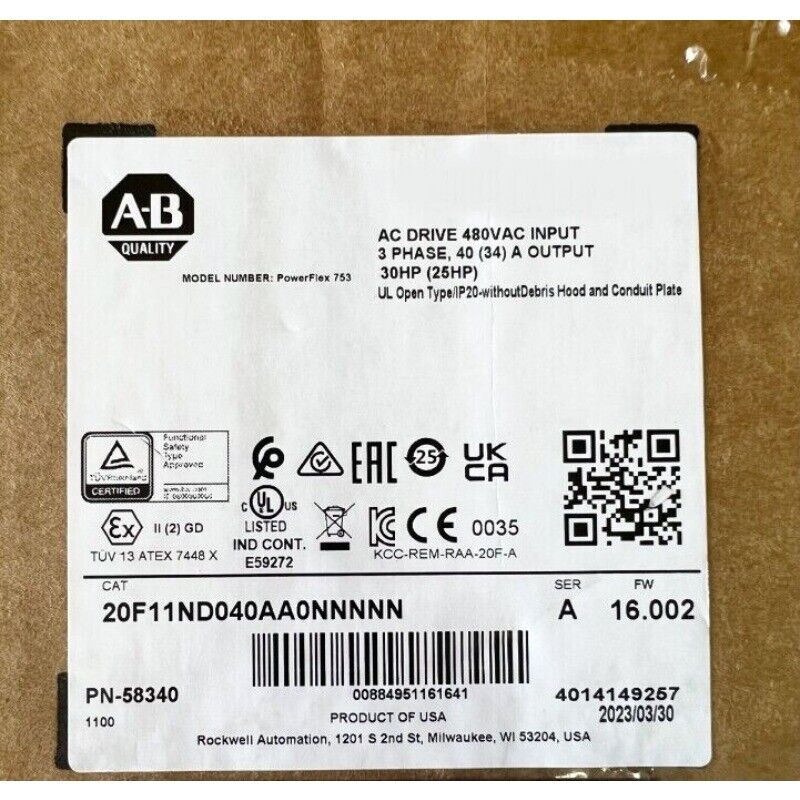

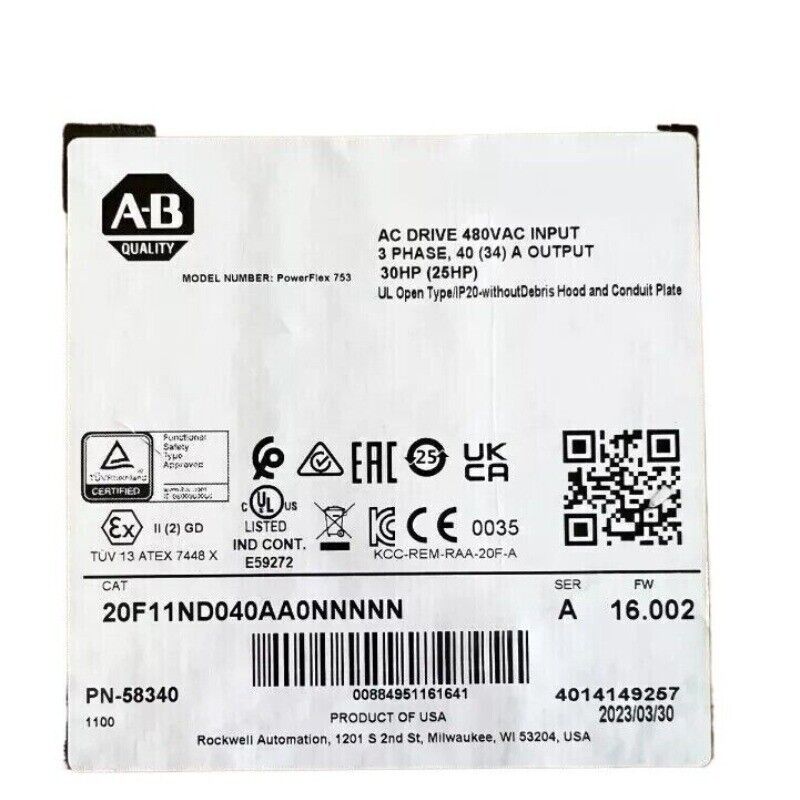

Product Description: Allen-Bradley 20F11ND040AA0NNNNN PowerFlex 753 AC Drive

The Allen-Bradley 20F11ND040AA0NNNNN is a PowerFlex 753 AC drive engineered for industrial motor control applications that require flexibility, safety, and performance. Rated at 22 kW (30 HP) and delivering 40 A output current at 3-phase 380–480V AC input, this drive supports standard V/Hz and vector control modes. With a modular design and integrated Safe Torque-Off (STO), it is ideal for demanding environments where scalability and advanced diagnostics are key.

Key Features

• 22 kW (30 HP) motor power rating
• 3-phase input voltage: 380–480V AC
• Output current: 40 A
• Control modes: V/Hz, Sensorless Vector, Flux Vector
• Integrated Safe Torque-Off (STO) certified to SIL2 / PLd
• Modular architecture with user-configurable option slots
• Support for DeviceLogix for embedded control logic
• IP00 open chassis for panel-mounted installation
• Compatible with optional HIM (Human Interface Module) for local control

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 40 A
• Power Rating: 22 kW / 30 HP
• Frequency Range: 0–599 Hz
• Enclosure Type: IP00 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Flux Vector
• Safety Function: Integrated Safe Torque- Off (STO)
• Communication: Modular—supports EtherNet/IP, DeviceNet, Profibus, etc. (via option cards)
• Programming Tools: Studio 5000, Connected Components Workbench (CCW), DriveExecutive
• Mounting: Chassis / panel mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Application Areas

• Pumps and compressors
• Conveyors and mixers
• HVAC and fluid handling systems
• Packaging and processing lines
• OEM equipment requiring scalable motor control

Advantages

• Modular and flexible platform suitable for a variety of industrial applications
• Integrated safety and diagnostics improve system uptime and compliance
• Configurable communication and I/O to match application requirements
• Seamless integration with Logix-based control systems
• Cost-effective high-performance solution for 30 HP motor control
