Siemens S7-1500 Complete Buyer's Guide: Every CPU, I/O Module & Accessory Explained

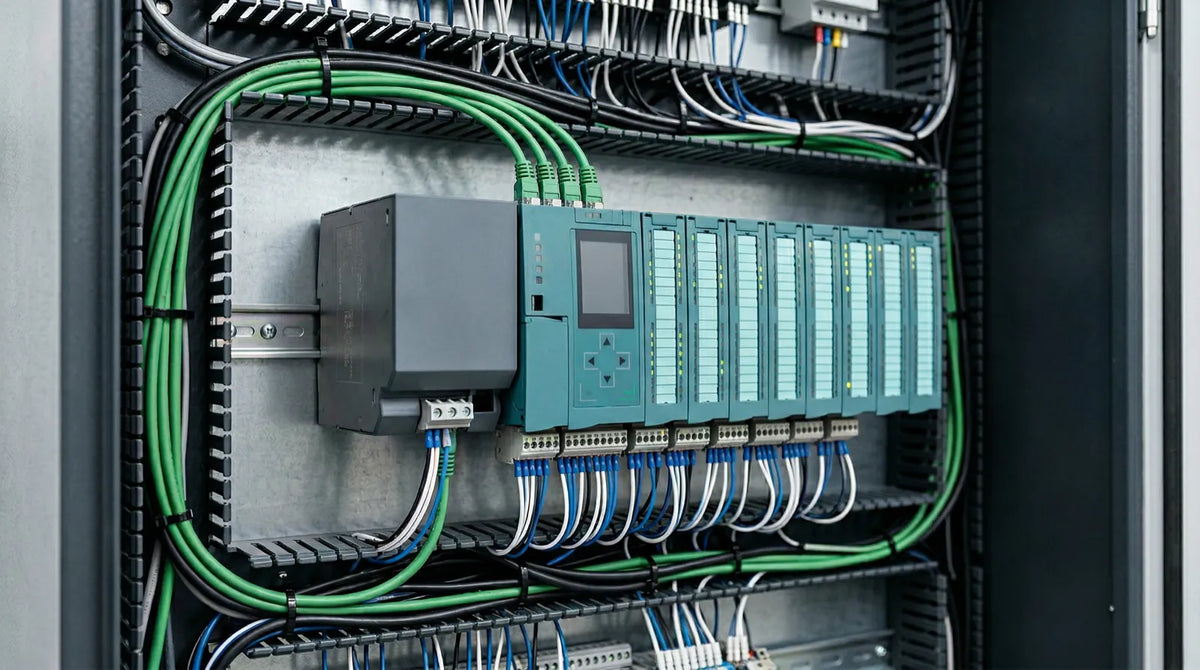

The Siemens SIMATIC S7-1500 is the flagship programmable logic controller in the Totally Integrated Automation (TIA) ecosystem. Launched as the successor to the venerable S7-300 and S7-400 families, the S7-1500 consolidates standard automation, fail-safe control, motion, and high-speed communication into a single, scalable platform. The platform scales from compact packaging machines to multi-line automotive body shops.

Below you will find comparison tables, selection guidance, and direct links to every S7-1500 component category we stock: CPUs, I/O modules, communication modules, power supplies, distributed I/O, and accessories.

Why S7-1500? Platform advantages

Here is what sets the S7-1500 apart from other Siemens controllers and from competing platforms like Allen-Bradley ControlLogix.

• Unified TIA Portal engineering. One software environment for PLC programming, HMI design, drive configuration, and network setup. No more juggling STEP 7 Classic, WinCC, and Starter.
• Deterministic PROFINET IRT. Every CPU includes at least two integrated PROFINET ports with isochronous real-time support, enabling sub-millisecond cycle times without external switches.
• Integrated security. Access protection at CPU, block, and communication levels. Firmware integrity checks and encrypted communication help meet IEC 62443 requirements.
• High-speed backplane. The S7-1500 backplane bus runs at 400 Mbit/s — roughly 10x faster than the S7-300 — so even large I/O configurations update within a single scan cycle.
• Integrated display. Every CPU has a front-panel display for diagnostics, IP address setup, and module status — no laptop required for first-level troubleshooting.
• Scalable CPU families. Standard, Compact, Fail-Safe, Technology, and Redundancy variants share the same I/O and communication modules.

S7-1500 CPU Families: Standard, Compact, F, T & R

Siemens organizes S7-1500 CPUs into five families. Each shares the same TIA Portal programming environment, the same backplane bus, and the same I/O ecosystem — but they differ in processing power, built-in I/O, and safety certification.

Need help choosing between CPU tiers? Read our detailed S7-1500 CPU Selection: 1511 vs 1513 vs 1515 vs 1517.

Standard CPU comparison: 1511-1 through 1518-4

The standard CPU lineup spans six performance tiers. Work memory determines how large your program can be. Bit performance (the time to execute a single Boolean instruction) indicates raw processing speed. The table below compares every standard CPU we carry.

Quick sizing rule: If your program fits in 150 KB and you do not need PROFIBUS, start with the CPU 1511-1. If you need PROFIBUS DP integration — whether for legacy drives, remote I/O, or third-party field devices — you need a 1516 or higher. The CPU 1518-4 is the top-of-line choice for plant-wide systems with 6 MB of work memory and four PROFINET ports.

For a deep-dive comparison with detailed application scenarios, see S7-1500 CPU Selection: 1511 vs 1513 vs 1515 vs 1517.

Compact CPUs: built-in I/O for small machines

The S7-1500 Compact CPUs (1511C and 1512C) integrate digital and analog I/O directly into the CPU housing. This eliminates separate I/O modules for small applications where panel space is at a premium — think single-station assembly cells, small conveyors, or standalone test fixtures.

Both Compact CPUs still accept standard S7-1500 I/O modules on the backplane rail, so you can expand later without replacing the CPU. The onboard high-speed counters also make them a cost-effective option for applications that need encoder feedback or piece counting without a separate technology module.

If you are deciding between a Compact CPU and the smaller S7-1200 platform, read S7-1500 vs S7-1200: Which Siemens PLC Fits Your Project?

Safety fail-safe CPUs (F-CPUs)

F-CPUs run both standard automation logic and SIL 3 / PL e certified safety programs within a single CPU. This eliminates the need for a separate safety relay system and consolidates your standard and safety I/O on the same backplane.

Every F-CPU requires F-I/O modules (like the 6ES7526-1BH00-0AB0 F-DI module) for safety-relevant signals. Standard I/O modules can be mixed on the same rack for non-safety channels.

For a complete comparison of F-CPU features, safety response times, and F-I/O module pairing, see our S7-1500 Safety F-CPU Guide.

I/O modules: digital, analog, and technology

S7-1500 I/O modules mount on the same DIN rail as the CPU and connect through U-connectors that form the backplane bus. Modules are organized into three categories: digital, analog, and technology.

Digital input modules (DI)

Digital output modules (DQ)

Analog input modules (AI)

Analog output modules (AQ)

Technology modules (counting and positioning)

Technology modules offload high-speed counting, frequency measurement, and encoder position input from the CPU scan cycle. They process signals locally at up to 1 MHz, reporting results to the CPU asynchronously.

For proper wiring of I/O modules and front connectors, refer to our S7-1500 Wiring Diagram Guide.

Communication modules

Every S7-1500 CPU has built-in PROFINET. If you need to communicate with serial devices, legacy PROFIBUS DP slaves (on PN-only CPUs), or Modbus RTU gateways, you add a communication module (CM) to the backplane.

Note on PROFINET: The built-in PROFINET interface supports S7 communication, OPC UA (on supported firmware), PROFINET IO controller, and PROFINET IO device modes. For most modern installations, no additional communication module is needed — PROFINET handles everything from drive integration to HMI connectivity.

Power supplies: system power vs. load power

The S7-1500 system uses two distinct power concepts that are important to understand:

• System power supply (PS): Feeds the backplane bus that powers the CPU and I/O module electronics. Mounts on the DIN rail to the left of the CPU. Required in every rack.
• Load power supply (PM): Provides 24 VDC to the field-side wiring — sensors, actuators, and the CPU's 24 V input. Typically a SITOP or third-party DIN-rail supply mounted separately.

You need both. The system power supply alone does not provide 24 VDC to the field side, and the load power supply does not feed the backplane.

Sizing tip: Use the 25 W supply for racks with a CPU and up to 8 I/O modules. For configurations with more than 8 modules, or racks that include multiple high-resolution analog modules (which draw more backplane current), step up to the 60 W supply. TIA Portal's hardware configuration tool also calculates the exact power budget for your configuration.

ET 200SP distributed I/O

In many plants, I/O is not located next to the CPU. Field cabinets on a production line, remote pump stations, or machine subassemblies may be tens or hundreds of meters away. The ET 200SP distributed I/O system places modules at the point of use and connects back to the S7-1500 CPU over PROFINET.

The ET 200SP system consists of an interface module (IM 155-6 PN), BaseUnits (the mounting backplane), and I/O modules from the ET 200SP catalog — which are smaller and more cost-effective than their S7-1500 equivalents while offering similar functionality.

Key advantages of ET 200SP with S7-1500:

• Up to 64 modules per ET 200SP station
• Hot-swapping of I/O modules during operation
• Shared device support — one ET 200SP station can be shared between two PROFINET controllers
• F-modules available for distributed safety I/O via PROFIsafe
• CPU modules (like the 1510SP and 1512SP) also available for standalone ET 200SP stations

For a complete guide to ET 200SP module selection, wiring, and configuration in TIA Portal, read ET 200SP Module Selection Guide.

Migrating from S7-300 or S7-400

Siemens has officially discontinued the S7-300 and S7-400 product lines. Spare parts are becoming harder to source, firmware updates have ended, and Siemens engineering support is gradually winding down for these platforms. The S7-1500 is the designated migration target.

The good news: TIA Portal includes a migration tool that converts most STEP 7 Classic projects — including LAD, FBD, and STL program blocks — into TIA Portal format. The tool also suggests S7-1500 hardware equivalents for your existing S7-300/400 I/O modules.

The migration typically follows this path:

1. Export the existing STEP 7 Classic project
2. Import into TIA Portal using the migration wizard
3. Replace absolute addressing (I/Q/M addresses) with symbolic tags
4. Map S7-300 I/O modules to S7-1500 equivalents (or keep them as remote ET 200MP stations)
5. Test and commission

For a detailed step-by-step walkthrough, hardware mapping tables, and common pitfalls, see our S7-300 to S7-1500 Migration Guide.

S7-1500 selection decision tree

Use this framework to narrow down the right S7-1500 configuration for your application:

Step 1: Determine your I/O count

• Under 40 I/O points — Consider a Compact CPU (1511C or 1512C). Built-in I/O may cover your needs without any additional modules.
• 40 to 200 I/O points — Standard CPU (1511 or 1513) with I/O modules on the local rack.
• 200 to 1,000 I/O points — Standard CPU (1515 or 1516) with a mix of local and distributed (ET 200SP) I/O.
• Over 1,000 I/O points — High-performance CPU (1517 or 1518) with extensive distributed I/O across multiple ET 200SP or ET 200MP stations.

Step 2: Check communication requirements

• PROFINET only — Any S7-1500 CPU works. All models include integrated PROFINET.
• PROFINET + PROFIBUS DP — You need a "-3 PN/DP" CPU (1516, 1517, or 1518) or a CM 541-1 communication module on a PN-only CPU.
• Serial (RS232/RS485) — Add a CM 540-1 (RS232) or CM 540-1 (RS422/485) communication module.

Step 3: Evaluate safety requirements

• No safety functions — Standard CPU.
• SIL 2 / SIL 3 required (E-stop, light curtains, safe motion) — Choose an F-CPU at the performance tier you need. Pair with F-I/O modules for safety-relevant signals. See our S7-1500 Safety F-CPU Guide.

Step 4: Consider special requirements

• Multi-axis motion with kinematics — T-CPU or TF-CPU (combines motion and safety).
• CPU redundancy / zero downtime — CPU 1515R with hot-standby switchover.
• OPC UA server — All current S7-1500 CPUs support OPC UA with firmware V2.0 or later.

Step 5: Size the power supply

• Small rack (CPU + up to 8 modules) — 25 W system power supply.
• Large rack (9+ modules or analog-heavy) — 60 W system power supply.

Step 6: Do not forget accessories

• Mounting rail (160 mm or 482 mm for 19" racks)
• U-connectors (one per module gap on the backplane)
• Front connectors (40-pin, one per I/O module)
• SIMATIC Memory Card (24 MB for small programs, 256 MB for large programs with data logging)

S7-1500 part number structure

Every Siemens S7-1500 module follows the 6ES7 5xx-xxxx-0AB0 order number format. The digits encode the module type, channel configuration, and hardware version. Understanding the pattern saves time when cross-referencing catalogs, quoting replacements, or verifying compatibility.

Learn to decode any 6ES7 order number in our S7-1500 Part Number Decoder.

Troubleshooting S7-1500 LEDs

If your S7-1500 CPU shows a flashing SF (System Fault) or BF (Bus Fault) LED, do not panic. Most causes are configuration mismatches, missing GSD files, or communication interrupts that can be resolved without replacing hardware. The front-panel display gives you the first clue, and the online diagnostics in TIA Portal provide the full story.

For a walkthrough of common LED patterns, their root causes, and step-by-step fixes, see our S7-1500 SF/BF LED Troubleshooting Guide.

Frequently asked questions

What is the difference between an S7-1500 standard CPU and an F-CPU?

Standard S7-1500 CPUs handle general automation tasks — machine sequencing, process regulation, data handling. F-CPUs (fail-safe CPUs) add SIL 3 / PL e certified safety functions within the same CPU, such as emergency stop monitoring, safe speed, and safe position. F-CPUs run both standard and safety programs simultaneously, eliminating the need for a separate safety relay system. They cost more but consolidate your control and safety hardware onto one platform.

Can I reuse my S7-300 I/O modules with an S7-1500 CPU?

Not directly on the same backplane — the S7-1500 uses a different connector and module form factor than the S7-300. However, you can keep existing S7-300 I/O racks as remote ET 200MP stations connected to the S7-1500 CPU over PROFINET. This lets you migrate the CPU and programming environment first, then replace I/O modules gradually on your own schedule. See our S7-300 to S7-1500 migration guide for the full hardware mapping.

What memory card does the S7-1500 need?

Every S7-1500 CPU requires a SIMATIC Memory Card (SMC) — a pre-formatted, industrial-grade SD card. Standard consumer SD cards will not work. Common sizes are 4 MB (6ES7954-8LC03-0AA0), 24 MB (6ES7954-8LF03-0AA0), and 256 MB (6ES7954-8LL03-0AA0). Choose a card with at least twice your compiled project size to leave room for data logging, recipes, and firmware updates.

How many PROFINET devices can an S7-1500 CPU manage?

The number of PROFINET IO devices depends on the CPU model. The CPU 1511 supports up to 32 PROFINET devices and 64 PROFINET connections. The CPU 1518 supports up to 128 PROFINET devices and 256 connections. In practice, network bandwidth and update cycle time are the practical limits. Using managed switches and VLAN segmentation helps scale larger networks reliably.

Is the S7-1500 backward compatible with STEP 7 Classic programs?

The S7-1500 requires TIA Portal (STEP 7 Professional V14 or later). Programs written in STEP 7 Classic for S7-300/400 cannot run on S7-1500 directly. However, TIA Portal includes a migration tool that converts most Classic projects — including LAD, FBD, and STL blocks — into TIA Portal format. Some manual adjustments are typically needed for hardware-specific calls, absolute addressing, and SFC/SFB replacements.
