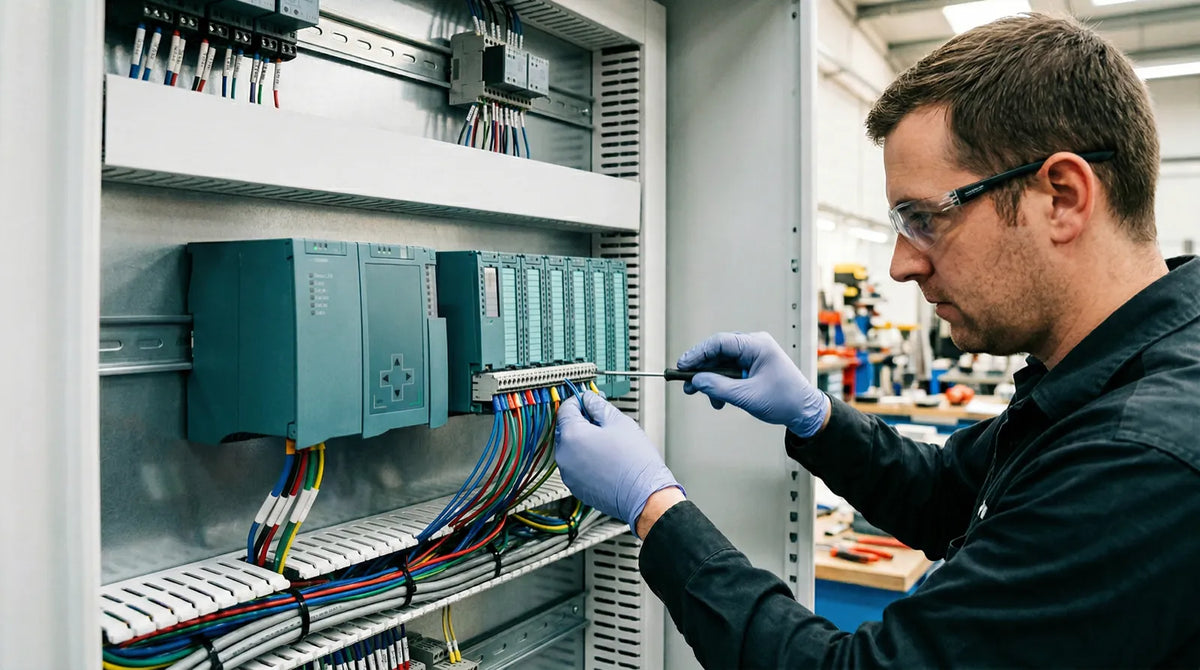

Wiring an S7-1500 CPU correctly is straightforward if you follow Siemens' terminal layout — but small mistakes in power supply connections, grounding, or front connector pinouts can cause intermittent faults that are painful to diagnose later. This guide covers the physical wiring from power supply through CPU to I/O modules, step by step.
What you need before you start
Gather these components before wiring. Every S7-1500 rack needs all of them.
| Component | Purpose | Example Part Number |
|---|---|---|
| Mounting Rail | DIN rail for all modules | 6ES7590-1AB60-0AA0 (160 mm) or 6ES7590-1AC40-0AA0 (482 mm) |
| System Power Supply (PS) | Powers the S7-1500 backplane bus | 6ES7505-0KA00-0AB0 (25W DC) or 6ES7507-0RA00-0AB0 (60W AC) |
| CPU | Controller | e.g. 6ES7513-1AL02-0AB0 (CPU 1513-1 PN) |
| U-Connectors | Bridge backplane bus between modules | 6ES7590-0AA00-0AA0 |
| Front Connectors | Plug-in terminal block for I/O wiring | 6ES7592-1AM00-0XB0 (40-pin) |
| SIMATIC Memory Card | Stores user program | 6ES7954-8LF03-0AA0 (24 MB) |
| Shield Terminal (if shielded cable) | Ground cable shields to mounting rail | 6ES7590-5BA00-0AA0 |
| 24 VDC Power Supply (external) | Powers the CPU and field-side I/O | Any industrial 24 VDC supply (SITOP recommended) |
Step 1: Mount the rail and modules
- Secure the S7-1500 mounting rail to your panel or rack. Use the pre-drilled holes and M5 screws.
- Snap modules onto the rail in this order (left to right):
- System Power Supply (PS)
- CPU
- I/O Modules (signal modules)
- Communication Modules (at the end, if any)
- Insert a U-Connector between every pair of adjacent modules. The U-connector carries the backplane bus signals. Without it, the CPU cannot communicate with I/O modules.
- Leave at least 25 mm of clearance above and below the modules for airflow.
Important: The system power supply must be directly to the left of the CPU. There must be no gap or other module between them.
Step 2: Wire the system power supply
The system power supply (PS) feeds the S7-1500 backplane bus. It does not power the CPU — that comes from a separate 24 VDC connection directly to the CPU.
For DC input (6ES7505-0KA00-0AB0 or 6ES7505-0RA00-0AB0)
| Terminal | Connection |
|---|---|
| L+ (terminal 1) | +24 VDC from external supply |
| M (terminal 2) | 0 V (ground) from external supply |
| PE (protective earth) | Connect to panel ground bus |
For AC input (6ES7507-0RA00-0AB0)
| Terminal | Connection |
|---|---|
| L (terminal 1) | 120 VAC or 230 VAC line |
| N (terminal 2) | Neutral |
| PE (protective earth) | Panel ground bus |
Step 3: Wire the CPU power
Every S7-1500 CPU has its own 24 VDC power input on the front panel. This is separate from the system power supply and must be connected independently.
| CPU Terminal | Connection | Wire Size |
|---|---|---|
| L+ (24 VDC) | +24 VDC from external supply (fused) | 0.5–2.5 mm² (20–14 AWG) |
| M (0 V) | 0 V from external supply | 0.5–2.5 mm² |
Best practice: Use a dedicated circuit breaker (2A or 4A) for the CPU power feed. Do not share it with field device loads — a short on a sensor should not take down the CPU.
Step 4: Connect PROFINET
Every S7-1500 CPU has at least two PROFINET ports (RJ45). These ports form an integrated 2-port switch.
- Port X1 P1: Connect to your engineering station (laptop running TIA Portal) or plant network
- Port X1 P2: Connect to the next PROFINET device (ET 200SP, HMI, drive, etc.) or daisy-chain to another switch
Use industrial-rated Cat5e or Cat6 Ethernet cables. For runs longer than 5 meters in industrial environments, use shielded cables and connect the shield to the shield terminal on the mounting rail.
Step 5: Wire I/O modules via front connectors
S7-1500 I/O modules use removable front connectors for field wiring. This design lets you pre-wire the connector on your bench and snap it into the module during installation — or swap a module without rewiring.
Digital input module wiring (sink/source)
Taking the 16 DI module (6ES7521-1BH00-0AB0) as an example:
| Pin Group | Connection |
|---|---|
| Channel pins (DI 0–15) | One wire from each sensor/switch |
| L+ supply pins | +24 VDC sensor supply |
| M supply pins | 0 V sensor supply |
Sink wiring (most common): Sensor switches the +24 VDC side. The module input sees +24 VDC when the sensor activates.
Source wiring: Sensor switches the 0 V side. Use source-input modules (6ES7521-7EH00-0AB0) for source-wired field devices.
Digital output module wiring
Taking the 16 DO module (6ES7522-1BH01-0AB0) as an example:
| Pin Group | Connection |
|---|---|
| Channel pins (DQ 0–15) | One wire to each actuator (solenoid, indicator, relay coil) |
| L+ supply pins | +24 VDC load supply (fused per group) |
| M return | 0 V (common for actuator return) |
Important: Each output group shares a fuse. Use separate fuses for critical outputs. Siemens recommends max 4A per output group to protect the module's internal transistors.
Analog input module wiring
Analog modules like the 8 AI universal (6ES7531-7KF00-0AB0) support multiple signal types per channel. The wiring depends on your sensor type.
| Signal Type | Wiring |
|---|---|
| 4–20 mA (2-wire transmitter) | +24V supply → transmitter → AI+ (channel) → AI- → M |
| 0–10 V (voltage) | Signal+ → AI+, Signal- → AI- (MANA) |
| RTD (Pt100, 2-wire) | RTD wire 1 → IC+, RTD wire 2 → IC- (short M+ to IC+) |
| RTD (Pt100, 4-wire) | IC+, IC-, M+, M- to the four RTD leads |
| Thermocouple | TC+ → AI+, TC- → AI- (use compensating cable) |
For RTD measurements, use the 4 AI RTD module (6ES7531-7QD00-0AB0) for best accuracy — it has dedicated RTD circuitry with 4-wire support.
Step 6: Insert the memory card and power on
- Insert the SIMATIC Memory Card into the CPU's card slot (below the front door) before powering on.
- Turn on the external 24 VDC supply. The CPU will boot and enter STOP mode (yellow STOP LED solid).
- Connect your laptop via PROFINET and download the TIA Portal project.
- Switch the CPU to RUN. The green RUN LED should go solid.
Common wiring mistakes to avoid
| Mistake | Consequence | Prevention |
|---|---|---|
| Missing U-connector between modules | CPU cannot see the I/O module | Install U-connector at every module junction |
| Sharing CPU 24V supply with field devices | Field short takes CPU offline | Dedicated breaker for CPU power |
| Forgetting the system power supply | CPU powers on but I/O modules have no backplane power | Always install PS directly left of CPU |
| Front connector not fully seated | Intermittent channel faults, SF LED | Push until the locking tab clicks |
| No memory card installed | CPU will not start — ERROR LED | Insert SIMATIC Memory Card before first power-on |
| Unshielded cables near VFDs | EMI noise causing false DI triggers or AI drift | Use shielded cables + shield terminals on the mounting rail |
Grounding best practices
- PE connection: Connect the mounting rail to the panel's protective earth bus with a short, heavy-gauge wire (min. 4 mm²).
- Shield grounding: Use shield terminals (6ES7590-5BA00-0AA0) to connect cable shields to the mounting rail. Ground shields at one end only to avoid ground loops.
- Analog signal grounding: Keep analog signal grounds (MANA) separate from digital grounds (M) wherever possible. Do not mix analog and digital return paths on the same terminal.
Frequently asked questions
Can I hot-swap S7-1500 I/O modules without powering down?
S7-1500 does not officially support hot-swap of I/O modules on the central rack. You must power down the rack before removing or inserting modules. However, ET 200SP remote I/O stations do support hot-swap for individual I/O modules if configured in TIA Portal — the rest of the station continues operating while you swap a single module.
Do I need a U-connector between every module?
Yes. Unlike S7-300 (which uses a continuous backplane bus rail), S7-1500 uses individual U-connectors between each pair of adjacent modules to carry backplane signals. If you forget one, the modules to the right of the gap will not be detected by the CPU. Always order enough U-connectors for your configuration: you need (number of modules - 1).
What wire gauge should I use for S7-1500 I/O wiring?
S7-1500 front connectors accept wire sizes from 0.25 mm² to 2.5 mm² (24 AWG to 14 AWG). For most digital I/O field wiring, 0.75 mm² (18 AWG) or 1.0 mm² (16 AWG) is standard. For analog signals, use shielded twisted-pair cable with 0.5 mm² conductors. For power connections (CPU 24V, system power supply), use 1.5 mm² minimum.
What is the difference between system power (PS) and load power (PM)?
The system power supply (PS) powers the S7-1500 backplane bus — it provides internal logic power to all modules through the U-connectors. The load power supply (PM) provides 24 VDC for the field side of I/O modules — the power that drives sensors and actuators. The CPU itself needs a separate 24 VDC feed on its front-panel terminals. In practice, many systems use a single external 24 VDC supply for all three purposes, but with separate circuit breakers for the CPU, system power supply, and field loads to ensure fault isolation.
Safety I/O wiring considerations
If your S7-1500 system uses an F-CPU for safety functions, the safety I/O modules have additional wiring requirements:
- Dual-channel inputs: Safety inputs like E-stops and safety door switches require two separate contacts wired to two adjacent channels. The F-DI module monitors both channels for discrepancy — if one channel reads differently from the other, the module triggers a safety fault.
- Test pulse outputs: F-DI modules can generate test pulses to detect stuck-at faults on sensor wiring. Connect the test output (T) pin on the F-DI module to the common supply of the safety sensor group.
- Short-circuit detection: Route each safety input through a separate cable pair. Do not bundle multiple safety sensor cables together — a short between two sensor wires could defeat the dual-channel detection.
