S7-1500 vs S7-1200: Which Siemens PLC Fits Your Project?

The S7-1200 and S7-1500 are both current-generation Siemens PLCs, both programmed in TIA Portal, and both use PROFINET. On paper they look like different sizes of the same thing. In practice, they serve different roles — and choosing the wrong one costs you either money (over-specifying) or headaches (under-specifying).

This comparison covers the specs that affect your project: performance, I/O expansion, communication, safety, and total cost of ownership.

Quick comparison table

When the S7-1200 is the right choice

The S7-1200 is not a "lesser" PLC — it is purpose-built for compact, cost-sensitive applications where you need Siemens quality and TIA Portal integration without paying for performance you will never use.

Choose S7-1200 when:

• Your I/O count is under 100 points. The S7-1200 supports up to 8 signal modules. With onboard I/O, a CPU 1214C gives you 14 DI + 10 DO + 2 AI before adding any modules.
• Your program fits in 100 KB or less. Most single-machine programs for packaging, labeling, or simple assembly are well under 100 KB.
• You do not need PROFIBUS. The S7-1200 has zero PROFIBUS capability — no built-in port, no communication module option. If your plant has PROFIBUS devices, the S7-1200 cannot talk to them.
• Budget is the primary constraint. An S7-1200 CPU with onboard I/O costs significantly less than an S7-1500 CPU plus separate I/O modules.

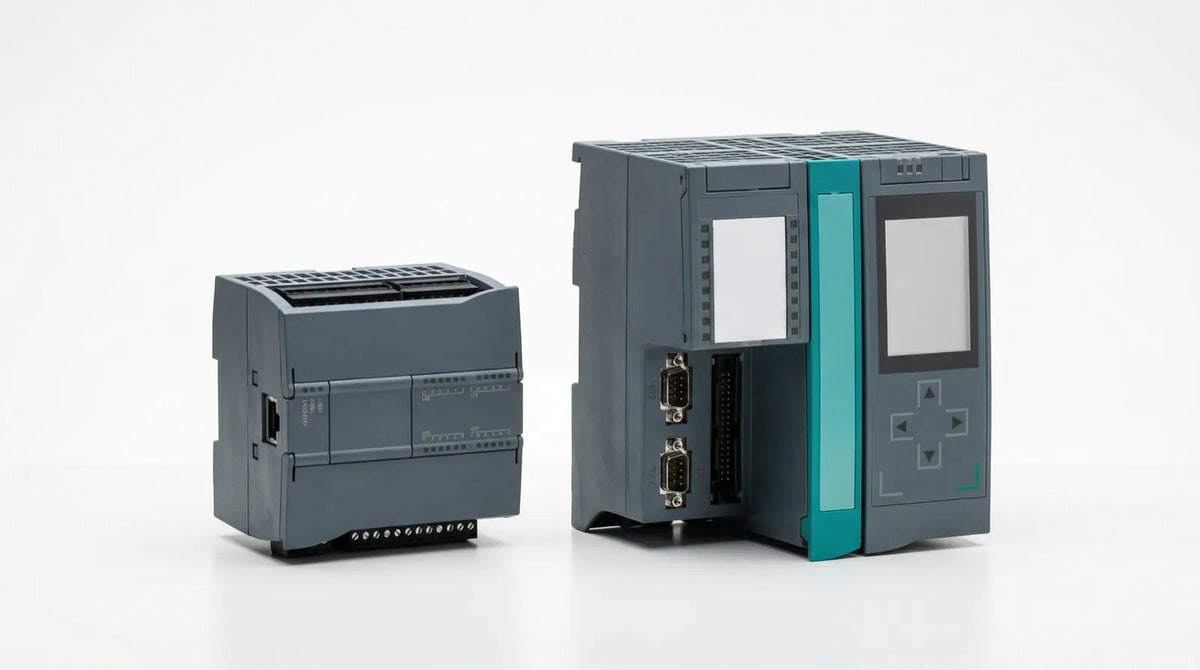

• Panel space is limited. S7-1200 modules are physically smaller than S7-1500 modules.

S7-1200 limitations you should know:

• No STL or GRAPH programming — only LAD, FBD, and SCL
• Maximum 8 signal modules limits I/O expansion
• Slower scan times make it unsuitable for high-speed applications
• OPC UA server has a smaller data model capacity
• Safety CPUs (1214FC, 1215FC) support fewer safety functions than S7-1500 F-CPUs
• No CPU redundancy option

When the S7-1500 is the right choice

The S7-1500 is Siemens' top-tier controller platform. It handles everything the S7-1200 does, and then some.

Choose S7-1500 when:

• Your I/O count exceeds 100 points. With up to 32 centralized modules plus unlimited PROFINET remote I/O, the S7-1500 scales to thousands of I/O points.
• You need PROFIBUS DP. Legacy drives, remote I/O, and instrumentation on PROFIBUS require an S7-1500 with DP port (CPU 1516/1517/1518) or a CM 541-1.
• Performance matters. A CPU 1517-3 PN/DP at 10 ns bit time is roughly 8x faster than any S7-1200 CPU.
• You need advanced safety. S7-1500 F-CPUs offer full SIL 3 / PL e safety with extensive safe motion functions. S7-1200 safety is more limited.
• You need motion control beyond basic positioning. S7-1500 T-CPUs support multi-axis synchronization, camming, gearing, and kinematics — capabilities the S7-1200 simply does not have.
• You need STL or GRAPH programming. Complex state machines (GRAPH) and low-level optimizations (STL) are only available on S7-1500.
• The application requires redundancy. Only the S7-1500 offers CPU redundancy (CPU 1515R-2).

Performance comparison: real-world impact

Raw bit performance numbers do not always tell the full story. Here is how the performance gap affects real applications.

I/O expansion: a key difference

The S7-1200's 8-module limit is often the deciding factor. Here is a practical example:

Application: A bottling line with 64 DI + 32 DO + 8 AI + 4 AO = 108 I/O points.

• S7-1200 approach: CPU 1215C (14 DI + 10 DO + 2 AI onboard) + 4 DI modules + 2 DO modules + 1 AI module + 1 AO module = 8 signal modules. You have hit the limit with zero room for future expansion.
• S7-1500 approach: CPU 1513-1 PN + I/O modules to match. With 32 module slots, you have 24 slots remaining for future growth.

If your I/O count is near 80–100 points, go with S7-1500. You will inevitably need to add sensors, valves, or instruments during commissioning or later modifications.

Communication feature comparison

Cost comparison: it is not just the CPU

The S7-1200 CPU is cheaper, but the total system cost depends on your configuration. Consider these factors:

• S7-1200 advantage: Built-in I/O reduces the number of separate modules needed. For a 30-point application, an S7-1200 CPU with onboard I/O may be all you need — no signal modules at all.
• S7-1500 advantage: Higher-density I/O modules (32 DI per module vs. S7-1200's 16 DI max) can make the per-point cost comparable for medium-size systems. Plus, the S7-1500's combo 16 DI/16 DO module saves slots.
• TIA Portal licensing: Both require TIA Portal, but safety programming requires the STEP 7 Safety option regardless of platform.
• Engineering time: A system that needs workarounds on S7-1200 (lack of PROFIBUS, limited I/O, no GRAPH) will cost more in engineering hours than one that uses S7-1500's native features.

Migration between platforms

Since both S7-1200 and S7-1500 use TIA Portal, migrating a program between them is relatively straightforward:

• S7-1200 → S7-1500: Change the CPU in TIA Portal hardware configuration. Most program blocks transfer directly. STL blocks (if converted to SCL) and hardware-specific calls need adjustment. I/O addresses can be kept the same.
• S7-1500 → S7-1200: More difficult. Any STL, GRAPH, or advanced features must be rewritten. Work memory limits may require code optimization. PROFIBUS connections cannot be migrated.

If there is any chance you will need to upgrade later, starting with S7-1500 avoids the pain of a downward migration.

Decision checklist

Frequently asked questions

Browse both platforms

We stock both S7-1200 and S7-1500 CPUs, I/O modules, and accessories. For deeper S7-1500 guidance, see our S7-1500 Buyer's Guide. Browse our Siemens PLC Systems collection or view all Siemens products. Contact us with your application details for a tailored recommendation.
