Most industrial motor control conversations revolve around low voltage (LV) drives — 480V, maybe 600V. That covers 90% of applications. But when your motors start exceeding 500 HP and your cable runs stretch hundreds of meters, low voltage stops making economic and practical sense. That is where medium voltage (MV) drives like the Allen-Bradley PowerFlex 6000 come in.
Below we explain what medium voltage means in practical terms, where the PowerFlex 6000 fits, and how to decide whether your next project should step up from low voltage to medium voltage.
What is medium voltage, and when does it matter?
In industrial power distribution, "medium voltage" generally refers to systems operating between 1 kV and 35 kV. For variable frequency drives, the relevant MV range is typically 2.3 kV to 13.8 kV, with 4.16 kV being the most common in North American plants.
You need medium voltage when:
- Motor horsepower exceeds 500 HP (375 kW) — At these power levels, the current draw at 480V becomes enormous. A 1,000 HP motor at 480V pulls over 1,200 amps. At 4.16 kV, that same motor draws around 140 amps — a tenfold reduction.
- Cable distances are long — High current at low voltage means thick, expensive cables and significant voltage drop. MV reduces cable size by an order of magnitude.
- Multiple large motors share a power bus — Plants with several 500+ HP motors (water treatment, mining, power generation) benefit from MV distribution to avoid oversized switchgear and transformers.
The rule of thumb: if you are running motors above 500 HP, or your cable runs exceed 300 meters at power levels above 200 HP, medium voltage deserves serious evaluation.
PowerFlex 6000 overview
The PowerFlex 6000 is Rockwell Automation's medium voltage drive platform, built for high-power applications in heavy industry. Here are the key specifications:
| Specification | PowerFlex 6000 |
|---|---|
| Input Voltage | 2.3 kV, 3.3 kV, 4.16 kV, 6.6 kV, 10 kV, 11 kV |
| Output Power | 150 kW to 7,000+ kW (200 to 9,400+ HP) |
| Cooling | Air-cooled and liquid-cooled configurations |
| Topology | Multi-level voltage source inverter |
| Output Waveform | Near-sinusoidal (low harmonic distortion) |
| Motor Compatibility | Standard MV induction motors — no derating or special insulation required |
| Communication | EtherNet/IP, Modbus TCP/RTU, PROFIBUS (optional) |
| Integration | Native integration with ControlLogix via Add-On Profiles |
The air-cooled version suits most installations. Liquid-cooled configurations are available for space-constrained environments or extreme ambient temperatures where air cooling alone cannot dissipate enough heat.
Multi-level topology: why it matters for motor health
The PowerFlex 6000 uses a multi-level voltage source inverter (VSI) topology. If you are familiar with low voltage drives, you know that standard 2-level inverters produce a rough, stepped approximation of a sine wave. This creates high dv/dt (rate of voltage change) that stresses motor insulation and can cause bearing currents.
Multi-level inverters solve this by building the output waveform from many smaller voltage steps. The result:
- Near-sinusoidal output voltage — The waveform closely approximates a true sine wave, which reduces harmonic content
- Low dv/dt — Slower voltage transitions mean less stress on motor winding insulation. This is critical at medium voltage where insulation stress is already higher
- No output filter required — Unlike 2-level MV drives that often need expensive dv/dt filters or sine-wave filters, the PowerFlex 6000's multi-level output is clean enough to connect directly to standard MV motors
- Reduced bearing currents — Lower common-mode voltage reduces shaft voltage and the bearing damage that plagues motors driven by conventional inverters
In practical terms, this means you can use standard, off-the-shelf MV motors without requiring inverter-duty rated insulation or derating. That reduces project cost and simplifies motor procurement.
Target applications
The PowerFlex 6000 is built for high-power, continuous-duty applications where variable speed control delivers real energy savings and process improvements:

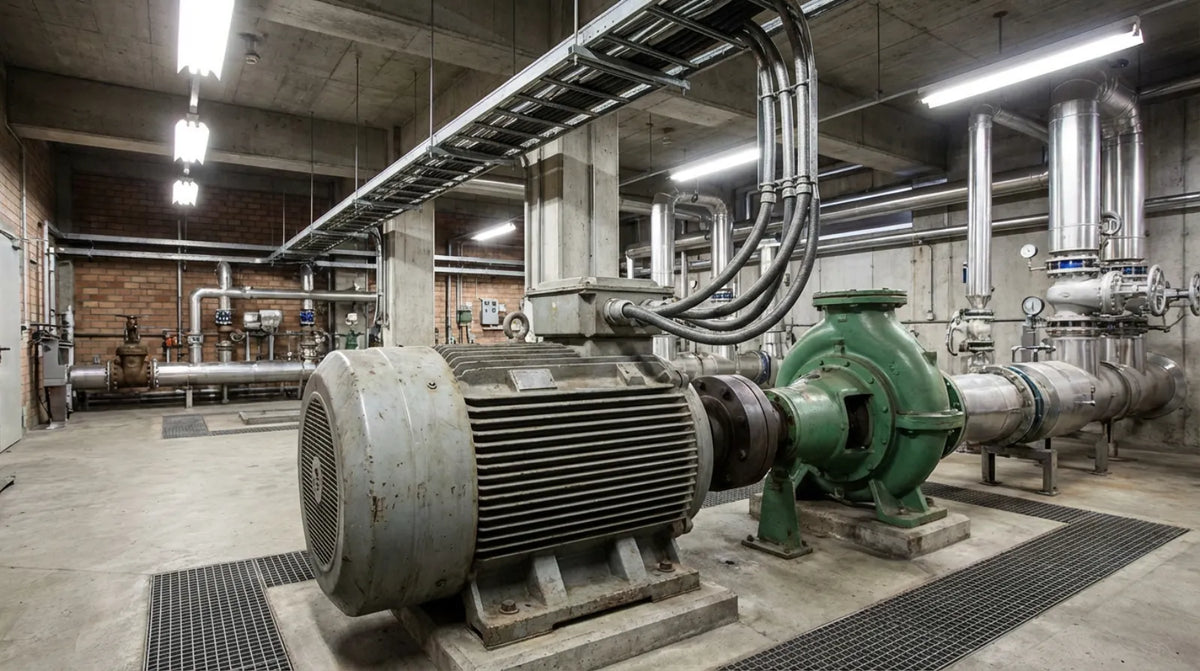

Water and wastewater
Large raw water pumps, distribution pumps, and blower motors in aeration systems. These are textbook variable torque loads where even a 10% speed reduction yields 27% energy savings (cubic relationship between speed and power).
Mining and minerals
SAG mills, ball mills, crushers, overland conveyors, and large ventilation fans. Mining operations typically have multiple motors in the 1,000–5,000 HP range running 24/7 — perfect candidates for MV drives.
Oil and gas
Pipeline compressors, injection pumps, and gas processing plant motors. The PowerFlex 6000 handles the heavy duty cycles and harsh environments common in upstream and midstream operations.
Power generation
Induced draft fans, forced draft fans, boiler feed pumps, and cooling water pumps. These are high-power loads that run continuously and benefit from variable speed operation versus damper or valve control.
Cement and metals
Kiln drives, raw mill fans, finish mill drives, and metal rolling mill auxiliaries. These industries have some of the largest motor loads in manufacturing.
Low voltage vs medium voltage: the decision framework
The transition from low voltage to medium voltage goes beyond motor size. It is an economic and engineering decision that depends on multiple factors.
| Factor | Low Voltage (PowerFlex 755) | Medium Voltage (PowerFlex 6000) |
|---|---|---|
| Motor Voltage | 208–690V | 2.3–11 kV |
| Power Range | 0.75–1,500 kW (1–2,000 HP) | 150–7,000+ kW (200–9,400+ HP) |
| Drive Cost | Lower — $1,000 to $50,000+ | Higher — $80,000 to $500,000+ |
| Cable Cost (per meter) | High at large HP (thick conductors for high current) | Low (smaller conductors carry the same power at higher voltage) |
| Transformer Required | Yes — step-down from MV bus to 480V | No — connects directly to MV bus |
| Transmission Losses | Higher (I²R losses scale with current squared) | Lower (reduced current = reduced losses) |
| Motor Options | Wide selection, lower cost | Fewer vendors, higher cost, but no derating needed with multi-level drive |
| Footprint | Smaller drive, but may need large transformer + switchgear | Larger drive, but eliminates step-down transformer |
| Maintenance Complexity | Lower — more technicians are LV-qualified | Higher — requires MV-qualified personnel |
| Sweet Spot | Under 500 HP, short cable runs | Over 500 HP, long cable runs, MV power distribution |
The crossover zone: 300-700 HP
In the 300–700 HP range, both LV and MV solutions can work. The decision often comes down to:
- Existing plant voltage — If your plant already distributes power at 4.16 kV, adding an MV drive avoids a step-down transformer entirely. If you only have 480V, the cost of MV infrastructure may not justify the benefits.
- Cable distance — At 500 HP with a 500-meter cable run, the LV cable cost alone can approach the price difference between LV and MV drives.
- Future expansion — If you expect to add more large motors, investing in MV infrastructure now can reduce long-term costs.
Integration with Rockwell Automation ecosystem
The PowerFlex 6000 integrates directly with the broader Rockwell Automation architecture:
- EtherNet/IP connectivity — The drive connects directly to the plant network using standard EtherNet/IP, the same protocol used by PowerFlex low voltage drives and ControlLogix PLCs
- Add-On Profiles (AOP) — Pre-built profiles in Studio 5000 provide automatic tag creation, faceplate integration, and alarm configuration. The MV drive appears in your ControlLogix project just like any other PowerFlex drive
- Common programming model — Engineers who already work with PowerFlex 525 or 753 drives will find the 6000's parameter structure and diagnostic model familiar
- Integrated safety — The drive supports CIP Safety over EtherNet/IP for safety-rated stop functions coordinated with GuardLogix safety controllers
This means your MV drives do not live on a separate, isolated control network. They participate in the same plantwide control architecture as your LV drives, PLCs, and HMIs, which simplifies engineering, commissioning, and ongoing maintenance.
Total cost of ownership
Medium voltage drives always cost more upfront. A PowerFlex 6000 for a 2,000 HP motor might cost $150,000–$250,000, while an equivalent LV drive solution might be $30,000–$60,000 for the drive alone. But the drive is only one piece of the total project cost.
Look at the full project cost:
- No step-down transformer — An LV drive on a 4.16 kV bus needs a step-down transformer ($20,000–$80,000+ depending on kVA rating), plus space and cooling for it
- Reduced cable cost — At 2,000 HP and 300 meters, LV cables (4/0 AWG or larger, multiple parallel runs) can cost $50,000–$100,000+. MV cables for the same power are a fraction of that
- Lower transmission losses — At high power, I²R losses in LV cables are significant. MV operation reduces current by a factor of 8–10x, cutting losses by 64–100x. Over a 20-year motor life running 8,000 hours per year, those energy savings compound
- Motor flexibility — The multi-level topology means standard motors work without derating, eliminating the need for expensive inverter-duty MV motors
For applications above 1,000 HP with cable runs over 100 meters, the total installed cost of an MV drive system is often equal to or lower than the equivalent LV solution — even before accounting for ongoing energy savings.
What about low voltage alternatives?
Not every large motor application needs a medium voltage drive. If your application is under 500 HP, or if your plant does not have MV distribution, a low voltage PowerFlex drive is likely the better choice:
- The PowerFlex 755 covers up to 2,000 HP at 690V and offers advanced features including predictive diagnostics, CIP Motion, and modular power structures — read our PowerFlex 755 configuration guide
- The PowerFlex 525 and 753 handle applications from fractional HP up to 350 HP with simpler commissioning and lower cost
We stock a full range of low voltage PowerFlex drives. Browse our drives and motion control collection for available LV models with pricing.
Frequently asked questions
Can the PowerFlex 6000 run standard motors without special insulation?
Yes. The multi-level voltage source inverter topology produces a near-sinusoidal output waveform with low dv/dt. This means standard MV induction motors can be used without requiring inverter-duty rated insulation or derating — a cost advantage over drives with 2-level or 3-level topologies that require output filters or specially insulated motors.
At what horsepower should I consider medium voltage over low voltage?
The general guideline is 500 HP and above, but the real decision depends on cable distance, existing plant voltage levels, and total project economics. In the 300–700 HP range, both LV and MV solutions are technically viable — you should evaluate the total installed cost including transformers, cables, and switchgear, not just the drive price.
Does the PowerFlex 6000 integrate with ControlLogix like low voltage PowerFlex drives?
Yes. The PowerFlex 6000 connects via EtherNet/IP and uses Add-On Profiles (AOP) in Studio 5000 Logix Designer. From a controls engineering perspective, it appears in your ControlLogix project just like a PowerFlex 525 or 755 — with automatic tag creation, built-in faceplates, and integrated alarm handling.
Does rabwellplc.com stock the PowerFlex 6000?
We do not currently stock PowerFlex 6000 medium voltage drives due to the highly configured nature of MV drive systems. Each MV drive is typically engineered to order based on the specific motor, application, and site conditions. If you have a medium voltage drive requirement, contact us and we can assist with sourcing and specification. For low voltage PowerFlex drives (525, 527, 753, 755), browse our in-stock inventory.
