Product Description: Siemens 6ES7151-1BA02-0AB0 (IM151-1)

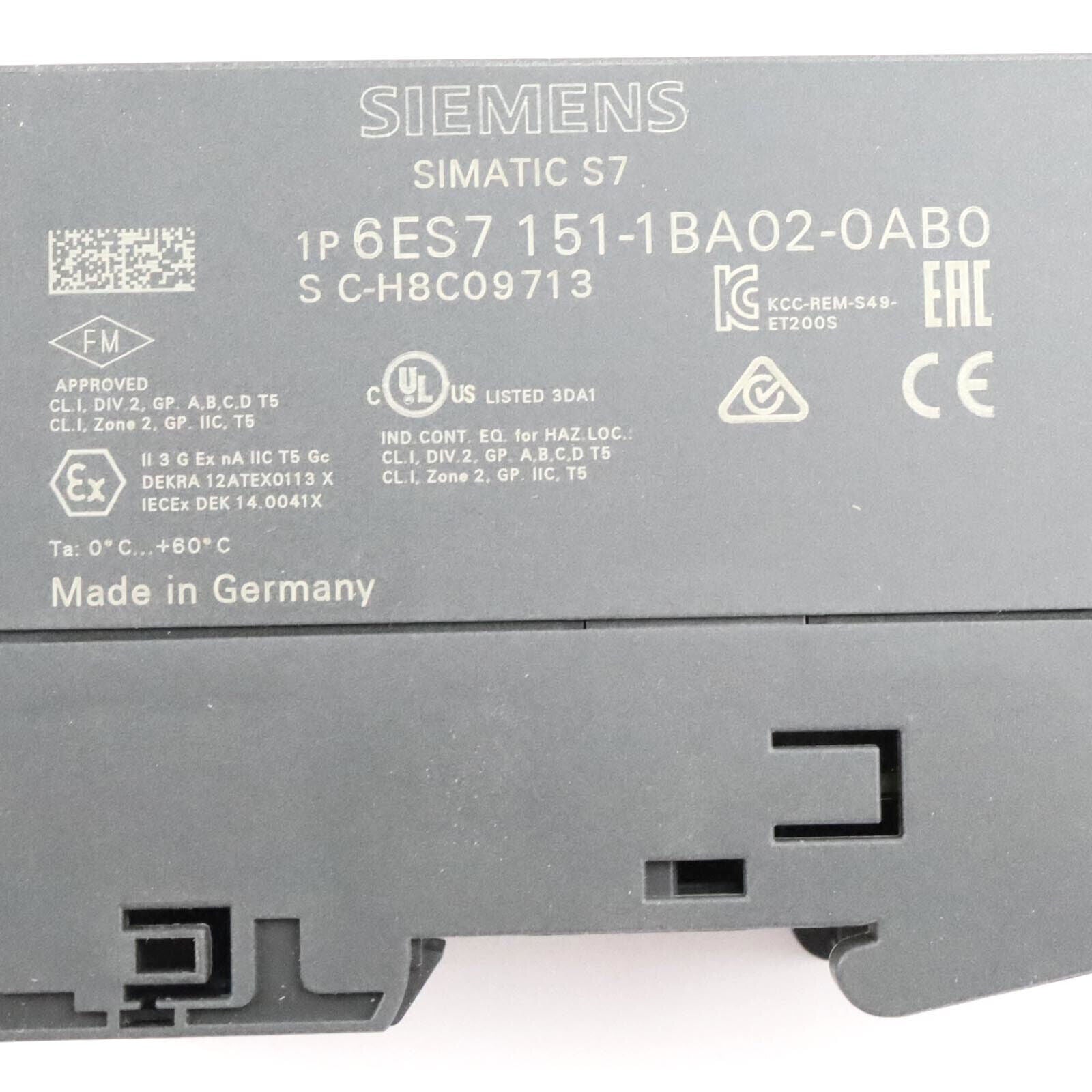

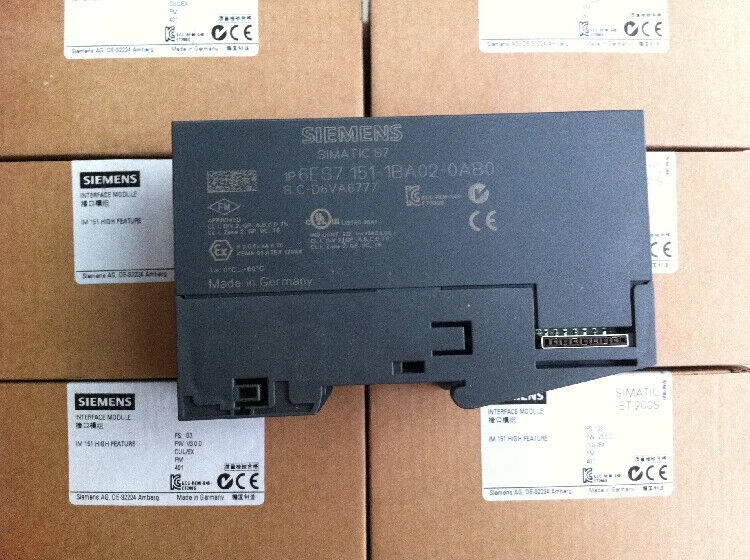

The Siemens 6ES7151-1BA02-0AB0 is an interface module (IM151-1) from the SIMATIC ET 200S series, designed to connect an ET 200S I/O station to a PROFIBUS DP network. As a standard version, it enables communication between decentralized I/O modules and a central PLC, supporting modular expansion and reliable data exchange. The IM151-1 is ideal for cost-effective distributed automation in industrial control systems.

Key Features

• Connects ET 200S I/O modules to PROFIBUS DP
• Standard version with basic communication capabilities
• Supports up to 63 I/O modules per station
• PROFIBUS DP slave functionality
• Diagnostic LEDs for module and network status
• Compact design for DIN rail mounting
• Compatible with wide range of ET 200S signal, power, and electronic modules

Technical Specifications

• Part Number: 6ES7151-1BA02-0AB0
• Communication Interface: PROFIBUS DP (RS485), up to 12 Mbps
• Max. Number of Modules: Up to 63 modules per station
• Address Range: Max. 244 bytes input / 244 bytes output
• Station Address: Configurable via DIP switch
• Status and Diagnostics: LED indicators
• Power Supply: 24 V DC (via external terminal module)
• Mounting Method: DIN rail
• Dimensions (W × H × D): 45 mm × 119.5 mm × 75 mm
• Weight: Approx. 180 g
• Protection Class: IP20
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: –40 °C to +70 °C
• Certifications: CE, cULus, EAC

Application Areas

• Distributed I/O in PROFIBUS-based automation systems
• Modular machine and equipment control
• Process and factory automation environments
• Systems requiring cost-effective and scalable I/O integration
• Remote I/O stations in PROFIBUS DP networks

Advantages

• Reliable PROFIBUS communication with central controllers
• Scalable station design supports a wide variety of I/O modules
• Diagnostic features improve system transparency and maintenance
• Compact design reduces control cabinet space requirements
• Seamlessly integrates with SIMATIC engineering tools (STEP 7, TIA Portal)
