SIMATIC OP 177B | Siemens | 6AV6642-0DC01-1AX1 HMI 6AV6642-0DC01-1AX1 TOUCH PANEL

Product Description: Siemens 6AV6642-0DC01-1AX1

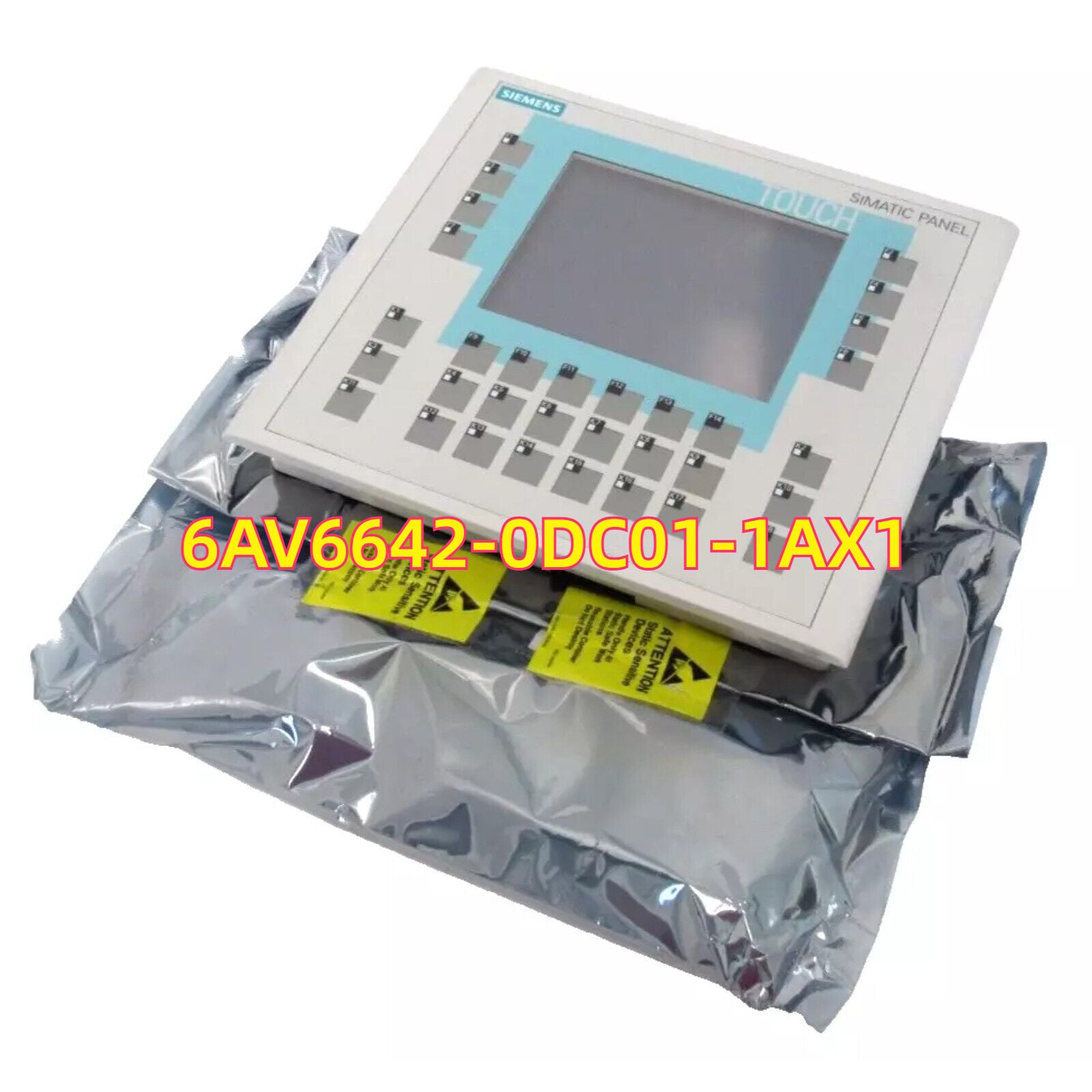

The Siemens 6AV6642-0DC01-1AX1 is an operator panel from the SIMATIC OP 177B series, featuring a 5.7-inch STN (Super Twisted Nematic) display with touch and keypad operation. It supports communication via PROFIBUS DP and MPI interfaces, making it suitable for integration with Siemens PLCs such as S7-300 and S7-400. The panel is designed for industrial automation applications requiring a reliable and user-friendly interface for monitoring and controlling processes.

Key Features

• Display: 5.7-inch STN display with 320 × 240 pixels resolution
• Operation: Touchscreen and 32 programmable function keys with LED indicators
• Interfaces: PROFIBUS DP, MPI, RS232/RS422/RS485, USB
• Memory: 2 MB user memory
• Mounting: Vertical mounting with a maximum tilt angle of 35°
• Software: Configurable using WinCC flexible 2005
• Certifications: CE, UL, CSA, FM Class I Div. 2, EX Zone 2, EX Zone 22, NEMA 4x, NEMA 12

Technical Specifications

• Display Size: 5.7 inches
• Display Type: STN (Blue Mode)
• Resolution: 320 × 240 pixels
• Function Keys: 32 programmable keys with LEDs
• Communication Interfaces: PROFIBUS DP, MPI, RS232/RS422/RS485, USB
• User Memory: 2 MB
• Power Supply: 24 V DC
• Operating Temperature Range: 0°C to +50°C
• Mounting Angle: Up to 35°
• Certifications: CE, UL, CSA, FM Class I Div. 2, EX Zone 2, EX Zone 22, NEMA 4x, NEMA 12

Application Areas

• Operator interface for SIMATIC S7-300 and S7-400 PLCs
• Industrial automation systems requiring a reliable HMI
• Applications in manufacturing, process control, and machine automation

Advantages

• Dual input method (touch and keypad) for flexible operation
• Wide range of communication interfaces for versatile connectivity
• Robust design with certifications for use in hazardous environments
• Easy configuration with WinCC flexible 2005
