HMI Device | Siemens | 6AV6542-0CA10-0AX0 SIMATIC OP Operator panel 6AV6 542-0CA10-0AX0

Product Description: Siemens 6AV6542-0CA10-0AX0

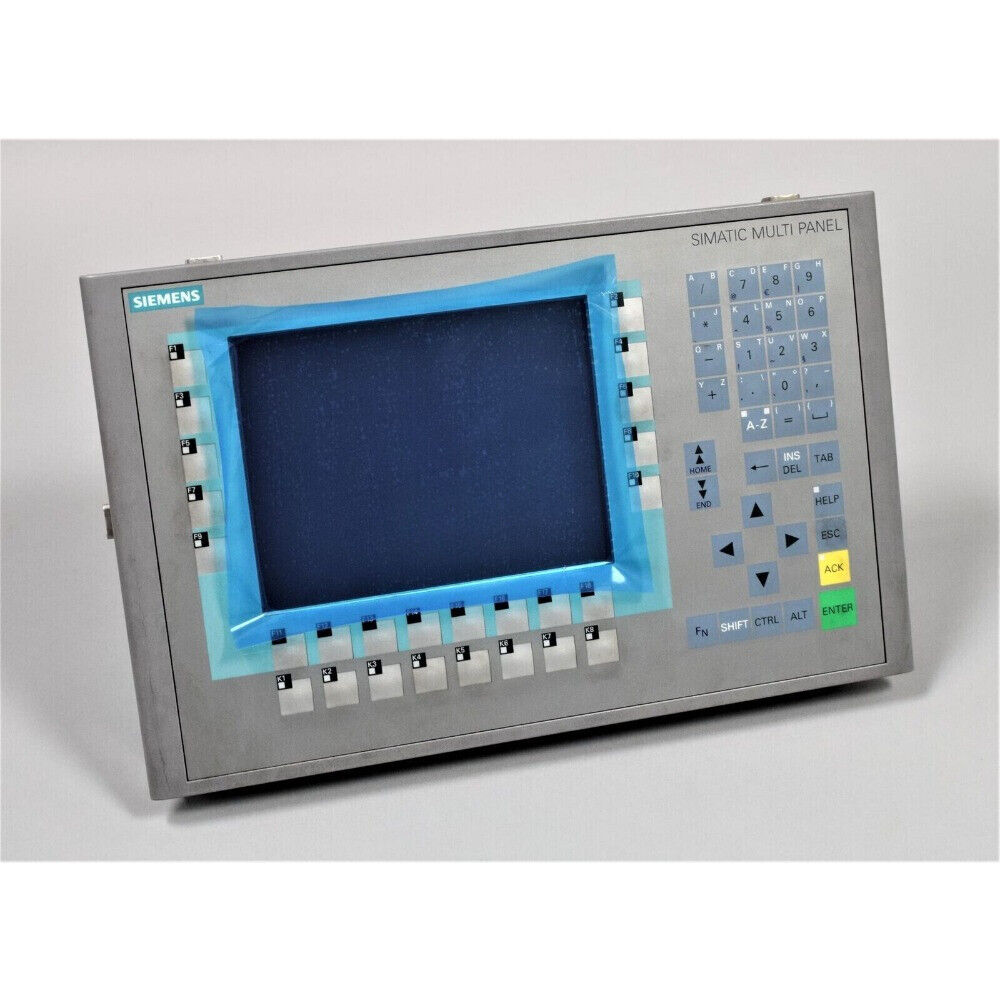

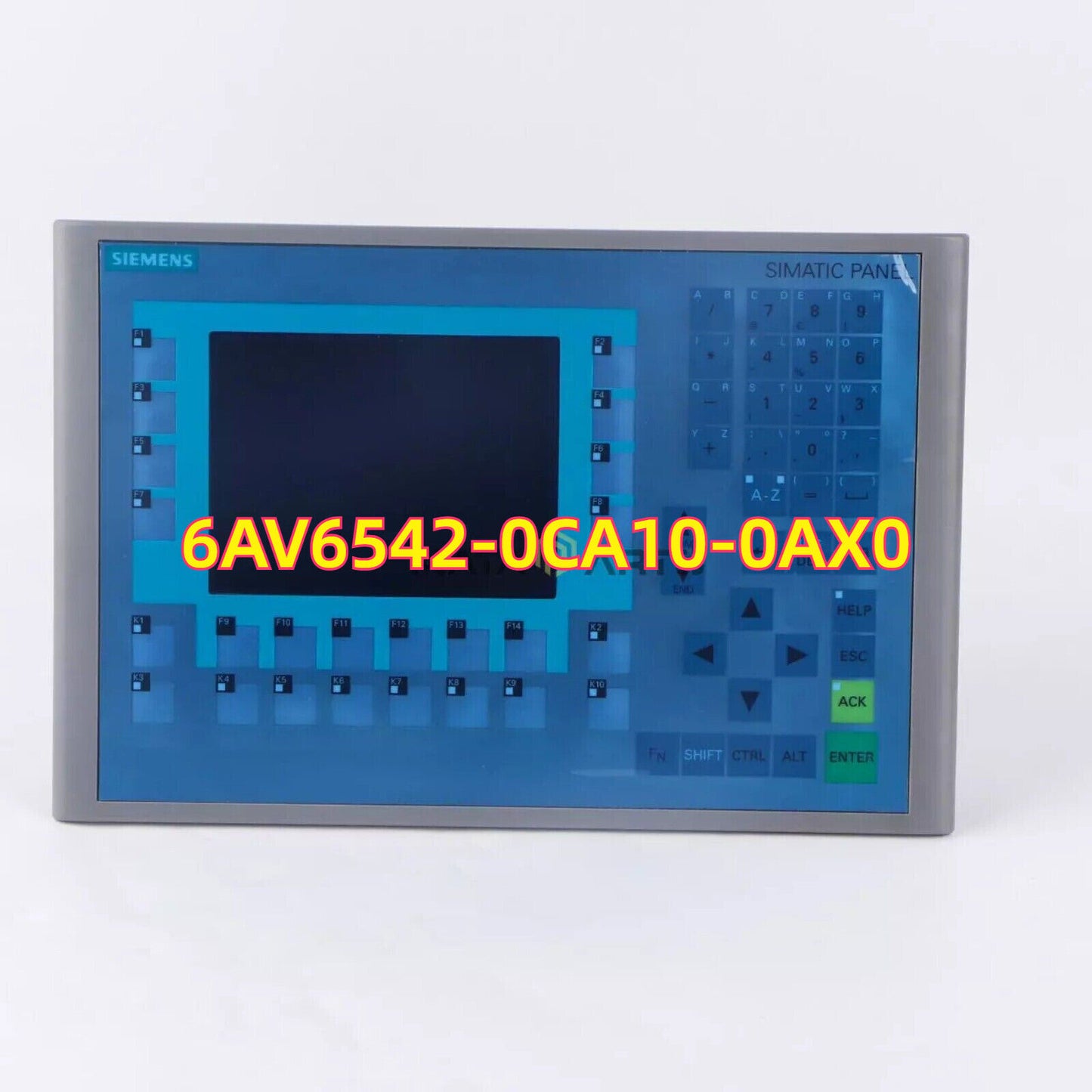

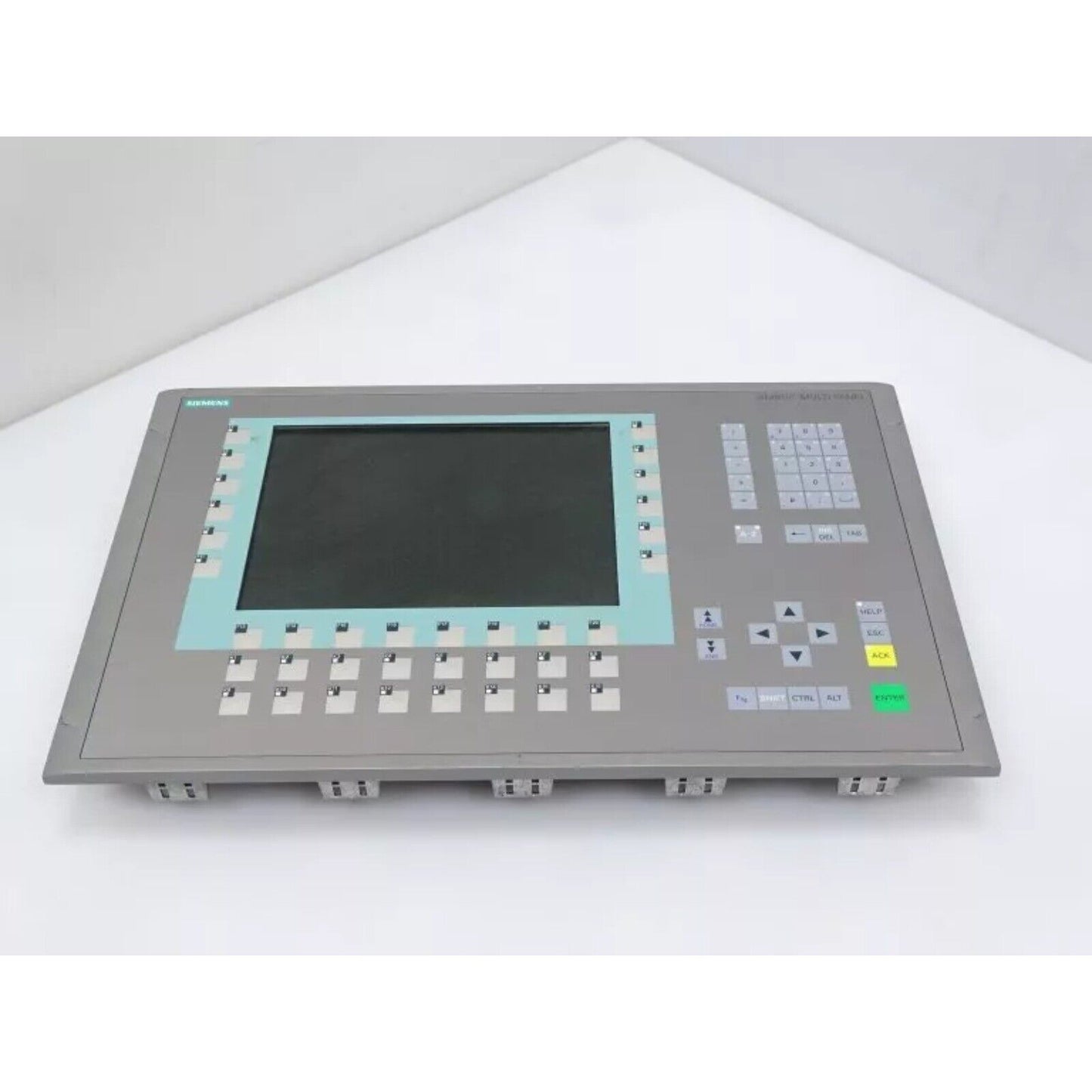

The Siemens 6AV6542-0CA10-0AX0 is an MP370 Touch HMI panel from the SIMATIC Multi Panel series. It features a 12.1-inch high- resolution TFT color display with analog-resistive touchscreen operation. Designed to combine HMI and PLC functionalities in a single device, the MP370 supports multiple communication protocols including MPI, PROFIBUS DP, and Industrial Ethernet. It provides extensive visualization, control, and data logging capabilities, making it suitable for complex machine and process automation environments.

Key Features

• Display: 12.1" TFT color screen with 800 × 600 resolution and 256 colors
• Operation: Analog-resistive touchscreen
• Interfaces: MPI, PROFIBUS DP, Industrial Ethernet, RS-232, RS-422/485, USB
• Processor: Intel-compatible processor for responsive performance
• Memory: 6 MB configuration memory + expandable via MMC
• Software Compatibility: WinCC flexible / ProTool
• Mounting: Panel mounting with IP65 front protection

Technical Specifications

• Display Size: 12.1 inches
• Display Resolution: 800 × 600 pixels
• Number of Colors: 256
• Touchscreen Type: Analog-resistive
• Function Keys: None (fully touch-operated)
• Interface Ports: MPI, PROFIBUS DP, Ethernet, RS-232/RS-422/485, USB
• Configuration Memory: 6 MB + MMC expansion
• Power Supply Voltage: 24 V DC
• Power Consumption: Approx. 25 W
• Operating Temperature Range: 0 °C to +50 °C
• Dimensions (W × H × D): 340 mm × 270 mm × 60 mm
• Protection Class (Front/Rear): IP65 / IP20
• Certifications: CE, cULus, FM

Application Areas

• Complex machine operation and monitoring
• Data logging and visualization in production lines
• Integration in manufacturing systems with HMI/PLC requirements
• Centralized control systems in factory and process automation

Advantages

• Combines visualization, control, and communication in one device
• Large, high-resolution display for detailed process representation
• Supports multiple industrial communication standards
• Expandable memory and flexible configuration options
