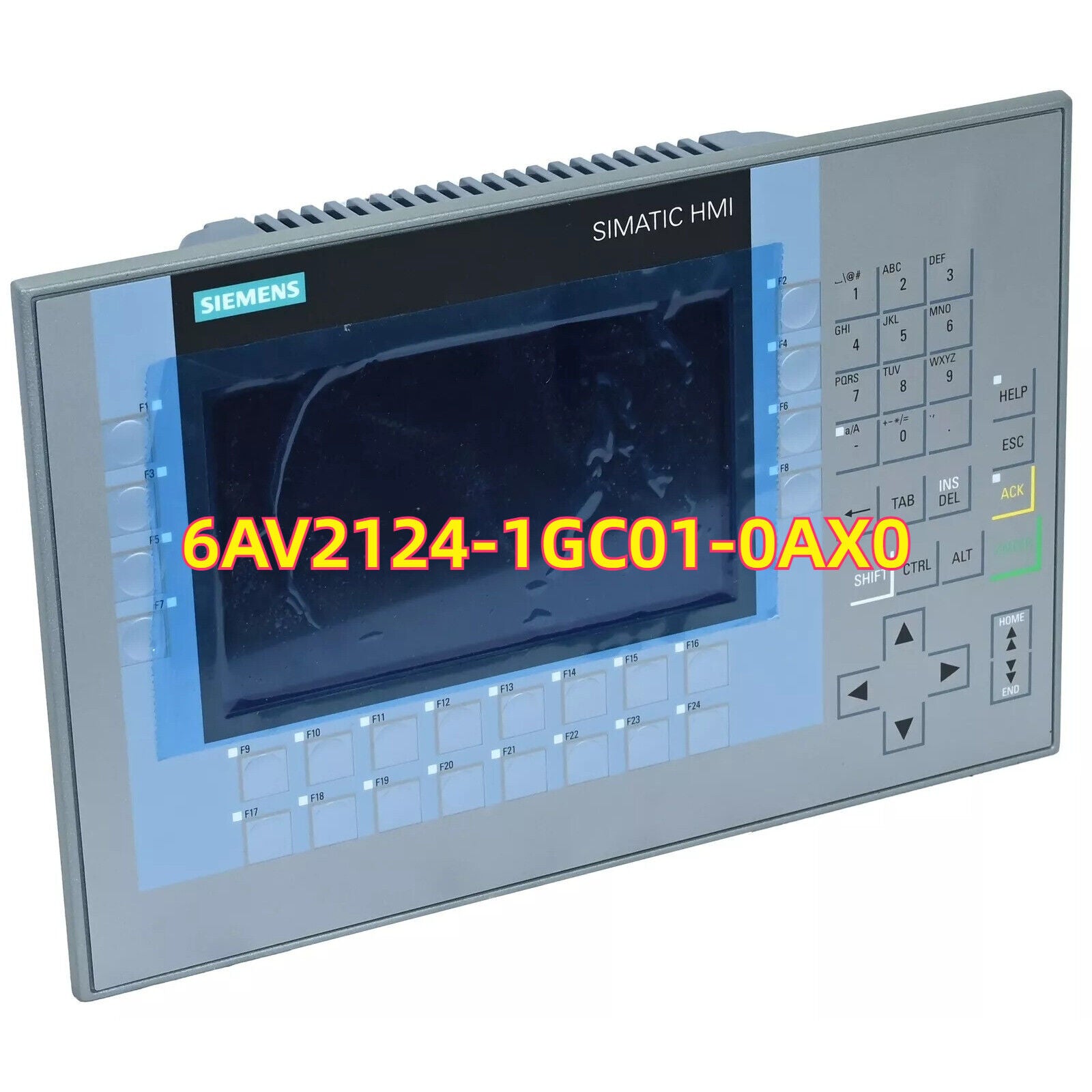

Product Description: Siemens 6AV2124-1GC01-0AX0

The Siemens 6AV2124-1GC01-0AX0 is a 7-inch basic HMI touch panel from the SIMATIC KTP series. The KTP700 Basic combines touchscreen and function keys for flexible user interaction. It features a TFT color display with 800 × 480 pixel resolution and supports both PROFINET and Ethernet communications, making it an ideal operator interface for small to mid-sized machines and systems. Configured via TIA Portal (WinCC Basic V13 or later), the KTP700 Basic panel is suitable for standard HMI tasks such as alarm display, numeric input, machine status monitoring, and process visualization.

Key Features

• 7” TFT Display: 800 × 480 resolution, 65k colors for clear and sharp graphics
• Touch & Key Operation: Combines intuitive touchscreen with tactile function keys (8 keys)
• PROFINET Interface: Enables communication with Siemens PLCs such as S7-1200 and S7-1500
• Integrated Software: Supports tags, alarms, trends, and user management
• Panel-Mounted Design: IP65 front, designed for harsh industrial environments
• Energy Efficient: LED backlit display with long service life

Technical Specifications

• Product Type: HMI Basic Panel
• Part Number: 6AV2124-1GC01-0AX0
• Series: SIMATIC KTP Basic
• Display Size: 7" (TFT)
• Resolution: 800 × 480 pixels (WVGA)
• Display Colors: 65,536 (16-bit)
• Touchscreen: Yes, analog resistive
• Function Keys: 8 membrane keys
• Interfaces: 1 × Ethernet (RJ45, PROFINET)
• Software Configuration: WinCC Basic V13 or higher (via TIA Portal)
• Memory: 10 MB project memory
• Power Supply: 24 V DC
• Protection (Front): IP65
• Protection (Rear): IP20
• Operating Temperature: 0°C to +50°C
• Mounting: Panel- mounted
• Dimensions (W × H × D): 214 × 158 × 39 mm
• Cutout Size: 189 × 134 mm
• Weight: Approx. 0.9 kg

Application Areas

• General Machine Control: Operator panel for packaging, assembly, and textile machinery
• Process Monitoring: Displays process values, alarms, and setpoints in real- time
• Building Automation: Interfaces for HVAC, lighting, and access control systems
• OEM Equipment: Compact and affordable panel solution for standard operator interface needs

Advantages

• Compact yet Powerful: Provides essential HMI functionality at low cost
• Dual Interaction Mode: Combines touch and key operation for convenience and redundancy
• TIA Portal Integration: Unified engineering with Siemens controllers and SCADA systems
• Durable and Reliable: Industrial-grade build with IP65 protection for demanding environments
• Quick Setup: Predefined screen objects and templates accelerate HMI development
