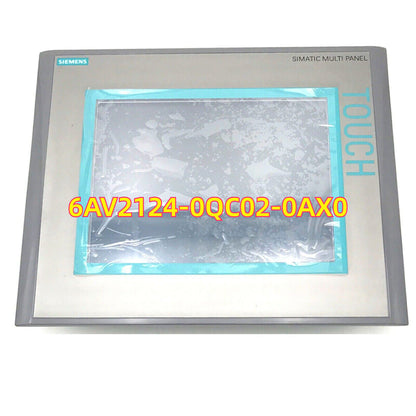

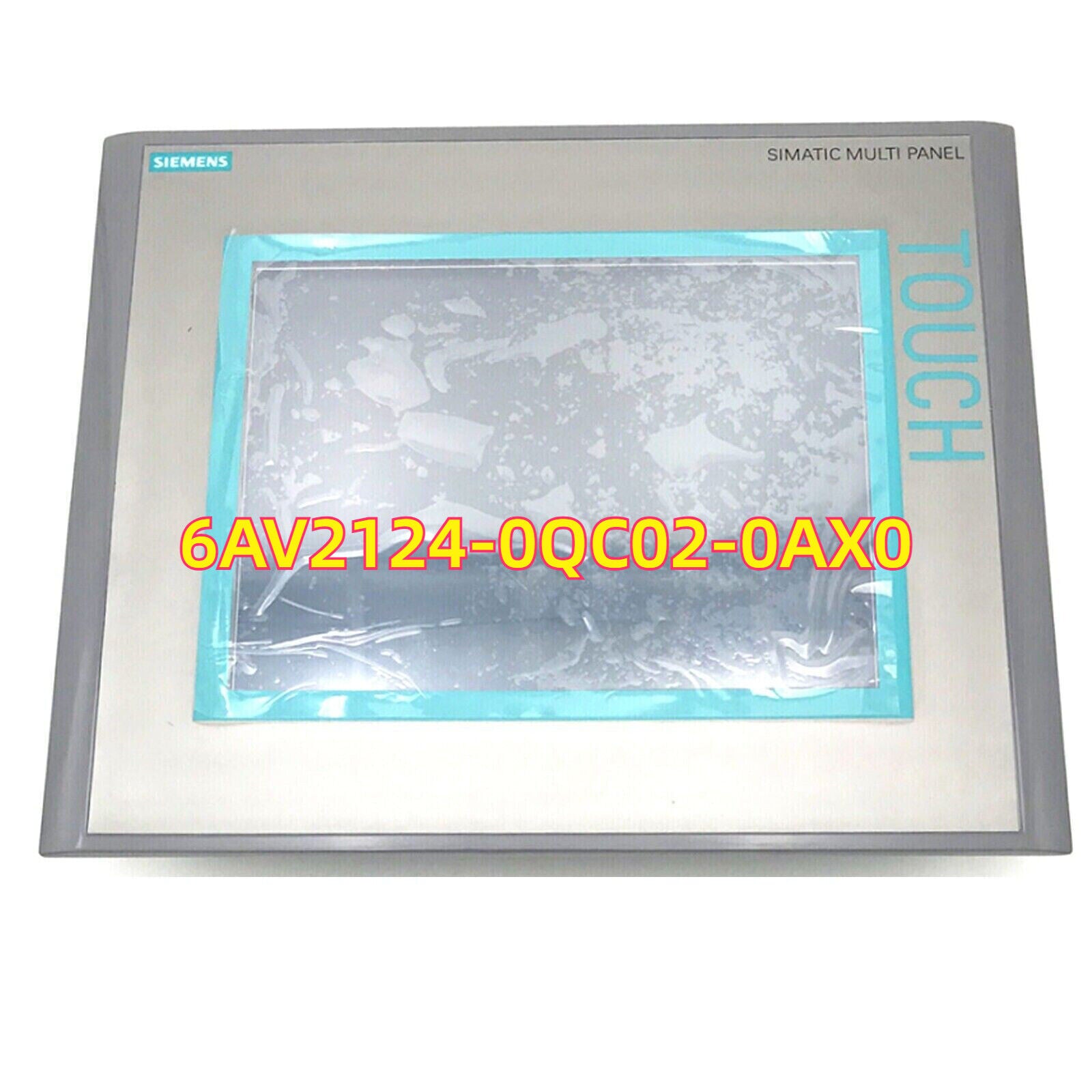

HMI Device | Siemens | 6AV2124-0QC02-0AX0 SIMATIC HMI TP1500 Comfort 6AV2 124-0QC02-0AX0

Product Description: 6AV2124-0QC02-0AX0

The 6AV2124-0QC02-0AX0 is a 7-inch basic operator panel from the SIMATIC KTP Basic family. Featuring a 800 × 480 pixel TFT color touchscreen, it provides a cost-effective HMI solution for machine-level control and monitoring. With an integrated PROFINET interface, it connects directly to S7-1200 and S7-1500 controllers for status display, data entry, alarm handling, and simple recipe management. Configurable via WinCC Basic in the TIA Portal, the KTP700 Basic delivers reliable front-end visualization in compact industrial environments.

Key Features

• 7" TFT Touchscreen: 800 × 480 resolution, 65 k colors
• Touch-Only Operation: Intuitive analog resistive touch panel
• PROFINET Connectivity: 1 × RJ45 10/100 Mbps for seamless PLC integration
• WinCC Basic Runtime: Tag, alarm, and trend functions with recipe support
• Slim Panel-Mount Design: IP65 front, IP20 rear; panel cutout 189 × 134 mm
• Compact Footprint: 214 × 158 × 39 mm overall; 35 mm depth behind panel

Technical Specifications

• Display Size: 7" TFT
• Resolution: 800 × 480 (WVGA)
• Colors: 65,536
• Touch Panel: Analog resistive
• Communication Interface: 1 × Ethernet RJ45 (PROFINET)
• Runtime Software: WinCC Basic V13+ (TIA Portal)
• Memory: 10 MB project memory
• Power Supply: 24 V DC
• Front Protection: IP65
• Rear Protection: IP20
• Operating Temperature: 0 … +50 °C
• Panel Cutout: 189 × 134 mm
• Dimensions (W × H × D): 214 × 158 × 39 mm
• Weight: ≈ 0.8 kg

Application Areas

• Machine-level control panels for packaging, food processing, and assembly
• Local operator interfaces for S7-1200/S7-1500 PLCs
• Simple recipe and batch management in OEM machinery
• Small-scale SCADA terminals in compact installations

Advantages

• Straightforward Engineering: Unified TIA Portal configuration speeds up deployment
• Robust Design: IP65 front protects against dust and splash water
• Cost-Effective: Balanced feature set for standard HMI tasks without extra cost
• Compact Integration: Slim, panel-mount form factor for space-constrained control cabinets
• Seamless Connectivity: Direct PROFINET link to Siemens PLCs for fast data exchange
