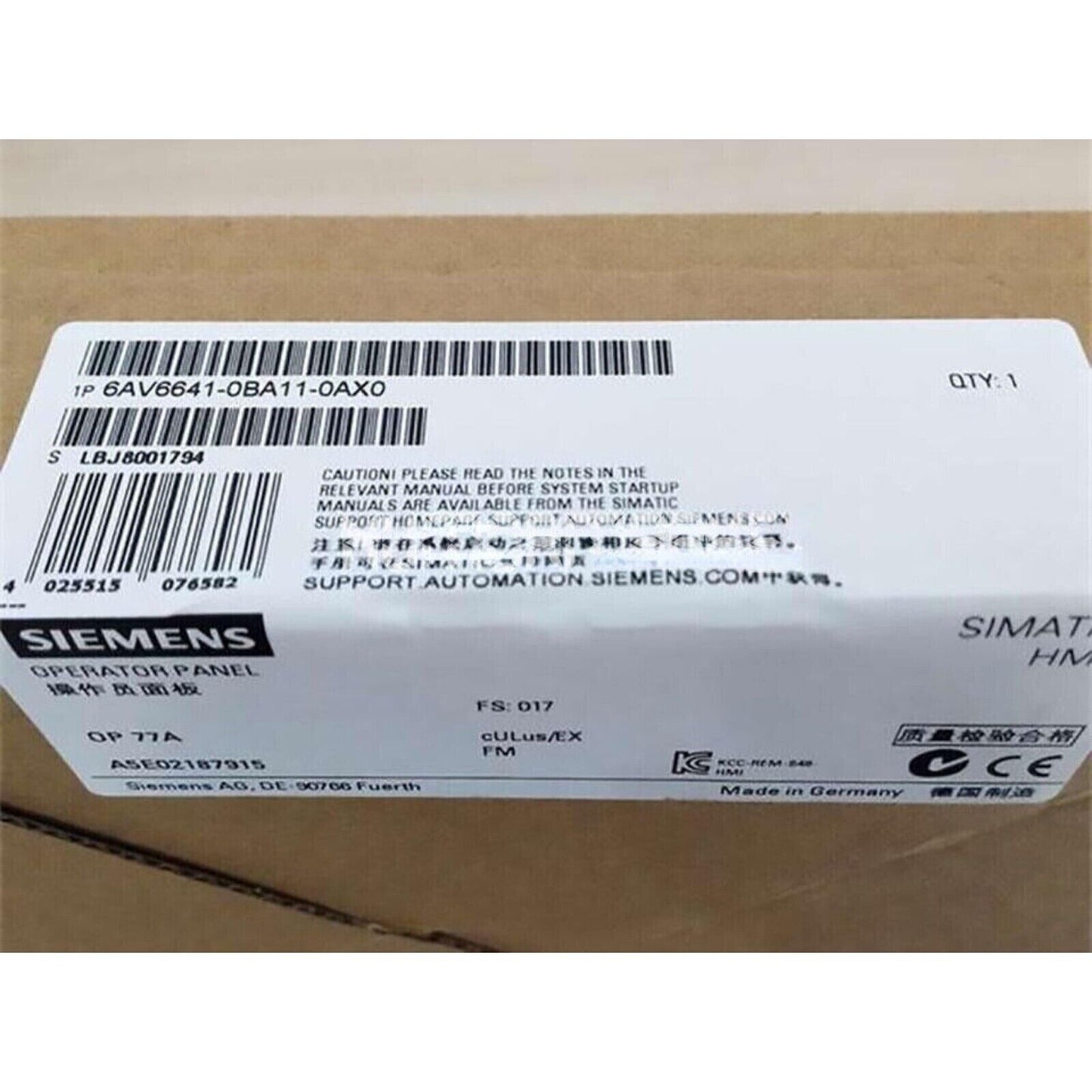

HMI Device | Siemens | 6AV6641-0BA11-0AX0 SIMATIC HMI 6AV6 641-0BA11-0AX0 Panel In Box

Product Description: Siemens 6AV6641-0BA11-0AX0

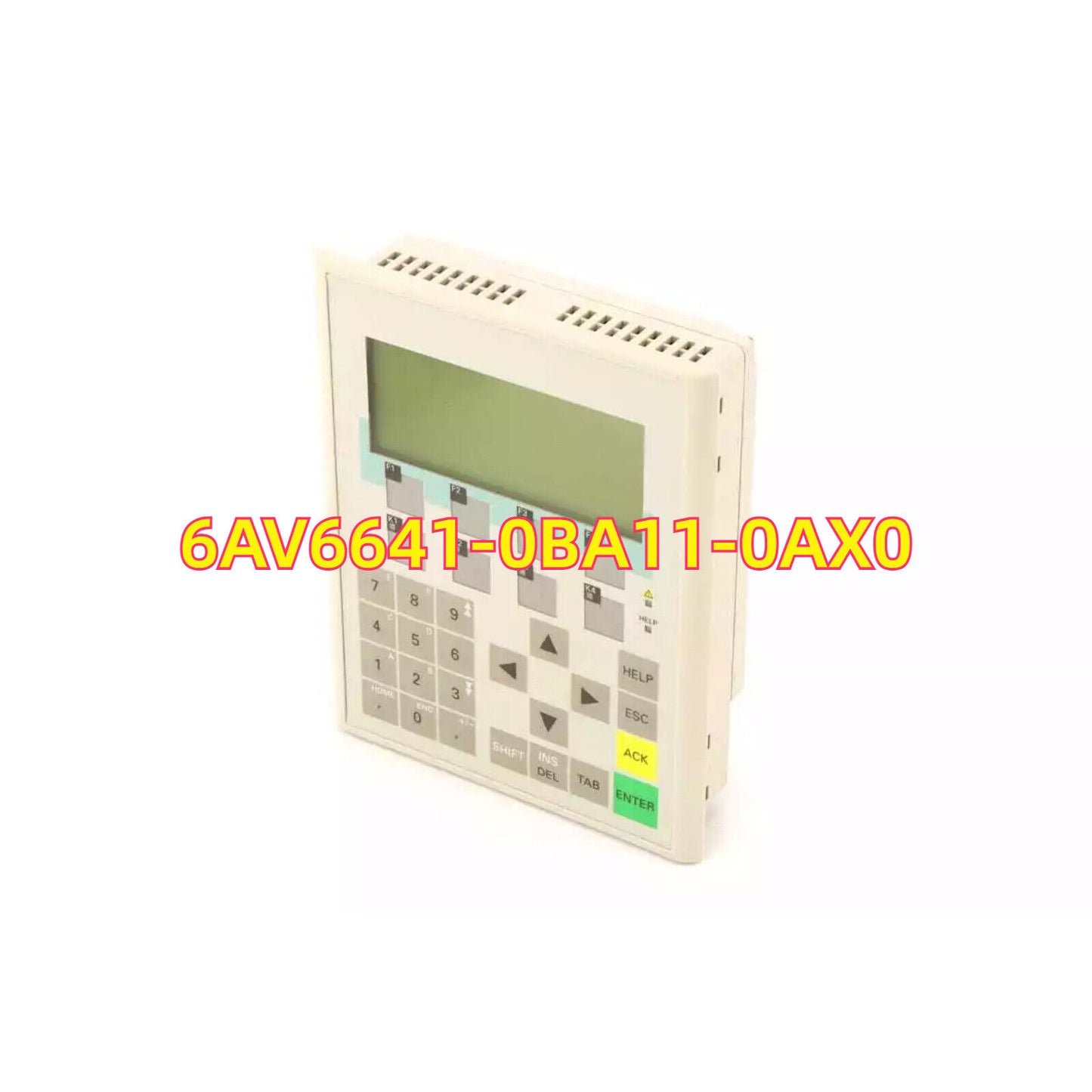

The Siemens 6AV6641-0BA11-0AX0 is an OP77A operator panel designed for use in industrial environments where compact visualization and control are needed. It features a 4.5-inch backlit LC graphical display and a membrane keypad with function and navigation keys. Supporting communication via MPI/PROFIBUS-DP at speeds up to 1.5 Mbps, it integrates easily into SIMATIC automation systems. The OP77A is configured using WinCC flexible 2004 Compact or higher.

Key Features

• 4.5″ graphical LC display, backlit
• 8 function keys, cursor and numeric keys for user input
• Communication via MPI-/PROFIBUS- DP (up to 1.5 Mbps)
• Front panel IP65 protection for harsh industrial environments
• Panel-mount design with compact housing
• Configurable with WinCC flexible 2004 Compact or higher

Technical Specifications

• Product Type: Operator Panel (HMI)
• Part Number: 6AV6641-0BA11-0AX0
• Display Size: 4.5 inches (LC display)
• Display Type: Monochrome graphical, backlit
• Function Keys: 8 programmable function keys
• Communication: MPI-/PROFIBUS-DP, up to 1.5 Mbps
• Configuration Software: WinCC flexible 2004 Compact or higher
• Mounting: Panel mounting
• Protection Class (Front/Rear): IP65 / IP20
• Operating Temperature: 0 °C to +50 °C
• Dimensions (W × H × D): 160 mm × 120 mm × 40 mm
• Weight: Approx. 0.5 kg

Application Areas

• Operator control of machines and equipment
• Compact monitoring and input in distributed automation setups
• Use in PROFIBUS-DP network environments
• Cost-effective HMI solution for small to mid-scale systems

Advantages

• Compact size ideal for limited panel space
• Durable keypad interface suited for high-usage environments
• Integrated communication for easy network integration
• Long product lifecycle and reliable Siemens quality
• Easy engineering with standard Siemens tools
