Product Description: TP1200 Comfort Panel

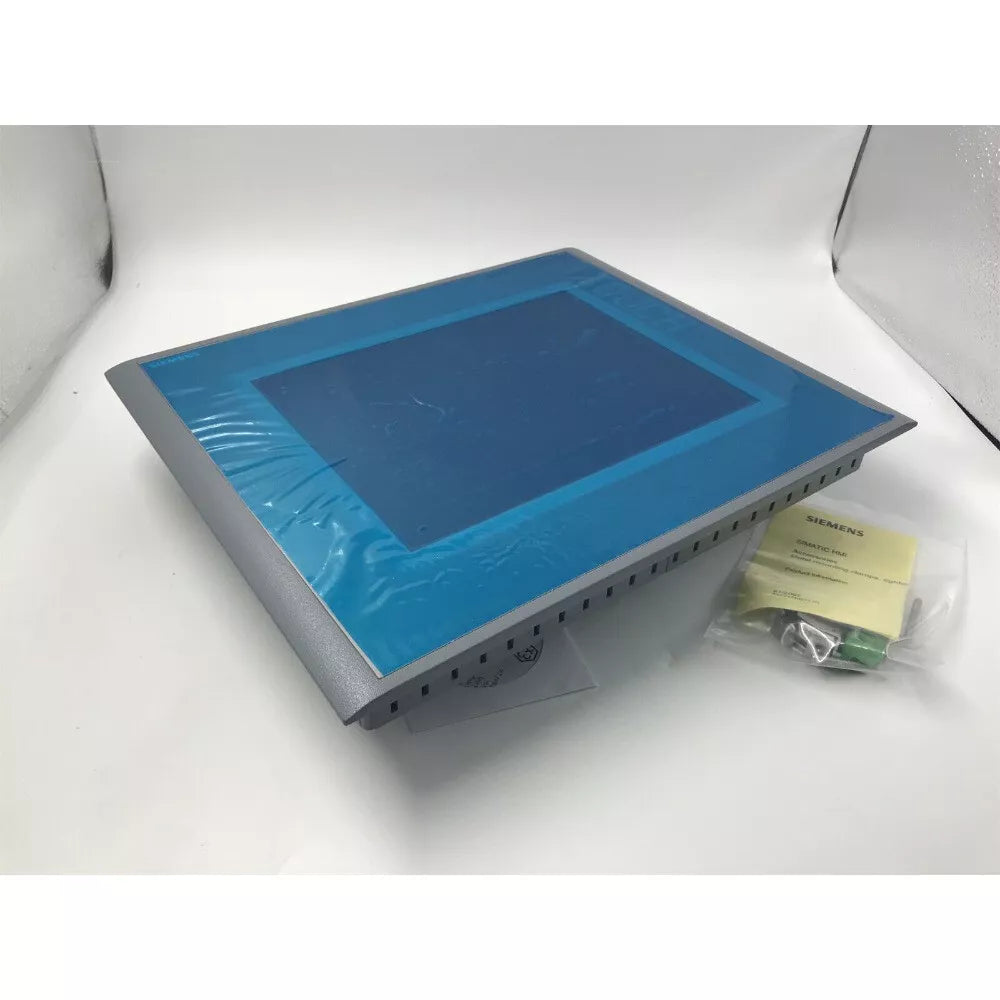

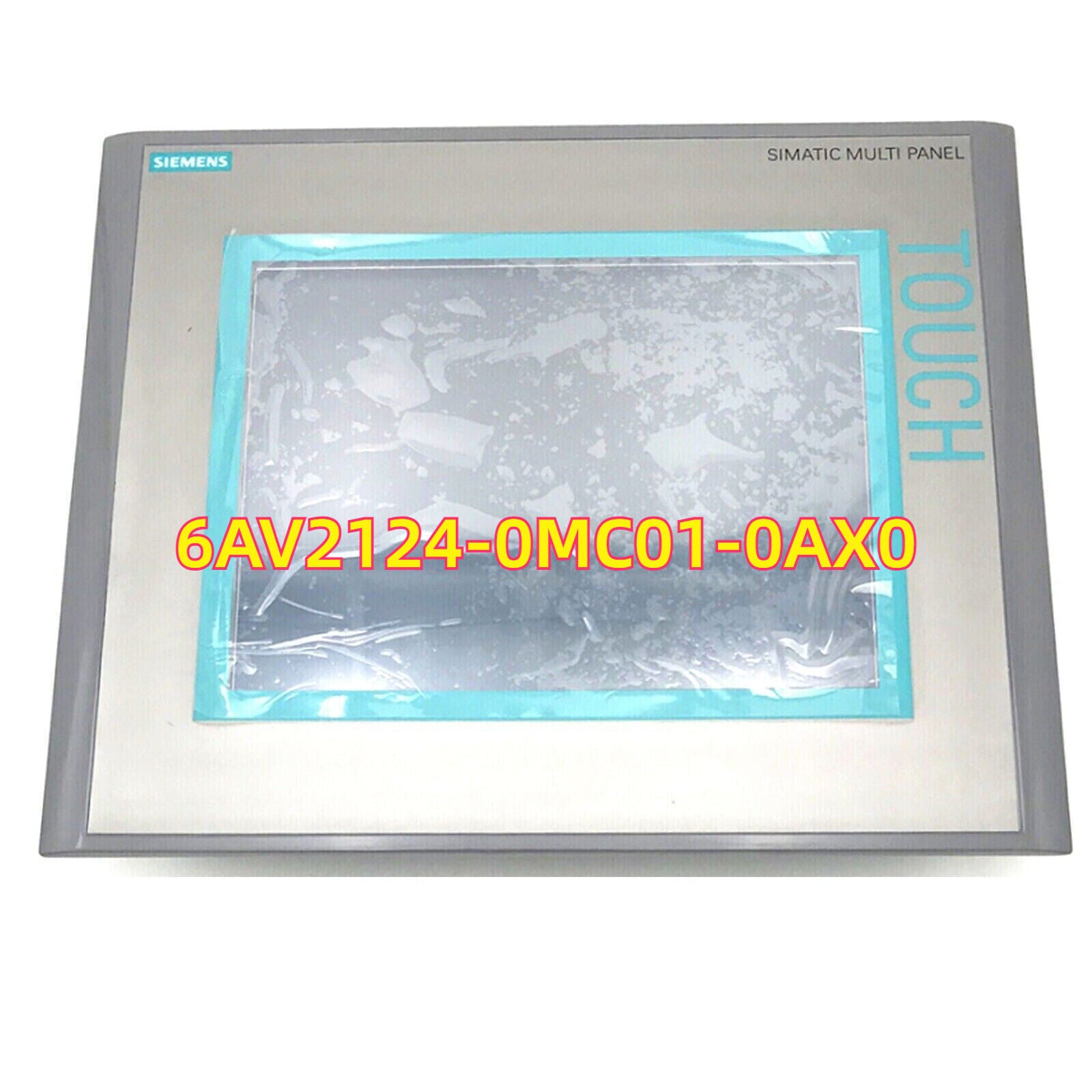

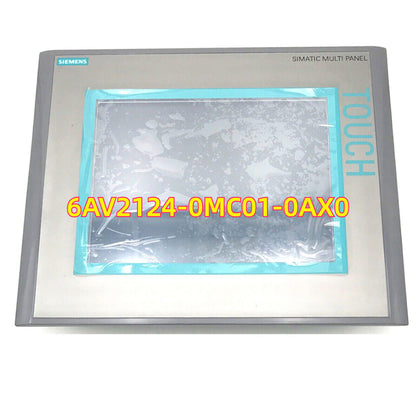

The Siemens 6AV2124-0MC01-0AX0 is the TP1200 Comfort Panel , a high- performance 12-inch widescreen HMI designed for demanding industrial visualization applications. As part of the SIMATIC HMI Comfort Panel family, it offers advanced graphical capabilities, a high- resolution touchscreen interface, and integrated PROFINET communication. The TP1200 Comfort is optimized for long-term availability and easy engineering through TIA Portal, making it ideal for complex machines and systems.

Key Features

• 12.1-inch TFT widescreen display with 1280 × 800 resolution
• Capacitive touch interface for intuitive user operation
• Integrated PROFINET interface for fast data exchange
• High memory capacity for data logging, recipe, and alarm functions
• USB ports and SD card slot for extended connectivity and storage
• IP65-rated front panel for robust industrial protection
• Engineered and configured via WinCC Comfort in TIA Portal

Technical Specifications

• Part Number: 6AV2124-0MC01-0AX0
• Display Size: 12.1 inches (16:9 format)
• Display Type: TFT color display, 16 million colors
• Resolution: 1280 × 800 pixels
• Touchscreen: Projected capacitive
• Communication Ports: 1 × PROFINET (Ethernet RJ45); 2 × USB Type A; 1 × SD/MMC card slot
• Flash Memory: 12 MB
• Input Voltage: 24 V DC
• Power Consumption: Approx. 18 W
• Panel Cutout: 319 mm × 219 mm
• Dimensions (W × H × D): 332 mm × 231 mm × 56 mm
• Weight: Approx. 2.7 kg
• Protection Class: IP65 (front), IP20 (rear)
• Operating Temperature: 0 °C to +50 °C
• Storage Temperature: –20 °C to +60 °C
• Certifications: CE, cULus, EAC

Application Areas

• Machine-level visualization in complex industrial systems
• Production lines requiring large screen operator interfaces
• OEM automation systems with advanced monitoring needs
• Industrial sectors such as automotive, packaging, and process control
• Environments where high durability and long-term availability are essential

Advantages

• High- resolution widescreen display for enhanced visualization
• Rugged industrial design with IP65 front protection
• Supports extensive HMI functionality with large memory
• Seamless integration with Siemens controllers via TIA Portal
• Future-proof design with long-term availability and support
