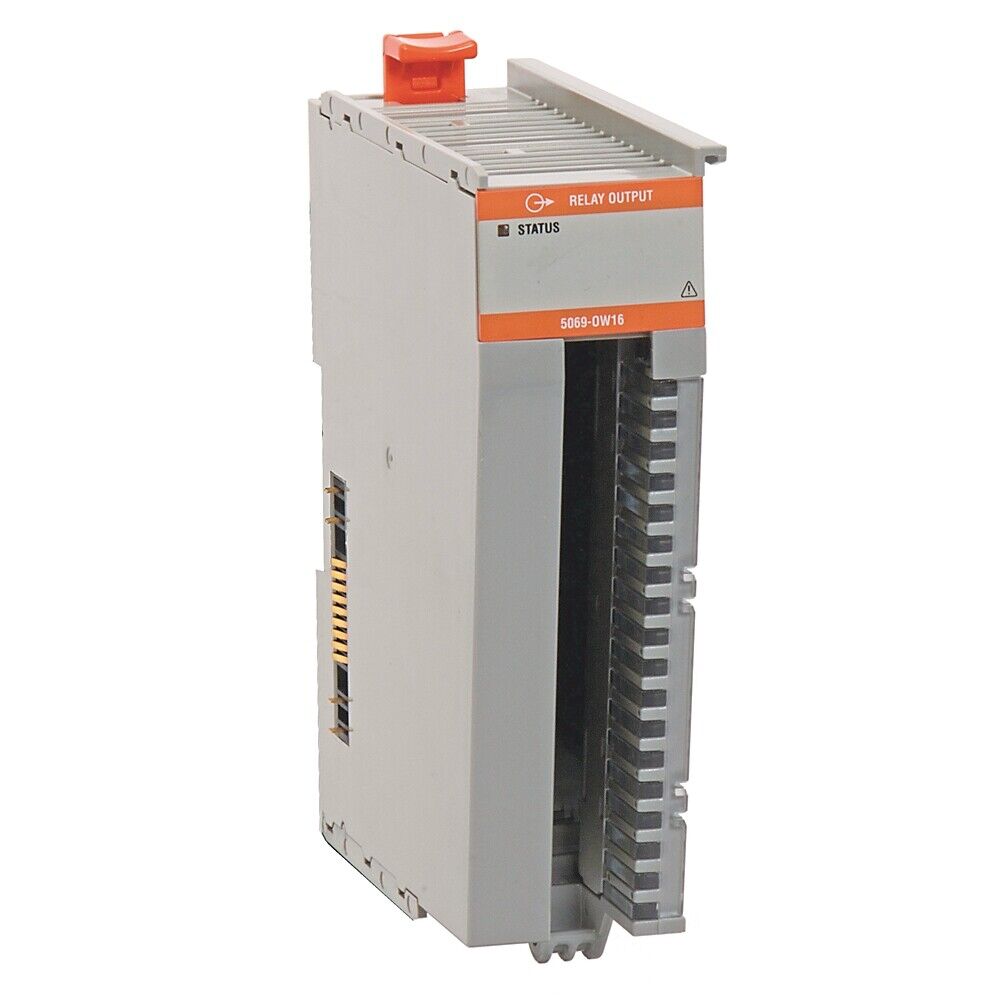

Product Description: Allen-Bradley 5069-OW16

The Allen-Bradley 5069-OW16 is a 16-point relay output module designed for use within the CompactLogix 5380 and ControlLogix 5580 systems. It offers flexible, isolated relay outputs that support a wide range of voltages, making it suitable for switching both AC and DC loads. The module is part of the high-performance 5069 Compact I/O series, providing reliable operation and simplified integration in demanding automation applications.

Key Features

• 16 relay output points (Form A – Normally Open)
• Individually isolated outputs
• Supports both AC and DC switching
• Removable terminal block for easy wiring
• Diagnostic status indicators for each channel
• Enhanced system performance when used with 5380 controllers
• Compact form factor for space-saving installations

Technical Specifications

• Output Type: Relay (electromechanical)
• Number of Outputs: 16
• Operating Voltage: 5–125V DC, 10–250V AC
• Output Current: Up to 2A per point (resistive load)
• Isolation: Channel-to-channel and channel-to-backplane isolation
• Backplane Current (at 5V): 0.24 A
• Backplane Current (at 24V): 0.10 A
• Dimensions (HxWxD): Approx. 118 x 35 x 87 mm
• Operating Temperature: -20 to 60°C
• Installation: DIN rail mounted

Application Areas

• Industrial machinery and equipment
• Process control systems
• Packaging and bottling plants
• Food and beverage automation
• Material handling systems
• Building automation
• Water and wastewater treatment

Advantages

• Versatile output range supports a broad variety of load types
• Relay isolation reduces the risk of electrical interference or damage
• Ideal for mixed voltage applications
• Easy to install and maintain with diagnostic LEDs and removable wiring
• Reliable performance in both discrete and hybrid automation systems
