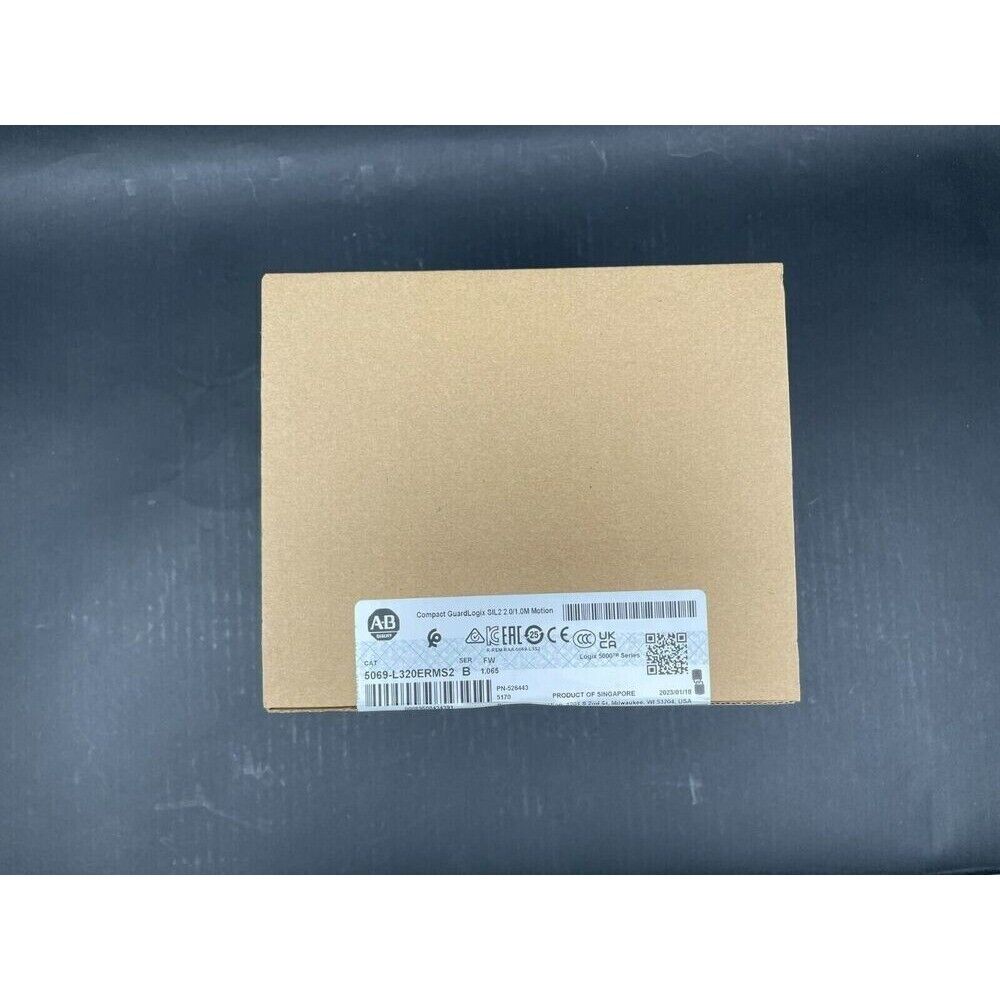

Allen-Bradley | 5069-L320ERMS2 | Compact GuardLogix 5380

Product Description: Allen-Bradley 5069-L320ERMS2

The Allen-Bradley 5069-L320ERMS2 is a Compact GuardLogix 5380 controller designed to deliver high-performance safety and standard control in a single platform. Featuring dual-core processing, it provides 2 MB of user memory for standard tasks and 1 MB for safety tasks, supporting up to SIL2/PLe safety applications. With integrated motion capabilities and support for up to 8 CIP motion axes, this controller is ideal for applications requiring precise control and safety integration.

Key Features

• Dual-core processor for simultaneous standard and safety task execution
• 2 MB standard user memory and 1 MB safety memory
• Supports up to 16 local Compact 5000™ I/O modules
• Integrated motion control for up to 8 CIP motion axes
• Dual 1 Gbps Ethernet ports supporting Device Level Ring (DLR), Linear, and Star topologies
• USB 2.0 Type B port for programming and configuration
• Supports up to 40 EtherNet/IP nodes
• Safety Integrity Level 2 (SIL2) and Performance Level d (PLd) compliant
• DIN rail mounting for compact installations

Technical Specifications

• User Memory: 2 MB (standard), 1 MB (safety)
• Non-volatile Memory: 2 GB SD card (1784-SD2 included)
• Ethernet Ports: 2 (10/100/1000 Mbps, full-duplex)
• USB Port: 1 Type B, USB 2.0 (12 Mbps)
• I/O Capacity: Up to 16 local modules
• Integrated Motion Axes: 8 CIP motion axes
• Maximum Motion Axes: 256
• Supported Network Topologies: DLR, Linear, Star
• EtherNet/IP Nodes Supported: Up to 40
• Operating Temperature: -20 to 60°C
• Power Supply Input Voltage: 18–32V DC
• Dimensions (HxWxD): Approx. 143.97 x 98.10 x 136.81 mm
• Mounting: DIN rail

Application Areas

• Safety-critical manufacturing processes
• Packaging and material handling systems
• Automotive assembly lines
• Food and beverage processing
• Pharmaceutical manufacturing
• Oil and gas industry
• Water and wastewater treatment facilities

Advantages

• Combines standard and safety control in a single controller
• High-speed processing for demanding applications
• Integrated motion control reduces system complexity
• Flexible network integration with dual Ethernet ports
• Scalable architecture suitable for small to medium systems
• Enhanced diagnostics for efficient troubleshooting
• Compact design saves panel space
• Seamless integration with Compact 5000 I/O modules
