Allen-Bradley | 5069-L306ERM | CompactLogix 5380

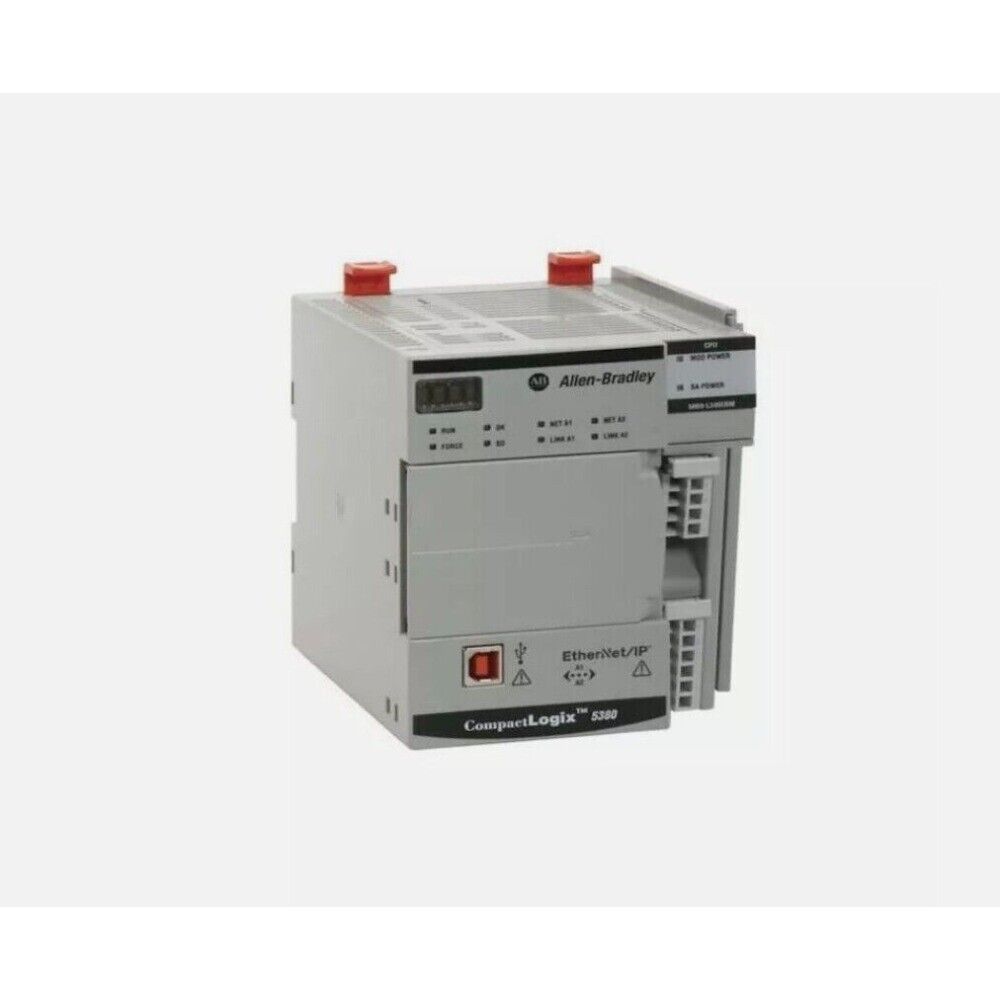

Product Description: Allen-Bradley 5069-L306ERM

The Allen-Bradley 5069-L306ERM is a CompactLogix 5380 controller designed for high-performance industrial automation applications. With 600 KB of user memory, support for up to 8 local I/O modules, and the ability to manage up to 16 EtherNet/IP nodes, this controller offers a scalable solution for a wide range of control systems. Its dual Gigabit Ethernet ports provide flexible network topologies, including star, linear, and Device Level Ring (DLR) configurations. Additionally, it supports integrated motion control for up to 2 axes over EtherNet/IP.

Key Features

• User Memory: 600 KB
• Local I/O Modules Supported: Up to 8
• EtherNet/IP Nodes Supported: Up to 16
• Integrated Motion Axes: Up to 2
• Communication Ports:
  • 2 x 1 Gigabit EtherNet/IP ports
• Processor: Quad-core
• Supported Network Topologies: Star, Linear, Device Level Ring (DLR)
• Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
• Mounting: DIN rail (horizontal mount only)
• Removable Terminal Blocks (RTBs): Compatible with 5069-RTB4 and 5069-RTB6 kits

Technical Specifications

• Input Voltage:
  • Module (MOD) Power: 18–32V DC
• Power Dissipation: 8.5 W (maximum)
• Thermal Dissipation: 29 BTU/hr (maximum)
• Isolation Voltage:
  • 300V (continuous) between MOD/SA Power and Backplane
• Dimensions (HxWxD): Approximately 123 x 98.10 x 136.81 mm (4.84 x 3.86 x 5.39 in.)
• Weight: Approximately 0.993 kg (2.19 lb)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing

Application Areas

• Machine control systems
• Process automation
• Packaging machinery
• Material handling systems
• Industrial manufacturing processes

Advantages

• High Performance: Quad-core processor enables fast execution of control tasks.
• Integrated Motion Control: Supports up to 2 motion axes over EtherNet/IP.
• Scalability: Supports a range of I/O modules and network nodes for system expansion.
• Flexible Networking: Dual Gigabit Ethernet ports allow for various network topologies.
• Enhanced Diagnostics: Built-in status indicators and diagnostic capabilities simplify troubleshooting.
• Compact Design: Space-saving form factor suitable for installations with limited space.
