Allen-Bradley | 5069-IB8S | Compact 5000 I/O

Product Description: Allen-Bradley 5069-IB8S

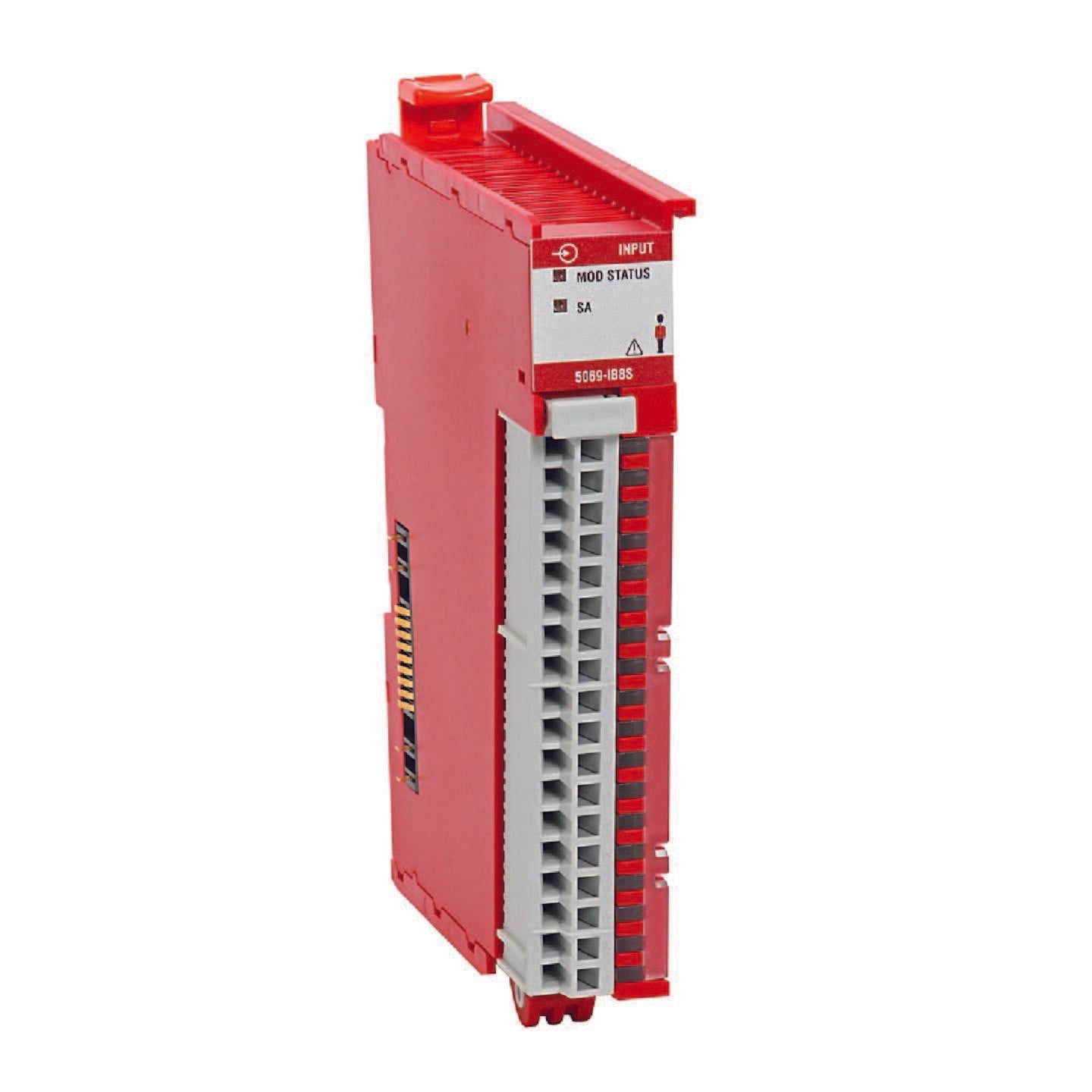

The Allen-Bradley 5069-IB8S is an 8-channel 24VDC safety sinking input module designed for use within the Compact 5000 I/O platform. It provides safety- rated input capabilities for applications requiring compliance with SIL CL 3 and PLe, Cat. 4 standards. This module is suitable for integration with Compact GuardLogix 5380 controllers as local I/O and with GuardLogix 5580 controllers as remote I/O over EtherNet/IP networks.

Key Features

• Input Channels: 8 safety-rated sinking inputs
• Voltage Range: 10–32V DC
• Input Current: 2.5 mA per channel
• Test Outputs: 2 test output channels
• Safety Ratings: SIL CL 3 (IEC 61508), PLe, Cat. 4 (ISO 13849-1)
• Communication: EtherNet/IP via backplane
• Configuration: Studio 5000 Logix Designer software
• Mounting Orientation: Horizontal, vertical, inverted horizontal, inverted vertical, upside down, upside up
• Terminal Block Compatibility: Requires 5069-RTB18-SCREW or 5069-RTB18-SPRING removable terminal blocks

Technical Specifications

• MOD Power Consumption: 75 mA @ 18–32V DC
• MOD Power Passthrough: Up to 5 A @ 18–32V DC
• SA Power Consumption: 100 mA @ 18–32V DC
• SA Power Passthrough: Up to 9.95 A @ 18–32V DC
• Isolation Voltage: 250V (continuous)
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Enclosure Rating: IP20
• Dimensions (HxWxD): Approximately 144 mm x 22 mm x 106 mm
• Weight: Approximately 0.3 kg

Application Areas

• Safety-critical industrial automation systems
• Machine safety interlocks and emergency stop circuits
• Safety light curtains and safety sensors integration
• Applications requiring compliance with SIL CL 3 and PLe, Cat. 4 standards

Advantages

• High Safety Compliance: Meets stringent international safety standards
• Flexible Integration: Compatible with both local and remote I/O configurations
• Compact Design: Saves panel space with a slim form factor
• Ease of Configuration: Simplified setup using Studio 5000 software
• Robust Diagnostics: Enhanced system diagnostics for improved safety monitoring
