Allen-Bradley | 5069-RTB64-SCREW | Compact 5000 I/O

Product Description: Allen-Bradley 5069-RTB64-SCREW

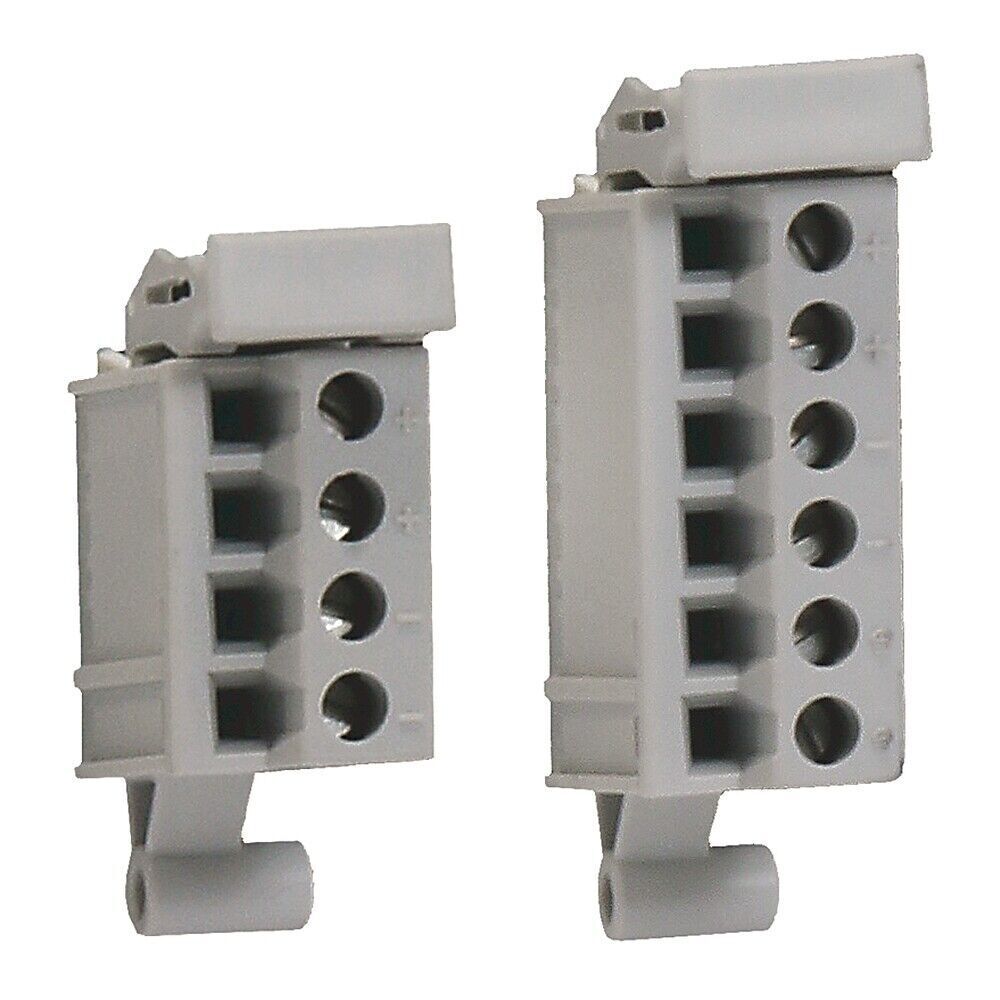

The Allen-Bradley 5069-RTB64-SCREW is a removable terminal block designed for use with Compact 5000 I/O modules. This screw-type RTB facilitates secure and reliable connections for both 4-pin and 6-pin configurations, enabling efficient field wiring and module replacement. It is essential for establishing power and signal connections between field devices and the I/O modules within a CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 system.

Key Features

• Supports both 4-pin and 6-pin configurations
• Screw-type terminals for secure wire connections
• Facilitates quick and easy module replacement
• Compatible with Compact 5000 I/O modules
• Designed for use in CompactLogix and Compact GuardLogix systems
• Enables efficient field wiring and maintenance
• Compact design for space-constrained installations

Technical Specifications

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Relative Humidity: 5% to 95% non-condensing
• Wire Size Compatibility: 0.5–1.5 mm² (22–16 AWG) solid or stranded copper wire rated at 105 °C or greater
• Maximum Wire Insulation Diameter: 3.5 mm (0.14 in.)
• Torque for Screw Terminals: 0.4 N·m (3.5 lb·in)
• Insulation Stripping Length: 12 mm (0.47 in.)
• Dimensions (H x W x L): 5.334 cm x 6.223 cm x 10.16 cm
• Weight: Approximately 52.163 g

Application Areas

• Industrial automation systems utilizing CompactLogix or Compact GuardLogix controllers
• Applications requiring modular and flexible I/O configurations
• Systems where quick and secure field wiring connections are essential
• Environments demanding reliable and maintainable I/O module connections

Advantages

• Simplifies the process of connecting field wiring to I/O modules
• Enhances system maintainability by allowing easy module replacement without rewiring
• Provides secure and reliable connections through screw-type terminals
• Supports both 4-pin and 6-pin configurations, offering flexibility in system design
• Compact and robust design suitable for various industrial environments
