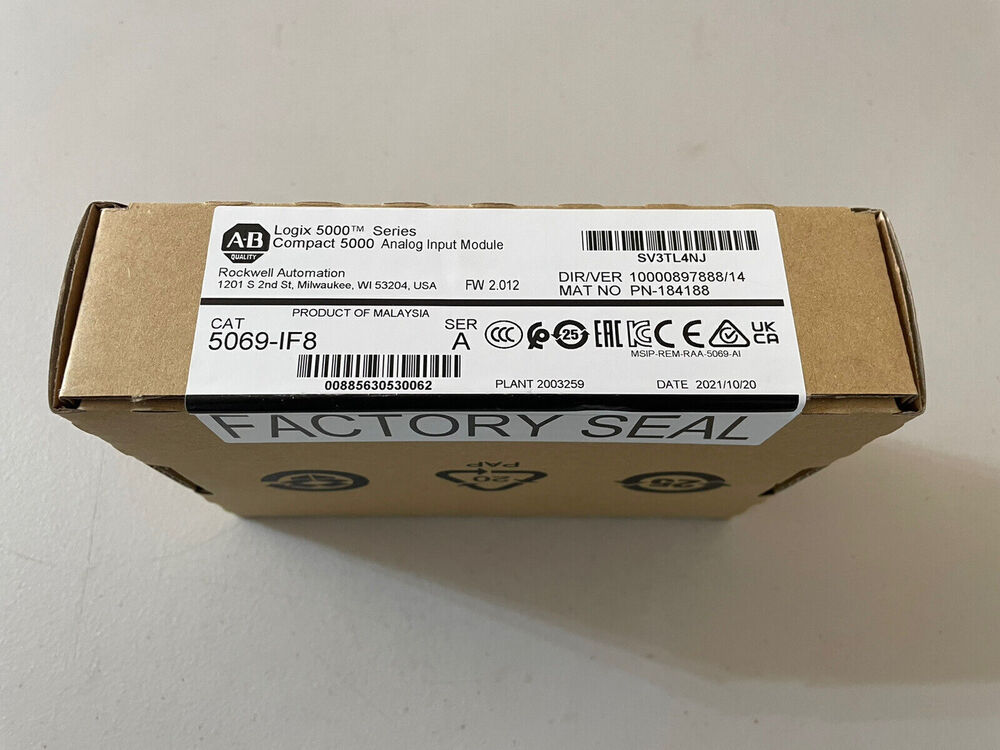

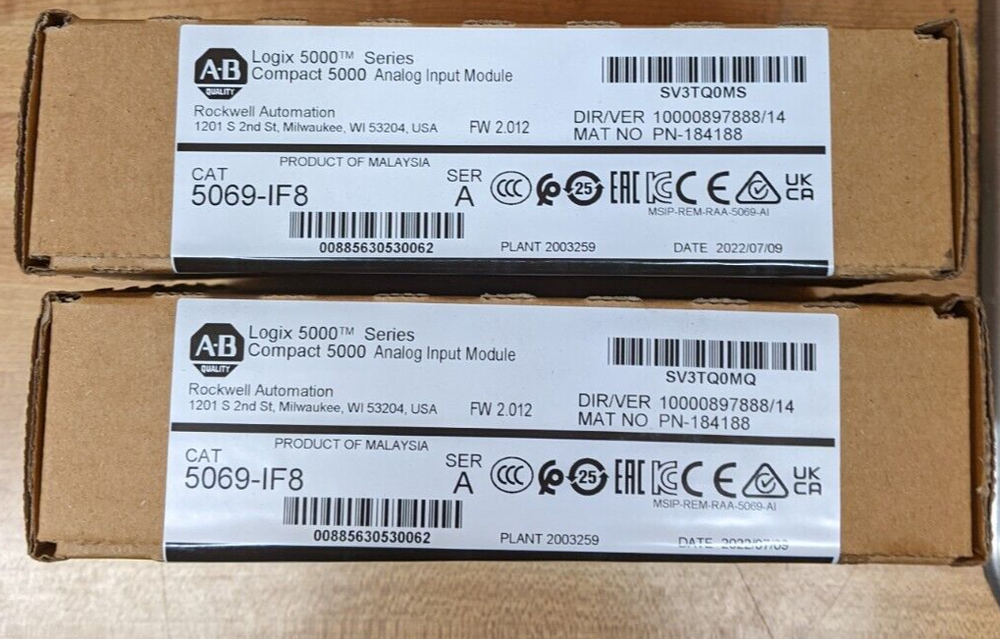

Allen-Bradley | 5069-IF8 | Compact 5000 I/O

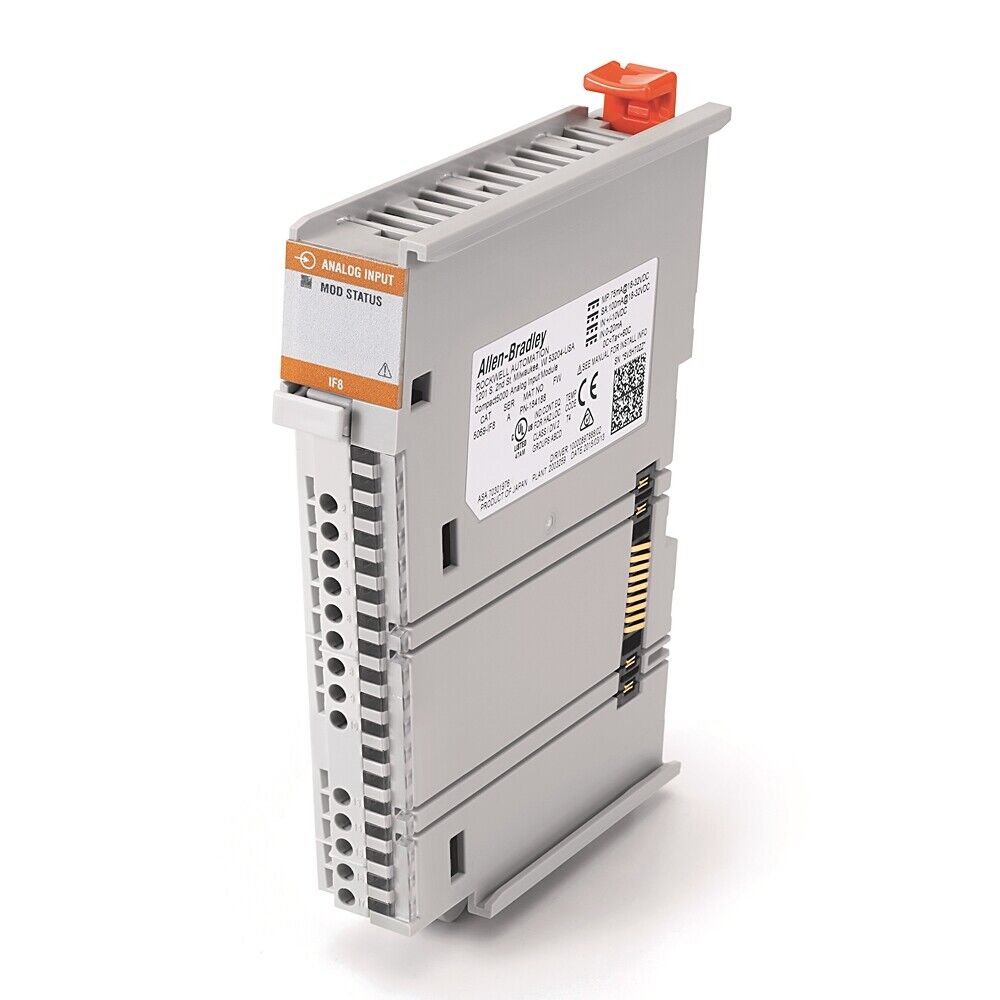

Product Description: Allen-Bradley 5069-IF8

The Allen-Bradley 5069-IF8 is an analog input module from the Compact 5000 I/O series , designed for high-speed, high-accuracy data acquisition in modern industrial automation systems. This 8-channel input module supports both voltage and current signal types and provides precise analog data to Logix 5000 controllers such as CompactLogix 5380 and 5480. The 5069-IF8 enables scalable, distributed control architectures with advanced diagnostics and secure, efficient communication.

Product Type

• Analog Input Module
• Series: Compact 5000 I/O
• Platform Compatibility: Designed for CompactLogix 5380/5480 and ControlLogix systems via Ethernet adapters

Key Features

• 8 differential analog input channels
• Supports voltage and current inputs:
  • Voltage ranges: ±10V, 0–10V, 0–5V
• High-resolution 16-bit conversion for accurate data acquisition
• Channel-to-channel isolation for increased signal integrity
• Advanced diagnostics including wire-off detection and overrange/underrange alerts
• Electronic keying for enhanced safety and configuration verification
• High-speed data update rates, optimized for real-time applications
• DIN rail mounting for quick and easy installation
• Screw-type terminal block (5069-RTB18-SCREW or similar required, sold separately)
• Compact form factor that reduces panel space and wiring complexity

Technical Specifications

• Channels: 8 differential inputs
• Resolution: 16-bit
• Input Impedance: >1 MΩ (voltage), 250 Ω (current)
• Update Rate: Configurable per channel, as fast as 1 ms
• Backplane Power Consumption: ~2.0 W
• Isolation Voltage: 250V (channel-to-system)
• Dimensions (HxWxD): Approx. 118 mm x 35 mm x 105 mm
• Operating Temperature: -20°C to +60°C
• Certifications: UL, CE, c-UL, RCM, KC, RoHS
• Enclosure Rating: IP20

Application Areas

• Process control systems
• Industrial machine monitoring
• Factory automation requiring precise analog measurements
• Remote or distributed I/O setups
• Oil & gas, water treatment, food & beverage, and life sciences sectors

Advantages

• Precise analog signal acquisition with advanced filtering
• Seamless integration with modern Logix controllers
• Compact and efficient design for space-constrained panels
• Flexible signal type configuration per channel
• Robust diagnostics help reduce downtime and improve system reliability
