Allen-Bradley | 5069-L330ER | CompactLogix 5380

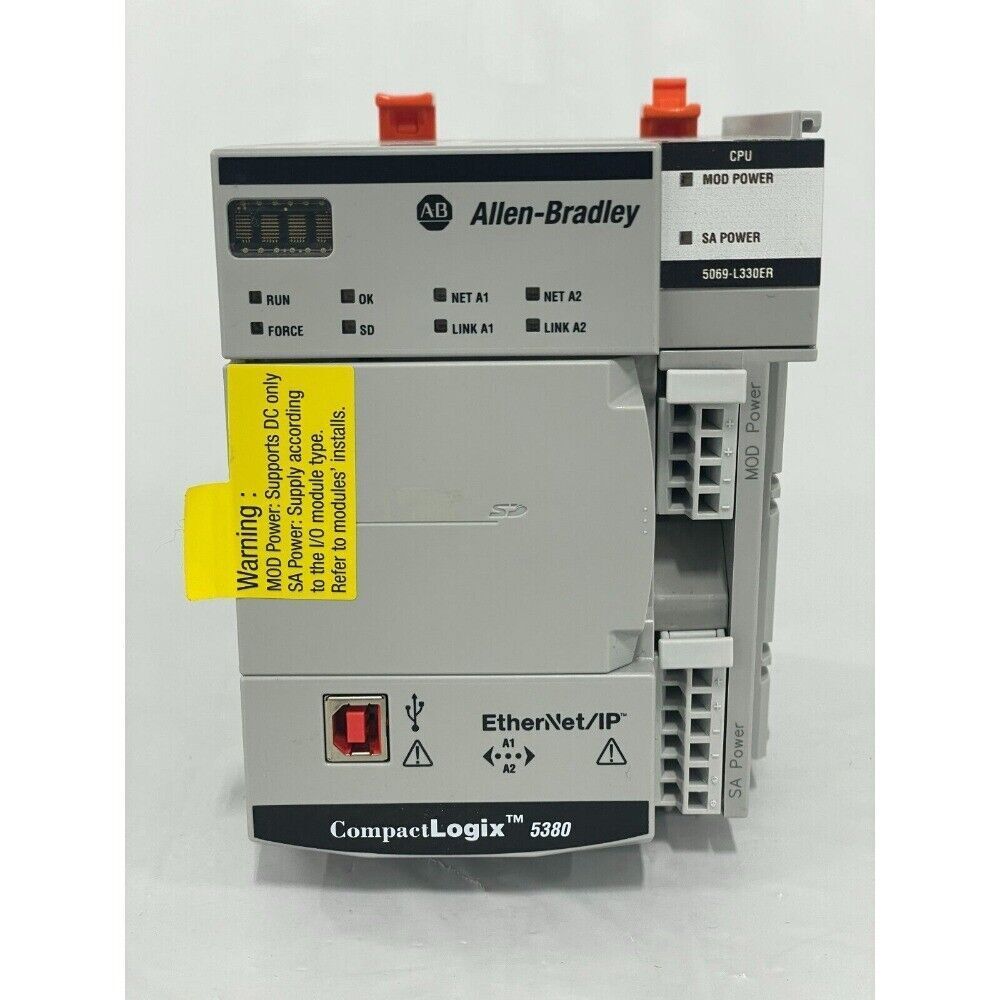

Product Description: Allen-Bradley 5069-L330ER CompactLogix 5380 controller

The Allen-Bradley 5069-L330ER is a high-performance CompactLogix 5380 controller designed for scalable and efficient control in a wide range of industrial applications. With 3 MB of user memory and support for up to 60 EtherNet/IP nodes, it offers robust processing capabilities and flexible networking options. The controller's dual Ethernet ports support various network topologies, and its compatibility with Compact 5000 I/O modules ensures seamless integration and expansion.

Key Features

• 3 MB user memory
• Supports up to 31 local I/O modules
• Dual Ethernet ports supporting Device Level Ring (DLR), Linear, and Star topologies
• USB 2.0 Type B port for programming and configuration
• Supports up to 60 EtherNet/IP nodes
• Handles up to 32 tasks, each with up to 1000 programs
• Integrated diagnostics and status indicators
• DIN rail mounting for compact installations

Technical Specifications

• User Memory: 3 MB
• Non-volatile Memory: 2 GB SD card (1784-SD2 included)
• Ethernet Ports: 2 (10/100/1000 Mbps, full-duplex)
• USB Port: 1 Type B, USB 2.0 (12 Mbps)
• I/O Capacity: Up to 128,000 packets per second
• Message Rate Capacity: Up to 2000 messages per second
• Supported Network Topologies: DLR, Linear, Star
• Dimensions (HxWxD): Approx. 143.97 x 98.10 x 136.81 mm
• Weight: Approx. 0.768 kg
• Operating Temperature: -20 to 60°C
• Mounting: DIN rail

Application Areas

• Discrete and process manufacturing
• Packaging and material handling systems
• Food and beverage industry
• Automotive assembly lines
• Water and wastewater treatment facilities
• Building automation systems

Advantages

• High-speed processing for demanding applications
• Flexible network integration with dual Ethernet ports
• Scalable architecture suitable for small to large systems
• Enhanced diagnostics for efficient troubleshooting
• Compact design saves panel space
• Seamless integration with Compact 5000 I/O modules
