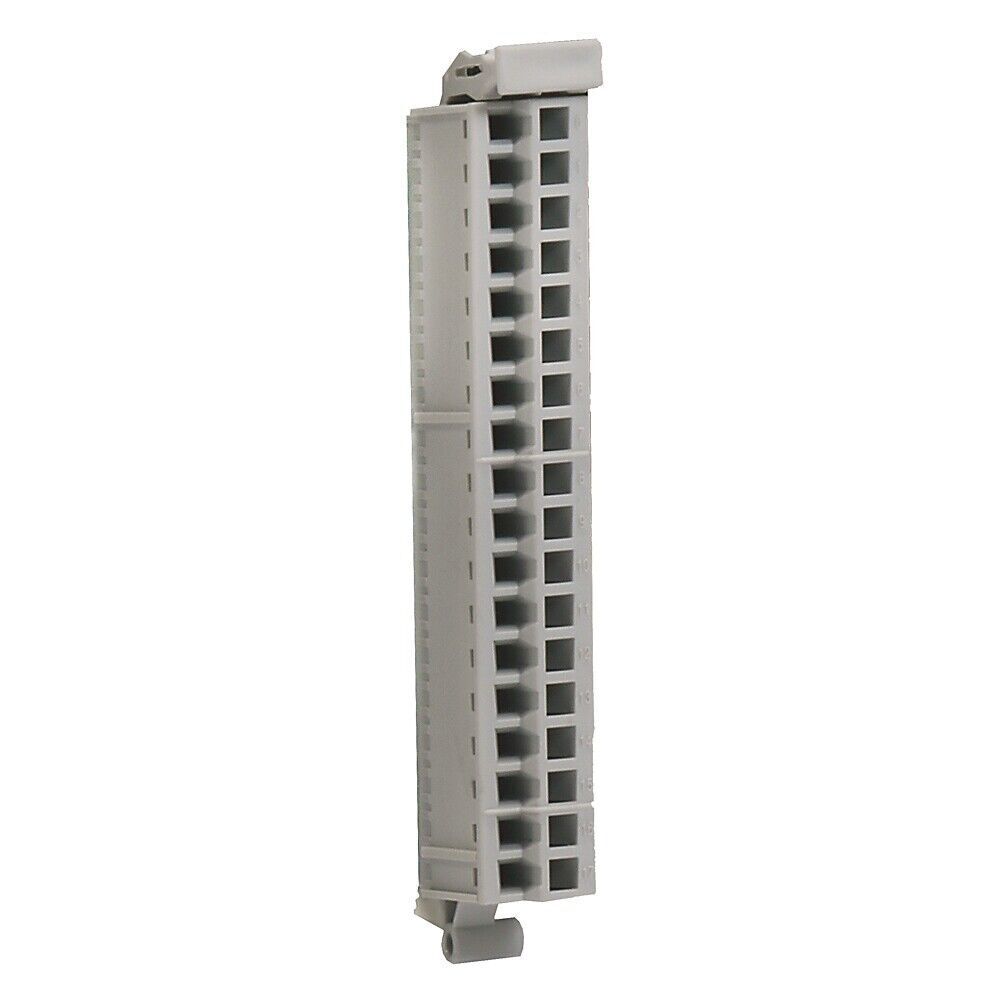

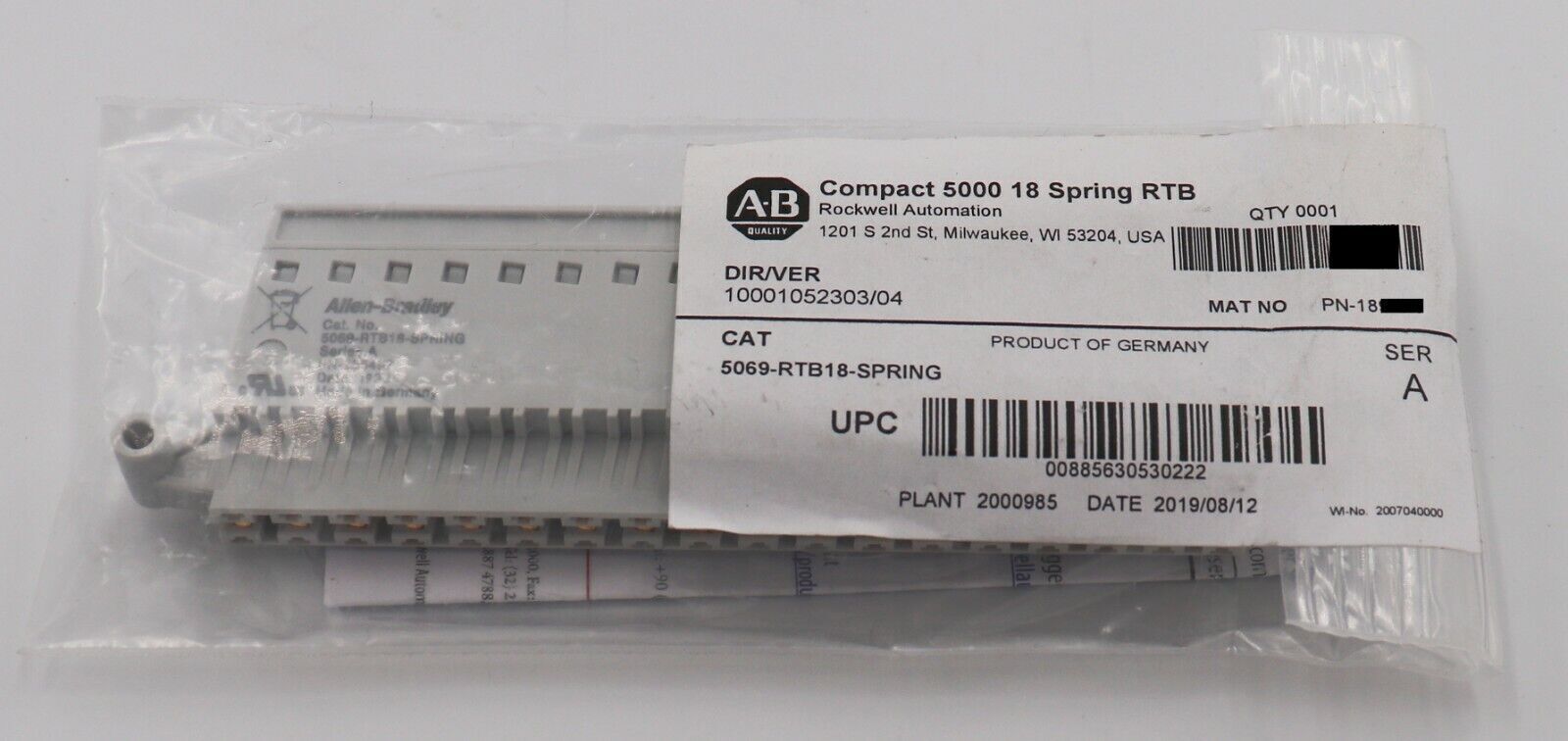

Product Description: Allen-Bradley 5069-RTB18-SPRING

The Allen-Bradley 5069-RTB18-SPRING is an 18-point removable terminal block designed for use with Compact 5000 I/O modules. It uses spring clamp connection technology to provide secure, vibration- resistant, and maintenance- free field wiring. This terminal block enables easy and tool-free installation and removal, allowing quick I/O module replacement without disturbing existing field wiring.

Key Features

• 18-point terminal configuration
• Spring clamp terminals for tool-free and reliable wiring
• Designed for use with Compact 5000 I/O modules
• Facilitates quick installation and module changes
• Compatible with 22–16 AWG solid or stranded copper wire
• Compact and durable construction suitable for industrial use

Technical Specifications

• Maximum Voltage: 300V AC
• Maximum Current: 10 A
• Supported Wire Size: 0.5–1.5 mm² (22–16 AWG)
• Maximum Wire Insulation Diameter: 2.9 mm
• Insulation Strip Length: 10 mm
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% non-condensing
• Dimensions (H x W x D): 144.57 mm x 22 mm x 105.42 mm
• Weight: Approximately 175 g

Application Areas

• CompactLogix 5380 and Compact GuardLogix 5380 control systems
• Distributed I/O applications
• Panel-based automation equipment
• High-density signal interface scenarios
• Industrial systems requiring fast and safe wiring maintenance

Advantages

• Reduces downtime with fast module replacement
• Enhances safety with secure spring-loaded wiring
• Space- efficient for compact control panels
• Suitable for high-vibration and harsh environments
• No special tools required for wire installation or removal
