The Allen-Bradley PowerFlex 755 is one of the most capable AC drives in Rockwell Automation's lineup — but that capability comes with complexity. A first-time setup done wrong can trip faults, damage the motor, or waste hours of commissioning time.
The following covers every parameter group and procedure you need to handle before the first power-up. The sequence is the same whether you program through the HIM keypad or DriveExecutive software.
Pre-Power Checklist
Before you apply power to a PowerFlex 755, verify the following. Skipping any of these steps is the most common cause of day-one faults.
- Wiring: Confirm input power (R/S/T) and motor output (U/V/W) connections are tight and torqued to spec. Check that input and output cables are routed separately to avoid EMI coupling.
- Grounding: The drive frame must be bonded to the panel ground bus with a copper conductor sized per NEC Table 250.122. The motor ground wire should return to the drive, not to a separate ground rod.

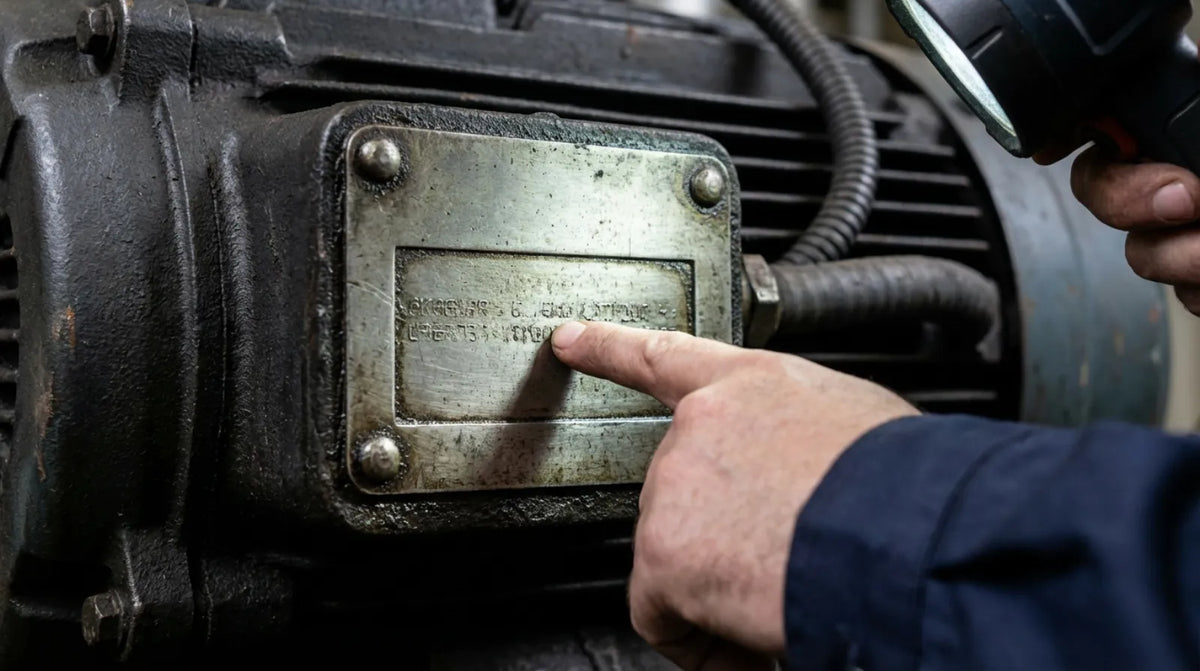

- Motor nameplate data: Record rated voltage, rated current (FLA), rated frequency (Hz), rated speed (RPM), and rated power (HP or kW). You will enter every one of these values into the drive's motor parameter group.
- Control wiring: Verify that Start/Stop, Speed Reference (analog or network), and any safety circuits (STO) are connected and labeled.
- Mechanical readiness: Confirm the motor is uncoupled from the load for the initial run and auto-tune. If uncoupling is not possible, ensure the load can tolerate low-speed rotation during tuning.
Essential Parameter Groups
The PowerFlex 755 has hundreds of parameters, but first-run configuration centers on four groups. Get these right and the drive will run. Get them wrong and you will chase nuisance faults for hours.
Group 1 — Motor Data
This is the most critical group. Every value here must match the motor nameplate exactly.
| Parameter | Description | Source |
|---|---|---|
| P031 [Motor NP Volts] | Motor rated voltage | Nameplate |
| P032 [Motor NP Amps] | Motor rated full-load current | Nameplate |
| P033 [Motor NP Hertz] | Motor rated frequency | Nameplate (typically 50 or 60 Hz) |
| P034 [Motor NP RPM] | Motor rated speed | Nameplate |
| P035 [Motor NP Power] | Motor rated power (HP or kW) | Nameplate |
| P036 [Motor Type] | Induction, PM, or SynRM | Motor documentation |
Why it matters: The drive uses these values to calculate motor model parameters, thermal overload thresholds, and voltage boost curves. If P032 (motor amps) is wrong, the electronic overload will either trip prematurely or fail to protect the motor.
Group 3 — Speed Reference
This group tells the drive where to get its speed command.
| Parameter | Description | Common Setting |
|---|---|---|
| P045 [Speed Ref A Sel] | Primary speed reference source | Analog Input 1 (potentiometer), Network (CIP), or HIM Keypad |
| P046 [Maximum Speed] | Maximum output frequency | 60 Hz (match motor rated frequency unless overspeed is intended) |
| P047 [Minimum Speed] | Minimum output frequency | 0 Hz (or higher if the load requires minimum airflow/cooling) |
For commissioning, set the speed reference to HIM Keypad so you can manually jog the motor during testing. Switch to Network or Analog once the drive is verified.
Group 4 — Acceleration/Deceleration
| Parameter | Description | Default |
|---|---|---|
| P048 [Accel Time 1] | Time in seconds from 0 to max speed | 10.0 s |
| P049 [Decel Time 1] | Time in seconds from max speed to 0 | 10.0 s |
| P050 [Accel Time 2] | Alternate accel ramp (selectable via DI) | 10.0 s |
| P051 [Decel Time 2] | Alternate decel ramp | 10.0 s |
High-inertia loads (fans, flywheels, centrifuges) need longer decel times to avoid DC bus overvoltage faults. Start with a conservative value — 30 seconds — and shorten it once you confirm the drive does not fault. If the application needs fast stopping, consider dynamic braking with a braking resistor.
Group 7 — Faults and Alarms
Before the first run, review these parameters to avoid nuisance trips:
- P107 [Motor OL Mode]: Set the electronic overload behavior. For testing with an uncoupled motor, you may temporarily increase the trip threshold — but always restore it to the nameplate FLA value before production.
- P108 [Auto Rstrt Tries]: Number of automatic restart attempts after a fault. Set to 0 during commissioning so every fault requires manual acknowledgment. Increase only after the system is proven.
- P109 [Auto Rstrt Delay]: Delay between restart attempts. Keep at 10 seconds minimum to avoid rapid cycling.
- P110 [Fault Clear Mode]: Controls whether faults clear automatically or require manual reset. Use manual reset during commissioning.
For a complete reference on fault codes and what triggers them, see our PowerFlex VFD Fault Codes Troubleshooting Guide.
Step-by-Step First-Run Procedure
Via HIM Keypad
- Apply power. Wait for the HIM (Human Interface Module) display to show "Ready".
- Press the ESC key to enter parameter programming mode.
- Navigate to Group 1 and enter all motor nameplate data (P031–P036).
- Set speed reference to HIM Keypad (P045 = HIM).
- Set Accel/Decel times to conservative values (e.g., 20 s each).
- Set Auto Restart Tries to 0 (P108 = 0).
- Press Start and use the potentiometer or arrow keys to command 10 Hz.
- Verify motor rotation direction. If reversed, swap any two motor output leads (U/V/W) — do not swap input power leads.
- Ramp to full speed (60 Hz). Monitor current draw and compare to nameplate FLA.
- Press Stop. Verify the drive decelerates smoothly without overvoltage faults.
Via DriveExecutive
- Connect a USB cable from your laptop to the drive's USB port, or connect via EtherNet/IP if the network adapter is already installed.
- Launch DriveExecutive and go online with the drive.
- Use the Startup Wizard — it walks you through Group 1 (motor data), speed reference, accel/decel, and basic fault configuration in sequence.
- After completing the wizard, command a low speed reference from DriveExecutive and verify motor operation.
- Save the configuration to the drive's non-volatile memory (File → Store to Drive).
DriveExecutive is faster for experienced users because you can view and edit multiple parameter groups simultaneously, copy configurations between drives, and trend live data.
Auto-Tune Procedure
After entering motor nameplate data, running auto-tune allows the drive to measure the actual motor characteristics — stator resistance, magnetizing inductance, and leakage reactance. This dramatically improves sensorless vector control performance.
Static Tune
The drive applies DC voltage to the motor windings without spinning the shaft. Use static tune when:
- The motor cannot be uncoupled from the load
- Rotation is unsafe during commissioning (e.g., conveyor with product on it)
- You are operating in V/Hz mode and want improved motor protection accuracy
Static tune measures stator resistance and leakage reactance. It takes approximately 30 seconds.
Rotational Tune
The drive spins the motor at various speeds to measure the full motor model including magnetizing current and inertia. Use rotational tune when:
- The motor is uncoupled or the load can tolerate rotation
- You are using Sensorless Vector Control (SVC) or Flux Vector Control
- The application demands tight speed regulation or precise torque control
Rotational tune takes 2–5 minutes depending on motor size. The motor will rotate in both directions during the procedure.
Recommendation: Always run rotational tune if possible. The additional motor model data provides significantly better speed regulation and torque response than static tune alone.
Communication Setup: EtherNet/IP and Studio 5000
The PowerFlex 755 connects to Allen-Bradley PLCs (ControlLogix, CompactLogix) over EtherNet/IP using an optional 20-COMM-E adapter or the embedded Ethernet port on newer frames.
Network Configuration on the Drive
- Navigate to the communication parameters (Group 9) via HIM or DriveExecutive.
- Set the IP address, subnet mask, and gateway. Use a static IP for production — DHCP is acceptable only for initial setup.
- Set the CIP connection parameters: RPI (Requested Packet Interval) — 10 ms is typical for motion, 50–100 ms is fine for process control.
- Verify the link by pinging the drive from a PC on the same subnet.
AOP Configuration in Studio 5000
- In Studio 5000 Logix Designer, right-click the Ethernet module in the I/O tree and select New Module.
- Search for "PowerFlex 755" in the module catalog. If the drive does not appear, download the latest Add-On Profile (AOP) from Rockwell's Product Compatibility and Download Center (PCDC).
- Enter the drive's IP address and set the RPI to match the drive's configuration.
- Select the I/O format — "Speed Control" is the most common. This gives you a Speed Reference, Logic Command, and Logic Status word in the controller tags.
- Download the PLC program and go online. Verify the module shows no communication faults (yellow triangle) in the I/O tree.
For an overview of which PowerFlex model fits different network architectures, see our PowerFlex VFD Selection Guide.
Common First-Run Mistakes
| Mistake | Consequence | Prevention |
|---|---|---|
| Entering motor amps instead of drive amps in P032 | Overload trips or inadequate motor protection | Always use the motor nameplate FLA, not the drive's rated current |
| Setting decel time too short for high-inertia loads | DC bus overvoltage fault (F12) | Start with 30 s decel and reduce gradually |
| Skipping auto-tune when using SVC mode | Poor speed regulation, current oscillation, motor overheating | Always run at least static tune; rotational tune is strongly preferred |
| Leaving speed reference set to Network before network is configured | Drive shows "Ready" but will not start (no speed command) | Use HIM Keypad reference for initial commissioning |
| Not storing parameters to NVM after setup | Configuration lost on next power cycle | Always execute Store to NVM (or File → Store to Drive in DriveExecutive) |
| Swapping input power leads to reverse motor direction | No effect — input phase sequence does not change output rotation | Swap any two output leads (U/V/W) to reverse motor direction |
